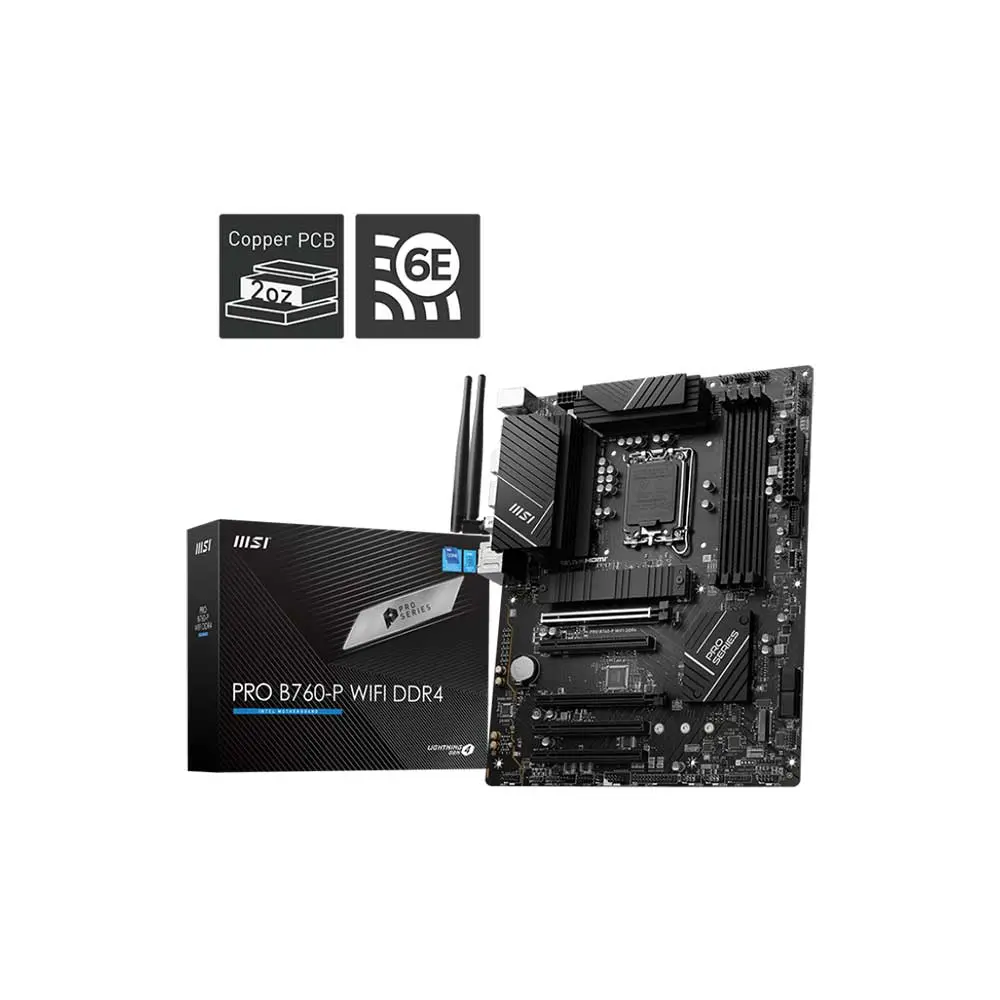

Msi Pro B760-P Wifi Ddr4 Lga1700 Atx Motherboard (PRO-B760-P-WIFI-DDR4)

Original price was: ₹33,999.Current price is: ₹17,000.

(50% OFF)

(Inclusive of all taxes)

Model No : PRO-B760-P-WIFI-DDR4
BUY NOW
all india free shipping
3 day replacement
secured shopping
genuine products
no hidden charges
competitive pricing

Description

Msi Pro B760-P Wifi Ddr4 Lga1700 Atx Motherboard (PRO-B760-P-WIFI-DDR4)

  • Supports 12th/13th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
  • Supports DDR4 Memory, Dual Channel DDR4 5333+MHz (OC)
  • Enhanced Power Design: 12+1 Duet Rail Power System with P-PAK, 8-pin + 4-pin CPU power connectors, Core Boost, Memory Boost
  • Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
  • High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material
  • Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2
  • Intel Turbo USB 3.2 Gen 2: Powered by Intel USB 3.2 Gen2 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds
  • 2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
  • AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
Chipset Intel B760
CPU Support Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors
LGA1700
Memory 4x DDR4, Maximum Memory Capacity 128GB
Memory Support 5333(OC)/ 5200(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC)
Max. overclocking frequency:
• 1DPC 1R Max speed up to 5333+ MHz
• 1DPC 2R Max speed up to 4800+ MHz
• 2DPC 1R Max speed up to 4400+ MHz
• 2DPC 2R Max speed up to 4000+ MHzSupports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile (XMP)
Onboard Graphics 1x HDMI™
1x DisplayPort
Support HDMI™ 2.1, maximum resolution of 4K 60Hz*
Support DP 1.4, maximum resolution of 4K 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Expansion Slot 5x PCI-E x16 slot
PCI_E1 PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 PCIe 4.0 supports up to x16 (From Chipset)
PCI_E4 PCIe 3.0 supports up to x1 (From Chipset)
PCI_E5 PCIe 3.0 supports up to x1 (From Chipset)
Storage 2x M.2 slot
M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices
M.2_2 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
4x SATA 6G port
* SATA8 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.
Raid Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB 4x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 3.2 Gen1 Type A (Front)
1x USB 3.2 Gen1 Type C (Front)
2x USB 3.2 Gen2 Type A (Rear)
1x USB 3.2 Gen2 Type C (Rear)
Wireless / Bluetooth Intel® Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ axSupports Bluetooth® 5.3, FIPS, FISMA

* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 10 build 21H1 and Windows 11.

LAN Realtek® 2.5Gbps LAN
Audio Realtek® ALC897 Codec
7.1-Channel High Definition Audio
Internal I/O 1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
5x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Printer Port (JLPT)
1x Com Port (JCOM)
1x TBT connector (JTBT, supports RTD3)
2x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0
2x USB 3.2 Gen1 Type A
1x USB 3.2 Gen1 Type C
LED Feature 4x EZ Debug LED

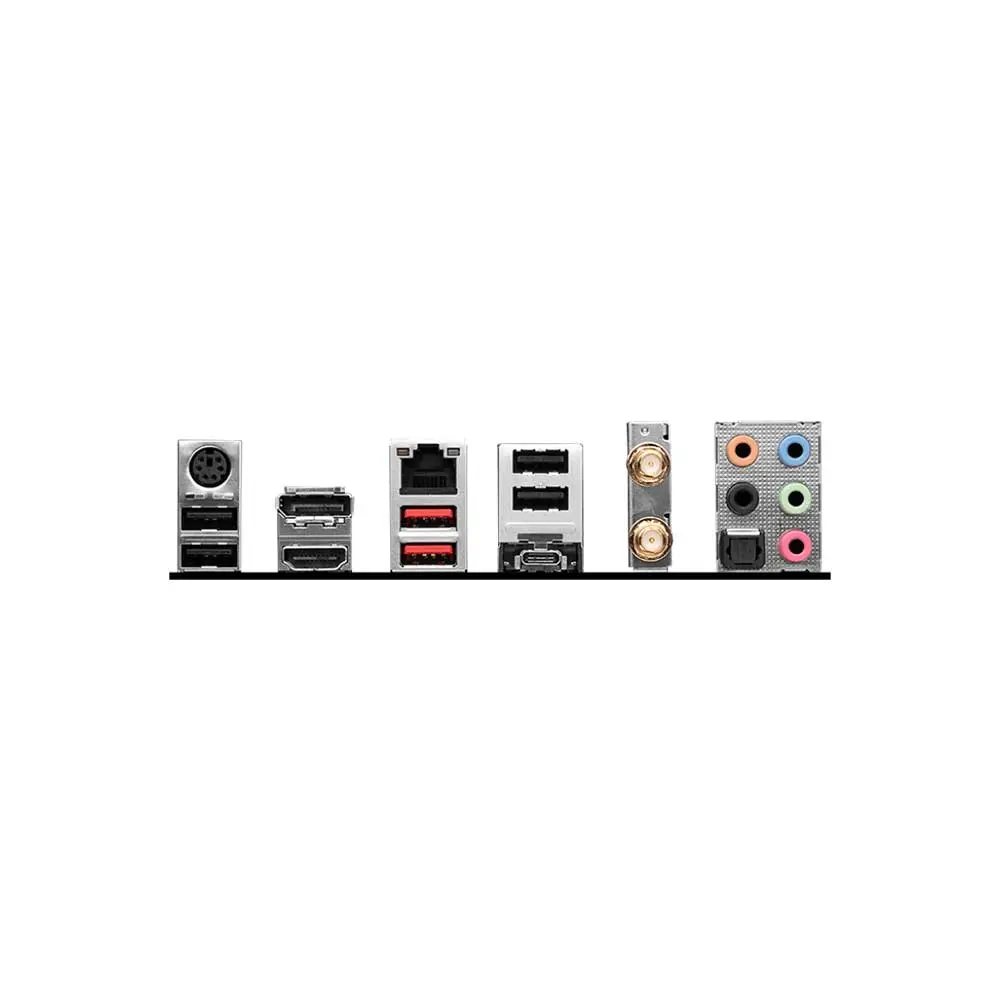

Back Panel Ports
  1. Keyboard / Mouse
  2. DisplayPort
  3. 2.5G LAN
  4. USB 2.0
  5. Wi-Fi / Bluetooth
  6. Audio Connectors
  7. USB 2.0
  8. HDMI™
  9. USB 3.2 Gen 2 10Gbps (Type-A)
  10. USB 3.2 Gen 2 10Gbps (Type-C)
  11. S/PDIF-OUT
Operating System Support for Windows® 11 64-bit, Windows® 10 64-bit
PCB Dimension ATX
243.84mmx304.8mm
Warranty 3 Years
