Asus Tuf Gaming B550m-Plus Wifi II Am4 Micro Atx Motherboard (Tuf-Gaming-B550m-plus-Wifi-II)

17,600.00

Inclusive of all taxes

Model No : TUF-GAMING-B550M-PLUS-WIFI-II
Buy Now

All over India Shipping

Competitive Pricing

Experts in pc building

product description

Description

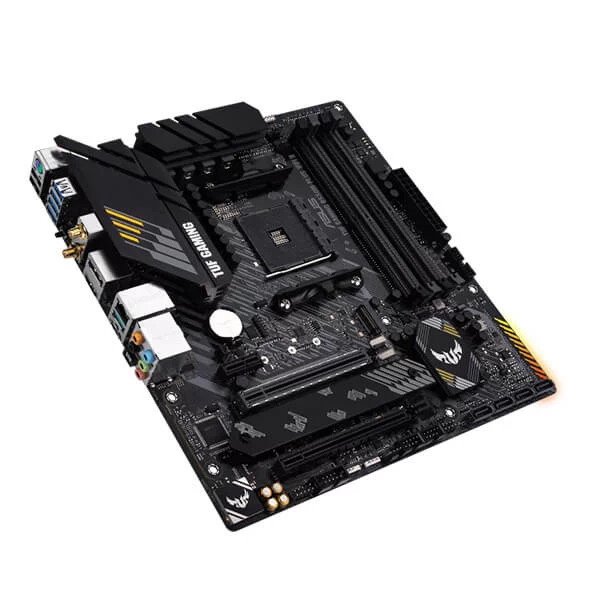

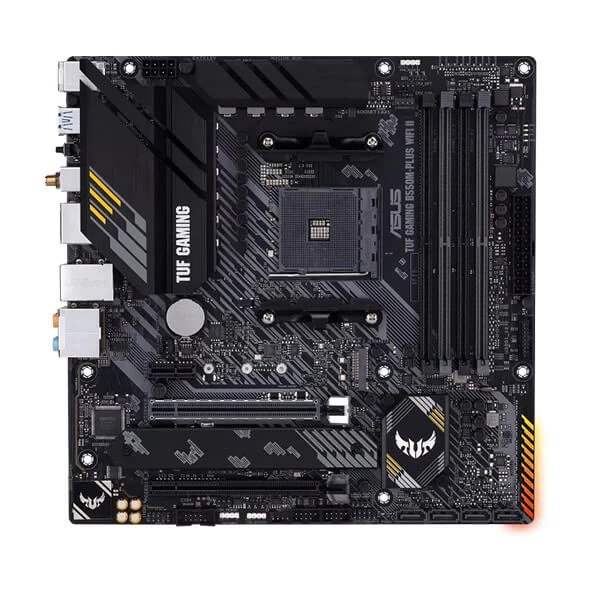

Asus Tuf Gaming B550m-Plus Wifi II Am4 Micro Atx Motherboard (Tuf-Gaming-B550m-plus-Wifi-II)

Features:

AMD B550 (Ryzen AM4) micro ATX gaming motherboard with PCIe 4.0, dual M.2, 10 DrMOS power stages, Wi-Fi 6, 2.5 Gb Ethernet, HDMI, DisplayPort, SATA 6 Gbps, USB 3.2 Gen 2 Type-A and Type-C®, BIOS FlashBack™, and Aura Sync RGB lighting support
  • AMD AM4 socket: Ready for Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors
  • Enhanced power solution: 8+2 DrMOS power stages, ProCool connector, military-grade TUF components, and DIGI+ VRM for maximum durability
  • Comprehensive cooling: VRM heatsinks, PCH fanless heatsink, M.2 heatsink, hybrid fan headers and Fan Xpert 2+ utility
  • Ultrafast connectivity: PCIe 4.0 M.2, USB 3.2 Gen 2 Type-A and Type-C® support
  • Made for online gaming: Wi-Fi 6, Realtek 2.5Gb Ethernet, and TUF LANGuard
  • Two-Way AI Noise Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences

Specifications:

CPU AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors
Chipset AMD B550 Chipset
Memory 4 x DIMM, Max. 128GB, DDR4 4866(OC)/4800(OC)/4600(OC)/4466(OC)/4400(OC)/4333(OC)/4266(OC)/4200(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133, Un-buffered Memory*

Dual Channel Memory Architecture

* ECC Memory (ECC mode) support varies by CPU.

* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.

Graphics 1 x DisplayPort**
1 x HDMI®port***
* Graphics specifications may vary between CPU types.** Supports max. [email protected] as specified in DisplayPort 1.2.

*** Supports [email protected] as specified in HDMI 2.1.

Expansion Slots AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors

1 x PCIe 4.0 x16 slot (supports x16 mode)*

AMD Ryzen™ 5000 G-Series/ 4000 G-Series Desktop Processors

1 x PCIe 3.0 x16 slot (supports x16 mode)*

AMD B550 Chipset

1 x PCIe 3.0 x16 slot (supports x4 mode)**

1 x PCIe 3.0 x1 slot**

* Support PCIe bifurcation for RAID on CPU function.

** PCIEX16_2 will run x2 mode when PCIEX1 slot is used.

Storage Supports 2 x M.2 slots and 4 x SATA 6Gb/s ports

AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors

M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)

AMD Ryzen™ 5000 G-Series/ 4000 G-Series Desktop Processors

M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)

AMD B550 Chipset

M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)

4 x SATA 6Gb/s ports

Support RAID 0, 1, 10

Ethernet
  • 1 x Realtek 2.5Gb Ethernet
  • TUF LANGuard
Wireless & Bluetooth 2×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) + BT5.2
USB Rear USB:Total 8 ports

  • 2 x USB 3.2 Gen 2 ports (1 x Type-A + 1 x USB Type-C®)
  • 4 x USB 3.2 Gen 1 ports (4 x Type-A)
  • 2 x USB 2.0 ports (2 x Type-A)

Front USB:Total 6 ports

  • 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
  • 2 x USB 2.0 headers support additional 4 USB 2.0 ports
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC

  • Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
  • Supports up to 24-Bit/192 kHz playback

Audio Features

  • Audio Shielding
  • Rear optical S/PDIF out port
  • Premium audio capacitors
  • Dedicated audio PCB layers
  • Audio cover

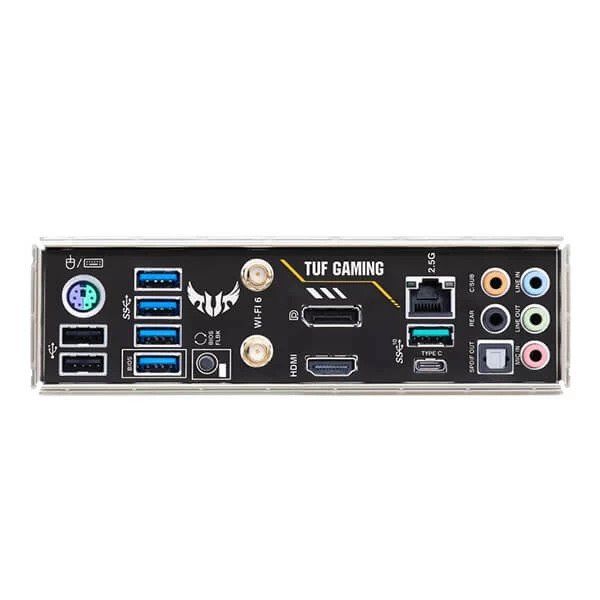

Back Panel I/O Ports
  • 2 x USB 3.2 Gen 2 ports (1 x Type-A + 1 x USB Type-C®)
  • 4 x USB 3.2 Gen 1 ports (4 x Type-A, one port can be switched to USB BIOS FlashBack™)
  • 2 x USB 2.0 ports (2 x Type-A)
  • 1 x DisplayPort
  • 1 x HDMI® port
  • 1 x Wi-Fi Module
  • 1 x Realtek 2.5Gb Ethernet port
  • 5 x Audio jacks
  • 1 x Optical S/PDIF out port
  • 1 x BIOS FlashBack™ button
  • 1 x PS/2 Keyboard/Mouse combo port
Internal I/O Connectors Fan and Cooling related

  • 1 x 4-pin CPU Fan header
  • 1 x 4-pin CPU OPT Fan header
  • 2 x 4-pin Chassis Fan headers

Power related

  • 1 x 24-pin Main Power connector
  • 1 x 8-pin +12V Power connector

Storage related

  • 2 x M.2 slots (Key M)
  • 4 x SATA 6Gb/s ports

USB

  • 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
  • 2 x USB 2.0 headers support additional 4 USB 2.0 ports

Miscellaneous

  • 1 x Addressable Gen 2 header
  • 2 x AURA RGB headers
  • 1 x Clear CMOS header
  • 1 x COM Port header
  • 1 x Front Panel Audio header (AAFP)
  • 1 x Speaker header
  • 1 x SPI TPM header (14-1pin)
    1 x 10-1 pin System Panel header
Special Features ASUS TUF PROTECTION

  • DIGI+ VRM (Digital power design with DrMOS)
  • Enhanced DRAM Overcurrent Protection
  • ESD Guards
  • TUF LANGuard
  • Overvoltage Protection
  • SafeSlot
  • Stainless-Steel Back I/O

ASUS Q-Design

  • Q-DIMM
  • Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
  • Q-Slot

ASUS Thermal Solution

  • M.2 heatsink
  • VRM heatsink design

ASUS EZ DIY

  • BIOS FlashBack™ button
  • BIOS FlashBack™ LED
  • ProCool

AURA Sync

  • AURA RGB headers
  • Addressable Gen 2 header
Software Features ASUS Exclusive Software

Armoury Crate

  • Aura Creator
  • Aura Sync
  • Two-Way AI Noise Cancelation

AI Suite 3

  • Performance And Power Saving Utility
    TurboV EVO
    EPU
    DIGI+ VRM
    Fan Xpert 2+
  • EZ update

TUF GAMING CPU-Z

AI Charger

DAEMON Tools

DTS Custom for GAMING Headsets

Norton Anti-virus software (Free Trial version)

WinRAR

UEFI BIOS

ASUS EZ DIY

  • ASUS CrashFree BIOS 3
  • ASUS EZ Flash 3
  • ASUS UEFI BIOS EZ Mode
BIOS 256 Mb Flash ROM, UEFI AMI BIOS
Manageability WOL by PME, PXE

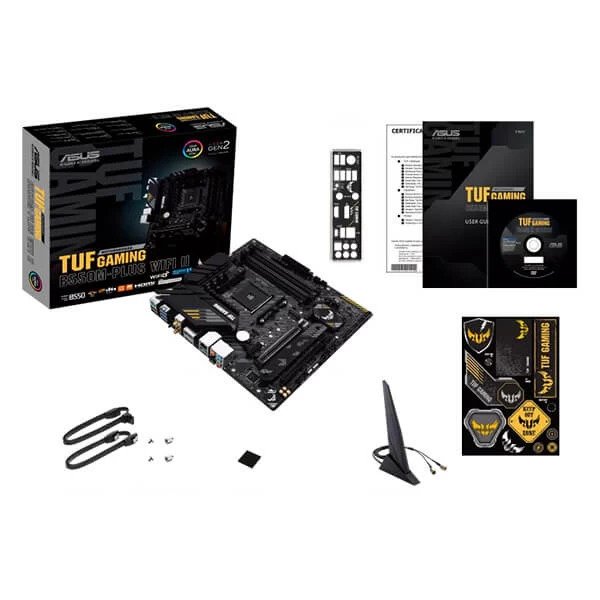

Accessories Cables

  • 2 x SATA 6Gb/s cables

Miscellaneous

  • 1 x ASUS Wi-Fi moving antennas
  • 1 x I/O Shield
  • 1 x M.2 Rubber package
  • 1 x M.2 SSD screw package
  • 1 x TUF Gaming sticker

Installation Media

  • 1 x Support DVD

Documentation

  • 1 x TUF Certification card
  • 1 x User guide
Operating System
  • Windows® 11 ready
  • Windows® 10 64-bit
Form Factor microATX
24.4cm x 24.4cm
Warranty 3 Years
Note ***Features,Price and Specifications are subject to change without notice.
