15,050.00

SKU: MPG B550 GAMING PLUS Categories: ,

Description

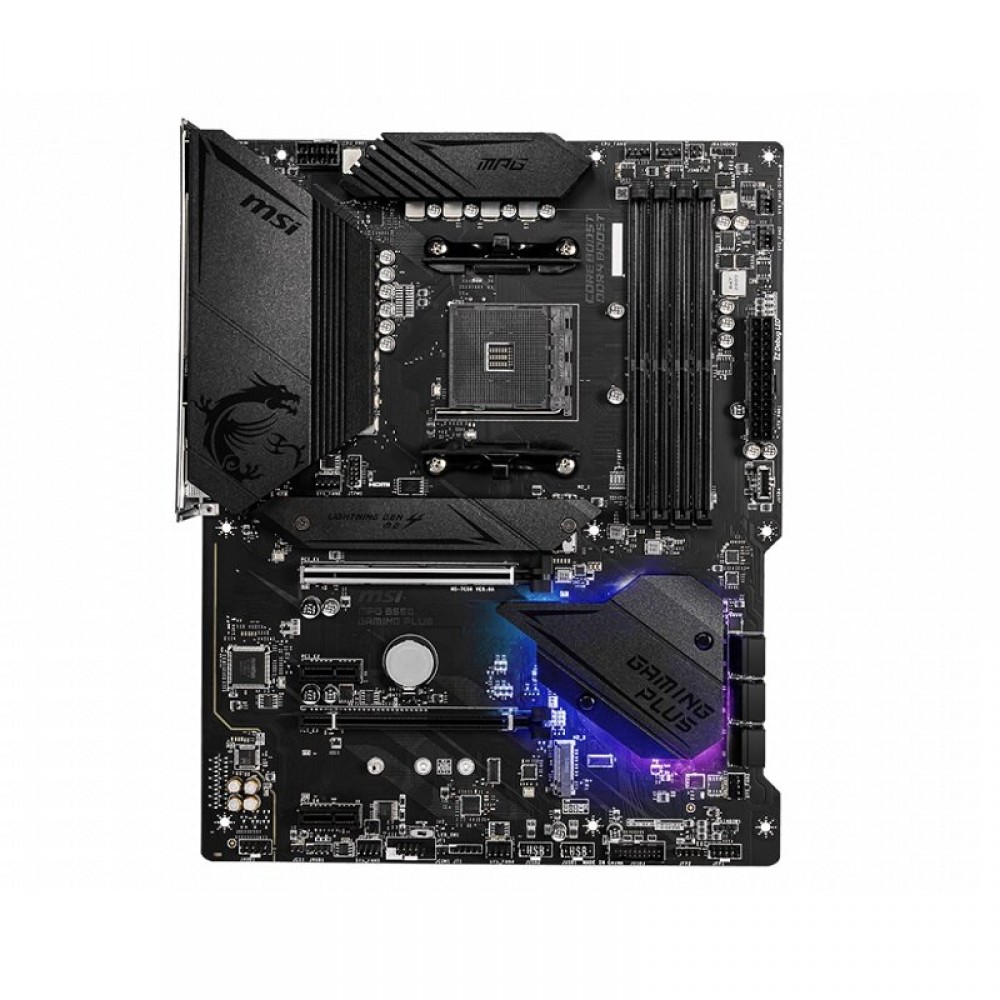

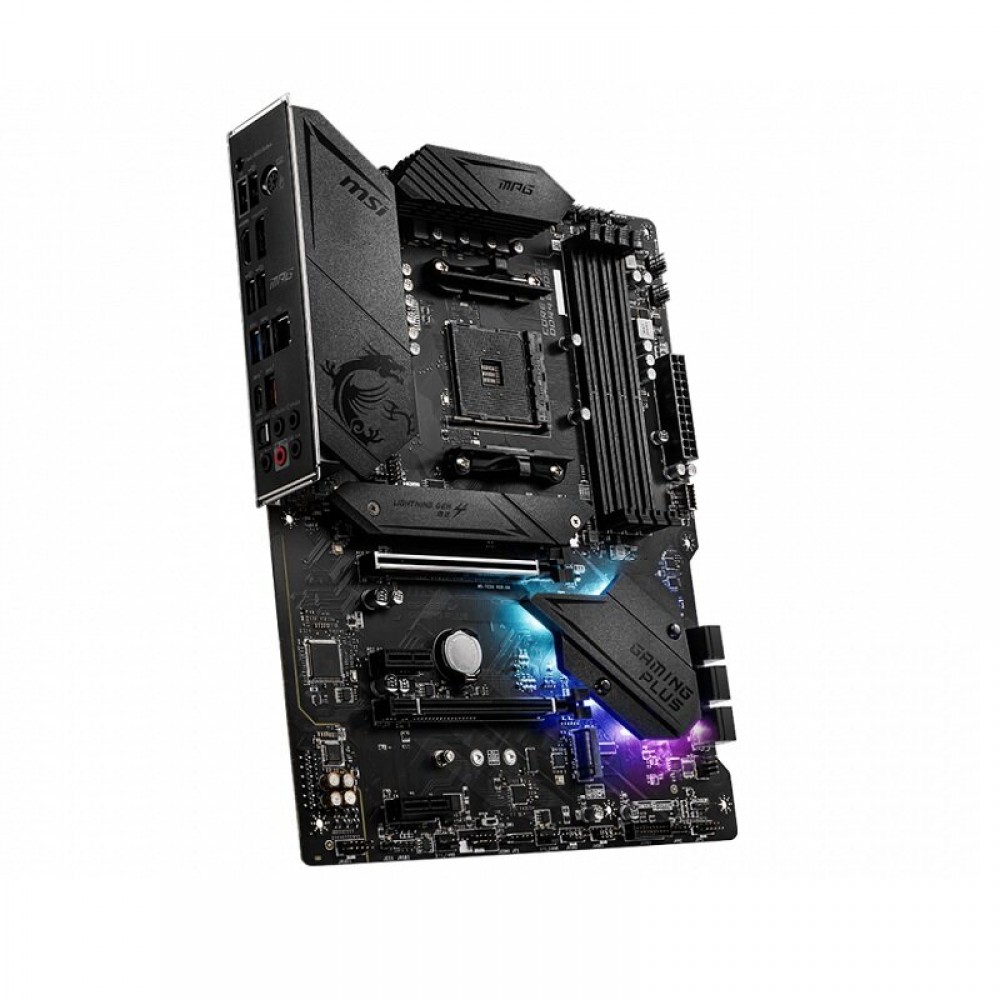

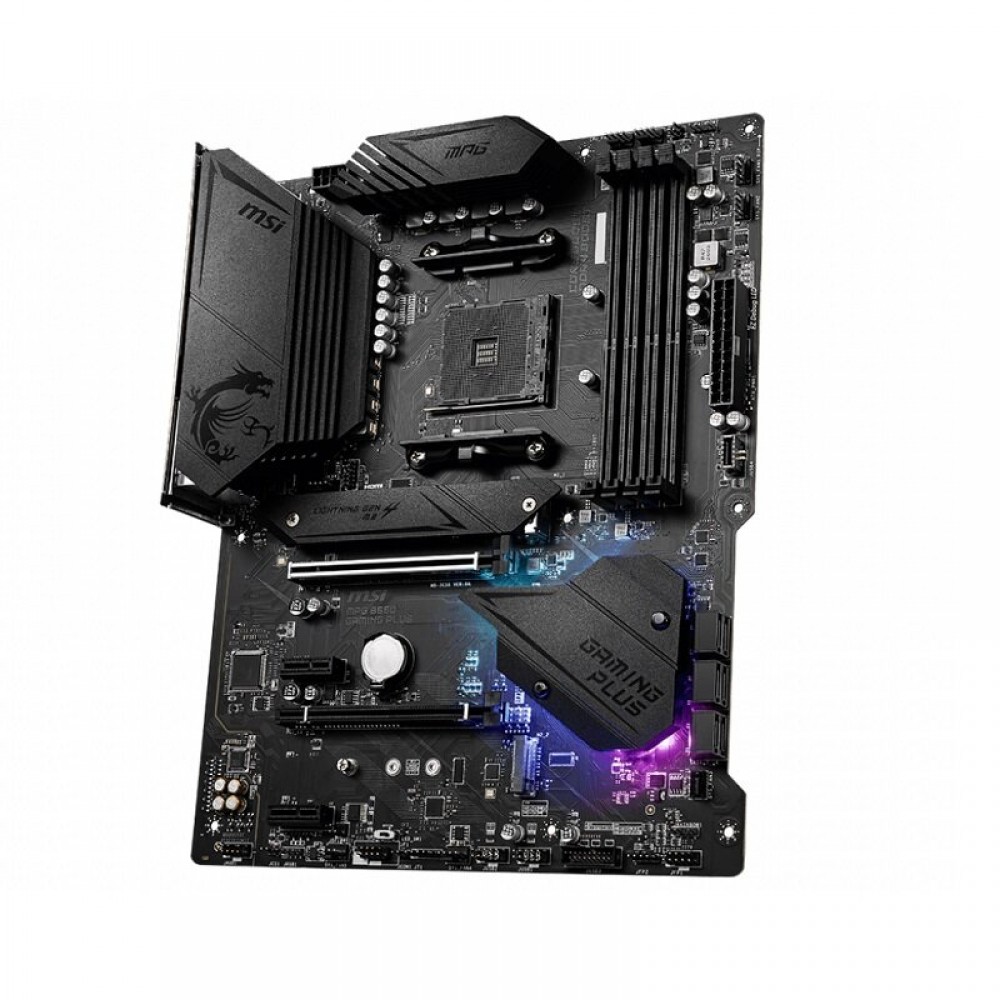

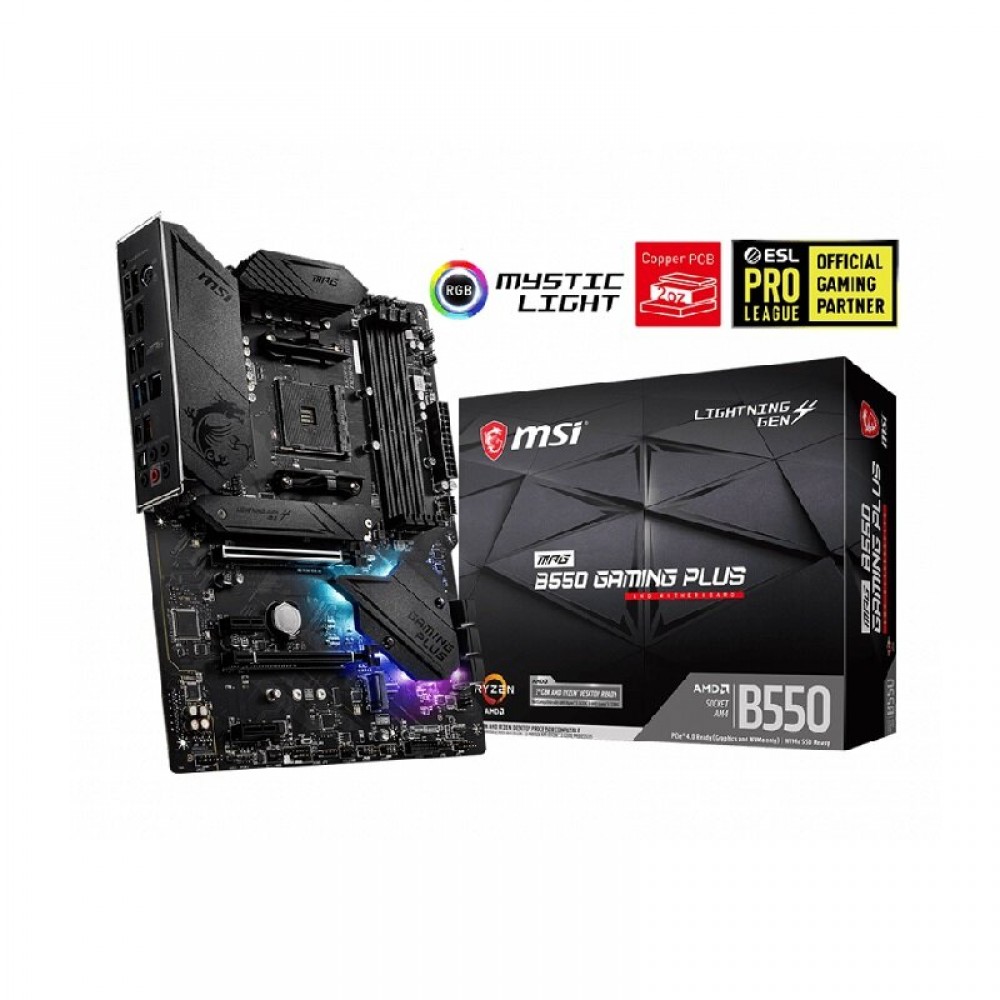

MSI MPG B550 GAMING PLUS MOTHERBOARD (MPG B550 GAMING PLUS)

  • Support for 3rd Gen AMD Ryzen™ Processors and future AMD Ryzen™ processors with BIOS update
  • Supports DDR4 Memory, up to 4400(OC) MHz
  • Lightning Fast Game experience: PCIe 4.0, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, AMD Turbo USB 3.2 GEN 2
  • Enhanced Power Design: Core Boost, Digital PWM IC, 2oz Thickened Copper PCB, DDR4 Boost
  • Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
  • Pre-installed I/O Shielding: Better EMI protection and more convenience for installation
  • Flash BIOS Button with Optmized ClearCMOS Function: Simply use a USB key to flash any BIOS within seconds. Restore the BIOS to the default settings without any additional actions.
  • Audio Boost: Reward your ears with studio grade sound quality



Specification
CPU Supports AM4 socket 3rd Gen AMD Ryzen™ processors, and future AMD Ryzen™ processors with BIOS update
Chipset AMD B550 Chipset
Memory 4x DDR4 memory slots, support up to 128GB 1

Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC

Supports DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733 / 3866/ 4000/ 4133/ 4266/ 4400+ MHz by A-XMP OC MODE

1DPC 1R max speed 4400 MHz

1DPC 2R max speed 3866 MHz

2DPC 1R max speed 4000 MHz

2DPC 2R max speed 3600 MHz

Dual channel memory architecture

Supports non-ECC UDIMM memory

Supports ECC UDIMM memory (non-ECC mode)

Supports un-buffered memory

Please refer www.msi.com for more information on compatible memory.

Expansion Slots 1x PCIe 4.0/ 3.0 x16 slot (PCI_E1) 1

1x PCIe 3.0 x16 slot (PCI_E3), supports x4 speed 2

2x PCIe 3.0 x1 slots

The supported specification depends on installed processor.

When installing PCIe SSD in M.2_2, PCI_E3 slot will be unavailable.

Multi-GPU Supports 2-Way AMD CrossFire™ Technology
Onboard Graphics 1x HDMI 2.1 port, supports a maximum resolution of 4096×2160 @60Hz 1 2

1x DisplayPort, supports a maximum resolution of 4096×2160 @60Hz 1

Maximum shared memory of 16 GB

Available for the processor with integrated graphics.

Graphics specifications may vary depending on the CPU installed.

Storage AMD B550 Chipset

6x SATA 6Gb/s ports

2x M.2 slots (Key M)

M2_1 slot (from AMD Processor)

Supports PCIe 4.0/ 3.0 x4 1

Supports SATA 6Gb/s

Supports 2242/ 2260/ 2280/ 22110 storage devices

M2_2 slot (from AMD B550 chipset)

Supports PCIe 3.0×4

Supports 2242/ 2260/ 2280 storage devices

The supported specification depends on installed processor.

RAID Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices

Supports RAID 0 and RAID 1 for M.2 NVMe storage devices

USB AMD B550 Chipset

3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector)

8x USB 2.0 ports (4 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)

AMD Processor

2x USB 3.2 Gen 2 10Gbps ports (1 Type-C port and 1 Type-A port on the back panel)

2x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel

Audio Realtek® ALC892 Codec

7.1-Channel High Definition Audio

Supports S/PDIF output

LAN 1x Realtek® 8111H Gigabit LAN controller
Internal Connectors 1x 24-pin ATX main power connector

1x 8-pin ATX 12V power connector

6x SATA 6Gb/s connectors

2x M.2 slots (M-Key)

1x USB 3.2 Gen 1 5Gbps Type-C port

1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)

2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)

1x 4-pin CPU fan connector

1x 4-pin water-pump fan connector

6x 4-pin system fan connectors

1x Front panel audio connector

2x System panel connectors

1x Chassis Intrusion connector

1x 4-pin RGB LED connector

2x 3-pin RAINBOW LED connectors

1xTPM module connector

1x Clear CMOS jumper

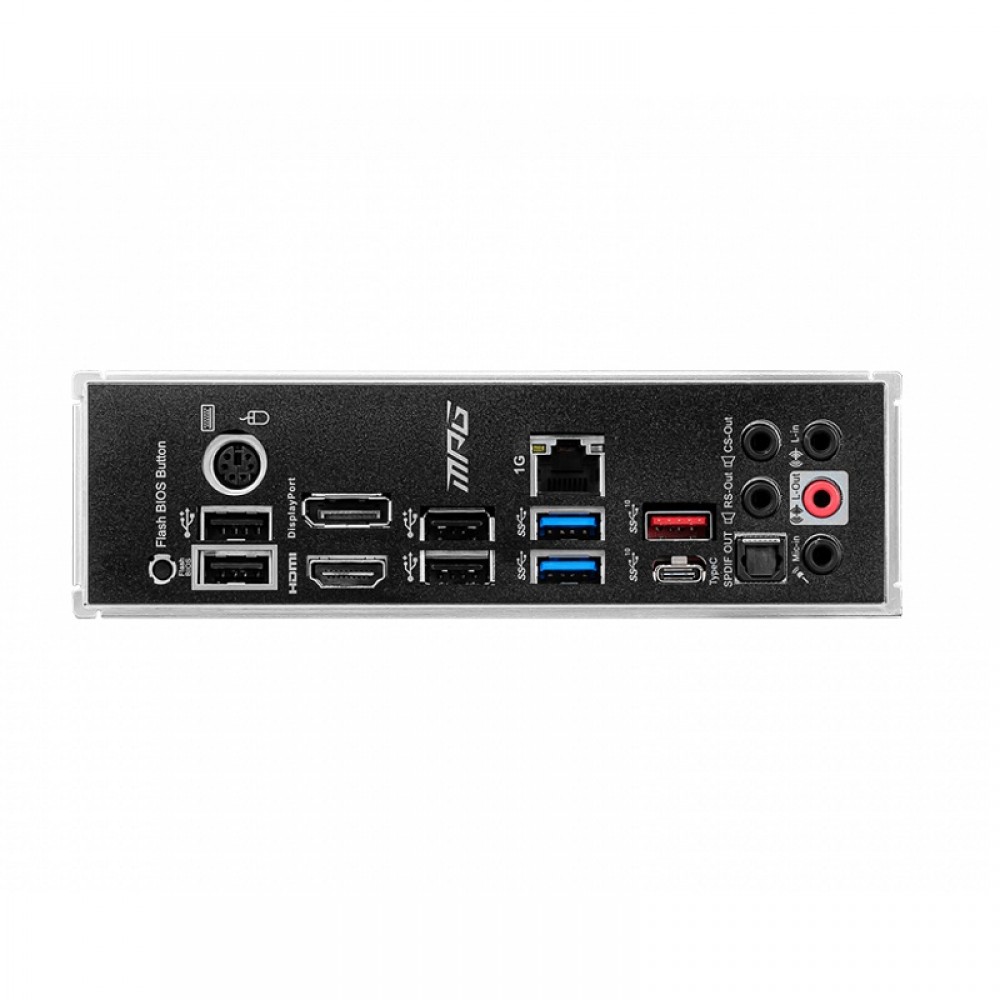

Back Panel Ports PS/2 Combo Port

DisplayPort

LAN Port

USB 3.2 Gen 2 10Gbps (Type-A)

HD Audio Connectors

Flash BIOS Button

USB 2.0

HDMI

USB 2.0

USB 3.2 Gen 1 5Gbps (Type-A)

USB 3.2 Gen 2 10Gbps (Type-C)

Optical S/PDIF OUT

LED Features 1x EZ LED Control switch

4x EZ Debug LED

I/O Controller NUVOTON NCT6687-R Controller Chip
Hardware Monitor CPU/ System/ Chipset temperature detection

CPU/ System/ Pump fan speed detection

CPU/ System/ Pump fan speed control

Dimensions ATX Form Factor

12 in. x 9.6 in. (30.5 cm x 24.4 cm)

Mounting 9 mounting holes
Warranty 3 Years
Note* Price, feature and specifications are subject to change without notice.
