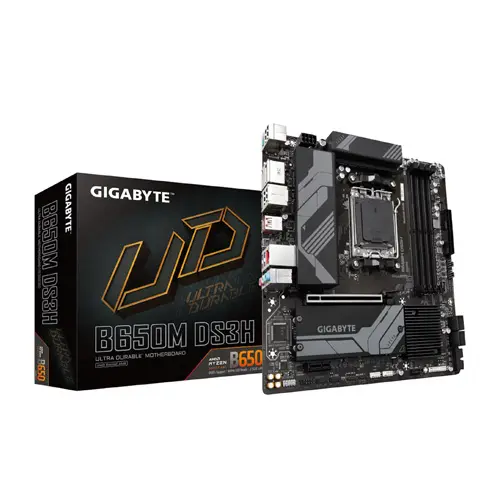

Gigabyte B650M DS3H Ddr5 Am5 Micro Atx Motherboard (B650M-DS3H)

17,299.00

Inclusive of all taxes

Model No : B650M-DS3H

Out of stock

All over India Shipping

Competitive Pricing

Experts in pc building

product description

Description

Gigabyte B650M DS3H Ddr5 Am5 Micro Atx Motherboard (B650M-DS3H)

Overview :

  • AMD Socket AM5:Supports AMD Ryzen™ 7000 Series Processors
  • Unparalleled Performance:Direct 6+2+1 Phases Digital VRM Solution
  • Dual Channel DDR5:4*SMD DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support
  • SuperSpeed Storage:2*PCIe 4.0 x4 M.2 Connectors
  • Advanced Thermal Design & M.2 Thermal Guard:To Ensure VRM Power Stability & 25110 M.2 SSD Performance
  • PCIe x16 EZ-Latch with Quick Release & Screwless Design
  • Fast Networks:2.5GbE LAN
  • Extended Connectivity:2*DP, HDMI, 2*USB-C® 10Gb/s
  • Smart Fan 6:Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus:Update BIOS Without Installing the CPU, Memory and Graphics Card

Specification :

CPU AMD Socket AM5 for AMD Ryzen 7000 Series Desktop Processors
Chipset AMD B650
Memory 4 x DIMM, Max. 128GB, DDR5 5200MHz upto 6400MHz (OC)
Supports AMD EXTended Profiles for Overclocking (EXPO)
Onboard Graphics Outputs 1 x HDMI port, supporting a maximum resolution of 4096×[email protected] Hz
2 x DisplayPort
PCI Slots CPU:
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
Chipset:
1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1)
Storage Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
CPU:
2 x M.2 connectors (Socket 3, M key, type 25110/2280 PCIe 4.0 x4/x2 SSD support)
Chipset:
4 x SATA 6Gb/s connectors
Networking 1 x 2.5Gb Ethernet
Audio Realtek® CODEC
Connectivity 4 x USB 2.0/1.1 ports
1 x PS/2 keyboard/mouse port
2 x DisplayPorts
1 x HDMI port
1 x USB 3.2 Gen 2 Type-A port (red)
1 x USB Type-C® port, with USB 3.2 Gen 2 support
1 x Q-Flash Plus button
1 x RJ-45 port
2 x USB 3.2 Gen 1 ports
3 x audio jacks
Internal Ports 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
3 x system fan headers
1 x addressable LED strip header
1 x RGB LED strip header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x serial port header
1 x reset button
1 x reset jumper
1 x Clear CMOS jumper
Form Factor Micro ATX Form Factor; 24.4cm x 24.4cm
Warranty 3 Years
Note** **Prices, Specifications & Features are subject to change without notice.
