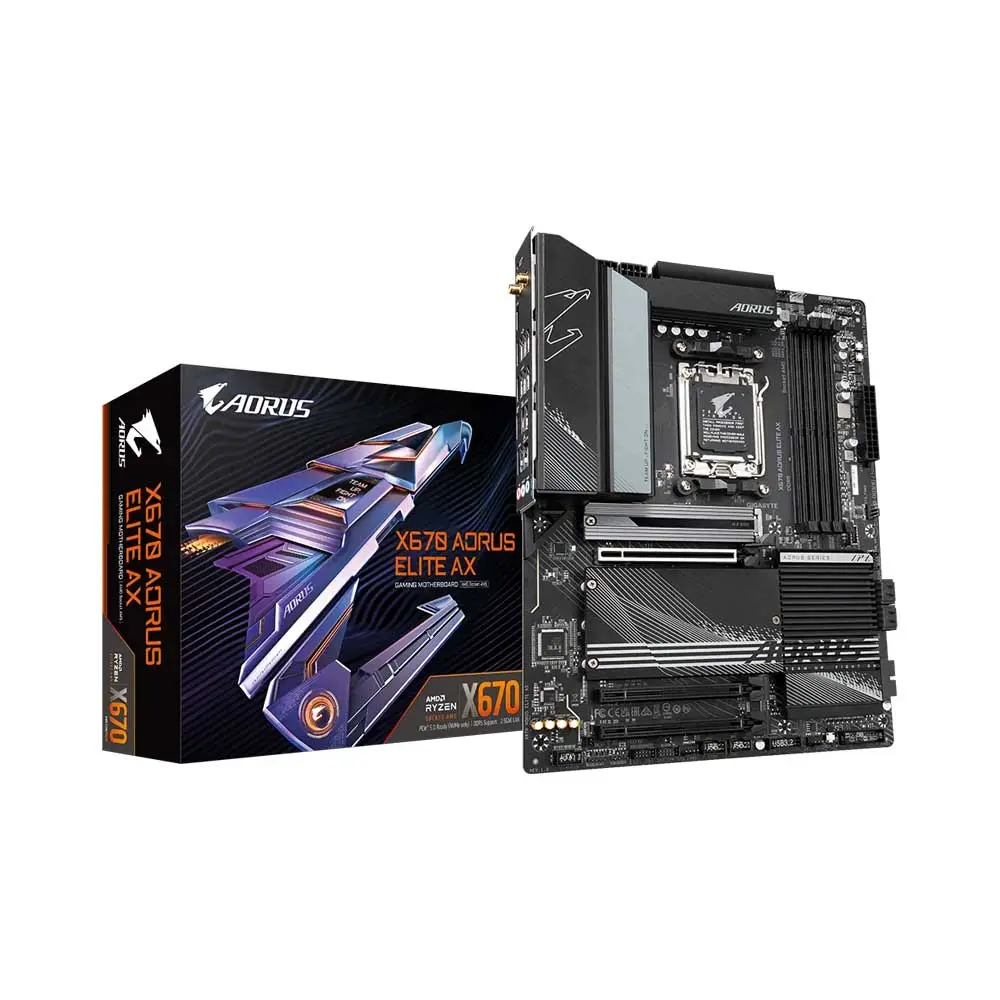

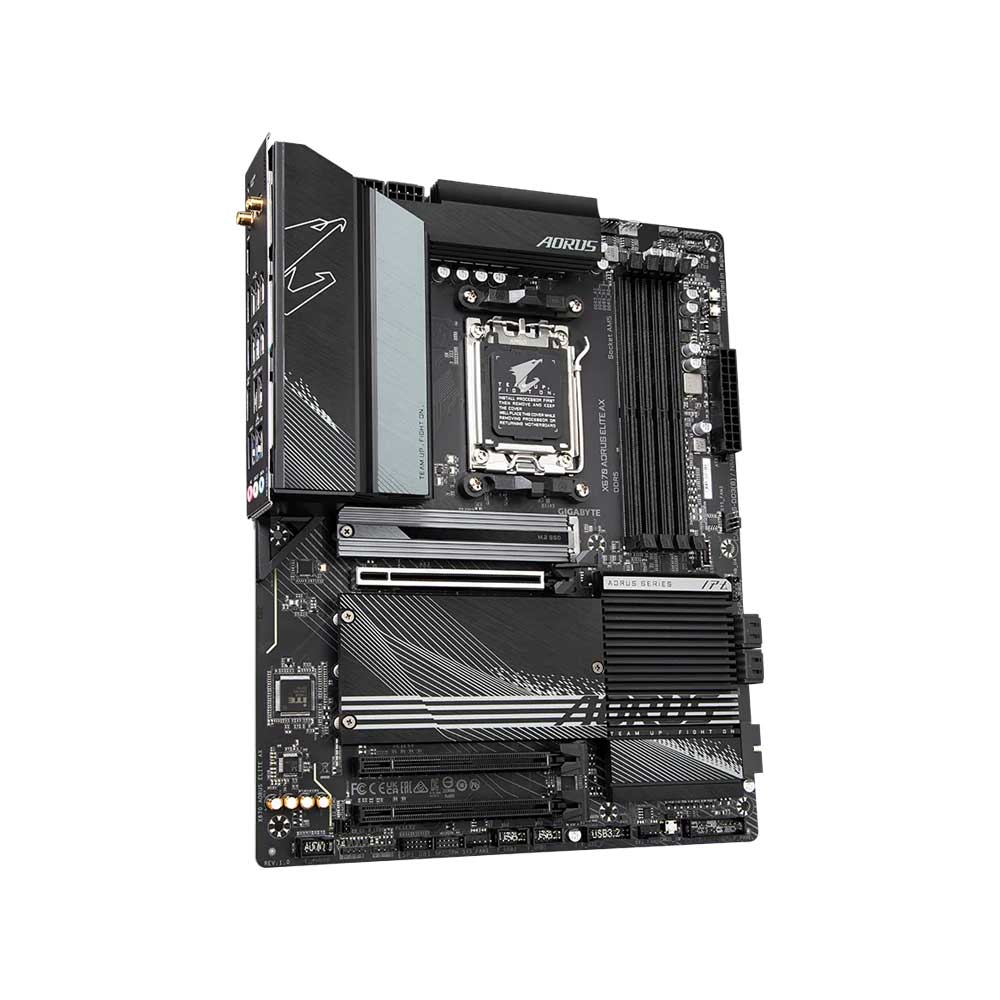

Gigabyte X670 Aorus Elite Ax AM5 Atx Motherboard (X670-AORUS-ELITE-AX)

Original price was: ₹42,300.Current price is: ₹29,000.

(31% OFF)

(Inclusive of all taxes)

Model No : X670-AORUS-ELITE-AX
BUY NOW
all india free shipping
3 day replacement
secured shopping
genuine products
no hidden charges
competitive pricing

Description

Gigabyte X670 Aorus Elite Ax AM5 Atx Motherboard (X670-AORUS-ELITE-AX)

  • AMD Socket AM5:Supports AMD Ryzen™ 7000 Series Processors
  • Unparalleled Performance:Twin 16+2+2 Phases Digital VRM Solution
  • Dual Channel DDR5:4*DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support
  • Next Generation Storage:1*PCIe 5.0 x4 and 3*PCIe 4.0 x4 M.2 Connectors
  • Mega-Heatpipe & M.2 Thermal Guard:To Ensure VRM Power Stability & 25110 PCIe 5.0 M.2 SSD Performance
  • EZ-Latch:PCIe x16 Slot & M.2 Connectors with Quick Release & Screwless Design
  • Fast Networks:2.5GbE LAN & Wi-Fi 6E 802.11ax
  • Extended Connectivity:HDMI, Dual USB-C® 20Gbps and Upcoming GIGABYTE USB4 AIC Support
  • Smart Fan 6:Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus:Update BIOS Without Installing the CPU, Memory and Graphics Card
CPU AMD Socket AM5, support for: AMD Ryzen™ 7000 Series Processors
Chipset AMD X670
Memory
  1. Support for DDR5 6600(OC)/6400(OC)/6200(OC)/6000(OC)/5600(OC)/5200/4800/4400 MHz memory modules
  2. 4 x DDR5 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
  3. Dual channel memory architecture
  4. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  5. Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
Onboard Graphics Integrated Graphics Processor:

  1. 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
    * Support for HDMI 2.0 version and HDCP 2.3.

(Graphics specifications may vary depending on CPU support.)

Audio
  1. Realtek® Audio CODEC
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
    * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
LAN Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication Module AMD Wi-Fi 6E RZ616 (MT7922A22M)

  1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
  2. BLUETOOTH 5.2
  3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate

(Actual data rate may vary depending on environment and equipment.)

Expansion Slots CPU:

  1. 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
    * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

Chipset:

  1. 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
  2. 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x2 (PCIEX2)

Support for AMD CrossFire™ technology (PCIEX16 and PCIEX4)

Storage Interface CPU:

  1. 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0(Note) x4/x2 SSD support) (M2A_CPU)
    (Note) Actual support may vary by CPU.
  2. 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU)

Chipset:

  1. 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2C_SB, M2D_SB)
  2. 4 x SATA 6Gb/s connectors

RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, and RAID 10 support for SATA storage devices

USB CPU:

  1. 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
  2. 2 x USB 3.2 Gen 1 ports on the back panel

CPU + USB 2.0 Hub:

  1. 4 x USB 2.0/1.1 ports on the back panel

Chipset:

  1. 2 x USB Type-C® ports, with USB 3.2 Gen 2×2 support (1 port on the back panel, 1 port available through the internal USB header)
  2. 8 x USB 3.2 Gen 1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
  3. 4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors
  1. 1 x 24-pin ATX main power connector
  2. 2 x 8-pin ATX 12V power connectors
  3. 1 x CPU fan header
  4. 1 x water cooling CPU fan header
  5. 3 x system fan headers
  6. 1 x CPU cooler LED strip/RGB LED strip header
  7. 2 x addressable LED strip headers
  8. 2 x RGB LED strip headers
  9. 4 x SATA 6Gb/s connectors
  10. 4 x M.2 Socket 3 connectors
  11. 1 x front panel header
  12. 1 x front panel audio header
  13. 1 x USB Type-C® header, with USB 3.2 Gen 2×2 support
  14. 2 x USB 3.2 Gen 1 headers
  15. 2 x USB 2.0/1.1 headers
  16. 1 x THB_U4 add-in card connector
  17. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
  18. 1 x power button
  19. 1 x reset button
  20. 1 x Clear CMOS button
  21. 1 x reset jumper
  22. 1 x Clear CMOS jumper

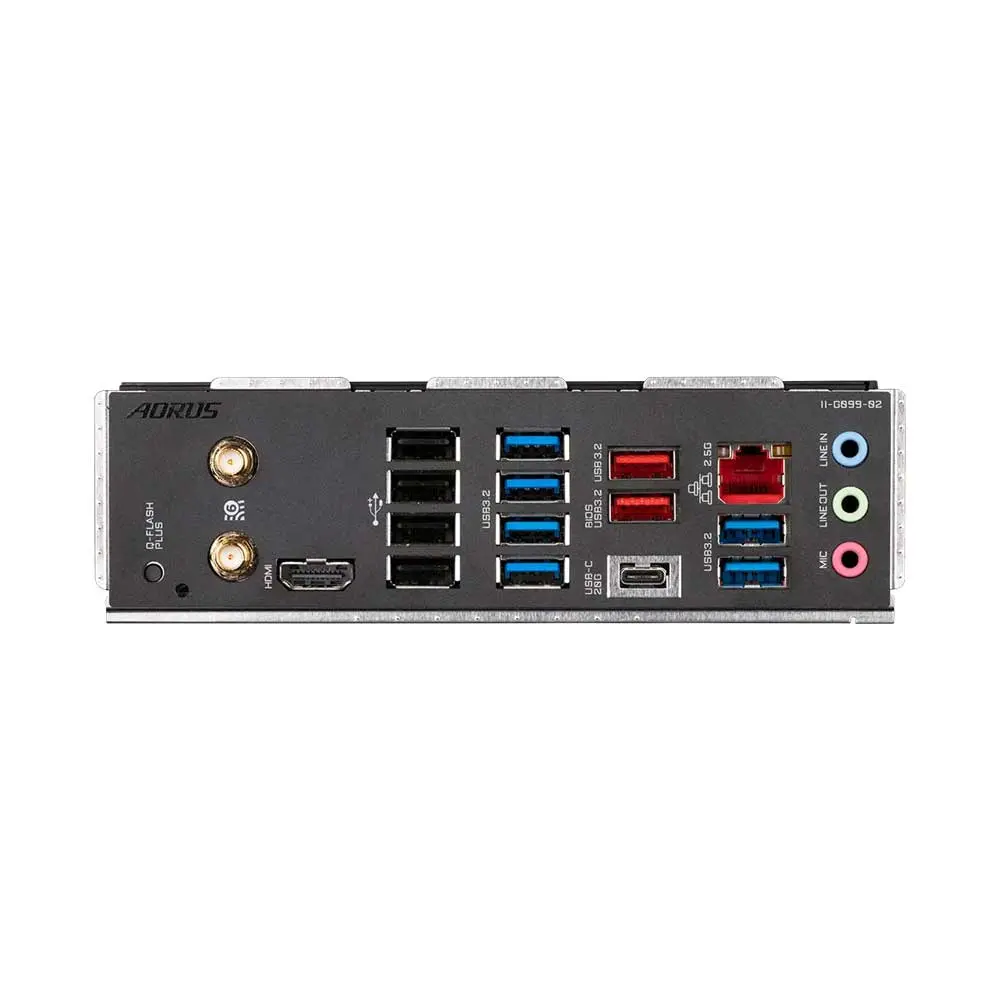

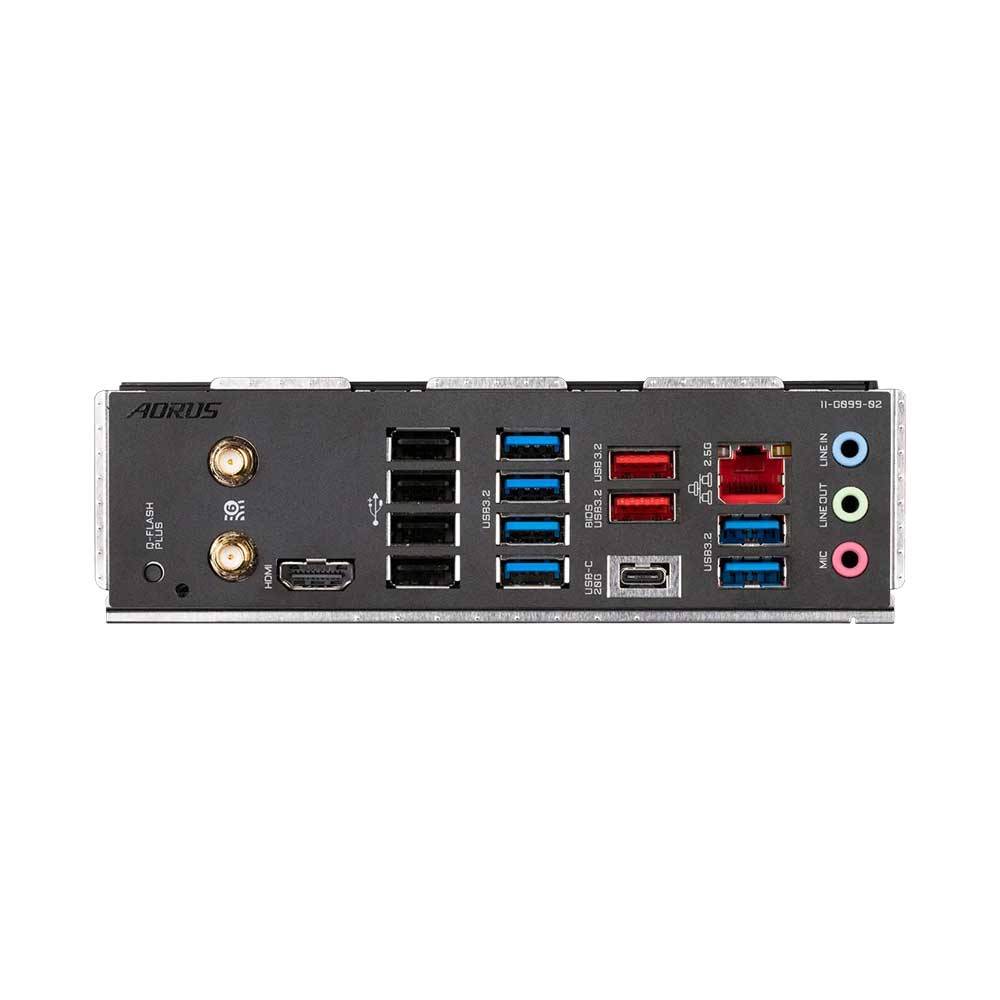

Back Panel Connectors
  1. 1 x Q-Flash Plus button
  2. 2 x SMA antenna connectors (2T2R)
  3. 1 x HDMI 2.0 port
  4. 6 x USB 3.2 Gen 1 ports
  5. 4 x USB 2.0/1.1 ports
  6. 2 x USB 3.2 Gen 2 Type-A ports (red)
  7. 1 x USB Type-C® port, with USB 3.2 Gen 2×2 support
  8. 1 x RJ-45 port
  9. 3 x audio jacks
I/O Controller iTE® I/O Controller Chip
H/W Monitoring
  1. Voltage detection
  2. Temperature detection
  3. Fan speed detection
  4. Water cooling flow rate detection
  5. Fan fail warning
  6. Fan speed control
BIOS
  1. 1 x 256 Mbit flash
  2. Use of licensed AMI UEFI BIOS
  3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
  1. Support for GIGABYTE Control Center (GCC)
    * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
  2. Support for Q-Flash
  3. Support for Q-Flash Plus
  4. Support for Smart Backup
Bundled Software
  1. Norton® Internet Security (OEM version)
  2. LAN bandwidth management software
Operating System
  1. Support for Windows 11 64-bit
  2. Support for Windows 10 64-bit
Form Factor
  1. ATX Form Factor; 30.5cm x 24.4cm
Warranty 3 Years
Note** **Prices, Specifications & Features are subject to change without notice
