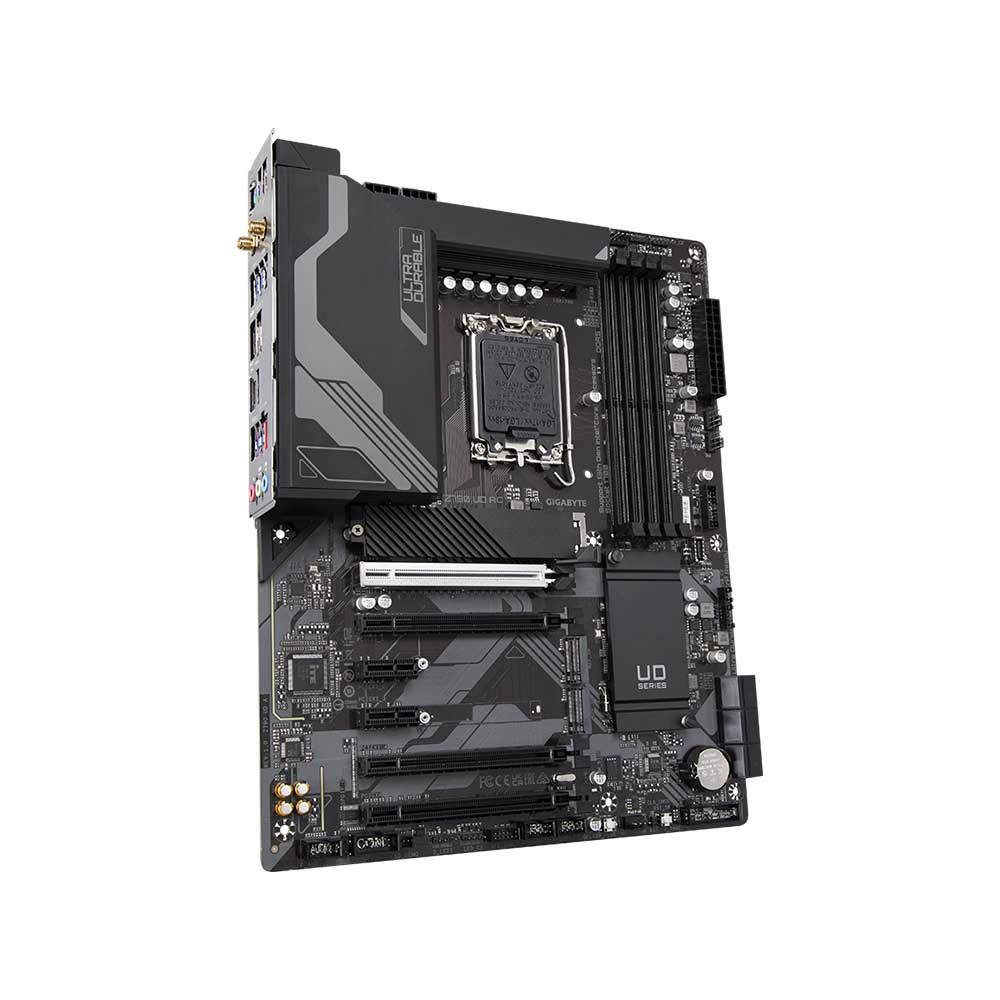

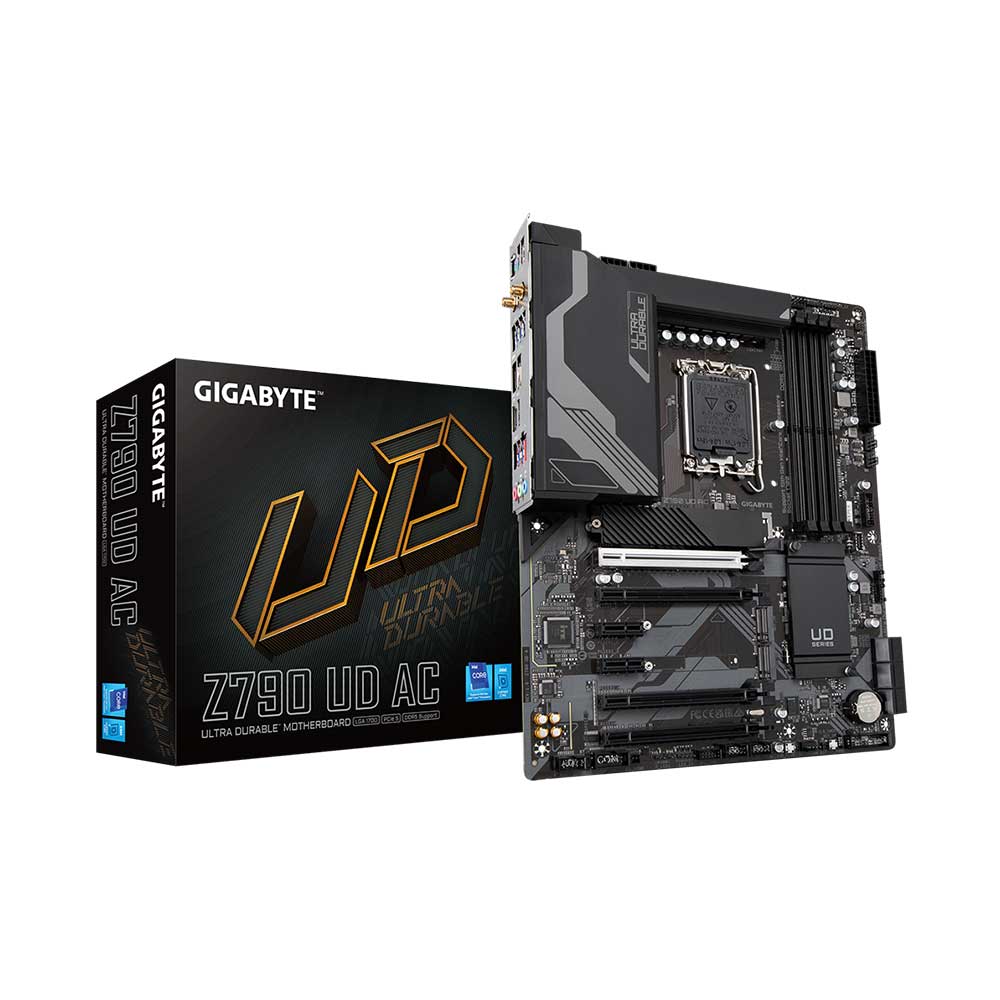

Gigabyte Z790 Ud Ac Lga1700 Atx Motherboard (Z790 UD AC)

Inclusive of all taxes

Model No : Z790 UD AC

All over India Shipping

Competitive Pricing

Experts in pc building

product description

Description

Gigabyte Z790 Ud Ac Lga1700 Atx Motherboard (Z790 UD AC)

  • Intel® Socket LGA 1700:Support 13th and 12th Gen Series Processors
  • Unparalleled Performance:Twin 16+1+1 Phases Digital VRM Solution*
  • Dual Channel DDR5:4*SMD DIMMs with XMP 3.0 Memory Module Support
  • Next Generation Storage:3*PCIe 4.0 x4 M.2 Connectors
  • Advanced Thermal Design & M.2 Thermal Guard: To Ensure VRM Power Stability & M.2 SSD Performance
  • EZ-Latch Plus:PCIe 5.0 x16 Slot with Quick Release & Screwless Design
  • Fast Networks:2.5GbE LAN & Wi-Fi 802.11ac
  • Extended Connectivity:DP, HDMI, Front USB-C® 5Gb/s, Rear USB-C® 20Gb/s
  • Smart Fan 6:Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus: Update BIOS Without Installing the CPU, Memory, and Graphics Card
CPU
  1. LGA1700 socket: Support for the 13th and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
  2. L3 cache varies with CPU
Chipset
  1. Intel® Z790 Express Chipset
Memory
  1. Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules
  2. 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
  3. Dual channel memory architecture
  4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  6. Support for Extreme Memory Profile (XMP) memory modules
Onboard Graphics Integrated Graphics Processor-Intel® HD Graphics support:

  1. 1 x HDMI port, supporting a maximum resolution of 4096×[email protected] Hz
    * Support for HDMI 2.0 version and HDCP 2.3.
  2. 1 x DisplayPort, supporting a maximum resolution of 4096×[email protected] Hz
    * Support for DisplayPort 1.2 version and HDCP 2.3
Audio
  1. Realtek® Audio CODEC
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
    * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
  4. Support for S/PDIF Out
LAN
  1. Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication Module Intel® Wi-Fi AC 9560

  1. WIFI a, b, g, n, ac, supporting 2.4/5 GHz Dual-Band
  2. BLUETOOTH 5.1
  3. Support for 11ac 160MHz wireless standard and up to 1.73 Gbps data rate
Expansion Slots CPU:

  1. 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
    * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

Chipset:

  1. 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
  2. 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_4)
  3. 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_2, PCIEX1_3)

Support for AMD CrossFire™ technology (PCIEX16 and PCIEX4)

Storage Interface CPU:

  1. 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

Chipset:

  1. 2 x M.2 connectors (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB, M2P_SB)
  2. 6 x SATA 6Gb/s connectors

RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

USB Chipset:

  1. 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2×2 support
  2. 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
  3. 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
  4. 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

Chipset+2 USB 2.0 Hubs:

  1. 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors
  1. 1 x 24-pin ATX main power connector
  2. 2 x 8-pin ATX 12V power connectors
  3. 1 x CPU fan header
  4. 1 x water cooling CPU fan header
  5. 3 x system fan headers
  6. 1 x system fan/water cooling pump header
  7. 2 x addressable LED strip headers
  8. 2 x RGB LED strip headers
  9. 3 x M.2 Socket 3 connectors
  10. 6 x SATA 6Gb/s connectors
  11. 1 x front panel header
  12. 1 x front panel audio header
  13. 1 x S/PDIF Out header
  14. 1 x USB Type-C® header, with USB 3.2 Gen 1 support
  15. 1 x USB 3.2 Gen 1 header
  16. 2 x USB 2.0/1.1 headers
  17. 1 x serial port header
  18. 2 x Thunderbolt™ add-in card connectors
  19. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
  20. 1 x reset button
  21. 1 x Q-Flash Plus button
  22. 1 x reset jumper
  23. 1 x Clear CMOS jumper

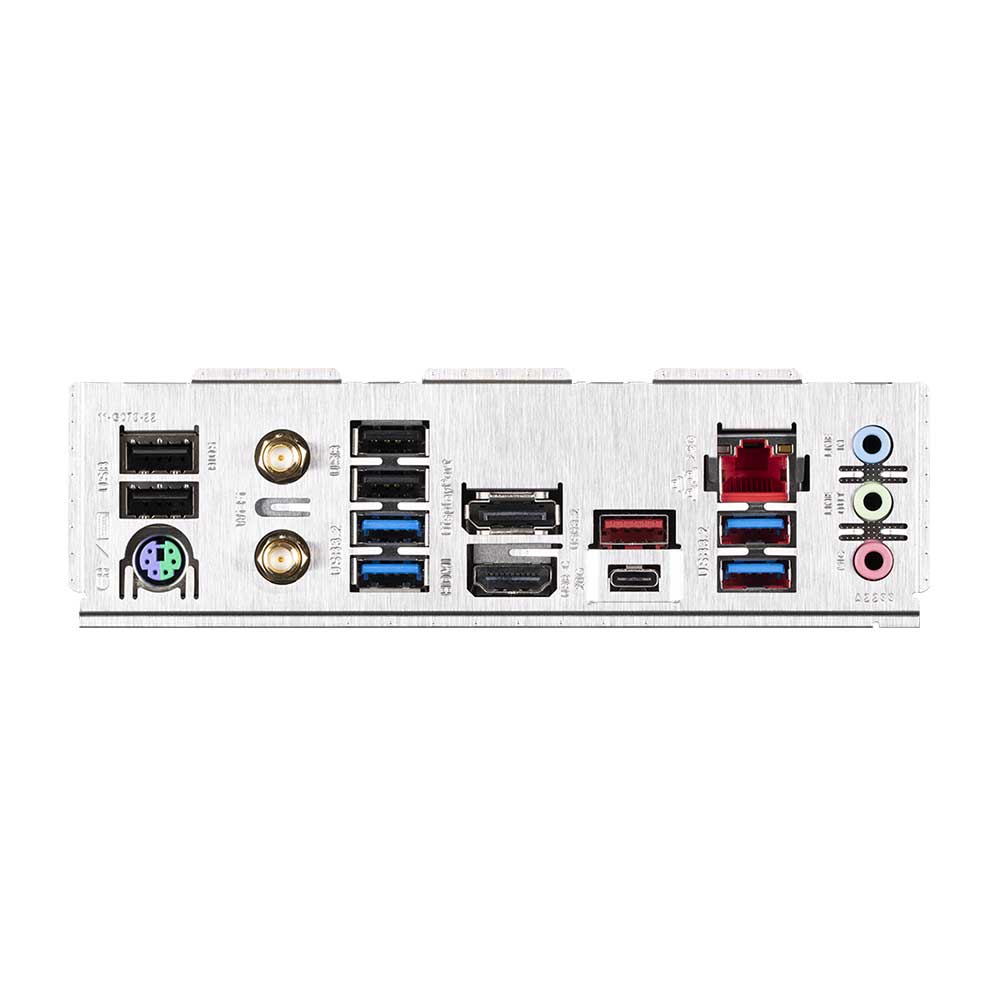

Back Panel Connector
  1. 1 x USB Type-C® port, with USB 3.2 Gen 2×2 support
  2. 1 x USB 3.2 Gen 2 Type-A port (red)
  3. 4 x USB 3.2 Gen 1 ports
  4. 4 x USB 2.0/1.1 ports
  5. 2 x SMA antenna connectors (1T1R)
  6. 1 x HDMI 2.0 port
  7. 1 x DisplayPort
  8. 1 x RJ-45 port
  9. 3 x audio jacks
I/O Controller
  1. iTE® I/O Controller Chip
H/W Monitoring
  1. Voltage detection
  2. Temperature detection
  3. Fan speed detection
  4. Water cooling flow rate detection
  5. Fan fail warning
  6. Fan speed control
BIOS
  1. 1 x 256 Mbit flash
  2. Use of licensed AMI UEFI BIOS
  3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
  1. Support for GIGABYTE Control Center (GCC)
    * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
  2. Support for Q-Flash
  3. Support for Q-Flash Plus
  4. Support for Smart Backup
Bundled Software
  1. Norton® Internet Security (OEM version)
  2. LAN bandwidth management software
Operating System
  1. Support for Windows 11 64-bit
  2. Support for Windows 10 64-bit
Form Factor
  1. ATX Form Factor; 30.5cm x 24.4cm
Warranty 3 Years
