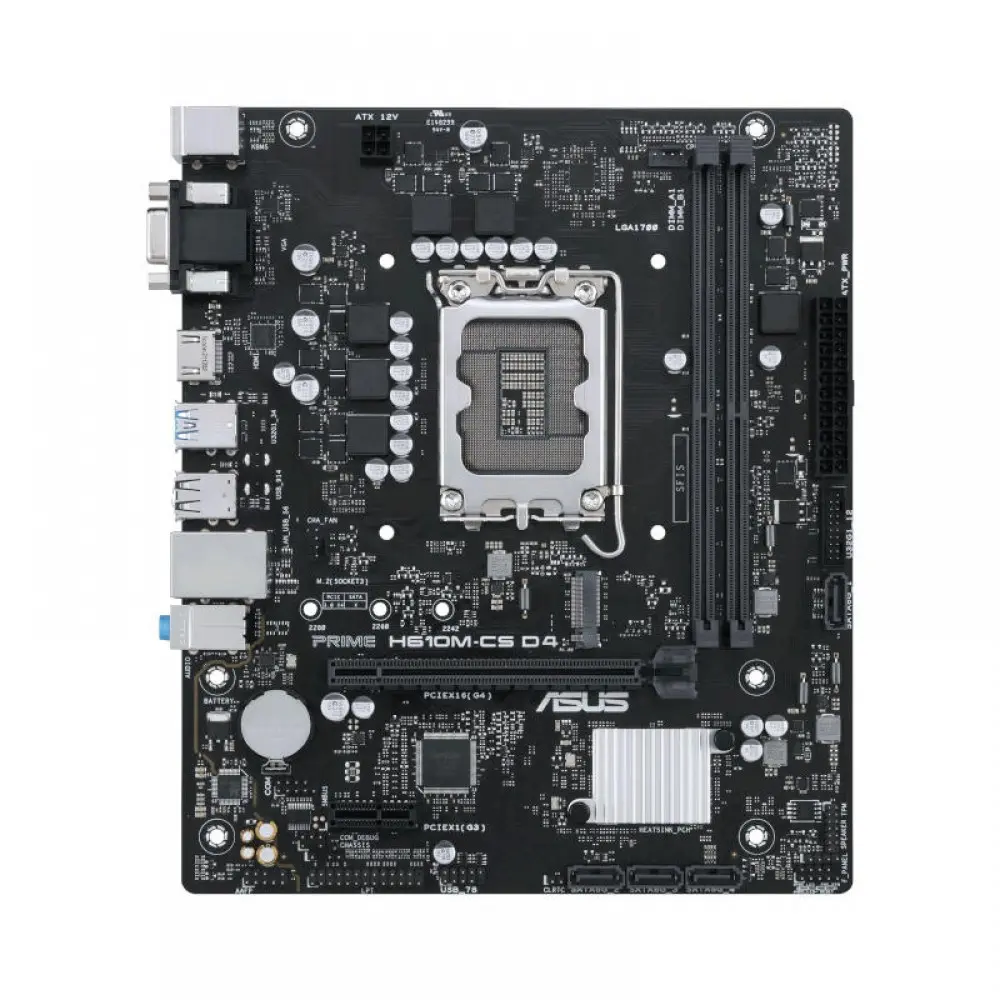

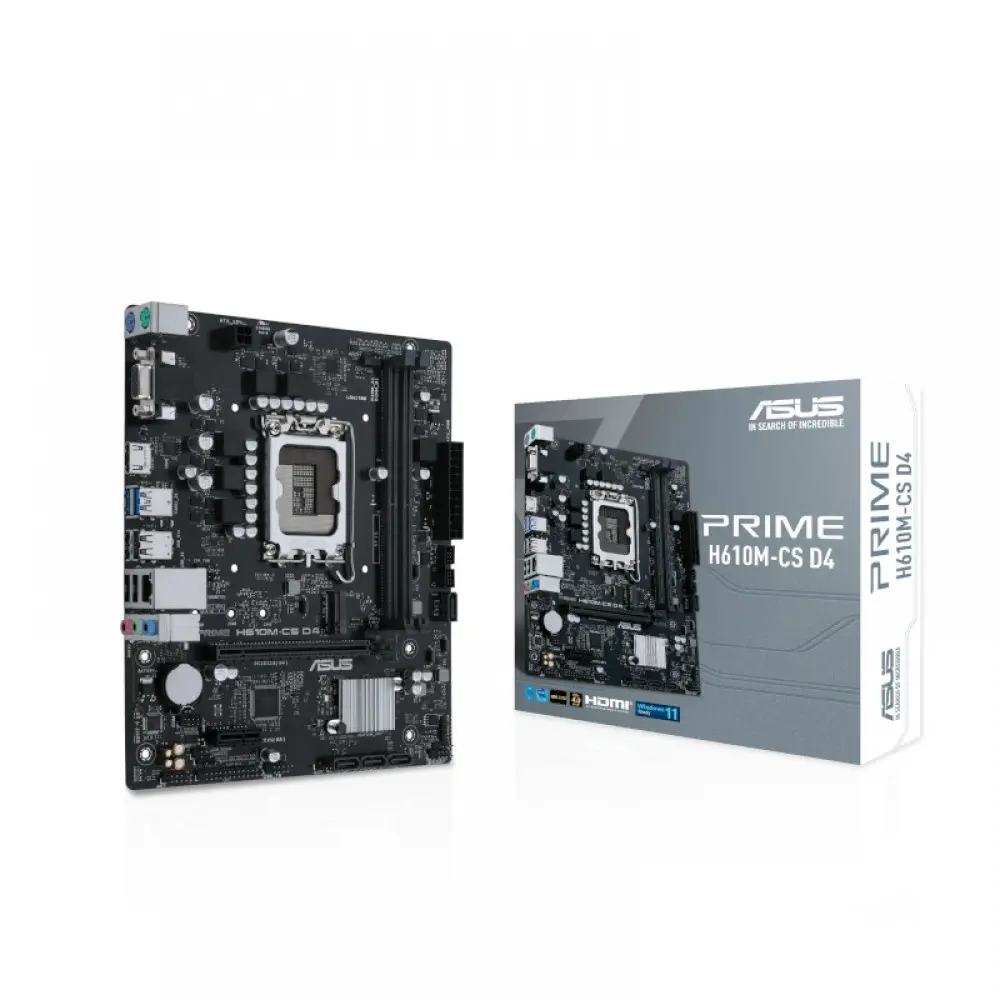

Asus Prime H610M-CS D4 LGA1700 Micro-ATX Motherboard (PRIME H610M-CS D4)
Model No : PRIME H610M-CS D4
₹7,200.00
Inclusive of all taxes
Tags : Asus
all india shipping
3 day replacement
secured shopping
genuine products
no hidden charges
competitive pricing
- **Usually delivered within 3-4 Business days*
Description
Asus Prime H610M-CS D4 LGA1700 Micro-ATX Motherboard (PRIME H610M-CS D4)
Intel® H610 (LGA 1700) mic-ATX motherboard with DDR4, PCIe 4.0, M.2 slot, Realtek 1 Gb Ethernet, HDMI®,D-Sub, USB 3.2 Gen 1 ports, SATA 6 Gbps, COM header, LPT header, TPM header, Luminous Anti-moisture coating
- Intel® LGA 1700 socket: Ready for 12th Gen Intel® processors
- Comprehensive cooling: PCH heatsink
- Ultrafast connectivity: 32Gbps M.2 slot, Realtek 1 Gb Ethernet and USB 3.2 Gen 1
- 5X Protection III: Multiple hardware safeguards for all-round protection
- Luminous anti-moisture coating: Keep key components from moisture and corrosion
| Specification | |
| CPU | Intel Socket LGA1700 for 12th Gen Intel Core, Pentium Gold and Celeron Processors
Supports up to Intel 65W CPU *Refer to www.asus.com for CPU support list |
| Chipset | Intel H610 Chipset |
| Memory | 2x DIMM Max 64GB, DDR4 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) *Actual Memory data rate depends on the CPU types and DRAM modules, for more information refer to www.asus.com for memory support list. |
| Graphics | 1x D-Sub
1x HDMI port *Graphics specifications may Vary between CPU types. Please refer to www.intes.com for any updates |
| Expansion Slots | Intel® 12th Gen Processors
1 x PCle 4.0 x16 slot Intel H610 Chipset 1 x PCIe 3.0 x1 slot |
| Storage | Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports
Intel H610 Chipset M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode) 4x SATA 6Gb/s ports |
| Ethernet | 1 x Realtek 1Gb Ethernet |
| USB | Rear USB (Total 6 ports)
2x USB 3.2 Gen 1 ports (2x Type-A) 4x USB 2.0 ports (4x Type-A) Front USB (Total 4 ports) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 1x USB 2.0 header supports additional 2 USB 2.0 ports |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC -Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
-Audio Shielding -Supports up to 24-Bit/192 kHz playback -Premium audio capacitors -Dedicated audio PCB layers *A chassis with an HD audio module in the front panel is required to support 2.1 Surround Sound audio output |

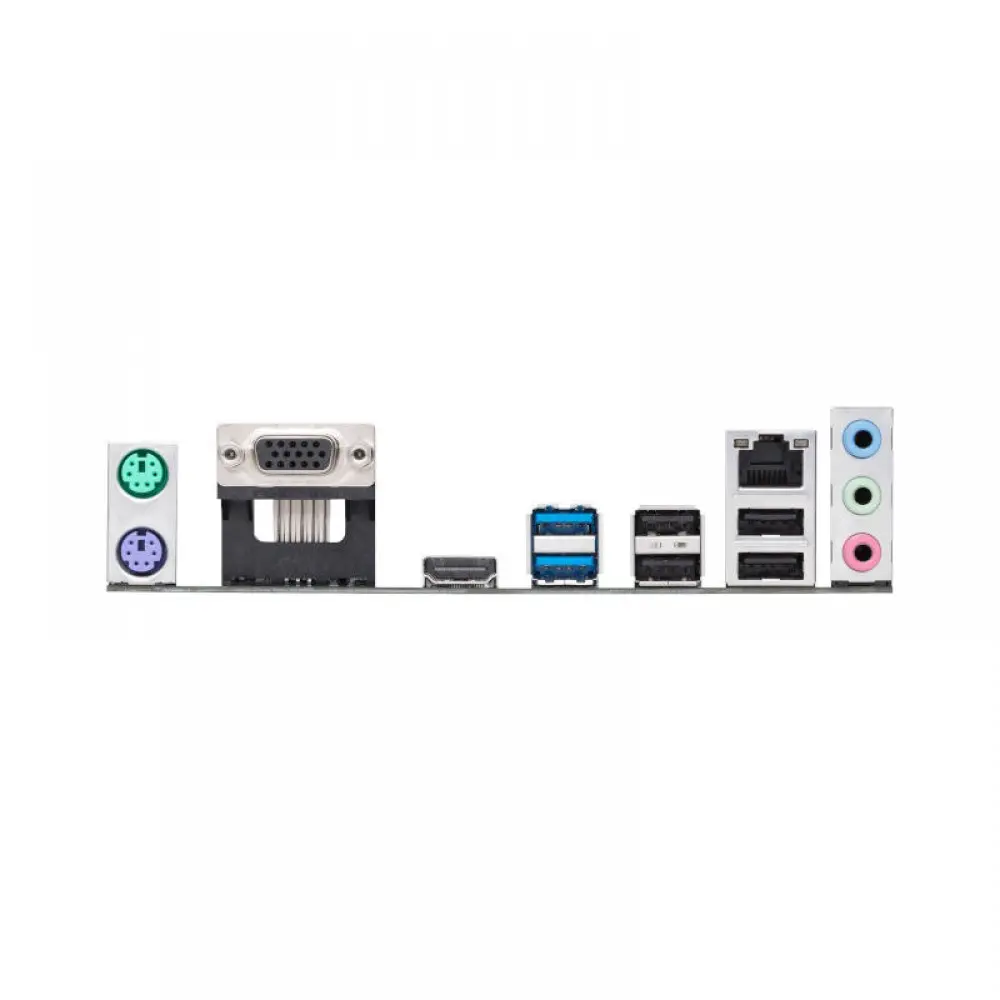

| Back Panel I/O Ports | -2x USB 3.2 Gen 1 ports (2 x Type-A)
-4x USB 2.0 ports (4x Type-A) -1 x D-Sub port -1 x HDMI port -1x Realtek 1Gb Ethernet port -3x Audio jacks -1 x PS/2 Keyboard (purple) port 1x PS/2 Mouse (green) port |
| BIOS | UEFI BIOS |
| Operating System | Windows 11 x64, Windows 10 x64 |
| Form Factor | micro-ATX |
| Warranty | 3 Years |
| Note* | Price, feature and specifications are subject to change without notice. |
