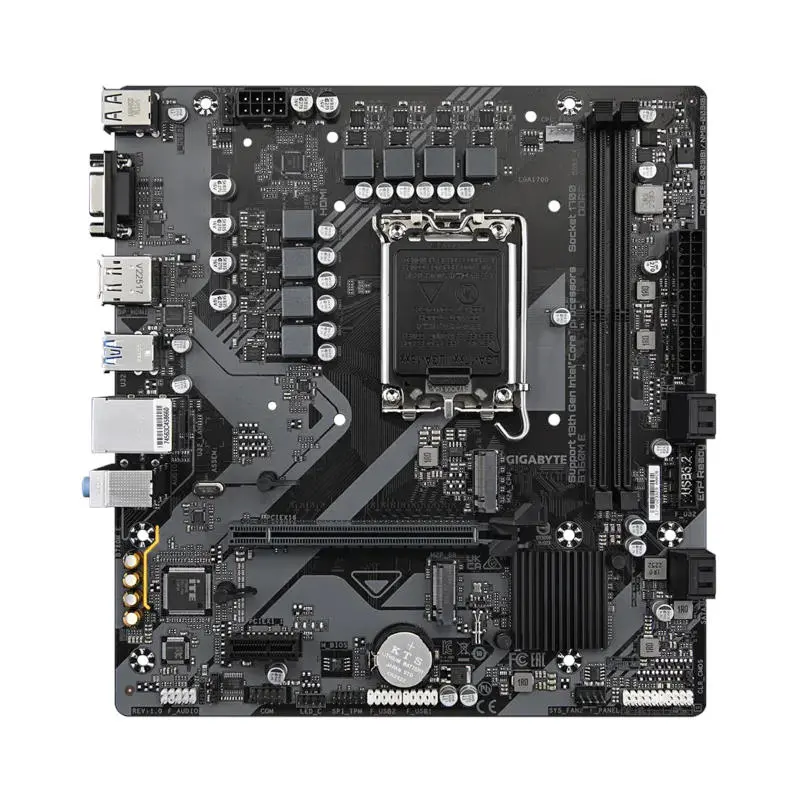

Gigabyte motherboard with cpu socket, ram slots, pcie slots, and rear i/o ports visible from above (black/gray pcb).
Home>Brand>Gigabyte>Gigabyte B760M E LGA1700 Micro ATX Motherboard

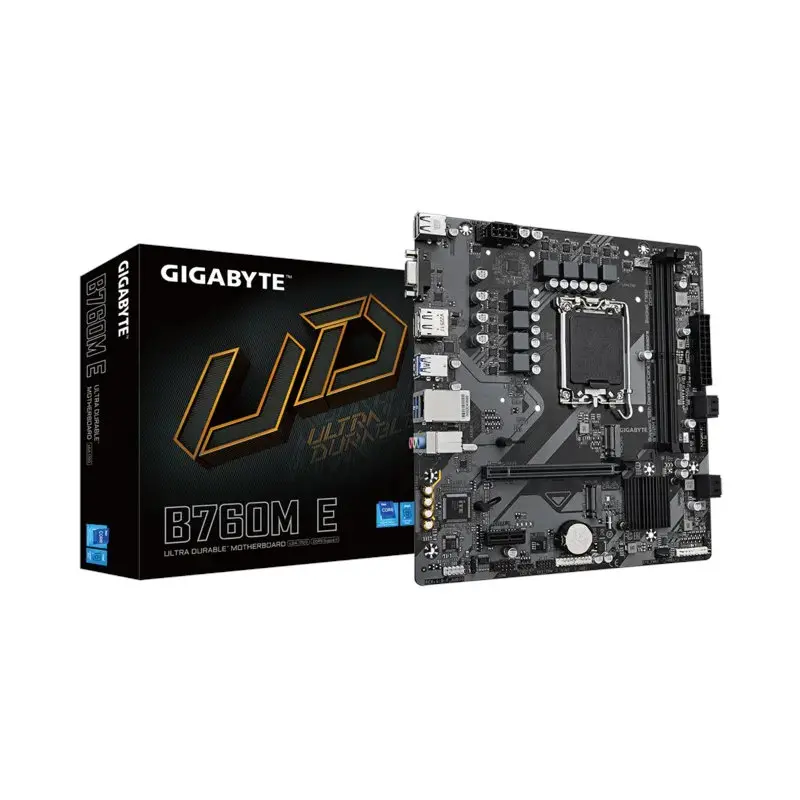

Gigabyte B760M E LGA1700 Micro ATX Motherboard

No Customer Rating

Original price was: ₹17,500.Current price is: ₹9,900.

(43% OFF)

(Inclusive of all taxes)

Model No : B760M E
BUY NOW
all india free shipping
3 day replacement
secured shopping
genuine products
no hidden charges
competitive pricing

Description

Gigabyte B760M E LGA1700 Micro ATX Motherboard

  • Supports Intel Core 14th/ 13th /12th processors
  • Unparalleled Performance：Hybrid 6+1+1 Phases Digital VRM Solution
  • Dual Channel DDR5：2*DIMMs XMP Memory Module Support
  • Next Generation Storage：2*PCIe 4.0 x4 M.2 Connectors
  • EZ-Latch：PCIe 4.0×16 Slot with Quick Release Design
  • Fast Networks：GbE LAN
  • Extended Connectivity：Display Port, HDMI, D-Sub
  • Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP



Specification
CPU LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors

L3 cache varies with CPU

(Please refer “CPU Support List” for more information.)
Chipset Intel ® B760 Express Chipset
Memory Support for DDR5 7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules

2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory

Dual channel memory architecture

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Profile (XMP) memory modules

(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to “Memory Support List” for more information.)
Onboard Graphics Integrated Graphics Processor-Intel® HD Graphics support:

– 1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz

– 1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz

* Support for DisplayPort 1.2 version and HDCP 2.3

– 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz

* Support for HDMI 2.1 version and HDCP 2.3.

** Support native HDMI 2.1 TMDS compatible ports.

(Graphics specifications may vary depending on CPU support.)

Support for up to triple-display at the same time
Audio Realtek® Audio CODEC

High Definition Audio

2/4/5.1/7.1-channel

* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

Support for S/PDIF Out
LAN Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Expansion Slots CPU:

– 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16

* The PCIEX16 slot can only support a graphics card or an NVMe SSD.

Chipset:

– 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Storage Interface CPU:

– 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)(M2A_CPU)

Chipset:

– 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)(M2P_SB)

– 4 x SATA 6Gb/s connectors

RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
USB Chipset:

– 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

– 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors 1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x CPU fan header

2 x system fan headers

1 x RGB LED strip header

2 x M.2 Socket 3 connectors

4 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1 x S/PDIF Out header

1 x USB 3.2 Gen 1 header

2 x USB 2.0/1.1 headers

1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

1 x serial port header

1 x Clear CMOS jumper
Back Panel Connectors 2 x USB 2.0/1.1 ports

1 x D-Sub port

1 x DisplayPort

1 x HDMI port

4 x USB 3.2 Gen 1 ports

1 x RJ-45 port

3 x audio jacks
I/O Controller iTE® I/O Controller Chip
H/W Monitoring Voltage detection

Temperature detection

Fan speed detection

Water cooling flow rate detection

Fan fail warning

Fan speed control

* Whether the fan speed control function is supported will depend on the fan you install.
BIOS 1 x 128 Mbit flash

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features Support for GIGABYTE Control Center (GCC)

* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

Support for Q-Flash
Bundled Software Norton® Internet Security (OEM version)

LAN bandwidth management software
Operating System Support for Windows 11 64-bit

Support for Windows 10 64-bit
Form Factor Micro ATX Form Factor; 23.0cm x 21.5cm
Warranty 3 Years
Note* Price, feature and specifications are subject to change without notice.
