Description

  • AMD AM4 Socket
  • Supports DDR4 3200+ (OC)
  • 2 PCIe 3.0 x16, 4 PCIe 2.0 x1
  • AMD Quad CrossFireX™
  • Graphics Output: HDMI, Display Port, D-Sub
  • 7.1 CH HD Audio (Realtek ALC892 Audio Codec), ELNA Audio Caps
  • 6 SATA3, 1 Ultra M.2 (PCIe Gen3 x4), 1 M.2 (PCIe Gen3 x2 & SATA3)
  • 2 USB 3.1 Gen2 (Rear Type A+C)
  • 6 USB 3.1 (2 Front, 4 Rear)
  • Realtek Gigabit LAN

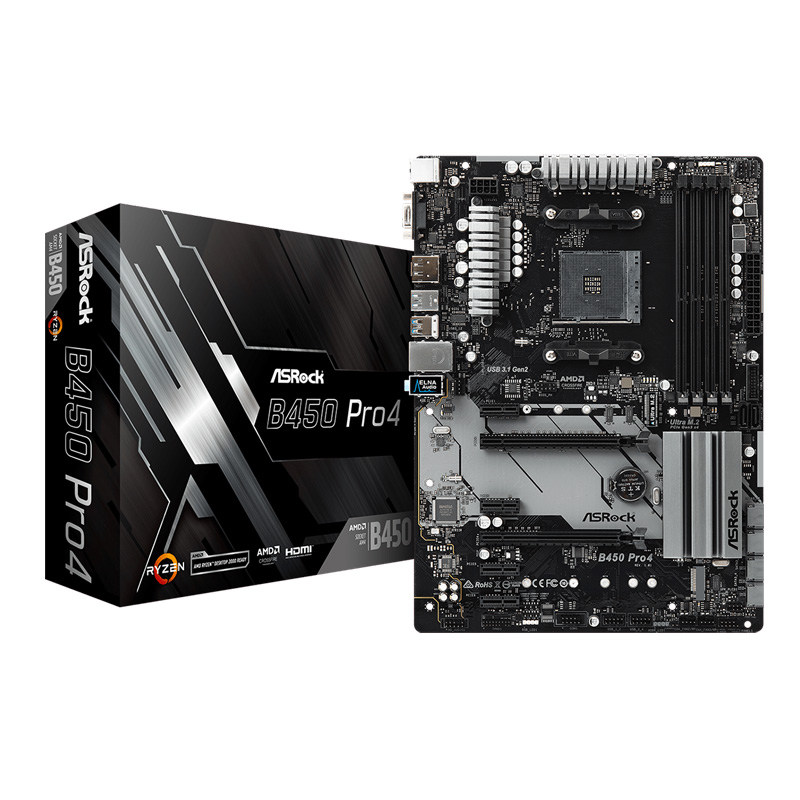

ASROCK B450 PRO 4 MOTHERBOARD
CPU– AMD AM4 Socket – Digi Power design – 9 Power Phase design – Supports 105W Water Cooling (Pinnacle Ridge); Supports 95W Water Cooling (Summit Ridge); Supports 65W Water Cooling (Raven Ridge)
Chipset– AMD Promontory B450
Memory– Dual Channel DDR4 Memory Technology – 4 x DDR4 DIMM Slots – AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3200+(OC)/2933(OC)/2667/2400/2133 ECC & non-ECC, un-buffered memory* – AMD Ryzen series CPUs (Summit Ridge) support DDR4 3200+(OC)/2933(OC)/2667/2400/2133 ECC & non-ECC, un-buffered memory* – AMD Ryzen series CPUs (Raven Ridge) support DDR4 3200+(OC)/2933/2667/2400/2133 non-ECC, un-buffered memory* – Max. capacity of system memory: 64GB** – 15μ Gold Contact in DIMM Slots
Graphic*– Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU* – DirectX 12, Pixel Shader 5.0 – Shared memory default 2GB. Max Shared memory supports up to 16GB.** – Three graphics output options: D-Sub, HDMI and DisplayPort 1.2 – Supports Triple Monitor – Supports HDMI with max. resolution up to 4K x 2K (4096×2160) @ 24Hz / (3840×2160) @ 30Hz – Supports DisplayPort 1.2 with max. resolution up to 4K x 2K (4096×2160) @ 60Hz – Supports D-Sub with max. resolution up to 1920×1200 @ 60Hz – Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required) – Supports HDCP with HDMI and DisplayPort 1.2 Ports – Supports 4K Ultra HD (UHD) playback with HDMI and DisplayPort 1.2 Ports *Actual support may vary by CPU **The Max shared memory 16GB requires 32GB system memory installed.
SlotsAMD Ryzen series CPUs (Summit Ridge and Pinnacle Ridge) – 2 x PCI Express 3.0 x16 Slots (PCIE2: x16 mode; PCIE4: x4 mode)* AMD Ryzen series CPUs (Raven Ridge) – 2 x PCI Express 3.0 x16 Slots (PCIE2: x8 mode; PCIE4: x4 mode) (If you use Athlon 2xxGE series APU, PCIE2 slot will run at x4 mode.)* – 4 x PCI Express 2.0 x1 Slots – Supports AMD Quad CrossFireX™ and CrossFireX™** *Supports NVMe SSD as boot disks If M2_1 is occupied, PCIE4 will be disabled. **This feature is only supported with Ryzen Series CPUs (Summit Ridge, Pinnacle Ridge and Raven Ridge).
Storage– 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug* – 2 x SATA3 6.0 Gb/s Connectors by ASMedia ASM1061, support NCQ, AHCI and Hot Plug – 1 x Ultra M.2 Socket (M2_1), supports M Key type 2242/2260/2280 M.2 PCI Express module up to Gen3 x4 (32 Gb/s) (with Summit Ridge, Raven Ridge and Pinnacle Ridge) or Gen3 x2 (16 Gb/s) (with Athlon 2xxGE series APU)** – 1 x M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x2 (16 Gb/s)**
LAN– PCIE x1 Gigabit LAN 10/100/1000 Mb/s – Realtek RTL8111H – Supports Wake-On-LAN – Supports Lightning/ESD Protection – Supports Energy Efficient Ethernet 802.3az – Supports PXE
Audio– 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)* – Premium Blu-ray Audio support – Supports Surge Protection – ELNA Audio Caps
Connector– 1 x COM Port Header – 1 x TPM Header – 1 x Power LED and Speaker Header – 1 x RGB LED Header* – 1 x Addressable LED Header** – 1 x AMD Fan LED Header*** – 1 x CPU Fan Connector (4-pin)**** – 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)***** – 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)****** – 1 x 24 pin ATX Power Connector – 1 x 8 pin 12V Power Connector – 1 x Front Panel Audio Connector – 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) – 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection) *Supports in total up to 12V/3A, 36W LED Strip **Supports in total up to 5V/3A, 15W LED Strip ***The AMD Fan LED Header supports LED strips of maximum load of 3A (36W) and length up to 2.5M. ****The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. *****The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. ******The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. CPU_FAN2/WP, CHA_FAN1/WP, CHA_FAN2/WP and CHA_FAN3/WP can auto detect if 3-pin or 4-pin fan is in use.
Unique FeaturesASRock USB 3.1 Gen2 – ASRock USB 3.1 Gen2 Type-A Port (10 Gb/s) – ASRock USB 3.1 Gen2 Type-C Port (10 Gb/s) ASRock Super Alloy – Premium Power Choke – Sapphire Black PCB – High Density Glass Fabric PCB – 2oz Copper PCB ASRock Ultra M.2 (PCIe Gen3 x4) ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop
Software and UEFISoftware – ASRock A-Tuning – ASRock Polychrome RGB – ASRock XFast LAN UEFI – ASRock Full HD UEFI – ASRock Instant Flash – ASRock Easy RAID Installer
Hardware Monitor– Temperature Sensing: CPU, MB – Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans – Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans – Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans – Voltage monitoring: +12V, +5V, +3.3V, Vcore
I/O Controller– 1 x PS/2 Mouse/Keyboard Port – 1 x D-Sub Port – 1 x HDMI Port – 1 x DisplayPort 1.2 – 2 x USB 2.0 Ports (Supports ESD Protection) – 1 x USB 3.1 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection) – 1 x USB 3.1 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection) – 4 x USB 3.1 Gen1 Ports (Supports ESD Protection) – 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) – HD Audio Jacks: Line in / Front Speaker / Microphone
Accessories– Quick Installation Guide, Support CD, I/O Shield – 2 x SATA Data Cables – 2 x Screws for M.2 Sockets
BIOS– 128Mb AMI UEFI Legal BIOS with multilingual GUI support – Supports “Plug and Play” – ACPI 5.1 compliance wake up events – Supports jumperfree – SMBIOS 2.3 support – DRAM Voltage multi-adjustment
Support Disc– Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
Form Factor– ATX Form Factor: 12.0-in x 8.8-in, 30.5 cm x 22.4 cm – Solid Capacitor design
Warranty**3 YEARS
**NotePrice, feature and specifications are subject to change without notice.
