MSI MPG Z690 FORCE WIFI INTEL LGA1700 ATX MOTHERBOARD

44,200.00

Inclusive of all taxes

Out of stock

Model :

MPG-Z690-FORCE-WIFI

All over India Shipping

Competitive Pricing

Experts in pc building

product description

Loading...

Description

MSI MPG Z690 FORCE WIFI INTEL LGA1700 ATX MOTHERBOARD

Features:

  • Supports 12th Gen Intel® Core™ / Pentium® Celeron® processors for LGA 1700 socket
  • Supports DDR5 Memory, up to 6666+(OC) MHz
  • Lightning Fast Game experience: PCIe 5.0 slots, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2×2
  • Enhanced Power Design: Direct 18+1+1 phases power, dual 8-pin CPU power connectors, Core Boost, Memory Boost
  • Premium Thermal Solution: Enlarged heatsink with heat-pipe, MOSFET thermal pads rated for 7W/mk, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
  • MYSTIC LIGHT: 16.8 million colors / fancy lighting effects controlled in one click. MYSTIC LIGHT SYNC supports RGB, RAINBOW(ARGB), Corsair LED strips and Ambient devices.
  • 2.5G LAN with LAN Manager and Intel Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
  • AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
  • High Quality PCB: 8-layer PCB made by 2oz thickened copper and server grade level material
  • Pre-installed I/O Shield: Better EMI protection and more convenience for installation

PREMIUM HARDWARE DESIGN

With Years Of Experience, MSI Is No Stranger to Building high-performance motherboards. Our R&D and engineering teams have reviwed countless designs, evaluated a wide selection of High quiality components, and developed Products for reliability even under extreme conditions.

M.2 SHIELD FROZR

World’s fastest SSDs can start to lower performance when getting hot. Part of the motherboards heatsink design, M.2 SHIELD FROZR is the next generation M.2 thermal solution to avoid this by offering the best thermal protection to make sure that SSD maintains maximum performance

FROZR AI COOLING

Detecting CPU & GPU temperatures and automatically adjusting fan duty of system fans to a proper value by adopting MSI AI ENGINE.

FULLY CONTROLLABLE IN BIOS AND SOFTWARE

MSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically.

DIY 2.0 – INTEGRATING WITH THE SYSTEM ENVIRONMENT

Connect and synchronize with MSI coolers and cases with strategically positioned pin-header locations including a dedicated pump-fan header.

ENHANCED PERFORMANCE

High Performance MSI Motherboards are loaded with advanced features and the latest technology to overhelm any challenge at hand no matter whether you’re a gamer, prosumer, or a PC enthusiast.

LATEST DDR5 MEMORY

A huge step of DDR performance enhancement with the latest DDR5 memory. Combines with dedicated SMT welding process and MSI Memory Boost technology, MPG Z690 FORCE WIFI is ready to deliver the world class memory performance.

EXTREME STABILITY & COMPATIBILITY TESTING

MSI conducts thorough memory testing with the most popular memory brands under extreme conditions to ensure your system runs stable no matter what. Our memory partners include brands like Corsair, Crucial, Kingston, G.Skill and many more to optimize memory modules, configurations and even improve overclocking.

SMT DDR5 MEMORY SLOT

The advanced SMT(Surface Mount Technology) welding process reduces the defect rate of slot solder joints, electromagnetism, and interference. Combining with exclusive Memory Boost technology allows MSI motherboards to deliver the clean and pure high-frequency DDR5 signal.

EASY OVERCLOCKING WITH XMP PROFILE

The XMP (Extreme Memory Profiles) in MSI BIOS are tested and certified by MSI OC LAB. It is easy to enable with auto power settings to get the best memory speed and stability.

CONNECTIVITY

MSI Motherboards are builds with a variety of connectors to satisfy gamers. Enhanced audio, advanced LAN networking capabilities, USB and Mystic Light turn anyb gaming experiance into an immerse one.

HIGH-BANDWIDTH AND LOW-LATENCY NETWORK

2.5Gbps LAN provides incredible data transfer speed faster than general Gigabit LAN. This is a premium solution for demanding users.

SURFACING WITH THE REAL MU-MIMO TECHNOLOGY

The latest Wi-Fi 6E solution supports 6GHz spectrum, Bluetooth 5.2, two-way MU-MIMO and BSS color technology, provide up to 4X network capacity and efficiency in the high signal density environment, delivering speeds up to 2400Mbps.

OPTIMIZE ONLINE GAMING TRAFFIC FOR LOWER LATENCY!

MSI LAN Manager automatically classifies and prioritizes the latency-sensitive applications for online games, giving you the best online gaming experience with low latency.

Specifications:

Processor Supports 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors 1
Processor socket LGA1700
Chipset Intel® Z690 Chipset
Memory
  • 4x DDR5 memory slots, support up to 128GB1
  • Supports 1R 4800 MHz (by JEDEC & POR)
  • Max. overclocking frequency:
  • 1DPC 1R Max speed up to 6666+ MHz
  • 1DPC 2R Max speed up to 5600+ MHz
  • 2DPC 1R Max speed up to 4000+ MHz
  • 2DPC 2R Max speed up to 4000+ MHz
  • Supports Intel® XMP 3.0 OC
  • Supports Dual Controller Dual-Channel mode
  • Supports non-ECC, un-buffered memory
Expansion Slots
  • 3x PCIe x16 slots
  • PCI_E1 & PCI_E2 slots (From CPU)
  • Support PCIe 5.0
  • Support x16/ x0, x8/ x8
  • PCI_E3 slot (From Z690 Chipset)
  • Supports PCIe 3.0 x4
Onboard Graphics
  • 1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz
  • 1x DisplayPort 1.4 port with HBR3, supports a maximum resolution of 4K 60Hz
Multi-GPU Supports AMD® CrossFire™ Technology
Storage
  • 4x SATA 6Gb/s ports – SATA5~8* (From Z690 Chipset)1
  • 2 x SATA 6Gb/s ports – SATAA & SATAB (From ASMedia ASM1061)
  • 5x M.2 slots (Key M)
  • M2_1 slot (From CPU)
  • Supports PCIe 4.0 x4
  • Supports 2260/ 2280/ 22110 storage devices
  • M2_2 slot (From Z690 Chipset)
  • Supports PCIe 4.0 x4
  • Supports 2260/ 2280 storage devices
  • M2_3 slot (From Z690 Chipset)
  • Supports PCIe 4.0 x4
  • Supports 2242/ 2260/ 2280/ 22110 storage devices
  • M2_4 slot (From Z690 Chipset)1
  • Supports PCIe 3.0 x4
  • Supports SATA 6Gb/s
  • Supports 2242/ 2260/ 2280 storage devices
  • M2_5 slot (From Z690 Chipset)
  • Supports PCIe 4.0 x4
  • Supports SATA 6Gb/s
  • Supports 2260/ 2280 storage devices
  • M2_2~5 support Intel® Optane™ Memory
  • Supports Intel® Smart Response Technology for Intel Core™ processors
RAID
  • Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
  • Supports RAID 0, RAID 1 , RAID 5 and RAID 10 for M.2 NVMe storage devices
USB Intel® Z690 Chipset

  • 1x USB3.2 Gen2x2 20Gbps Type-C port on the back panel
  • 6x USB 3.2 Gen 2 10Gbps ports (5 Type-A ports on the back panel, 1 Type-C available through the internal connector)
  • 2x USB 3.2 Gen 1 5Gbps ports available through the internal connector
  • 4 USB 2.0 ports on the back panel

USB Hub-GL850G

  • 4x USB 2.0 ports available through internal connectors
Audio Realtek® ALC4080 Codec

  • 7.1-Channel High Definition Audio
    Supports S/PDIF output
LAN 1x Intel® I225V 2.5Gbps LAN controller
WiFi & Bluetooth Intel® Wi-Fi 6E module

  • The Wireless module is pre-installed in the M.2 (Key-E) slot
  • Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/6GHz (160MHz) up to 2.4Gbps
  • Supports 802.11 a/ b/ g/ n/ ac/ ax
  • Supports Bluetooth 5.2, FIPS, FISMA
Internal connectors
  • 1x 24-pin ATX main power connector
  • 2x 8-pin ATX 12V power connectors
  • 6x SATA 6Gb/s connectors
  • 5x M.2 slots (M-Key)
  • 1x USB 3.2 Gen 2 10Gbps Type-C connector
  • 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
  • 2x USB 2.0 Type-A connectors (supports additional 4 USB 2.0 ports)
  • 1x 4-pin CPU fan connector
  • 1x 4-pin water-pump fan connector
  • 6x 4-pin system fan connectors
  • 1x Front panel audio connector
  • 2x System panel connectors
  • 1x Chassis Intrusion connector
  • 1x Clear CMOS jumper
  • 1x TPM module connector
  • 1x TBT connector (supports RTD3)
  • 1x Tuning Controller connector
LED Feature
  • 1x EZ LED Control switch
  • 4x EZ Debug LED
  • 1x 2-Digit Debug Code LED
  • 1x 4-pin RGB LED connector
  • 2x 3-pin RAINBOW LED connectors
  • 1x 3-pin CORSAIR LED connector

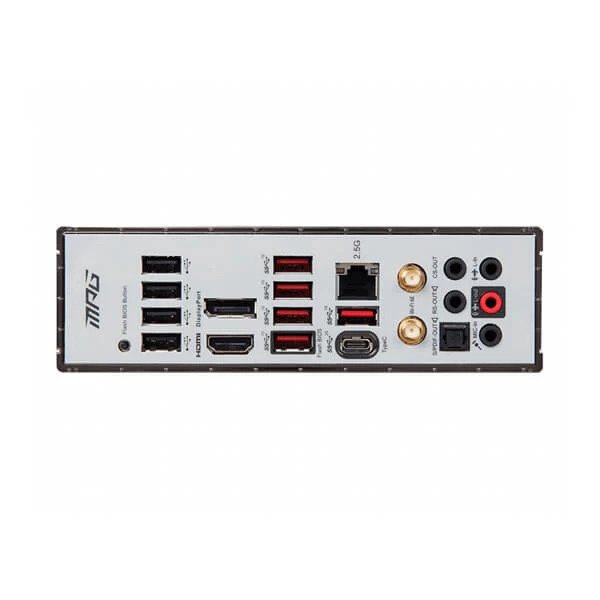

Back panel ports
  • USB 2.0
  • DisplayPort
  • 2.5G LAN
  • Wi-Fi/Bluetooth
  • Audio Connectors
  • Flash BIOS Button
  • HDMI
  • USB 3.2 Gen 2 10Gbps Type-A
  • USB 3.2 Gen 2×2 20Gbps Type-C
  • Optical S/PDIF Out
Dimensions
  • ATX Form Factor
  • 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
Mounting 9 mounting holes
Operating System Support for Windows® 11 64-bit, Windows® 10 64-bit
Warranty 3 Years
