Description

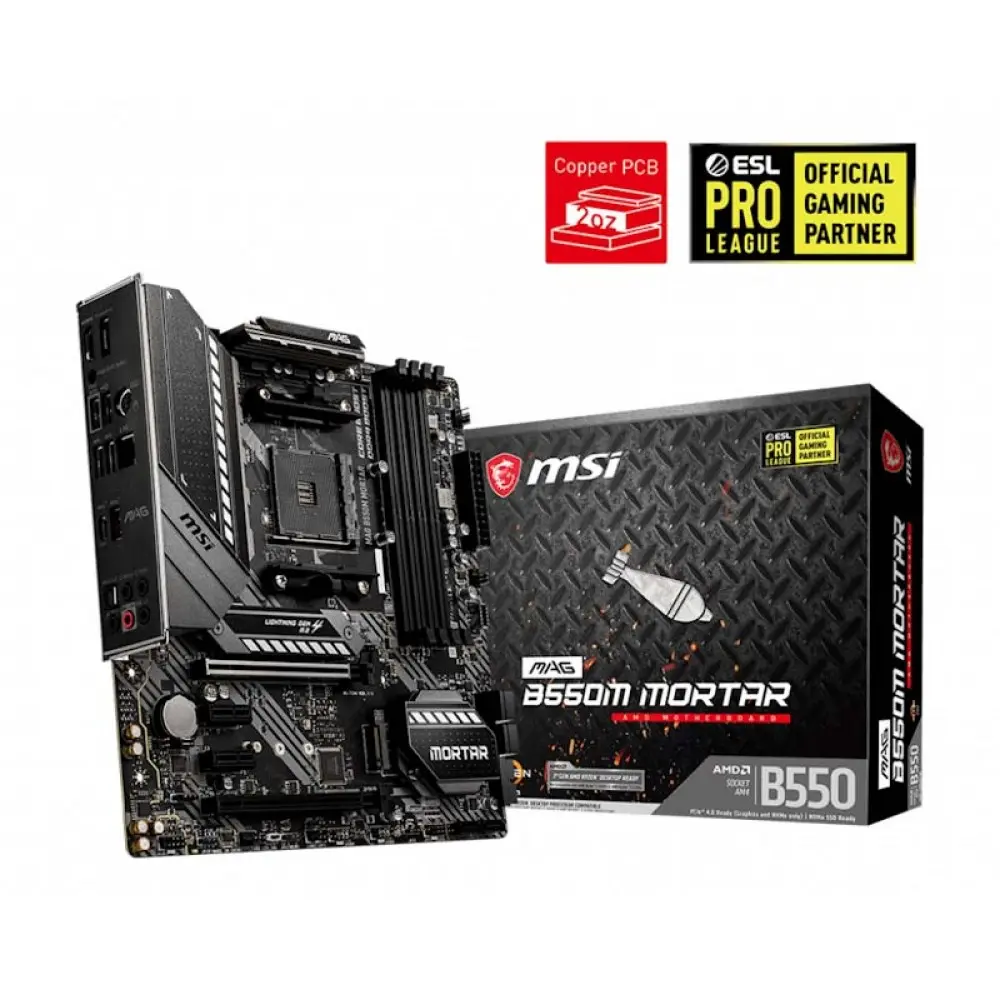

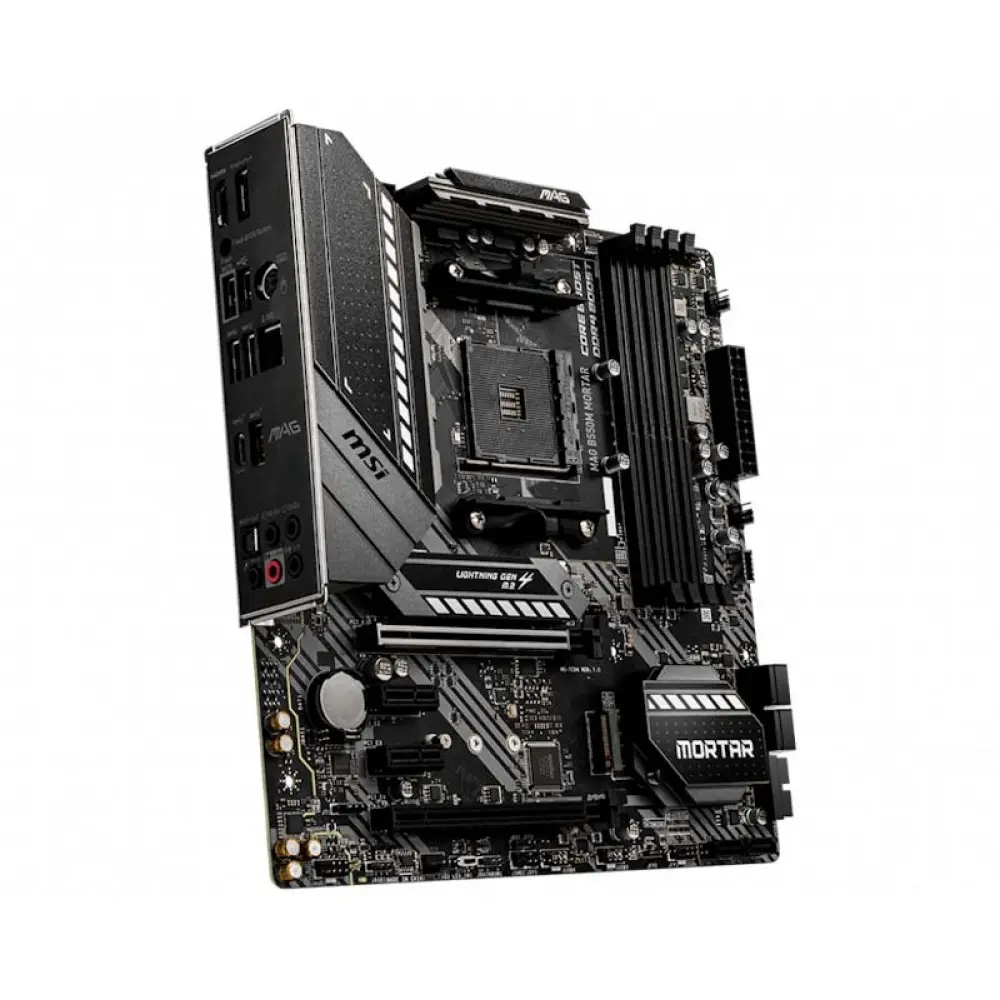

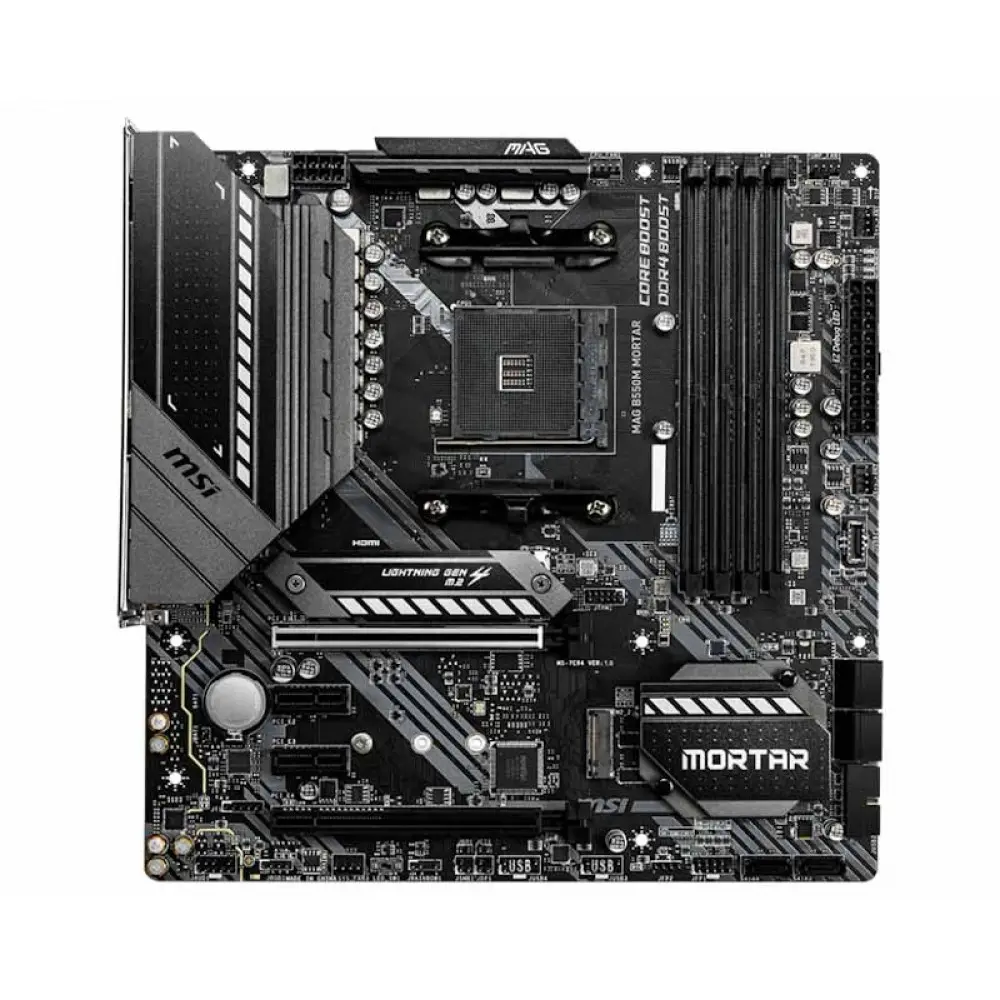

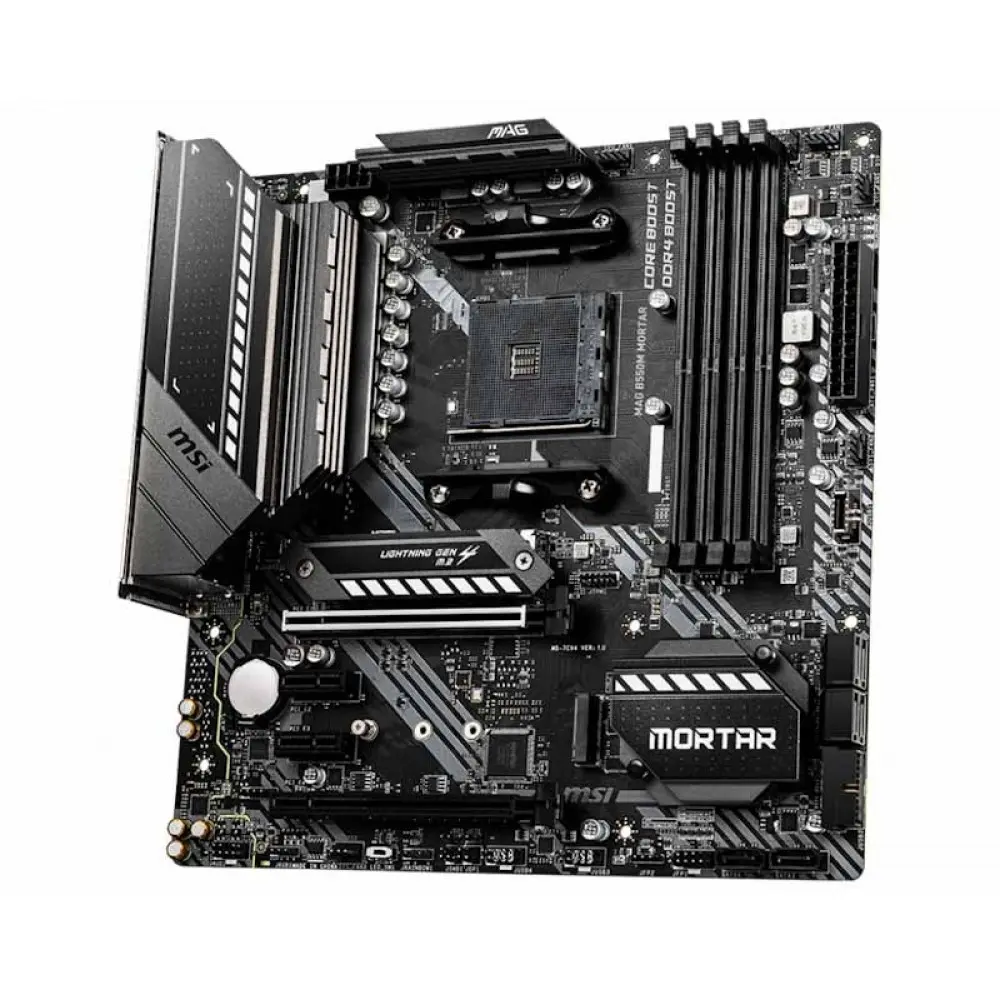

MSI MAG B550M MORTAR MOTHERBOARD (MAG B550M MORTAR)

The MAG series was born through rigorous quality testing and designed to be a symbol of sturdiness and durability. Focused on providing the best user experience, the MAG series has a simple installation process coupled with a friendly user interface making it the best choice for entry level gamers.



FEATURES:
  • Support for 3rd Gen AMD Ryzen™ Processors and future AMD Ryzen™ processors with BIOS update
  • Supports DDR4 Memory, up to 4400+(OC) MHz
  • Lightning Fast Game experience: PCIe 4.0, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, AMD Turbo USB 3.2 Gen 2
  • Premium Thermal Solution: Extended Heatsink Design with additional choke thermal pad rated for 7W/mk and PCB with 2oz thickened copper are built for high performance system and non-stop gaming experience.
  • Enhanced Power Design: 8+2+1 Duet Rail Power System, Digital PWM, Core Boost, DDR4 Boost.
  • 2.5G LAN with LAN Manager: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection.
  • Pre-installed I/O Shielding: Better EMI protection and more convenience for installation.
  • Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience.
  • Multi-GPU: With Steel Armor PCI-E slots. Supports 2-Way AMD Crossfire™



Specification
CPU Supports AM4 socket 3rd Gen AMD Ryzen™ processors, and future AMD Ryzen™ processors with BIOS update
Chipset AMD® B550 chipset
Memory 4x DDR4 memory slots, support up to 128GB

Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC

Supports DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400+ MHz by A-XMP OC MODE

1DPC 1R max speed 4400 MHZ

1DPC 2R max speed 3733 MHZ

2DPC 1R max speed 3866 MHZ

2DPC 2R max speed 3466 MHZ

Dual channel memory architecture

Supports non-ECC UDIMM memory

Supports ECC UDIMM memory (non-ECC mode)

Supports un-buffered memory

Expansion Slot 1x PCIe 3.0/ 4.0 x16 slot (PCI_E1)

1x PCIe 3.0 x16 slot (PCI_E4), supports x4 mode

2x PCIe 3.0 x1 slots

Multi-GPU Supports 2-Way AMD® CrossFire™ Technology
Onboard Graphics 1x HDMI port, supports a maximum resolution of 4096×2160 @24Hz 1

1x DisplayPort, supports a maximum resolution of 4096×2160 @60Hz 1

Maximum shared memory of 16GB

Storage 6x SATA 6Gb/s ports

2x M.2 slots (Key M)

M2_1 slot (from AMD processor)

Supports PCIe 4.0/ 3.0 x4

Supports SATA 6Gb/s

Supports 2242/ 2260/ 2280 storage devices

M2_2 slot (from AMD B550 chipset)

Supports PCIe 3.0×4

Supports 2242/ 2260/ 2280 storage devices

RAID Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices

Supports RAID 0 and RAID 1 for M.2 NVMe storage devices

USB AMD B550 Chipset



3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector)

6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)

AMD Processor



2x USB 3.2 Gen 2 10Gbps ports (1 Type-C port and 1 Type-A port on the back panel)

2x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel

Audio Realtek® ALC1200 Codec

7.1-Channel High Definition Audio

Supports S/PDIF output

LAN 1x Realtek® RTL8125B 2.5Gbps LAN controller
Internal Connectors 1x 24-pin ATX main power connector

1x 8-pin ATX 12V power connector

6x SATA 6Gb/s connectors

2x M.2 slots (M-Key)

1x USB 3.2 Gen 1 5Gbps Type-C port

1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)

2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)

1x 4-pin CPU fan connector

1x 4-pin water-pump fan connector

3x 4-pin system fan connectors

1x Front panel audio connector

2x System panel connectors

1x Chassis Intrusion connector

1x 4-pin RGB LED connector

2x 3-pin RAINBOW LED connectors

1xTPM module connector

1x Clear CMOS jumper

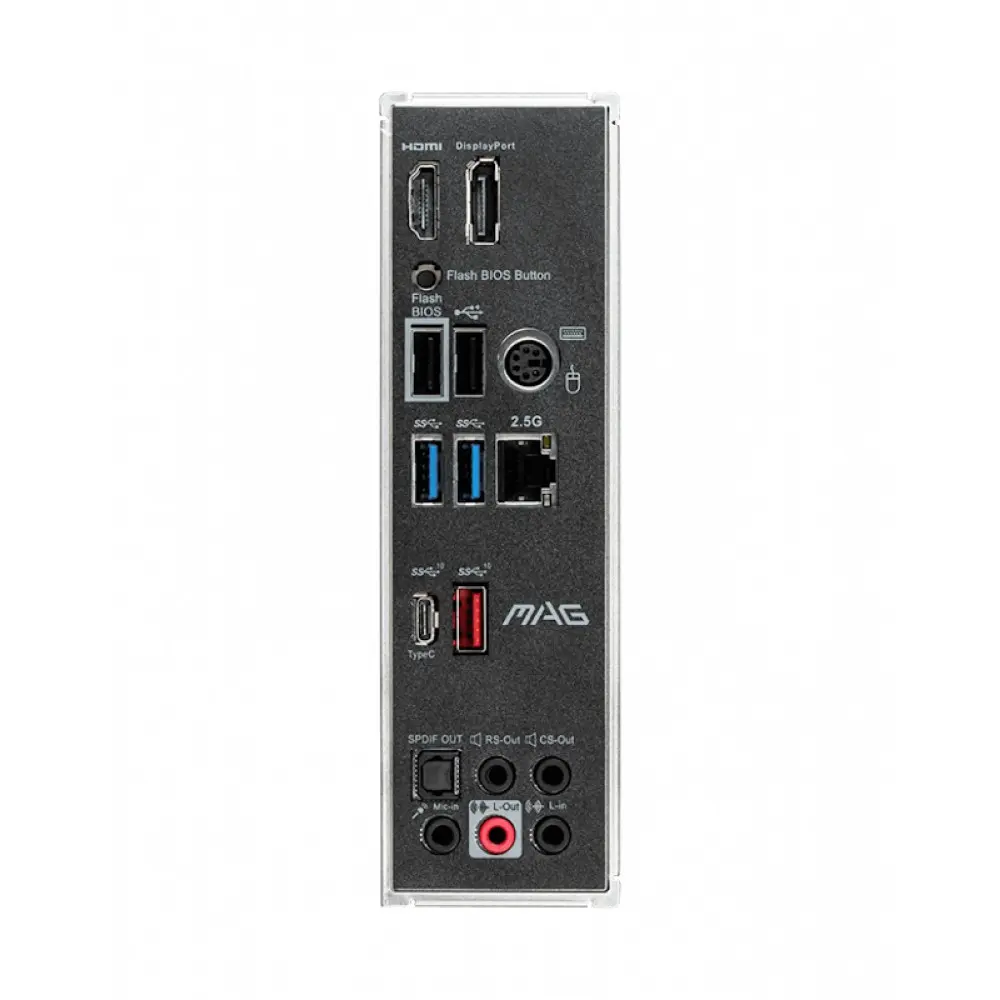

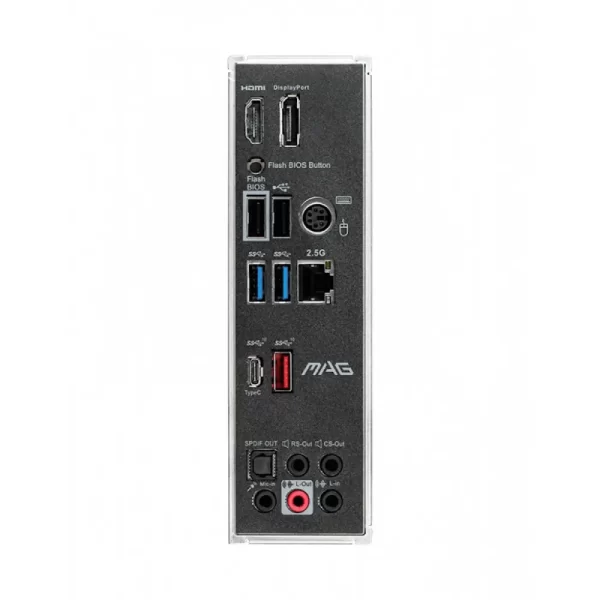

Back Panel Ports DisplayPort

PS/2 Combo Port

2.5G LAN Port

USB 3.2 Gen 2 10Gbps (Type-A)

HD Audio Connectors

HDMI Port

Flash BIOS Button

USB 2.0 port

USB 3.2 Gen 1 5Gbps (Type-A)

USB 3.2 Gen 2 10Gbps (Type-C)

Optical S/PDIF OUT

Form Factor Micro-ATX Form Factor

9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)

Mounting 8 mounting holes
Operating System Support for Windows® 10 64-bit
Warranty 3 Years
Note Price, feature and specifications are subject to change without notice.
