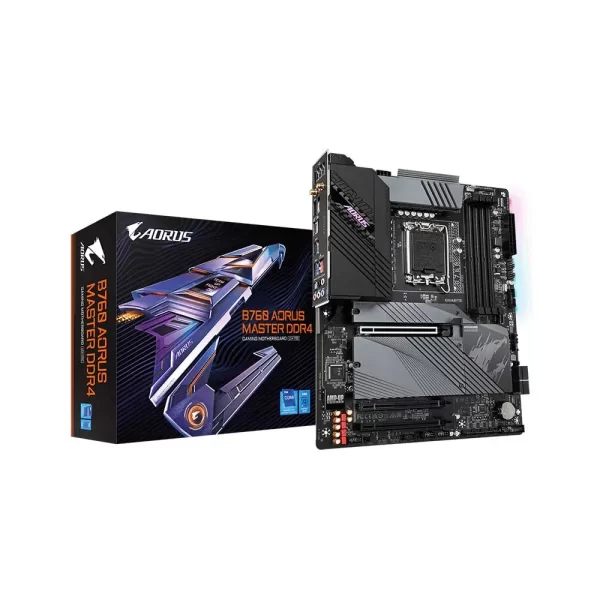

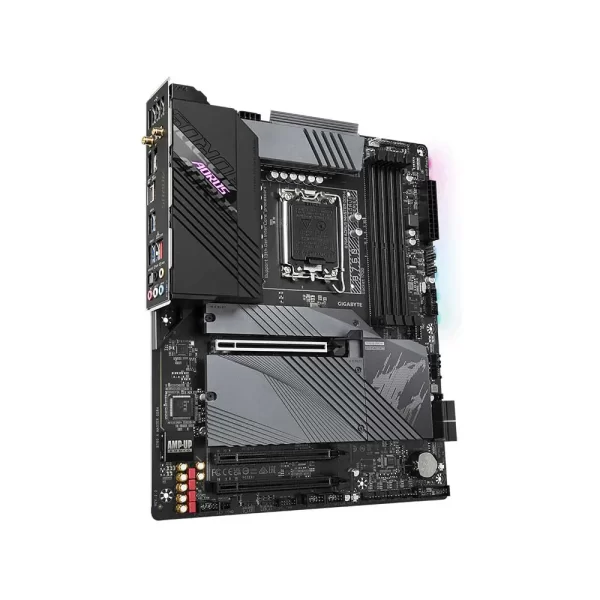

Gigabyte B760 Aorus Master Ddr4 Lga1700 Atx Motherboard (B760-AORUS-MASTER-DDR4)

Inclusive of all taxes

Model No : B760-AORUS-MASTER-DDR4

All over India Shipping

Competitive Pricing

Experts in pc building

product description

Description

Gigabyte B760 Aorus Master Ddr4 Lga1700 Atx Motherboard (B760-AORUS-MASTER-DDR4)

  • Intel® Socket LGA 1700:Support 13th and 12th Gen Series Processors
  • Unparalleled Performance:Twin 16*+1+1 Phases Digital VRM Solution
  • Dual Channel DDR4:4*DIMMs with XMP Memory Module Support
  • Next Generation Storage:3*PCIe 4.0 x4 M.2 Connectors
  • Advanced Thermal Design & M.2 Thermal Guard:To Ensure VRM Power Stability & M.2 SSD Performance
  • EZ-Latch Plus:M.2 Connectors with Quick Release & Screwless Design
  • Fast Networks:Intel® 2.5GbE LAN & Intel® Wi-Fi 6E 802.11ax
  • Extended Connectivity:Front USB-C® 10Gb/s, Rear USB-C® 20Gb/s, DP, HDMI
  • Smart Fan 6:Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP and Noise Detection
  • Q-Flash Plus:Update BIOS Without Installing the CPU, Memory and Graphics Card
CPU LGA1700 socket: Support for the 13th and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors*
L3 cache varies with CPU
Chipset Intel® B760 Express Chipset
Memory Support for DDR4 5333(O.C.) / 5133(O.C.) / 5000(O.C.) / 4933(O.C.) / 4800(O.C.) / 4700(O.C.) / 4600(O.C.) / 4500(O.C.) / 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2666 / 2400 / 2133 MT/s memory modules
4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Onboard Graphics Integrated Graphics Processor-Intel® HD Graphics support:
1 x HDMI port, supporting a maximum resolution of 4096×[email protected] Hz * Support for HDMI 2.0 version and HDCP 2.3.
1 x DisplayPort, supporting a maximum resolution of 4096×[email protected] Hz
* Support for DisplayPort 1.2 version and HDCP 2.3
Audio Realtek® ALC1220-VB CODEC
* The back panel line out jack supports DSD audio.
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out
LAN Intel® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication Module Intel® Wi-Fi 6E AX211
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
BLUETOOTH 5.3
Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
Expansion Slots CPU:
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:
1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)
1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x1 (PCIEX1)
Storage Interface CPU:
1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2M_SB)
4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
USB Chipset:
1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2×2 support
1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header
1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
4 x USB 2.0/1.1 ports available through the internal USB headers
Chipset+2 USB 3.2 Gen 1 Hubs:
6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
Chipset+USB 2.0 Hub:
4 x USB 2.0/1.1 ports on the back panel
Internal I/O Connectors 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 4-pin ATX 12V power connector
1 x CPU fan header
1 x CPU fan/water cooling pump header
4 x system fan headers
2 x system fan/water cooling pump headers
2 x addressable LED strip headers
2 x RGB LED strip headers
3 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x noise detection header
2 x Thunderbolt™ add-in card connectors
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x reset button
1 x Q-Flash Plus button
1 x reset jumper
1 x Clear CMOS jumper
2 x temperature sensor headers

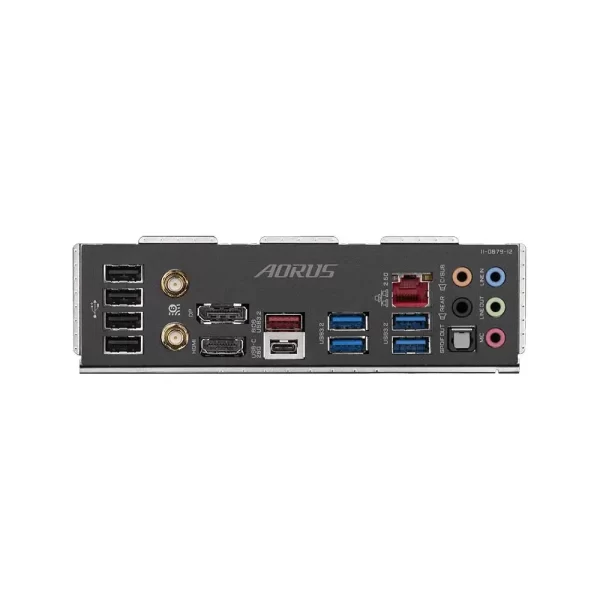

Back Panel Connectors 1 x USB Type-C® port, with USB 3.2 Gen 2×2 support
1 x USB 3.2 Gen 2 Type-A port (red)
4 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
2 x SMA antenna connectors (2T2R)
1 x DisplayPort
1 x HDMI port
1 x RJ-45 port
1 x optical S/PDIF Out connector
5 x audio jacks
I/O Controller iTE® I/O Controller Chip
H/W Monitoring Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
Noise detection
BIOS 1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Feature Support for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Support for Q-Flash
Support for Q-Flash Plus
Bundled Software Norton® Internet Security (OEM version)
LAN bandwidth management software
Operating System Support for Windows 11 64-bit
Support for Windows 10 64-bit
Form Factor ATX Form Factor; 30.5cm x 24.4cm
Warranty 3 Years
Note** **Prices, Specifications & Features are subject to change without notice
