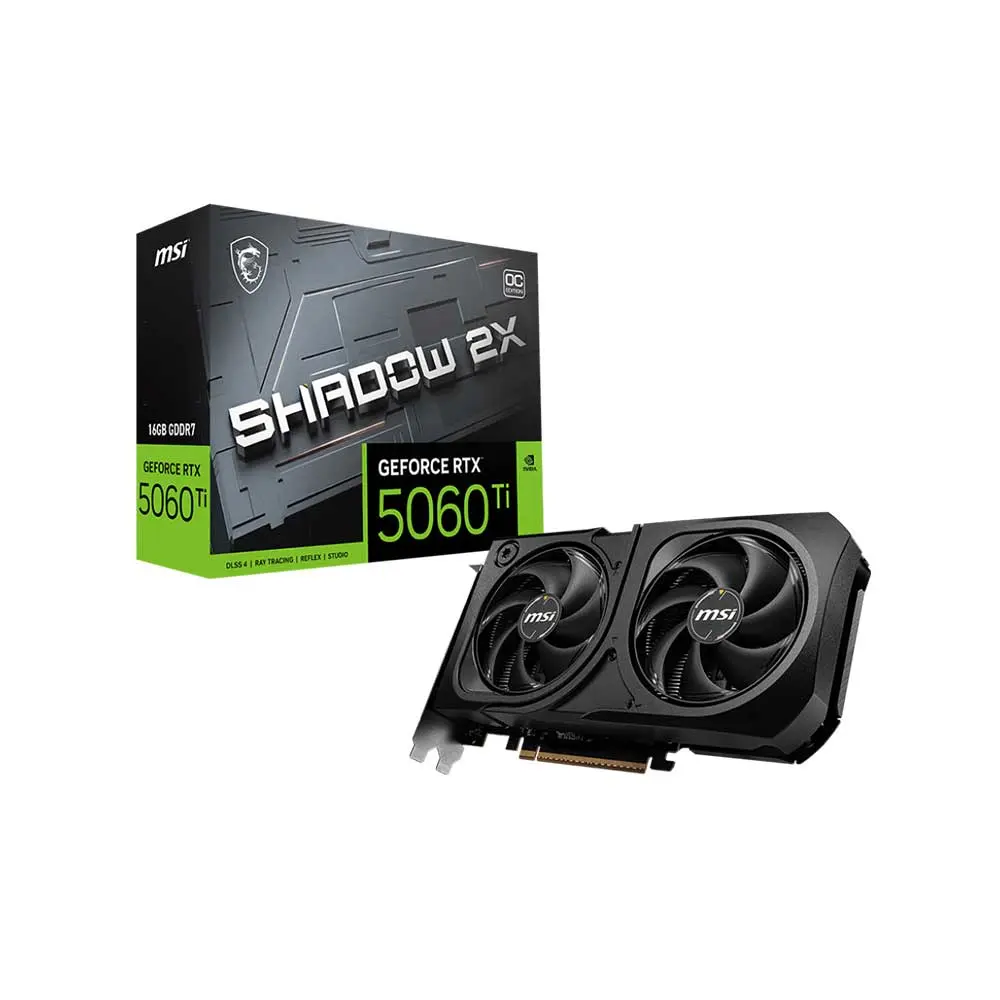

MSI RTX 5060 Ti Shadow 2X OC Plus 16GB GDDR7 Graphics Card
MSI RTX 5060 Ti SHADOW 2x OC Plus brings a performance-focused design that delivers the gaming experience players want, making it the ideal choice when upgrading or building a gaming rig.
- Powered by the NVIDIA Blackwell architecture and DLSS 4
- Core Clocks:
Extreme Performance: 2617 MHz (MSI Center)

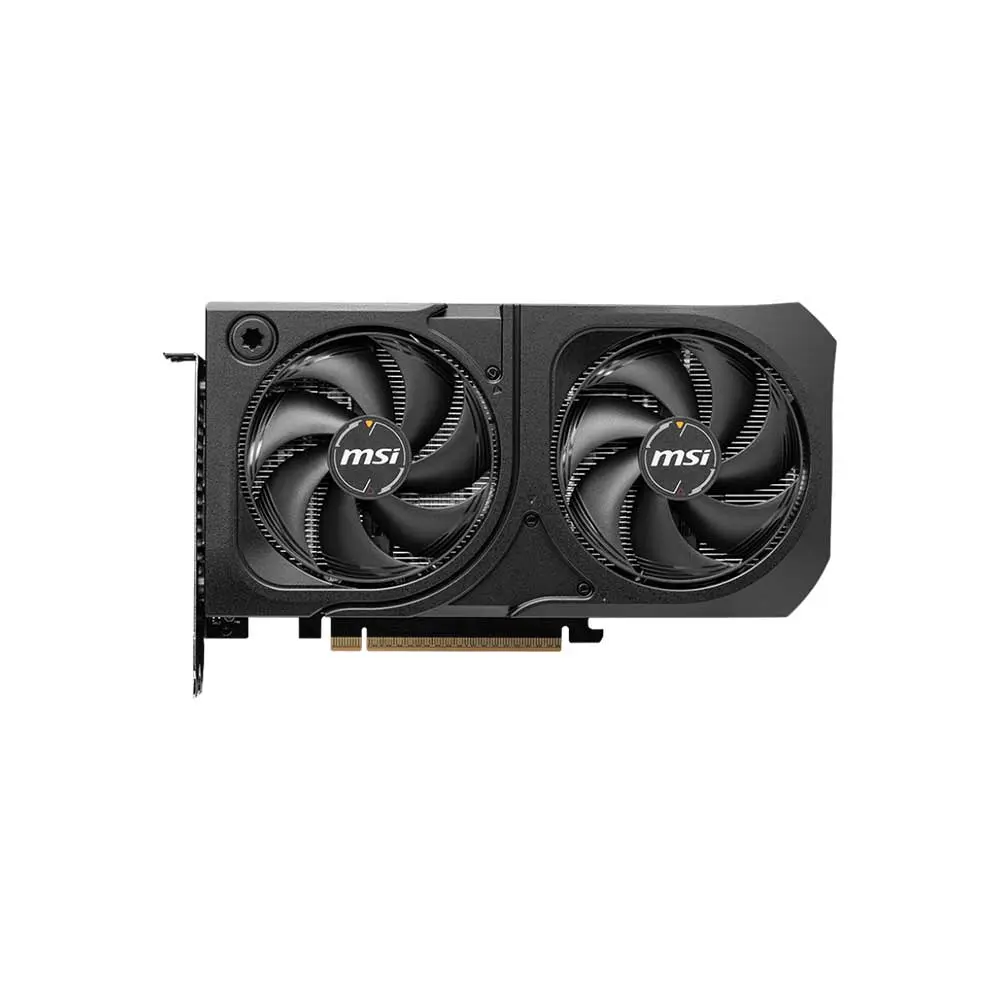

Boost: 2602 MHz - STORMFORCE Fan: Seven fan blades, claw texturing, and a circular arc are designed for optimal airflow with minimal noise.
- Heat Pipes designed for efficient heat transfer, the heat pipes effectively draw thermal energy away from the GPU, improving overall cooling performance.

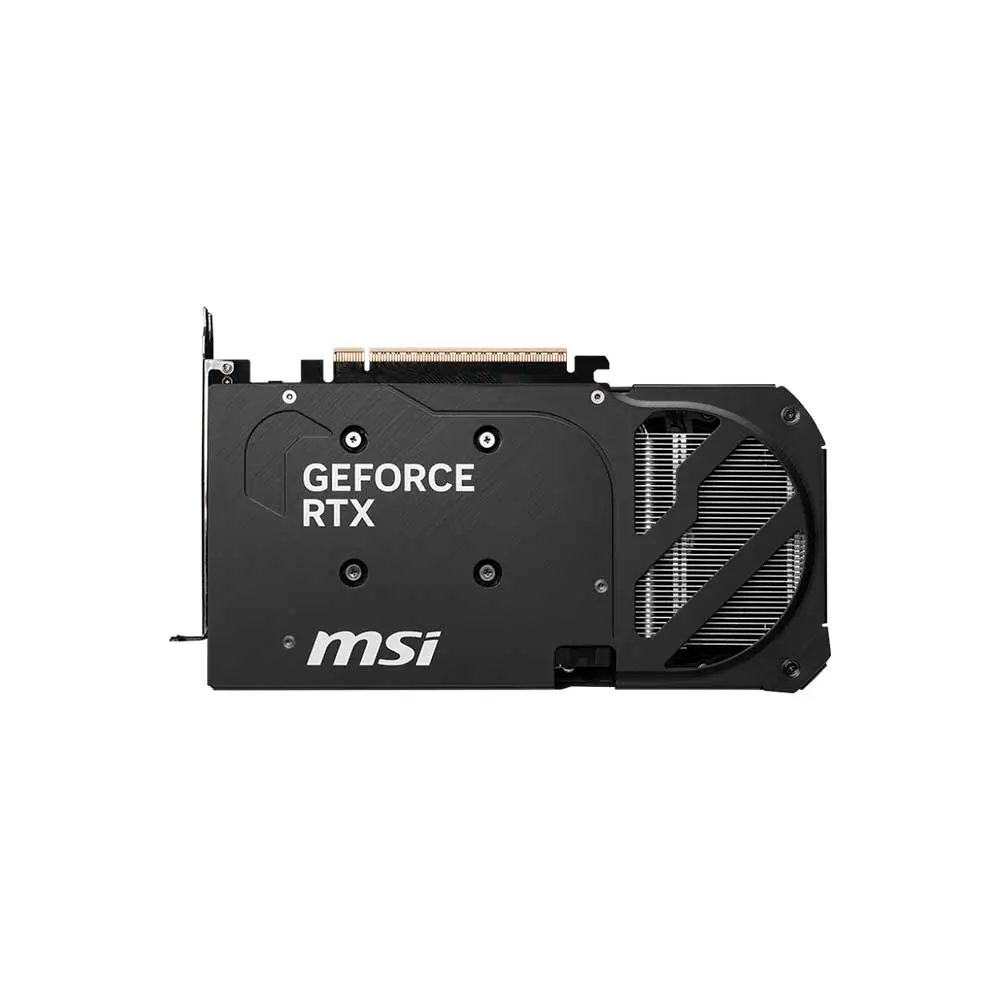

- Metal Backplate: A reinforcing metal backplate with airflow vents and thermal pads enhances cooling.
- MSI Center: The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.
- Afterburner software takes full control with the most recognized and widely used graphics card overclocking software in the world.
Marketing Name | GeForce RTX™ 5060 Ti 16G SHADOW 2X OC PLUS |
Mode Name | G506T-16S2CP |
Graphics Processing Unit | NVIDIA® GeForce RTX™ 5060 Ti |
Interface | PCI Express® Gen 5 x16 (uses x8) |
Core Clocks | Extreme Performance: 2617 MHz (MSI Center) Boost: 2602 MHz |
Cuda Cores | 4608 Units |
Memory Speed | 28 Gbps |
Memory | 16GB GDDR7 |
Memory Bus | 128-bit |

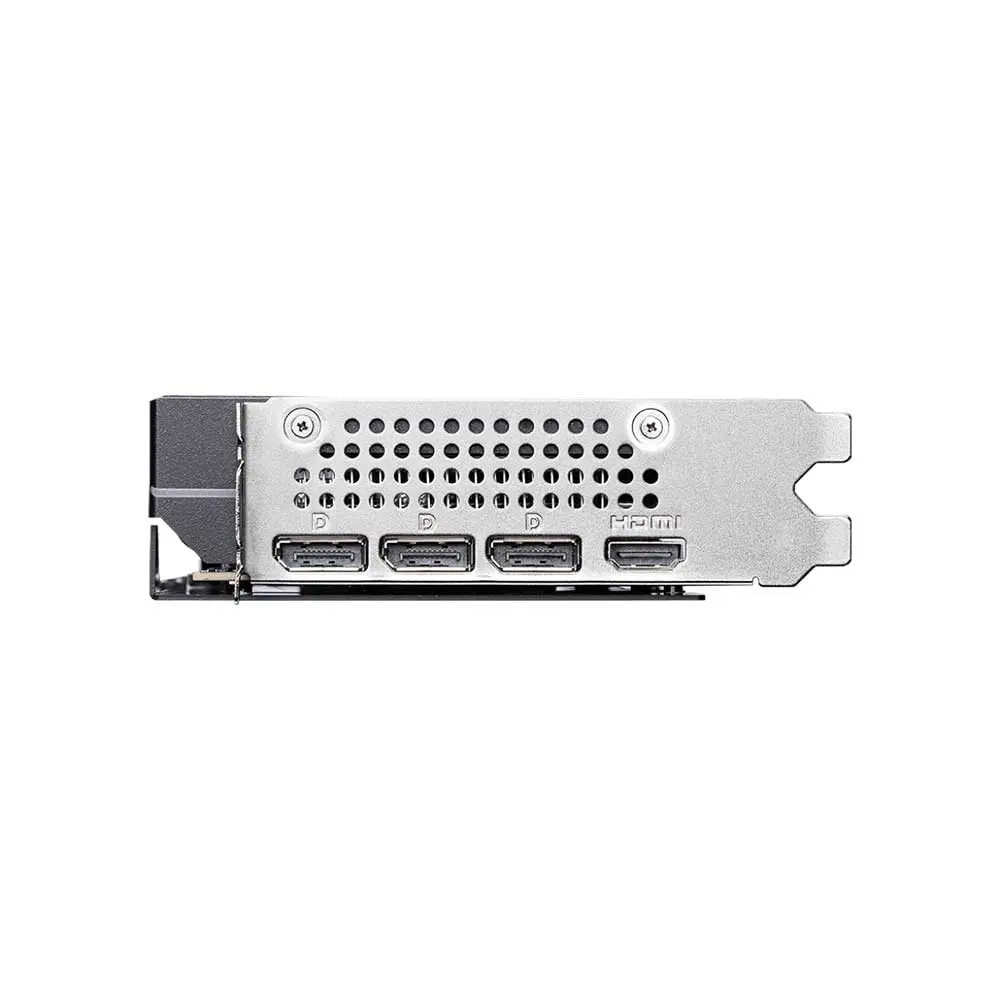

Output | DisplayPort x 3 (v2.1b) HDMI™ x 1 (As specified in HDMI™ 2.1b: up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR) |
HDCP Support | Y |
Power Consumption | 180 W |
Power Connectors | 8-pin x 1 |
Recommended PSU | 600W |
Card Dimension (mm) | 226 x 126 x 41 mm |
Weight (Card / Package) | 578 g / 851 g |
Direct X Version Support | 12 Ultimate |
Open GL Version Support | 4.6 |
Maximum Displays | 4 |
G-Sync Technology | Y |
Digital Maximum Resolution | 7680 x 4320 |
Warranty | 3 Years |
Note** | **Prices, Specifications & Features are subject to change without notice |
