9,700.00

SKU: DP-GD-DQ850-M-V2L Categories: ,

Description

DEEPCOOL DQ850-M-V2L POWER SUPPLY (DP-GD-DQ850-M-V2L)

  • 80 PLUS® GOLD certified – Up to 91.2% efficiency
  • 100% High quality Japanese capacitors
  • Full bridge PFC + LLC Resonant converter

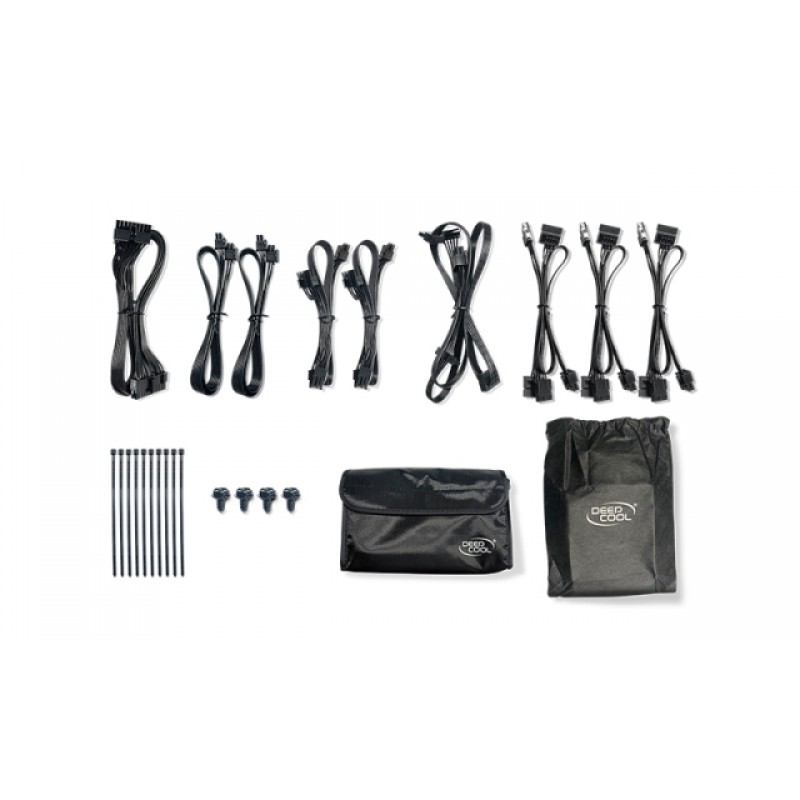

  • Fully modular with flat cable design
  • CircuitShield™ — OVP / UVP / SCP / OPP / OTP
Power Supply
Input Voltage 100-240V
Type ATX 12V V2.31
Input Current 12.0A
Input Frequency Range 47-63Hz

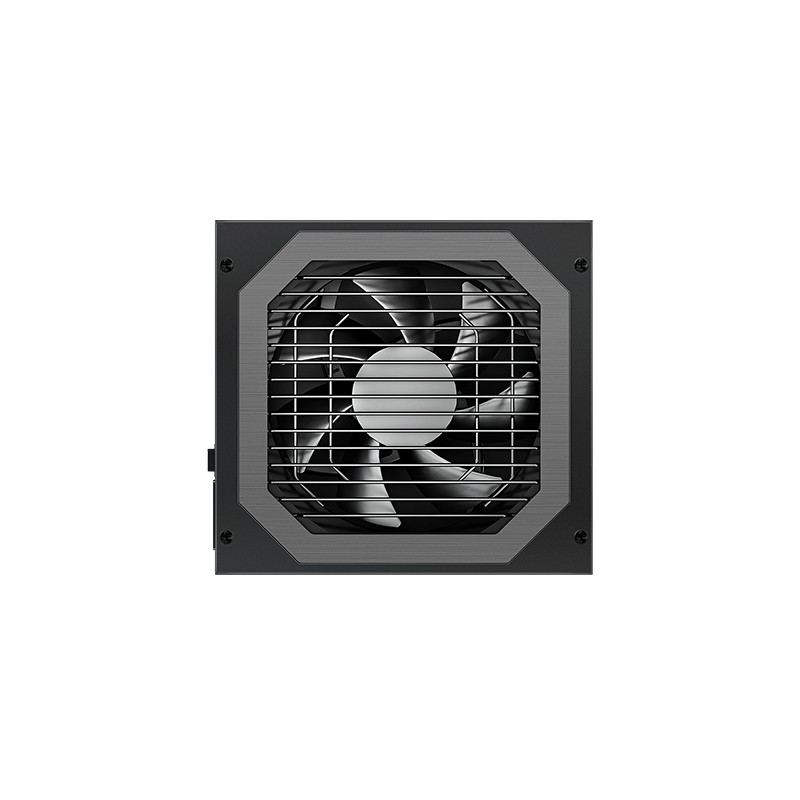

Fan size (mm) 120mm
PFC Active
Power Good Signal 100-500ms
Hold Up Time >16ms(80% Loading)
Efficiency >90% Under Typical Load(50% Loading) Standby Efficiency = ErP Lot 3 2014
MTBF 100,000 Hours
Protection OVP/UVP/OCP/SCP/OPP/OTP
Output Capacity 850W
Operation Temperature 0-40°C
Regulatory CE/CB/CCC/EAC/FCC/KCC/RCM/RoHs
Certifications 80PLUS GOLD
Model* DQ850-M-V2L
Dimension* 150×160×86mm (W × L × H)
Warranty** 10 Years
Note** Price, feature and specifications are subject to change without notice.
