DEEPCOOL PM750D 80 PLUS GOLD ATX POWER SUPPLY (R-PM750D-FA0B-UK)

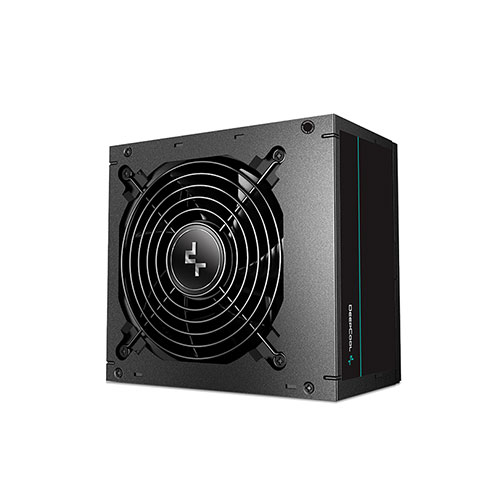

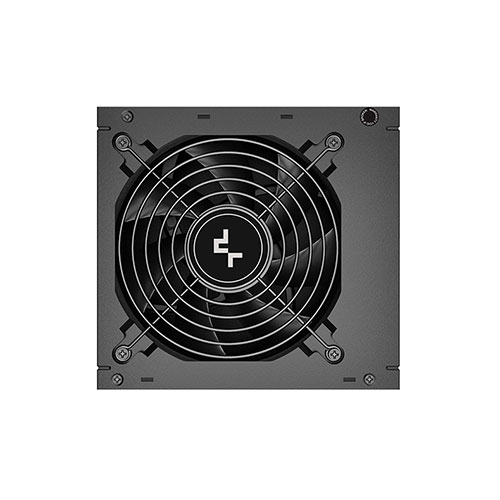

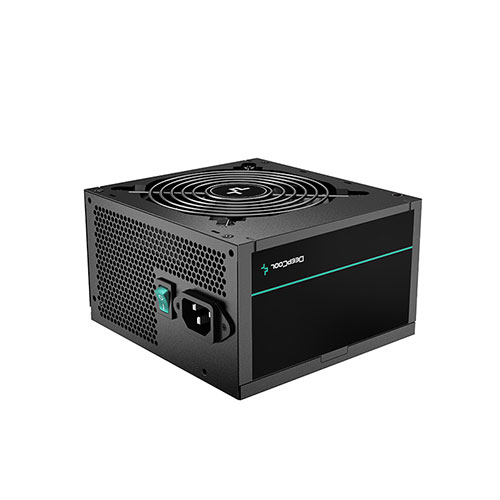

DeepCool PM750D
DeepCool PM750D Series non-modular power supplies are certified 80 PLUS Gold for efficient power delivery with great performance at a great value.
80 PLUS GOLD CERTIFIED
Guarantees a minimum efficiency of 90% or higher under typical loads for reliable power delivery with little waste.
QUALITY TOPOLOG
For solid power performance and minimal signal noise, the PM-D series PSU features a full-bridge LLC topology with DC-DC conversion and Japanese bulk capacitors that delivers terrific reliability.
BUILT TO SPEC
Made to meet modern power supply design standards for consistent voltage stability, each PM-D power supply is also compliant with Intel PSU guidelines that support instant-on power from sleep or standby modes.80 PLUS® Gold80 PLUS® Gold certified – Up to 87~90% efficient (20~100% Loading)Silent and High Performance Fan120mm silent fan has temperature control function to keep low noise
ENOUGH POWER TO GO AROUND
The PM750D features three independent PCIe outputs and two EPS connectors for continuous high quality power that supports the latest high-end graphics cards and motherboards for gaming excellence.
EFFICIENCY THROUGHOUT
The PM-D series power supplies are compliant with the 2014 ErP regulations on energy savings and also the IEC 62368-1 for safety standards.
PEACE OF MIND
Safeguard your power source with well-round circuit protection including OPP/OVP/SCP/OTP/OCP.
Specifications
Wattage | 750 Watt |
Certification | 80+ Gold |
PCIe Connector (6+2) | 3 |
SATA Connector | 6 |
Peripheral (4-Pin) | 3 |
Warranty | 5 Years |
Type | ATX12V V2.4 |
Product Dimensions | 150×140×86mm (W x L x H) |
80PLUS Certifications | GOLD |
Fan Size | 120mm |
Fan Bearing | Hypro Bearing |
Topology | Active PFC + Full Bridge SRC LLC + DC to DC |
Capacitors | Japanese Bulk Capacitor |
Power Good Signal | 100-150ms |
Hold Up Time | ≥16ms(75% Load) |
Efficiency | ≥90% Under Typical Load(50% Loading) |
Protection | OPP/OVP/SCP/OTP/OCP |
Operation Temperature | 0-40°C |
Regulatory | TUV/cTUVus/CCC/CE/FCC/UKCA/EAC/BIS |
Erp Regulation | ErP(2014) |
MTBF | 100,000 Hours |
