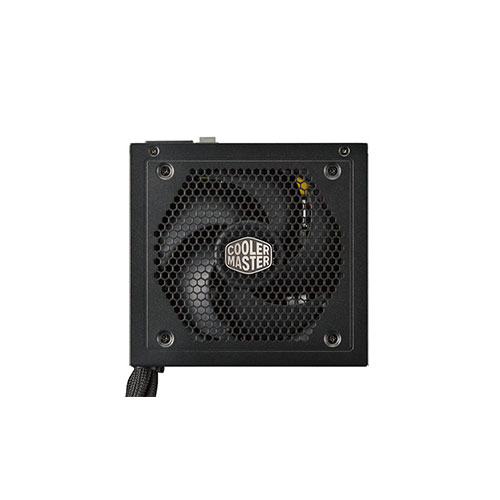

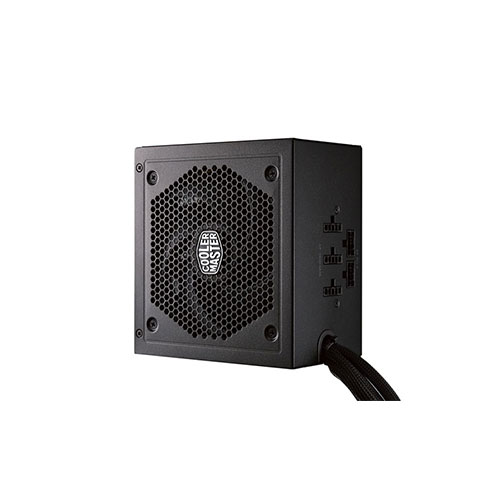

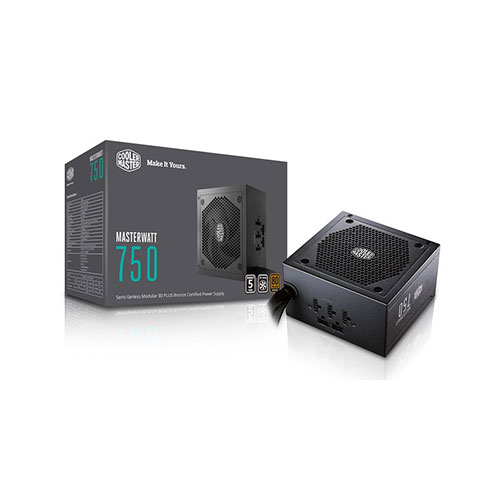

COOLER MASTER MASTERWATT 750W SMPS – 750 Watt 80 Plus Bronze Certification Semi Modular Psu With Active Pfc

Description

The MasterWatt is an 80 Plus Bronze power supply with an innovative semi-fanless mode. Under 15% load,the MasterWatt fan remains idle,offering zero dBA. When demand for power increases,a gradual fan curve provides measured cooling with little to no noise at any output level. Dual forward / DC-to-DC topology is employed to keep the voltage stable in all conditions. For increased performance,MasterWatt is equipped with 16 AWG power cables,which reduces resistance,thereby increasing efficiency.

FEATURES

• 80 PLUS Bronze Certified: The 80 PLUS Bronze certification guarantees that MasterWatt delivers an average efficiency of 85%.
• Durable LDB Bearing: Cooler Master 120mm Silencio FP fan combines sealed LDB bearings with quiet fan blades offering a long lifetime of quiet cooling.
• Semi-Fanless up to 15% load: MasterWatt Operates at 0dB under 15% load. Experience noise-free basic computing.
• Dual Forward and DC-to-DC Circuit Design: The Dual Forward and DC-to-DC circuit design offers reliability and stability.This is especially significant in 3.3V and 5V outputs.
• More Conductive PCI-e Cables: The MasterWatt uses 16AWG cables for PCI-e cables. Less resistance and better efficiency,providing you a safer user environment.

PRODUCT SPECIFICATIONS

• Product Name: MasterWatt 750
• Product Number: MPX-7501-AMAAB
• ATX Version: ATX 12V V2.4
• PFC: Active PFC
• Operation Voltage: 100-240 Vac
• Input Voltage: 100-240 Vac
• Input Current: 10-5 A
• Input Frequency: 50-60 Hz
• Dimensions (LxBxH): 140 x 150 x 86 mm
• Fan Size: 120 mm
• Fan Bearing: LDB
• Power Good Signal: 100-500 ms
• Hold Up Time: 16ms at 80% load
• Efficiency: 85% @ Typical Load
• ErP 2013 Lot 6: Yes
• MTBF: >100,000 hours
• Operating Temperature: 0 ~ 40°C
• Protections: OCP / OVP / UVP / OPP / OTP / SCP
• Regulatory: CCC, CE, TUV-RH, RCM, EAC, cTUVus, FCC, BSMI, KC, CB
• Connectors: MB 24 Pin: 1, CPU 12V 4 4 Pin: 1, SATA: 9, Peripheral 4 Pin: 3, FDD Cable 4 Pin: 1, PCI-e 6 2 Pin: 4
