Description

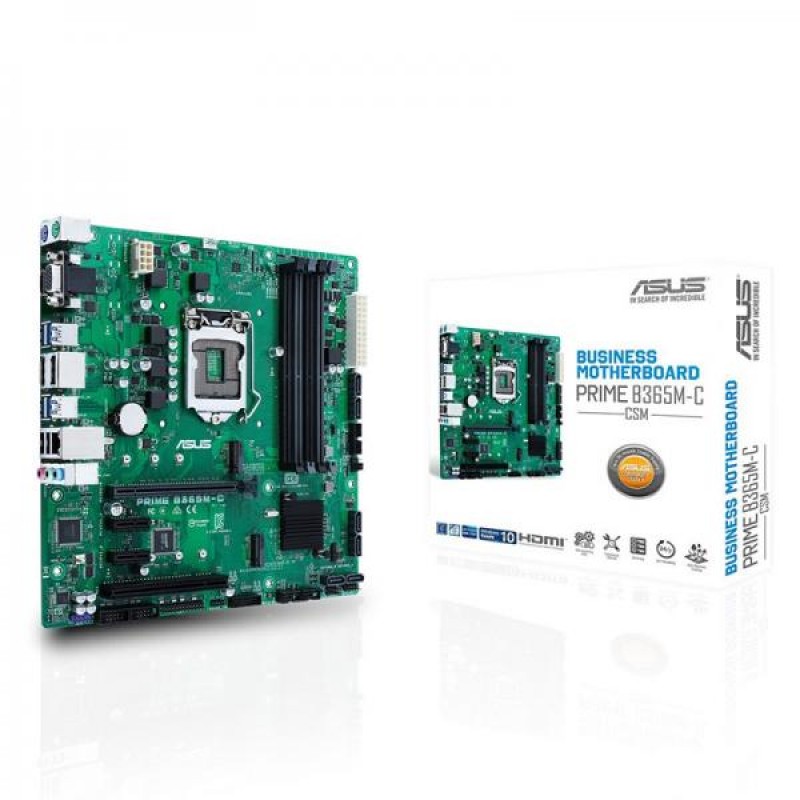

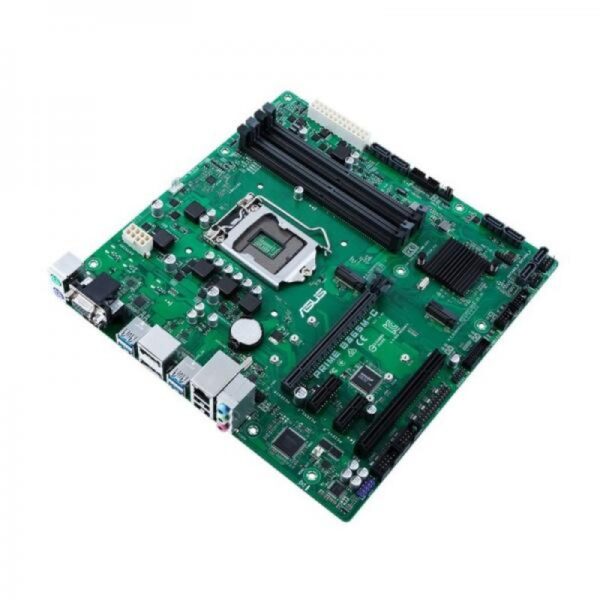

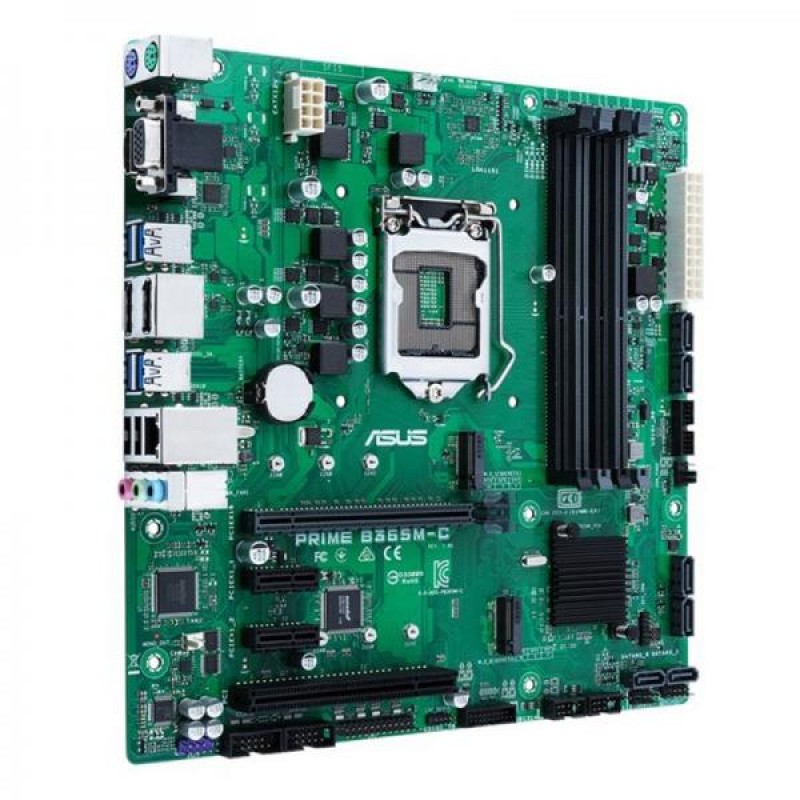

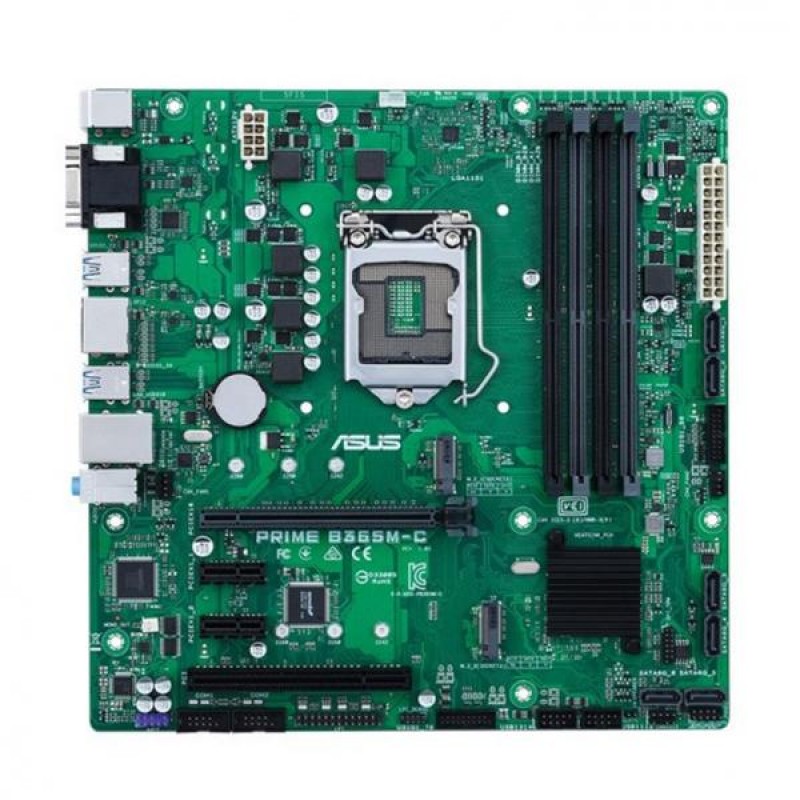

PRIME B365M-C/CSM

Micro-ATX B360 business motherboard with enhanced security, reliability and manageability

  • ASUS-exclusive self-recovering BIOS technology for automatic system BIOS recovery from a verified backup
  • Dedicated LPC header and debug card with LCD display for faster troubleshooting
  • Event log for capturing and managing detailed system information
  • Innovative moisture-resistant coating to protect the motherboard from harsh environments
  • Commercial BIOS kit to make customization faster and more efficient
  • ASUS Control Center software to make IT endpoint management easier
Motherboard
CPU Intel? for 9th / 8th Generation Core? i7/Core? i5/Core? i3/Pentium?/Celeron? Processors Supports Intel? 14 nm CPU Supports Intel? Turbo Boost Technology 2.0 * The Intel? Turbo Boost Technology 2.0 support depends on the CPU types. * Refer to www.asus.com for CPU support list
Chipset Intel? B360
Memory 4 x DIMM, Max. 64GB, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory Supports Intel? Extreme Memory Profile (XMP) ** Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). * Hyper DIMM support is subject to the physical characteristics of individual CPUs. * The maximum memory frequency supported varies by processor. * The maximum memory frequency supported varies by processor ** DDR4 2666MHz and higher memory modules will run at max. 2666MHz on Intel? 8th Gen. 6-core or higher processors.
Graphic* Integrated Graphics Processor- Intel? HD Graphics support Multi-VGA output support : HDMI/RGB/DisplayPort ports – Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz – Supports RGB with max. resolution 1920 x 1200 @ 60 Hz – Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz Maximum shared memory of 1024 MB (for iGPU exclusively) Supports Intel? InTru? 3D, Quick Sync Video, Clear Video HD Technology, Insider? Supports up to 3 displays simultaneously
Expansion Slots 1 x PCIe 3.0/2.0 x16 2 x PCIe 3.0/2.0 x1 1 x PCI
Storage Intel? B360 Chipset : 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode) 1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (x4 PCIE mode) 6 x SATA 6Gb/s port(s) Intel? Optane? Memory Ready
LAN Intel? I219V, 1 x Gigabit LAN Controller(s)
Audio Realtek? ALC887 8-Channel High Definition Audio CODEC *1 – Supports : Jack-detection, Front Panel Jack-retasking
Operating System Windows? 10 64-bit
USB Ports Intel? B360 Chipset : 4 x USB 3.1 Gen 2 port(s) (4 at back panel, , Type-A, 2 at mid-board) Intel? B360 Chipset : 2 x USB 3.1 Gen 1 port(s) (2 at mid-board) Intel? B360 Chipset : 6 x USB 2.0 port(s) (2 at back panel, , Type-A, 4 at mid-board)
Special Features Bespoke Motherboard Design & Business Focused Features : – ASUS Self Recovering BIOS: Automatically recover BIOS update once crash happen – ASUS Event Log: Record activities of system and provides information in BIOS – ASUS Commercial BIOS kit: Speed up BIOS update solutionby partial BIOS design – Anti-Moisture: Against moisture and corrosion ? prolonging the life of your motherboard – 24/7 Reliability: Tested under temperature up to 45?C and humidity up to 80% to ensure handle diverse environment Easy Assembly Design: – Fixed-position&Color-coded Connectors: Enable easy identification and cable-matching, speeding up the production line – Box Headers: USB headers are box style, enabling fast connector installation and preventing pin damage Digi+VRM

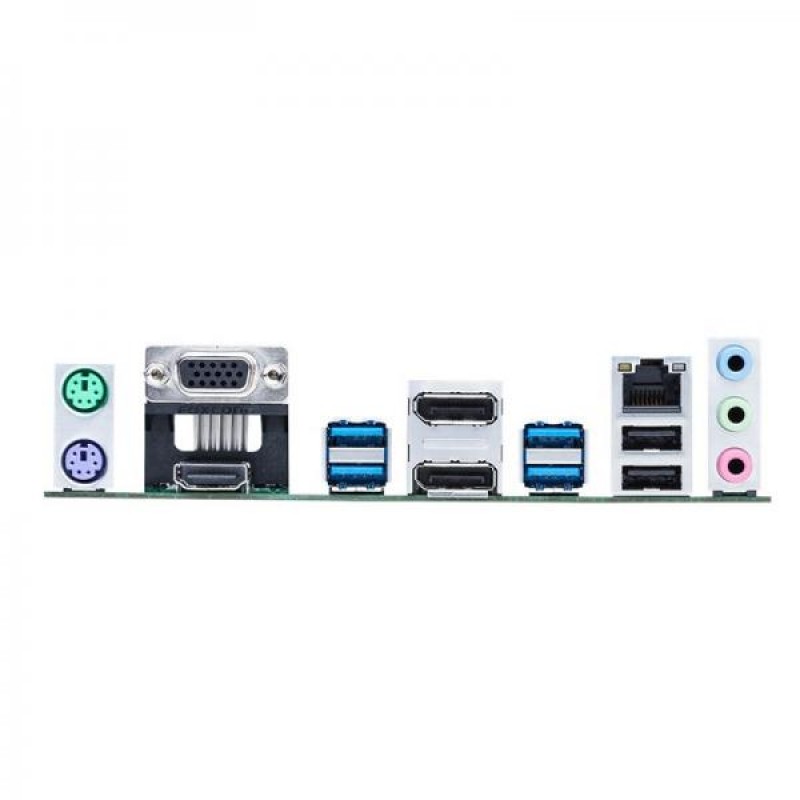

Back I/O Ports 1 x PS/2 keyboard (purple) 1 x PS/2 mouse (green) 1 x D-Sub 2 x DisplayPort 1 x HDMI 1 x LAN (RJ45) port(s) 4 x USB 3.1 Gen 2 ()Type-A 2 x USB 2.0 3 x Audio jack(s)
Internal I/O Ports 1 x MONO out header *2 1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (PCIE mode only) 1 x LPT header 2 x COM port(s) connector(s) 6 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 2 x Chassis Fan connector(s) (2 x 4 -pin) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x Internal speaker connector(s) 1 x System panel(s) 1 x Chassis Intrusion connector(s) 1 x Clear CMOS jumper(s) 1 x 14-1 pin TPM connector 1 x LPC Debug header
Accessories User’s manual I/O Shield 2 x SATA 6Gb/s cable(s) 1 x M.2 Screw Package 1 x Supporting DVD
BIOS 128Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS smart recovering BIOS, ASUS Event log, ASUS Commercial Kit
Support Disc Watch dog timer, Drivers
Form Factor Micro ATX Form Factor 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
Manageability WOL, PXE
Warranty** 3 years
**Note Price, feature and specifications are subject to change without notice.
