ASUS TUF GAMING B550 PLUS WIFI II AMD AM4 ATX MOTHERBOARD

17,200.00

Inclusive of all taxes

Model :

TUF GAMING B550-PLUS WIFI II

All over India Shipping

Competitive Pricing

Experts in pc building

product description

Loading...

Description

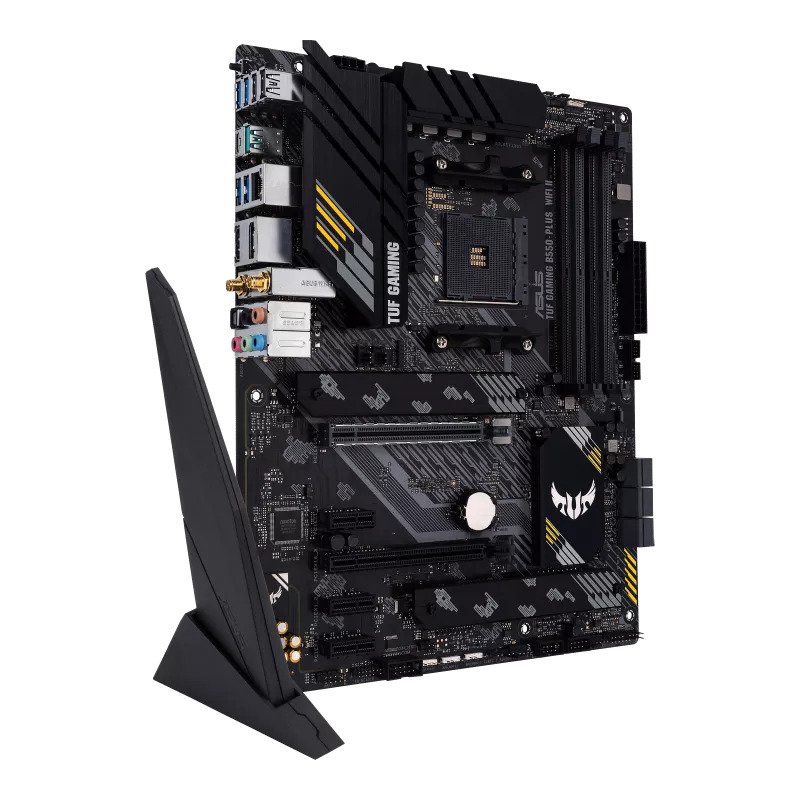

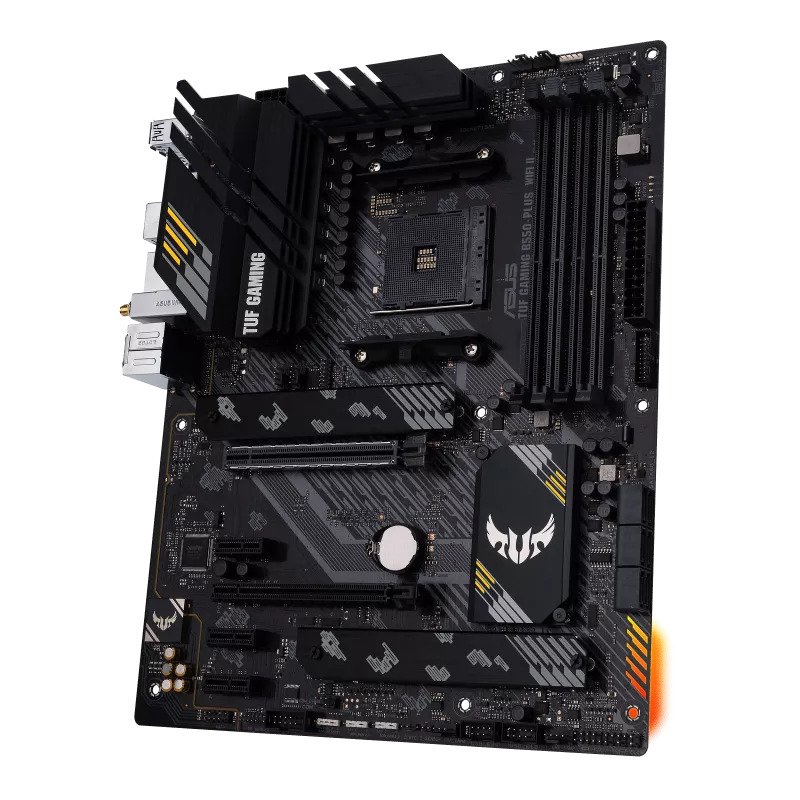

ASUS TUF GAMING B550 PLUS WIFI II AMD AM4 ATX MOTHERBOARD

AMD B550 (Ryzen AM4) ATX gaming motherboard with PCIe 4.0, dual M.2, 10 DrMOS power stages, Wi-Fi 6, 2.5 Gb Ethernet, HDMI, DisplayPort, SATA 6 Gbps, USB 3.2 Gen 2 Type-A and Type-C, Thunderbolt™ 3 header, and Aura Sync RGB lighting support
  • AMD AM4 socket: Ready for Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors
  • Enhanced power solution: 8+2 DrMOS power stages, ProCool sockets, military-grade TUF components, and Digi+ VRM for maximum durability
  • Comprehensive cooling: VRM heatsink, PCH fanless heatsink, Dual M.2 heatsink, hybrid fan headers and Fan Xpert 4 utility
  • Next-gen connectivity: PCIe 4.0 M.2, USB 3.2 Gen 2 Type-A and Type-C, Thunderbolt™ 3 header support
  • Made for online gaming: Wi-Fi 6, 2.5 Gb Ethernet, and TUF LANGuard
  • AI noise-canceling microphone: provides crystal-clear in-game voice communication
CPU AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors
*Refer to www.asus.com for CPU support list.
Chipset AMD B550
Memory 4 x DIMM, Max. 128GB, DDR4 4866(OC)/4800(OC)/4600(OC)/4466(OC)/4400(OC)/4333(OC)/4266(OC)/4200(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 MHz, Un-buffered Memory*

Dual Channel Memory Architecture

* ECC Memory (ECC mode) support varies by CPU.

* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.

Graphics 1 x DisplayPort 1.2

1 x HDMITM 2.1([email protected])

*Graphics specifications may vary between CPU types.

Expansion Slots AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors

1 x PCIe 4.0 x16 slot (supports x16 mode)

AMD Ryzen™ 5000 G-Series/ 4000 G-Series Desktop Processors

1 x PCIe 3.0 x16 slot (supports x16 mode)

AMD B550 Chipset

1 x PCIe 3.0 x16 slot (supports x4 mode)*

3 x PCIe 3.0 x1 slot*

*PCIE 3.0 X16_2 runs x1 mode when any of the PCIe 3.0 x1 slots is occupied.

**Support PCIe bifurcation for RAID on CPU function.

Storage Supports 2 x M.2 slots and 6 x SATA 6Gb/s ports
AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors :M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)

AMD Ryzen™ 5000 G-Series/ 4000 G-Series Desktop Processors

M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)

AMD B550 Chipset

M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)*

6 x SATA 6Gb/s ports

Support Raid 0, 1, 10

*M2_2 shares bandwidth with SATA6G_56. When M.2_2 is populated, SATA6G_56 will be disabled.

Ethernet 1 x Realtek 2.5Gb Ethernet
Wireless & Bluetooth 2×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) + BT5.2
2×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)Supports 2.4/5GHz frequency band

Bluetooth v5.2*

*Bluetooth v5.2 function will be ready in Windows 11 or later.

USB Rear USB:Total 8 ports
2 x USB 3.2 Gen 2 ports (1 x Type-A + 1 x USB Type-C®)4 x USB 3.2 Gen 1 ports (4 x Type-A)

2 x USB 2.0 ports (2 x Type-A)
Front USB:Total 6 ports
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 headers support additional 4 USB 2.0 ports

Audio Realtek 7.1 Surround Sound High Definition Audio CODEC*

– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

– Supports up to 24-Bit/192 kHz playback”

Audio Features

– Audio Shielding

– Rear optical S/PDIF out port

– Premium Japanese audio capacitors

– Dedicated audio PCB layers

– Audio Cover

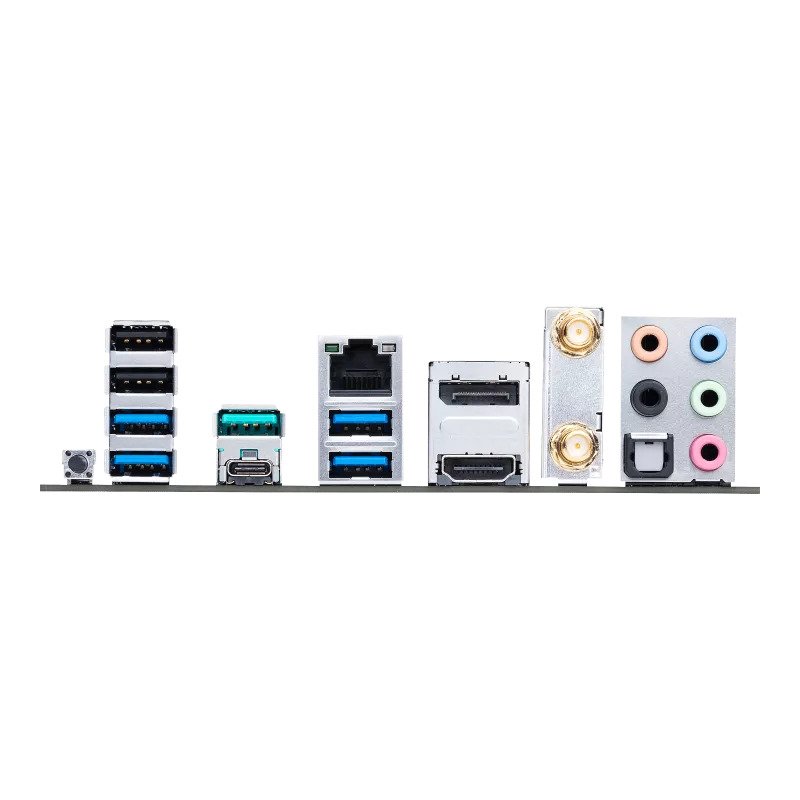

Back Panel I/O Ports 2 x USB 3.2 Gen 2 ports (1 x Type-A + 1 x USB Type-C®)

4 x USB 3.2 Gen 1 ports (4 x Type-A)

2 x USB 2.0 ports (2 x Type-A)

1 x DisplayPort

1 x HDMI™ port

1 x ASUS Wi-Fi Module

1 x Realtek 2.5Gb Ethernet port

5 x Audio jacks

1 x Optical S/PDIF out port

1 x BIOS FlashBack™ button

Internal I/O Connectors Fan and Cooling related

1 x 4-pin CPU Fan header(s)

1 x 4-pin CPU OPT Fan header(s)

1 x 4-pin AIO Pump header(s)

3 x 4-pin Chassis Fan header(s)

Power related

1 x 24-pin Main Power connector

1 x 8-pin +12V Power connector

Storage related

2 x M.2 slots (Key M)

6 x SATA 6Gb/s ports

USB

1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports

Miscellaneous

2 x AURA Addressable Gen 2 header(s)

2 x AURA RGB header(s)

1 x Clear CMOS header

1 x COM Port header

1 x Front Panel Audio header (AAFP)

1 x SPI TPM header (14-1pin)

1 x 20-3 pin System Panel header

1 x Thermal Sensor header

1 x Thunderbolt header

Special Features ASUS TUF PROTECTION

– ASUS DIGI+ VRM (Digital power design with Dr. MOS)

– ASUS Enhanced DRAM Overcurrent Protection

– ASUS ESD Guards

– TUF LANGuard

– ASUS Overvoltage Protection

– ASUS SafeSlot

– ASUS Stainless-Steel Back I/O

ASUS Q-Design

– ASUS Q-DIMM

– ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])

– ASUS Q-Slot

ASUS Thermal Solution

– Aluminum M.2 heatsink

ASUS EZ DIY

– BIOS FlashBack™ button

– BIOS FlashBack™ LED

– Procool

AURA Sync

– AURA RGB header(s)

– Addressable Gen 2 RGB header(s)

Software Features ASUS Exclusive Software

Armoury Crate

– Aura Sync

– Two-Way AI Noise Cancelation

AI Suite 3

– Performance And Power Saving Utility

TurboV EVO

EPU

Digi+ VRM

Fan Xpert 4

PC Cleaner

– EZ update

– System Information

Aura Creator

TUF GAMING CPU-Z

DTS Custom for GAMING Headsets

Norton Anti-virus software (Free Trial for 60 days)

WinRAR

UEFI BIOS

ASUS EZ DIY

– ASUS CrashFree BIOS 3

– ASUS EZ Flash 3

– ASUS UEFI BIOS EZ Mode

BIOS 256 Mb Flash ROM, UEFI AMI BIOS
Operating System Windows 10 64bit
Form Factor ATX 30.5cm x 24.4cm
Warranty 3 Years
Note** **Prices, Features& Specifications are subject to change without notice
