Description

Antec HCG850 Gold Power Supply 850 Watts 80 Plus Gold PSU with 120mm Silent FDB Fan, Full Modular, Active PFC,  ATX12V 2.4
HCG GOLD 850W 80 PLUS GOLD MODULAR POWER SUPPLY

  • The latest generation of High Current Gamer power supplies are available in a 80 Plus Gold efficiency rating, they offer unparalleled stability thanks to the top-grade Japanese capacitors and Active PFC. Advanced thermal control with the zero RPM mode enables optimal balance between silence and cooling and comes with a Fluid dynamic bearing 120mm fan to complete the package.

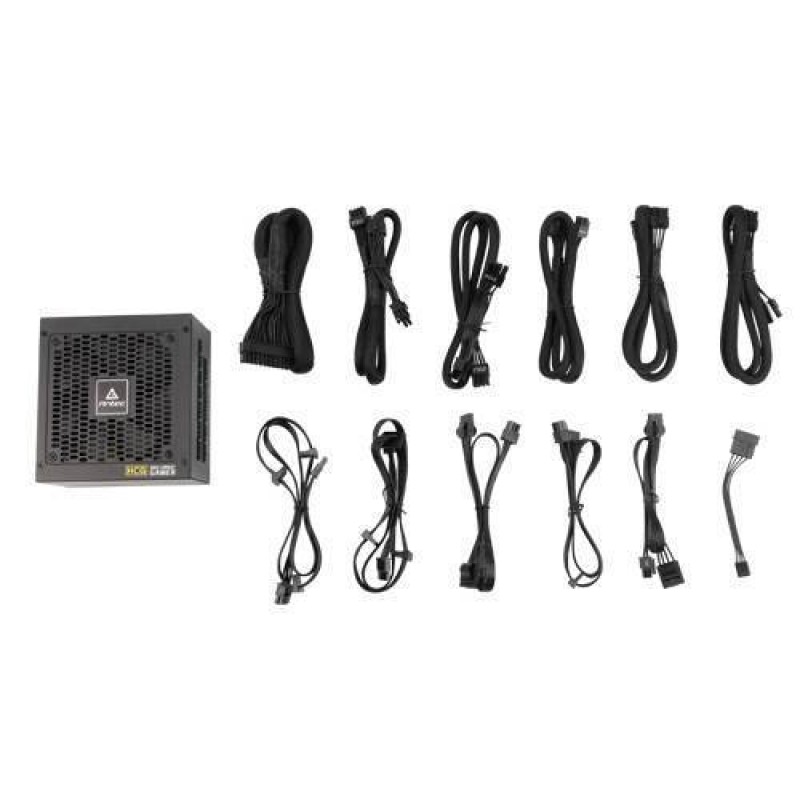

  • The fully modular cable management system allows you to only use the cables you need, which greatly simplifies installation and helps with creating a beautiful system build.
  • The cables have an extra capacitor located at the ends of the +12V cables to store power, preventing brownouts from sudden demand spike – providing an extra power reserve where and when you need it the most.

Features

  • Guaranteed 850W of Continuous Power from Antec
  • 100% Modular-Improves airflow and reduces clutter
  • 80 PLUS® GOLD certified-Up to 92% efficient, to reduce your electricity bill
  • PhaseWave™ Design-A server-class full-bridge LLC design with a synchronous rectification based on a DC-DC topology
  • Antec Quality 10-year warranty and lifetime global 24/7 support
  • 120mm FDB Silence-Whisper-quiet high-quality fluid-dynamic bearing fan with long lifetime
  • Zero RPM Manager-An advanced low voltage fan control with fan-off mode at low loads for absolute silence
  • 99%+12V – Output for maximum CPU & GPU support
  • CircuitShield™-Full suite of industrial grade protections: OCP, OVP, UVP, SCP, OPP, OTP, SIP, NLO
  • 100% Japanese capacitors achieve unprecedented tight voltage regulation & low ripple & noise to maximize your system’s performance
  • 28(18+10) pin MBU socket – For possible future MBU connectors
  • ATX12V 2.4-Engineered according to the newest PSU guideline and compatible with the latest CPU generation
  • Compact size 140mm depth power supply is the best choice for compact ATX chassis
Power Supply
Dimension (W x L x H) 140(L)*150(W)*86(H) mm
Input Voltage 100-240 VAC ±10%
Type ATX 12V 2.4
Input Current 12A-6A
WATTAGE 850
Input Frequency Range 50Hz-60Hz
PFC Active PFC (>0.9 typical)
Power Good Signal 100-500ms
Efficiency 92% Typically
Modular Fully Modular
Protection OCP/OVP/UVP/SCP/OPP/OTP/SIP/NLO
Output Capacity 850W
Operation Temperature 0~40°C
Regulatory cTUVus/TUV/CB/RCM/CE/EAC/CCC/BSMI/FCC/KR Fan = 120mm FDB Fan
Certifications 80 Plus Gold

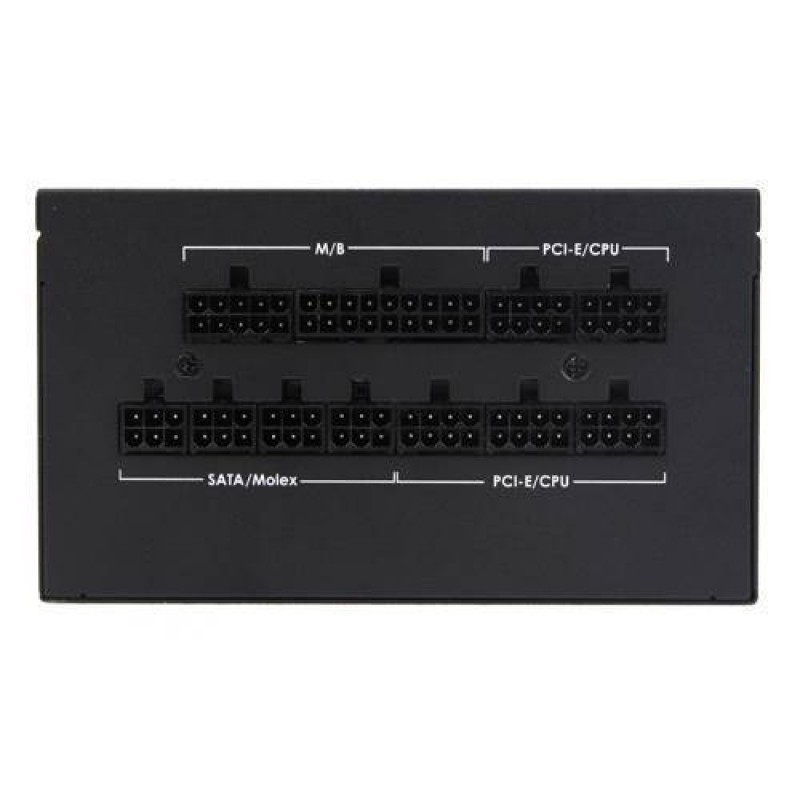

Connector 1 x MB 24(20+4) Pin 2 x 8(4+4) Pin EPS 12V 6 x 8(6+2) Pin PCI-E 10 x SATA 5 x Molex 1 x FDD
Model* HCG850 Gold
Warranty** 10 years (TABLE TAP REPLACEMENT)
Note** Price, feature and specifications are subject to change without notice.
