Description

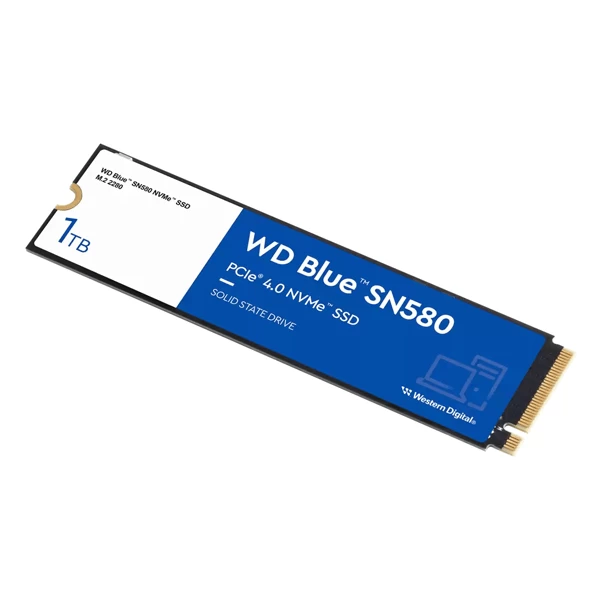

Western Digital Blue SN580 1TB M.2 NVMe Internal SSD(WDS100T3B0E)
Upgrade your storage with Western Digital Blue SN580 1TB M.2 NVMe Internal SSD. Shop online for lightning-fast performance and reliability. Elevate your data!
Features:
- Boost productivity or design creatives effortlessly by upgrading to PCIe
Gen 4.0 SSDs with up to 4,150 MB/s read speeds - Make light work of heavy files with Western Digital®’s nCache™ 4.0
technology enabling blistering fast copying of large files or media assets - With up to 1TB of storage on a slim M.2 2280 form factor, applications, data, and media such as photos, 4K videos, and music can be stored
on the same drive - Keep creating uninterrupted when you’re in the zone or on the go with low-power storage to maximize your laptop’s battery life
- NVMe delivers application responsiveness while multitasking between projects with large and complex workflows
- Western Digital’s 5-year limited warranty for peace of mind and reliability
Make light work of heavy files
Launch applications, load, edit, and publish content with PCIe Gen 4.0 speeds up to 4,150 MB/s2 and fast file copies with nCache™ 4.0 technology.
Designed for content creators and professionals
The WD Blue SN580 NVMe SSD boosts creative workflows, delivering application responsiveness for multiple projects. The low-power design prolongs battery life, so you can keep working or creating when you’re in the zone.
High performance, low lag time
PCIe Gen 4.0 high performance delivers transfer speeds of up to 4,150 MB/s2 to quickly load large digital assets or when publishing your projects.
Specifications:
Model Number | WDS100T3B0E |
Interface | PCIe Gen4 NVMe 1.4b |
NAND Type | WDC TLC |
Performance | |
Sequential Read (MB/s) up to (Queues = 32, Threads = 1) |
4,150 |
Sequential Write (MB/s) up to (Queues = 32, Threads = 1) |
4,150 |
Random Read 4KB IOPS up to (Queues=32, Threads=16) |
600K |
Random Write 4KB IOPS up to (Queues=32, Threads=16) |
750K |
Endurance (TBW) | 600 |
Power | |
Average Active Power | 65mW |
Sleep (PS5) | 3.3mW |
Reliability | |
MTTF (hours) | 1.5M |
Security | TCG Pyrite 2.01; ATA Security Passthrough over NVMe |
Environmental | |
Operating Temperatures | 32°F to 185°F (0°C to 85°C) |
Non-operating Temperatures | -40°F to 185°F (-40°C to 85°C) |
Operating Vibration | 5.0 gRMS, 10–2000 Hz, 3 axes |
Non-Operating Vibration | 4.9 gRMS, 7–800 Hz, 3 axes |
Shock | 1,500G @ 0.5 ms half-sine |
Certifications | BSMI, CAN ICES-3(B)/NMB-3(B), CE, FCC, KCC, Morocco, RCM, TUV, UL, VCCI |
Physical Dimensions | |
Form Factor | M.2 2280-S3-M (M key, Single Side Assembly) |
Length | 80 ± 0.15mm |
Width | 22 ± 0.15mm |
Height | 2.38mm |
Weight | 5.5g ±.5g |
Warranty | 5 Years |
Note | *** Features, Prices, and Specifications are subject to change without notice |
