Description

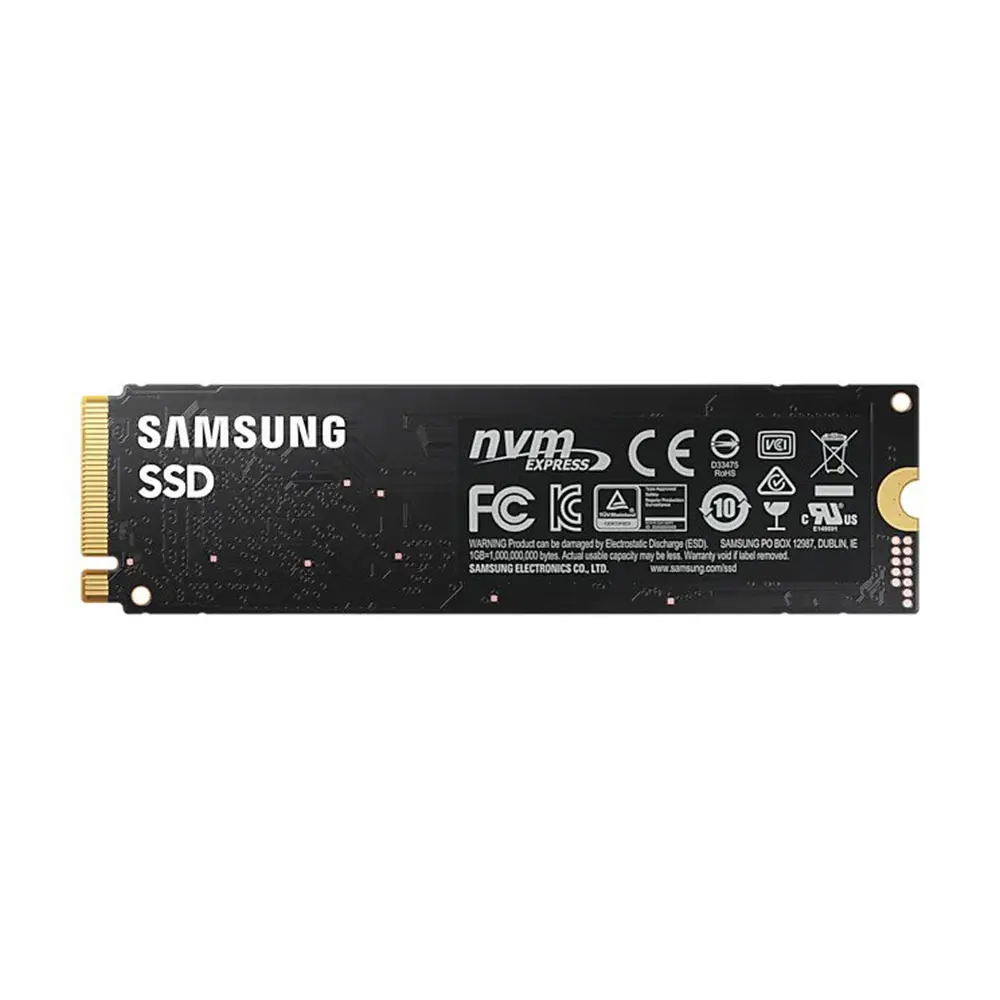

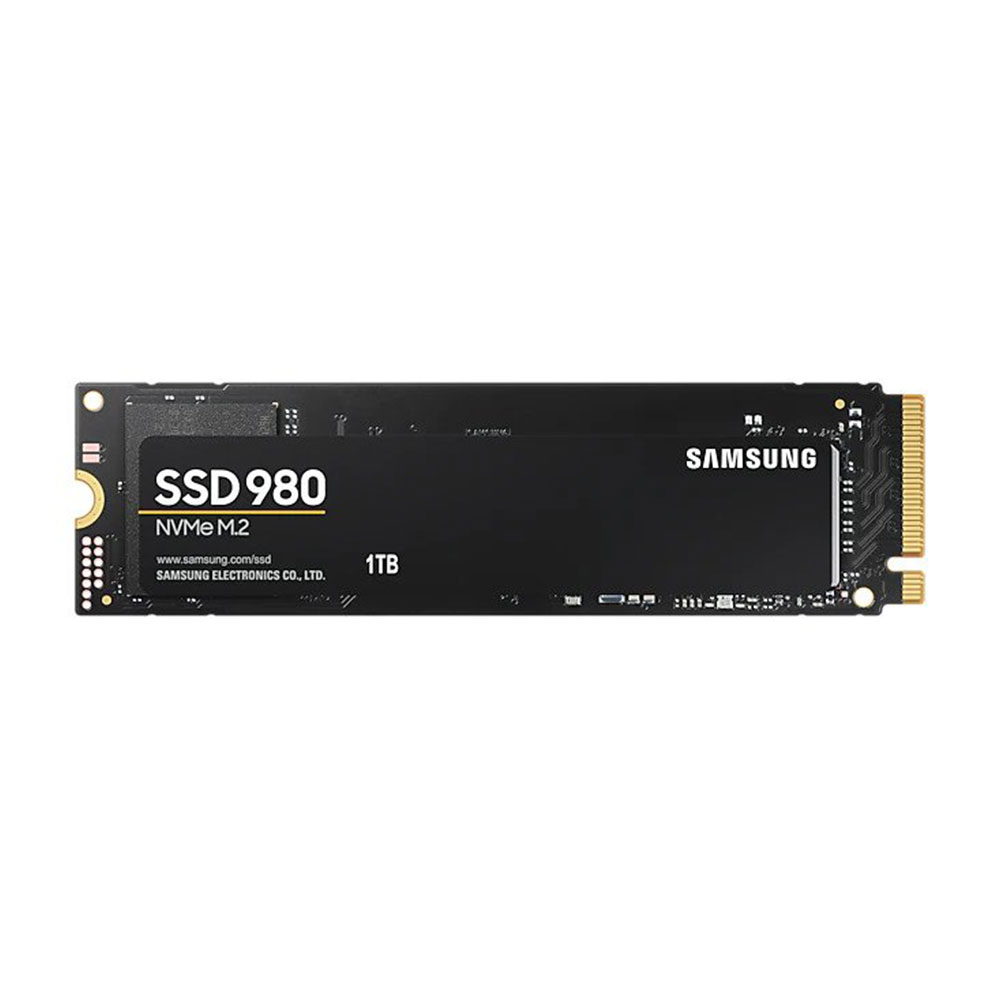

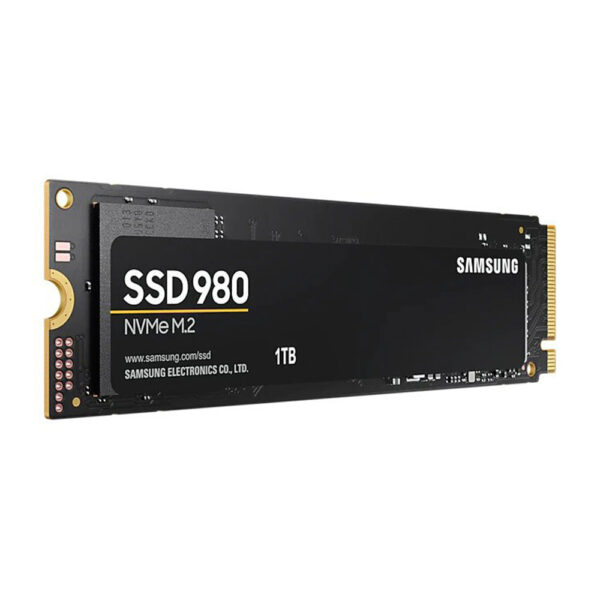

SAMSUNG 980 NVMe M.2 1TB INTERNAL SSD (MZ-V8V1T0BW)
- Sequential Read speeds up to 2,900MB/s. Performance varies based on system hardware and configuration
- Interface: PCIe 3.0 NVMe (PCIe Gen 3.0 x 4)
- Form Factor : M.2 (2280)
- Designed for gamers, Mainstream PC users, Value maximizers
General Features | Capacity | 1,000GB (1GB=1 Billion byte by IDEMA) * Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise) |
Form Factor | M.2 (2280) | |
Interface | PCIe Gen 3.0 x4, NVMe 1.4 | |
Dimension (WxHxD) | 80.15 x 22.15 x 2.38 (mm) | |
Weight | Max 8.0 g Weight | |
Storage Memory | Samsung V-NAND 3-bit MLC | |
Controller | Samsung Pablo Controller | |
Cache Memory | HMB(Host Memory Buffer) | |
Special Feature | TRIM Support | Supported |
GC (Garbage Collection)) | Auto Garbage Collection Algorithm | |
WWN Support | Not supported | |
S.M.A.R.T Support | Supported | |
Encryption Support | AES 256-bit Encryption (Class 0)TCG/Opal IEEE1667 (Encrypted drive) | |
Device Sleep Mode Support | Yes | |
Performance | Sequential Read | Up to 3,500 MB/s * Performance may vary based on system hardware & configuration |
Sequential Write | Up to 3,000 MB/s * Performance may vary based on system hardware & configuration | |
Random Read (4KB, QD32) | Up to 500,000 IOPS * Performance may vary based on system hardware & configuration | |
Random Write (4KB, QD32) | Up to 480,000 IOPS * Performance may vary based on system hardware & configuration | |
Random Read (4KB, QD1) | Up to 17,000 IOPS * Performance may vary based on system hardware & configuration | |
Random Write (4KB, QD1) | Up to 54,000 IOPS * Performance may vary based on system hardware & configuration | |
Environment | Average Power Consumption (system level) | *Average: 4.6 W*Maximum: 5.3 W (Burst mode)* Actual power consumption may vary depending on system hardware & configuration |
Power consumption (Idle) | Max. 45 mW * Actual power consumption may vary depending on system hardware & configuration | |
Allowable Voltage | 3.3 V ± 5 % Allowable voltage | |
Reliability (MTBF) | 1.5 Million Hours Reliability (MTBF) | |
Shock | 1,500 G & 0.5 ms (Half sine) | |
Operating Temperature | 0 – 70 ℃ Operating Temperature | |
Warranty | 5-Year Limited Warrantyor 600 TBW Limited Warranty |
