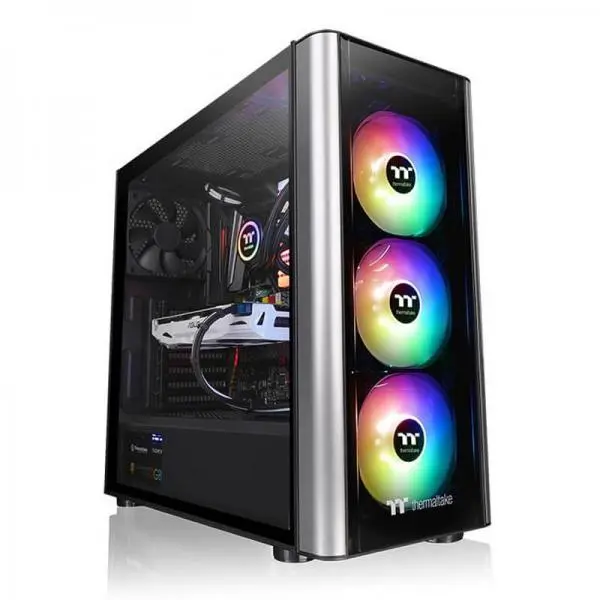

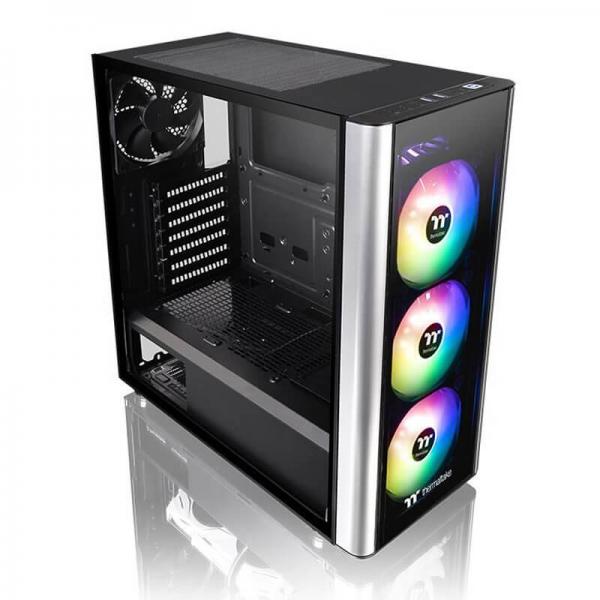

THERMALTAKE LEVEL 20 MT ARGB ATX MID TOWER CABINET (Black) (CA-1M7-00M1WN-00)
|Max Radiator Support||360|
|Max Fan Support||10|
To continue achieving the corporate mission of delivering the perfect user experience, Thermaltake developed “TT Premium” with the essence of combining supreme quality products with a new logo design. TT Premium is far more than just a guarantee of quality. Behind the name, it represents the passion in DIY, Modding and Thermaltake’s desire to be the most innovative brand in the PC hardware market. To satisfy the demand of the high-end PC users, TT Premium follows its core values of Excellent Quality, Unique Design, Diverse Combinations and Boundless Creativity to provide a high performance PC product for every enthusiast.

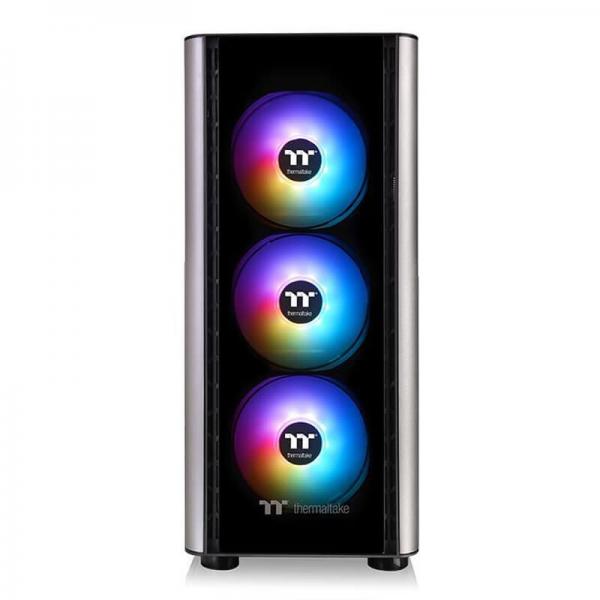

Trio Built-in 120mm 5V ARGB LED Fans
Preinstalled with three 120mm 5V ARGB LED front fans featuring hydraulic bearing, 9 addressable LEDs and 16.8 million-color illumination to guarantee high airflow and custom system designs to show off your PC design skills. The 5V ARGB LED fans can be controlled using a simple interface built into the I/O panel that cycles through 7 different lighting modes and a range of different color options.
Sync with Motherboard RGB Software
Designed to synchronize with ASUS Aura Sync, GIGABYTE RGB Fusion, MSI Mystic Light Sync and AsRock Polychrome. It supports motherboards that have a 5V addressable RGB header, allowing you to control the lights directly from the above-mentioned software without installing any extra lighting software or controllers. For more details, please visit ASUS, GIGABYTE, MSI and AsRock official websites.
Built-in 5V RGB Switch Board
Thanks to the built-in 5V RGB switch board, the Level 20 MT ARGB is able to deliver the addressable RGB lighting customization through the I/O port RGB button or the synchronization with ASUS Aura Sync, GIGABYTE RGB Fusion, MSI Mystic Light Sync and ASRock Polychrome motherboards.
Power Cover Design
The Level 20 MT ARGB is designed with a power cover, which can be used to organize unused cables to make for a tidy-looking system.
Fitted with a superb top filter, side filter and bottom PSU filter. Providing excellent protection and reduction against dirt and dust.
Tempered Glass Window

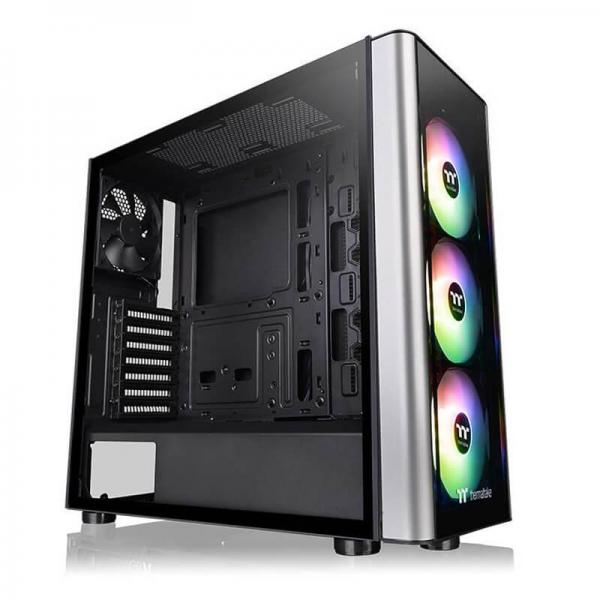

The left side of the Level 20 MT ARGB features a full length 4mm thick tempered glass panel, which is more durable and less prone to scratches and dust than acrylic panels.

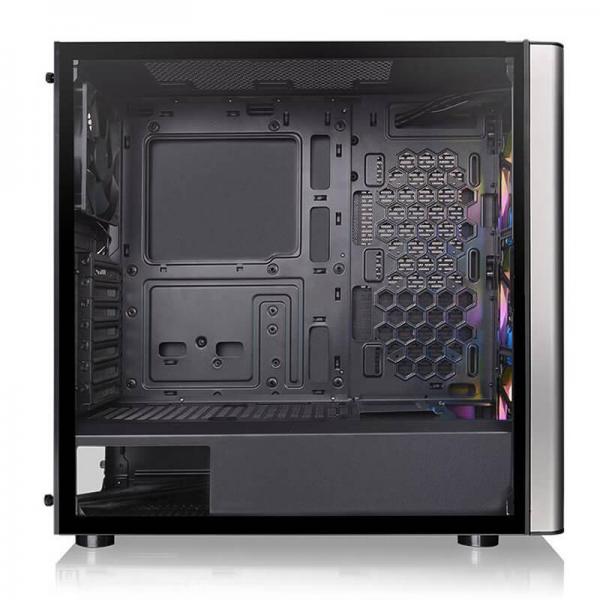

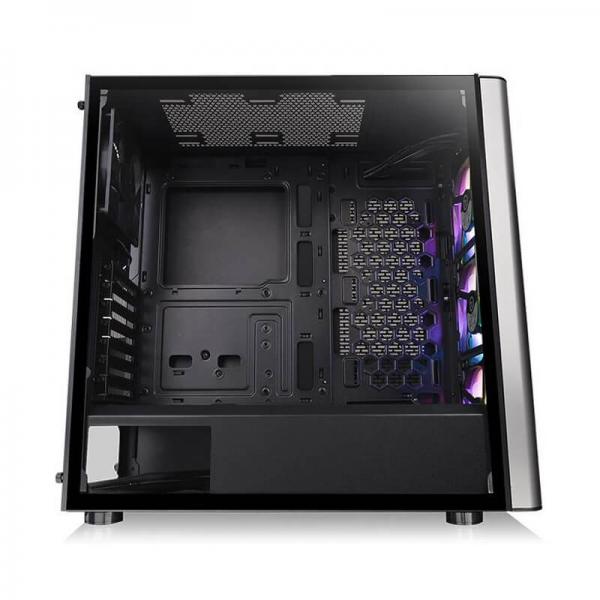

The Level 20 MT ARGB supports up to ATX motherboards, CPU coolers up to 170mm in height, VGA lengths up to 366mm without radiator on the right side and PSU sizes up to 170mm in length.
Excellent Cooling Capability
Preinstalled with three 120mm ARGB fans and one 120mm rear fan for optimal cooling performance, this case can house up to three 120mm front fans, one 140mm or two 120mm fans on the top and a radiator size up to 360mm. This allows the user at the same time to build a complete high-end system to suit their needs.
|Case Type||Mid Tower|
|Dimension (H x W x D)||455 x 204 x 471mm (17.9 x 8.0 x 18.54 inch)|
|Side Panel||4mm Tempered Glass x 2 (Left & Front)|
|Color||Exterior & Interior : Black|
|Drive Bays -Accessible -Hidden||1 x 2.5’’(HDD Bracket); 2 x 2.5”
2 x 3.5’’ or 2.5”(HDD Cage); 1 x 2.5”(HDD Bracket)
|Motherboards||6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX)|
|I/O Port||USB 3.0 x 2, HD Audio x 1, RGB Switch x 1|
|PSU||Standard PS2 PSU (optional)|
|Fan Support||Front: 3 x 120mm
Top: 2 x 120mm, 1 x 140mm
Rear: 1 x 120mm
Right Side(In front of M/B Tray): 2 x 120mm
Bottom(On the power cover): 2 x 120mm
|Radiator Support||Front: 1 x 360mm
Rear: 1 x 120mm
Right Side(In front of M/B Tray): 1 x 240mm
|Clearance||CPU cooler height limitation: 170mm
PSD length limitation: 170mm
VGA length limitation: 260mm(With radiator on the right side) 366mm(Without radiator on the right side)
|Note||***Features, Price and Specifications are subject to change without notice.|
