Qnap TL-D800C 8-Bay Tower Nas Enclosure (TL-D800C)

Model No : TL-D800C


Inclusive of all taxes

Tags :

all india shipping
3 day replacement
secured shopping
genuine products
no hidden charges
competitive pricing

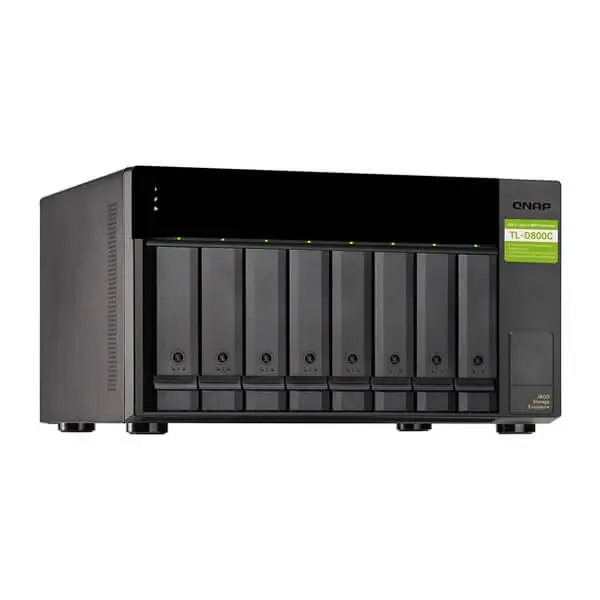

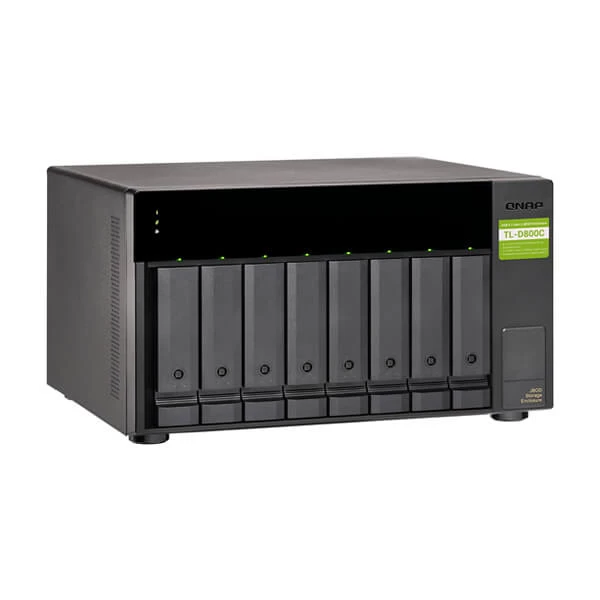

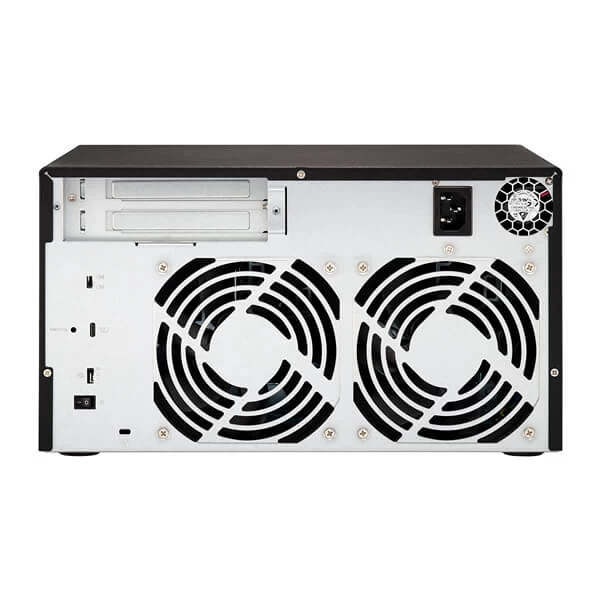

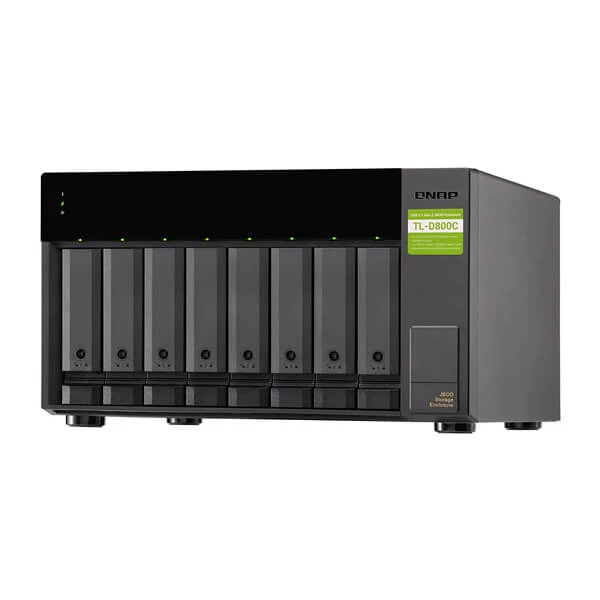

Qnap TL-D800C 8-Bay Tower Nas Enclosure

The Qnap TL-D800C 8-Bay Tower NAS enclosure allows you to back up and expand your QNAP NAS. The TL-D800C features eight 3.5-inch SATA 6Gb/s drive bays with USB 3.2 Gen2 (10 Gbps) Type-C connectivity to provide a fast and smooth expansion solution.

USB 3.2 Gen2 Type-C connectivity provides up to 10 Gb/s data transfer speeds. The port can support USB Type-A to Type-C connection or Thunderbolt 3 Type-C connection using different cables.

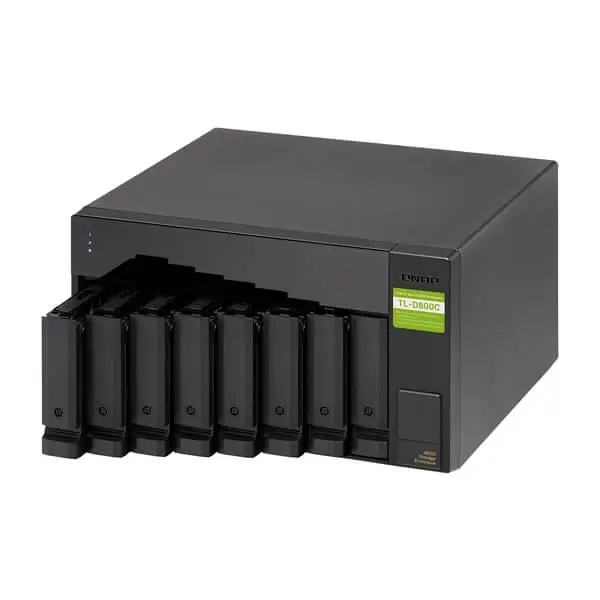

Lockable hard drive trays prevent accidental drive removal.

Supports SATA 6Gb/s drives for reliable read/write performance.

Flexible Storage Configuration And Management

The TL-D800C provides software-controlled configurations for greater management flexibility. Users can use the QTS / QuTS hero Storage & Snapshots Manager to configure the TL-D800C as a storage enclosure for your QNAP NAS. The NAS expansion storage mode supports various NAS functions, including storage pools and snapshots. With TL-D800C, you can easily expand storage capacity.

JBOD Migration Speeds Up Remote File Transfers

Migrating a large number of small files or a single large data file by network environment can be time-consuming and consume significant network bandwidth that causes decreased work efficiency. The TL-D800C supports remote file transfer. All you have to do is set up the RAID configuration and store a large number of files. Then you can move the TL-D800C to another place and connect it with the NAS to experience the device’s simple plug and play feature and fast data migration.


Drive Bay 8 x 3.5-inch SATA 6Gb/s, 3Gb/s
Drive Compatibility 3.5-inch SATA hard disk drives
2.5-inch SATA hard disk drives
2.5-inch SATA solid state drives
Form Factor Tower
Host Interface 1 x USB 3.2 Gen 2 Type-C
LED Indicators HDD 1-8, Status, Link, Fan error
Buttons Power switch
Dimensions (HxWxD) 188.2 × 329.3 × 281.4 mm
Weight (Net) 6.18 kg
Weight (Gross) 7.54 kg
Max. number of HDDs/SSDs supported 8
Hard Drive Type 3.5-inch SATA hard disk drives
2.5-inch SATA hard disk drives
2.5-inch SATA solid state drives
Operating Temperature 0 – 40 °C (32°F – 104°F)
Storage Temperature -20 – 70°C (-4°F – 158°F)
Relative Humidity 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)
Power Supply Unit 250W PSU, 100 – 240V
Power Consumption: Operating Mode, Typical 48.4 W
Fan Mode Switch Auto, high, medium, low
Fan 2 x 120mm, 12VDC
System Warning Buzzer
Supported O.S. QNAP QTS / QuTS hero, Windows, Mac, Linux
QTS / QuTS hero QTS 4.4.2 / QuTS hero h4.5.0 (or newer)
QTS QTS drive monitoring and storage pool support Yes
QTS advanced drive features such as bad block scan, Erase,Performance Test, Seagate Ironwolf IHM Yes
RAID migrated & expanded Yes
Qtier on Enclosure Yes
Utility for other platform QNAP JBOD Manager
Windows Win8 or nerwer / Server2012 R2 or newer
Mac MacOS 10.13 or newer
Linux Ubuntu 18.04
Device Info (Health/Bus type/PSU/Temperature/FAN) Yes
Device Temperature Warning & automatic FAN control Yes
Event Log (support Export) Yes
Enclosure located via LED & beep Yes
LCM + enclosure customizable naming N/A
SATA wiring determination N/A
Warranty 2 Years
Note *** Features, Price, Specifications are subject to change without notice.
