Phanteks Eclipse P500 Air Drgb Atx Cabinet Black (PH-EC500ATG-DBK01)

13,800.00

Inclusive of all taxes

Model No : PH-EC500ATG-DBK01
Buy Now

All over India Shipping

Competitive Pricing

Experts in pc building

product description

Description

Phanteks Eclipse P500 Air Drgb Atx Cabinet Black (PH-EC500ATG-DBK01)

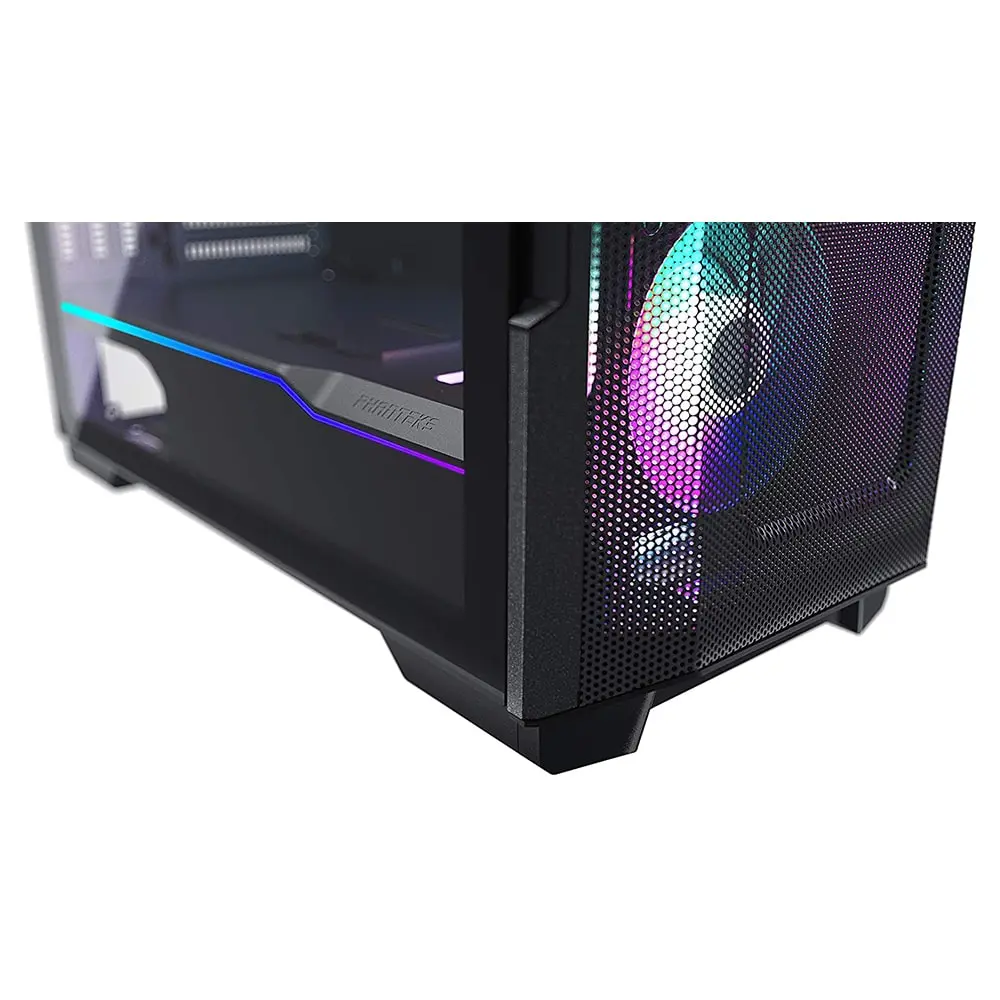

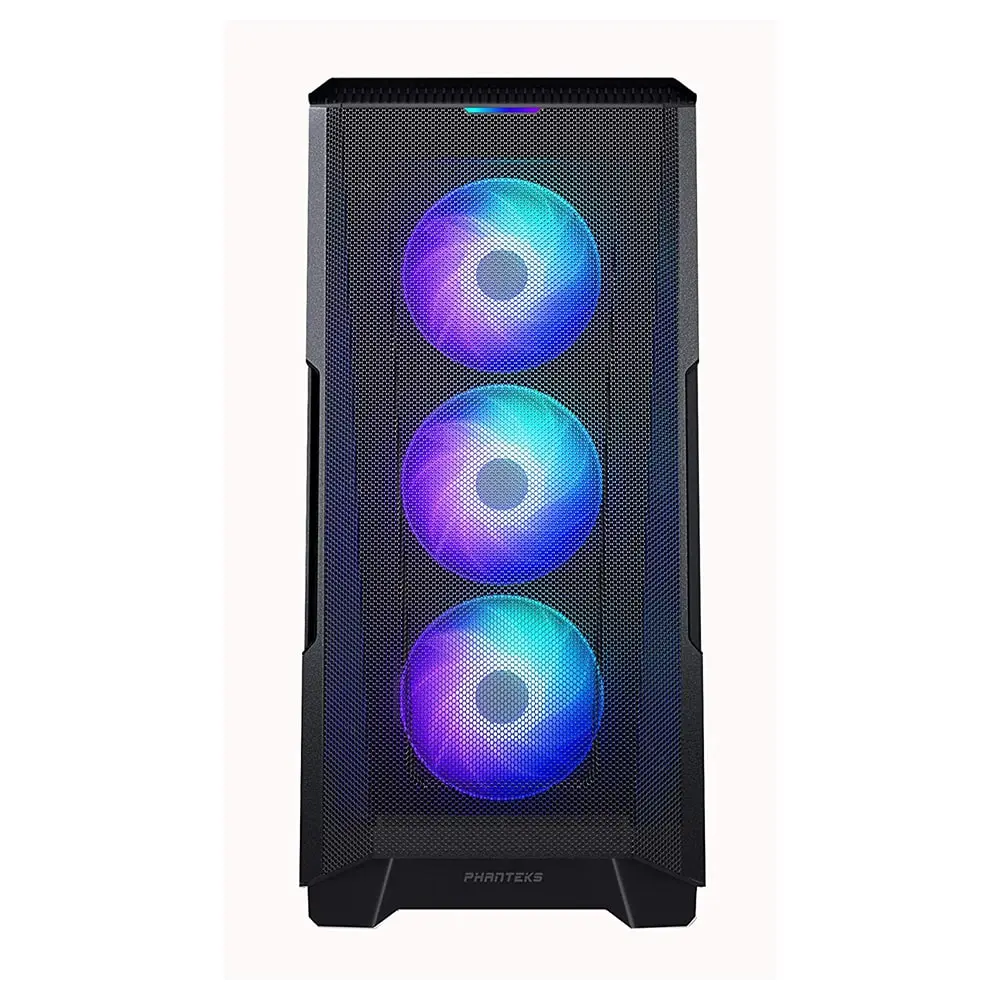

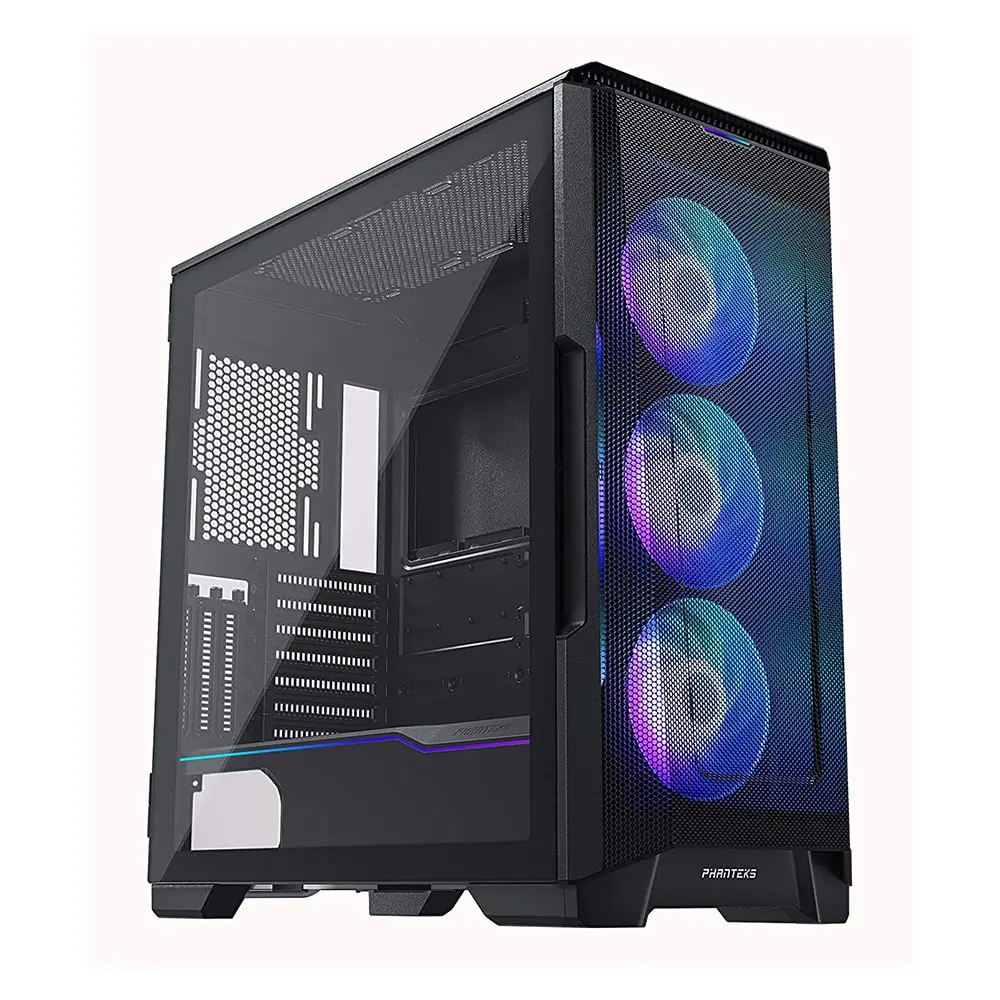

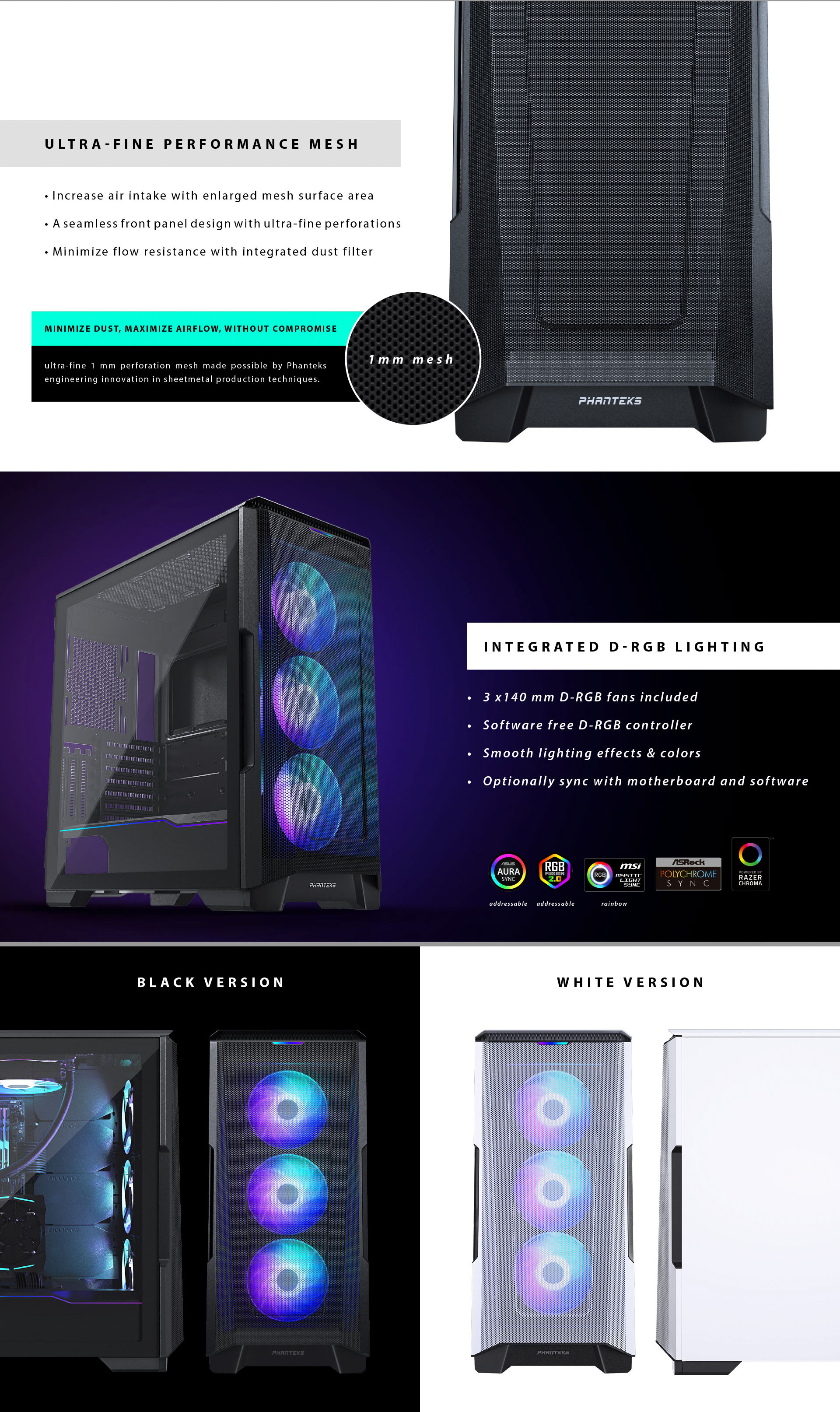

  • Ultra-fine Performance Mesh front panel for the best optimal cooling performance; Tempered glass side panel to showcase your build
  • Spacious open interior supports dual system (with PH-ITXKT_R01), vertical GPU mounting support (with PH-VGPUKT_02), up to 420mm front/280mm top radiator

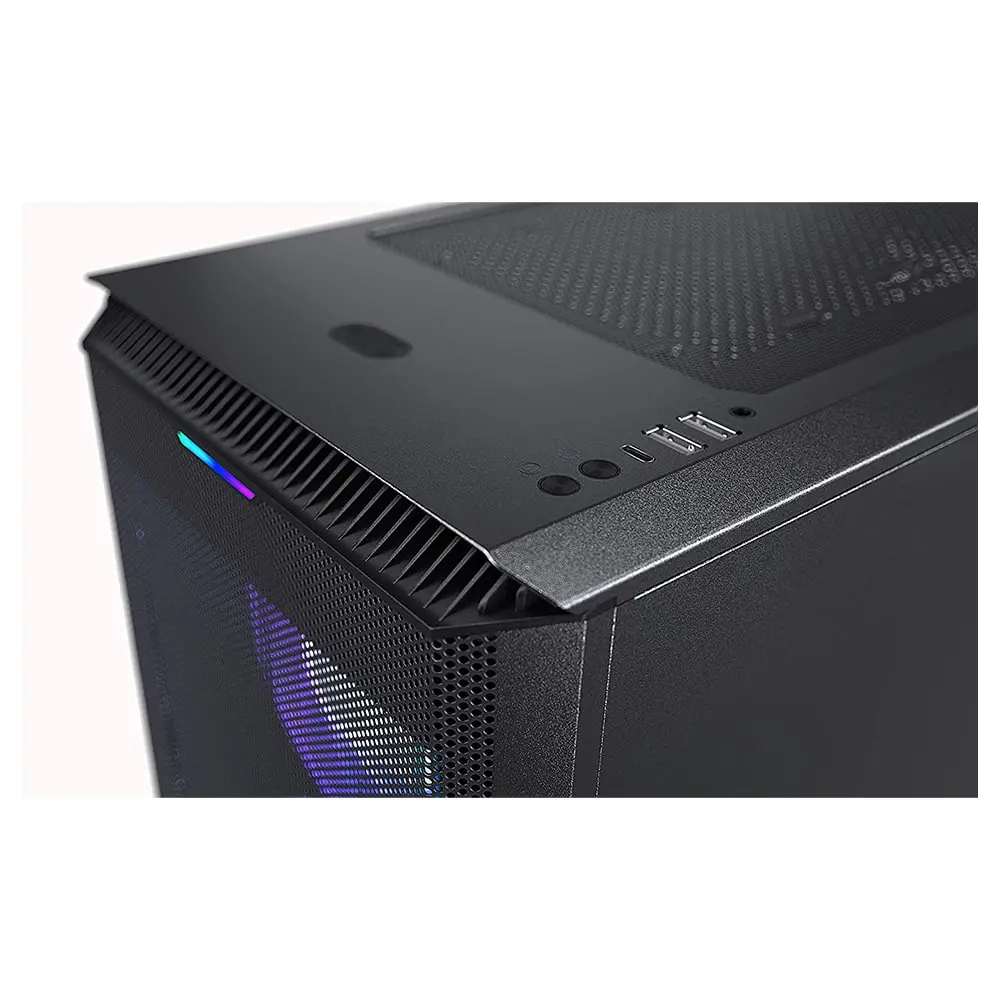

  • Easy accessibility to I/O featuring USB-C GEN2, 2x USB 3.0, Microphone/Headphone, Power button, D-RGB Mode button, D-RGB Color button
  • Extensive Storage options: Support massive Storage capacity (10x HDD and 3x SSDs)
  • Integrated Digital-RGB controller that can sync with compatible motherboards and Phanteks DRGB products to create stunning lighting effects and comes with 3x DRGB Phanteks fans

Specifications

Model Name Eclipse P500A D-RGB Black
Model No PH-EC500ATG-DBK01
Case Dimensions (WxHxD) 240 x 510 x 505 mm / 9.45 x 20.1 x 20.0
Form Factor Mid Tower
Materials Steel Chassis, Tempered Glass
Motherboard Support E-ATX (Upto 280mm Wide), ATX, micro-ATX, mini-ITX
Front IO USB-C Gen2
2x USB 3.0
Microphone / Headphone
Power Button
LED Mode Button
LED Color Button
Connectors Power Switch
power-LED (12V SATA)
HDD-LED
USB 3.0
USB 3.1 Gen2
D-RGB Expansion
D-RGB Third Party
D-RGB MB Adapter
Side Window Tempered Glass Window
PCI Slots 7 + 3
Vertical GPU Yes 3-Slots, With Optional Riser Cable
Internal 3.5″ Bay 10 (2x Included, Also Supports 2.5″ Drives)
Internal 2.5″ Bay 3 (3x Included)

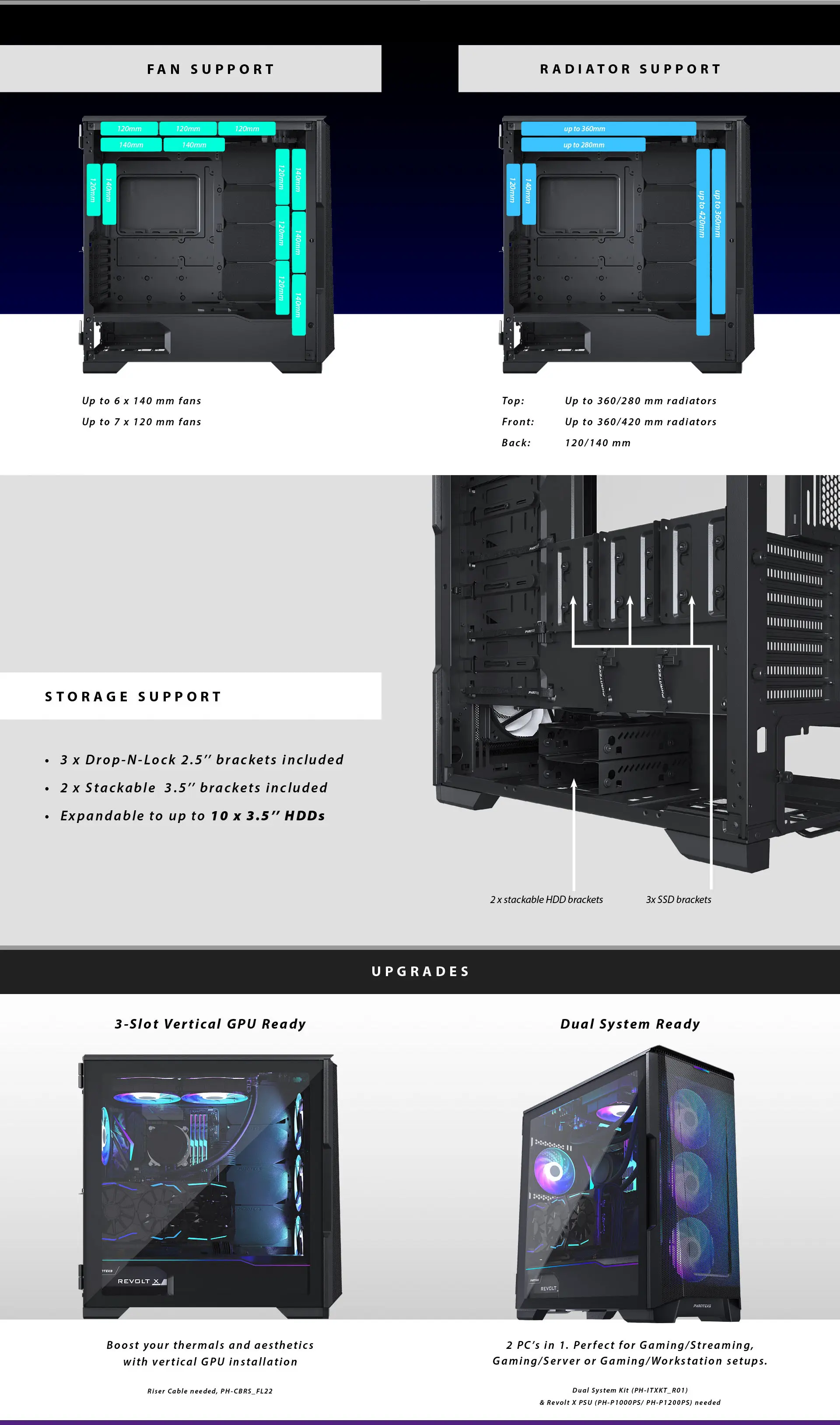

Total Fan Mounts 7x 120mm / 6x 140mm (3x 140mm D-RGB Included)
Front Fan 3x 120mm / 3x 140mm
Top Fan 3x 120mm / 2x 140mm
Rear Fan 1x 120mm / 1x 140mm
Dust Filters Front (Integrated) / Top / Bottom PSU
Front Radiator Up to 360 / 420mm
Top Radiator Up to 360 / 280mm
Rear Radiator 120/140 mm
Front Radiator Clearance 95mm / 3.75 Inches
Top Radiator Clearance 65mm / 2.56 Inches
GPU Length 435mm / 17.2 In
CPU Cooler Height 190mm / 7.5 In
Motherboard Width 280mm / 11.0 in
PSU Length 195/250mm (4 HDD Bottom Brackets Used / 2 HDD Brackets Used)
Cable Management Velcro Strips / Slidable Cable Covers / Zip Tie Mounts
Package Dimension 325 x 610 x 610mm / 12.8 x 24 x 24 inches
Net Weight 8kg
Gross Weight 10kg
Package Contents 1x P500A Case
3x 140mm D-RGB Fans (SK 3-Pin Case Edition Fans)
3 x 2.5″ SSD Brackets
2 x 3.5″ HDD Bracket
1 x Anti-Sag Bracket
1 x Vertical GPU Mount
6 x Zip Ties
1 x Accessory Box With Necessary Screws and Standoffs
Warranty 5 Years
Note *** Features, Price, Specifications are subject to change without notice.
