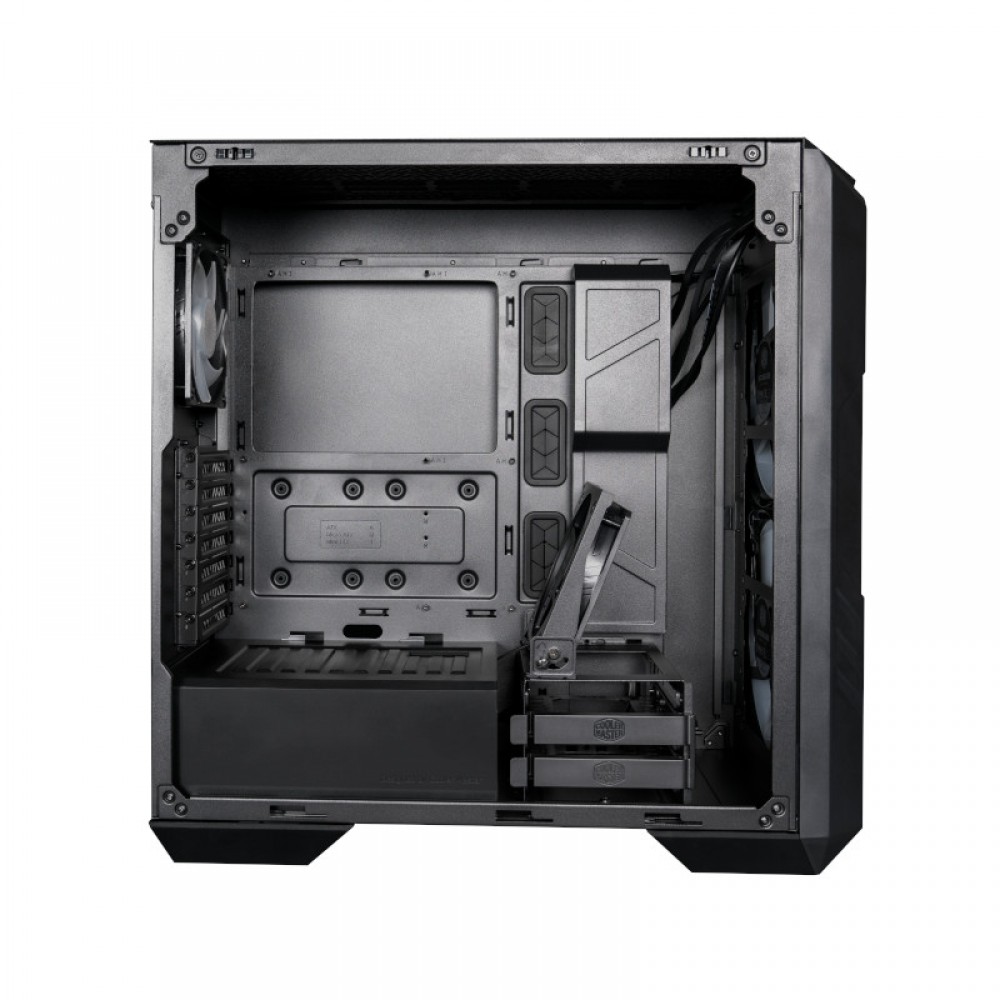

COOLER MASTER HAF 500 MID TOWER – BLACK (H500-KGNN-S00)
Cooler Master’s classic HAF series is making a return with HAF 500. Built for high airflow and peak performance, the HAF 500 boasts iconic 200mm large intake ARGB fans, ensuring unparalleled intake and cooling efficiency. The chassis features a dedicated GPU fan, adjustable to various GPU lengths. Ample clearance for dual 360mm radiators on the top and front panel accommodates the most advanced water cooling setups. Tool-less side panels and a removable top panel facilitates simplified, hassle-free component installation without the need to struggle with small spaces.

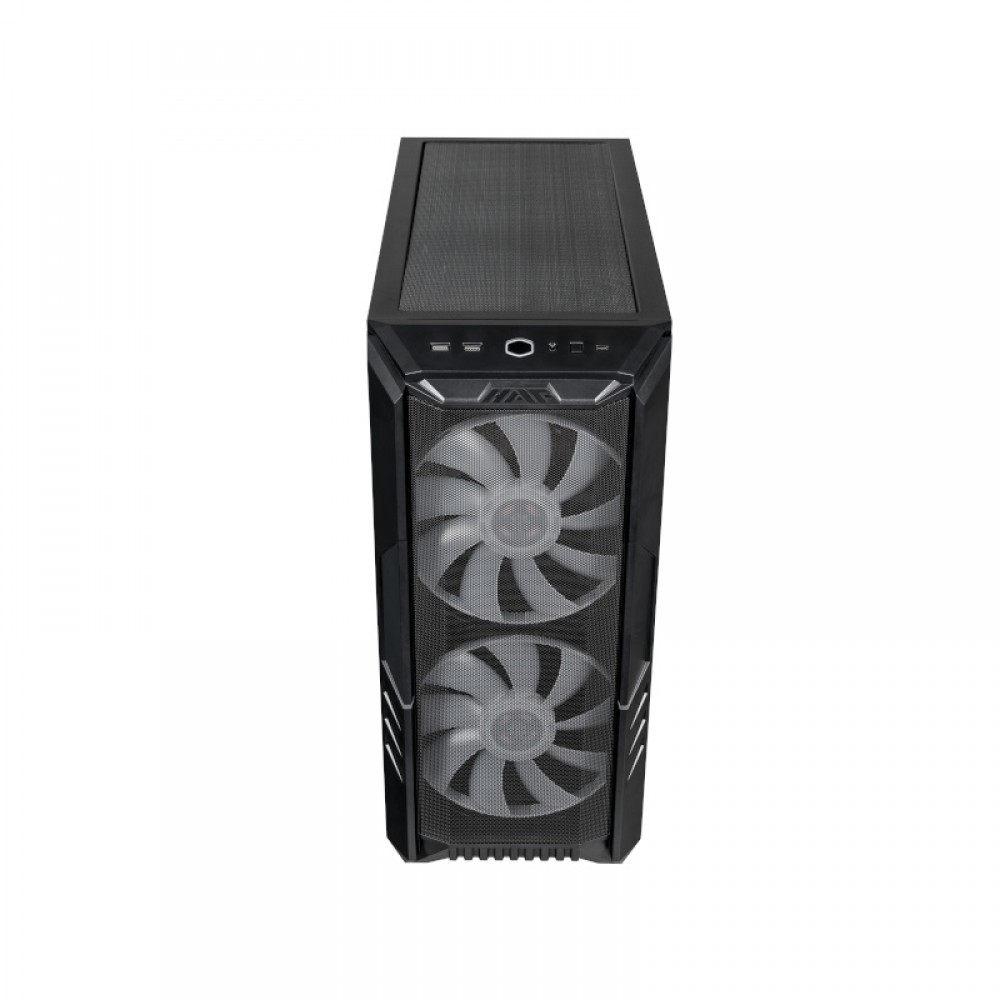

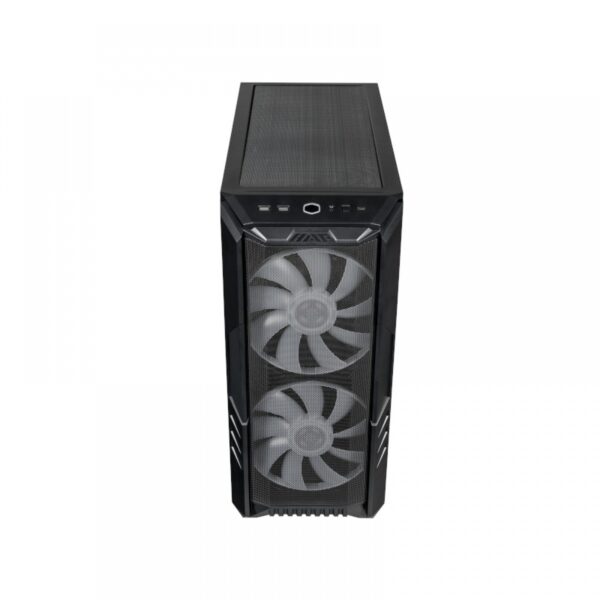

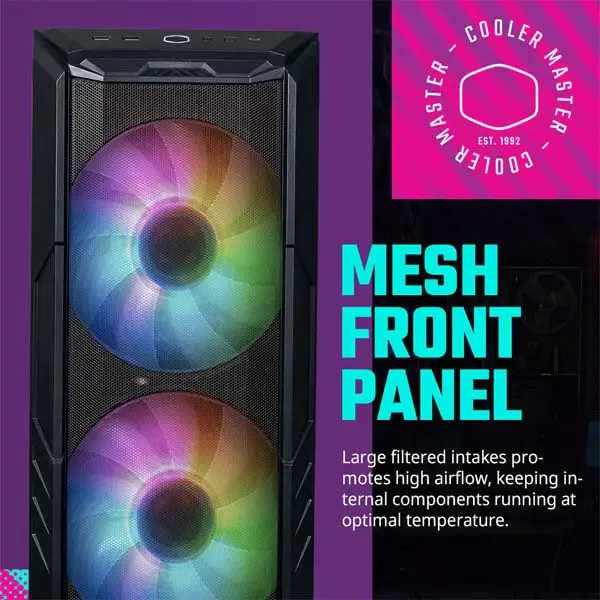

- Mesh Front Panel – Large filtered intakes promotes high airflow, keeping internal components running at optimal temperature.

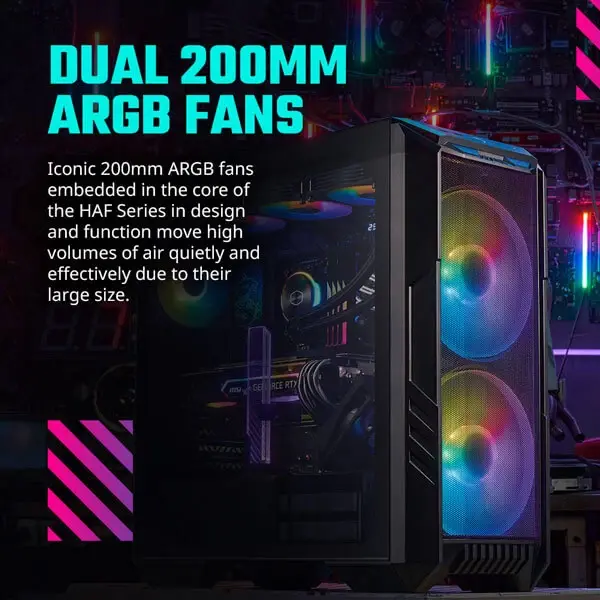

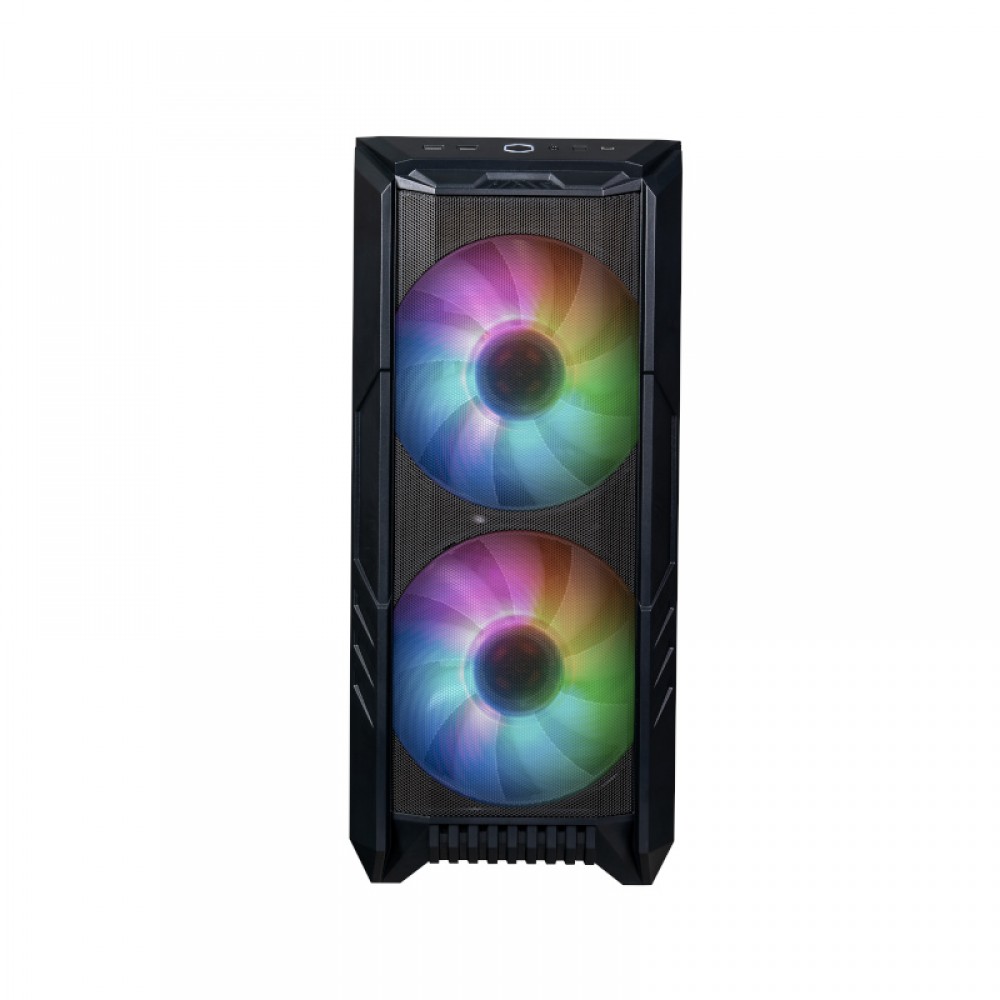

- Dual 200mm ARGB Fans – Iconic 200mm ARGB fans embedded in the core of the HAF Series in design and function move high volumes of air quietly and effectively due to their large size. Utilizing the included hub, ARGB lighting can be customized to create a comprehensive theme to match your build.

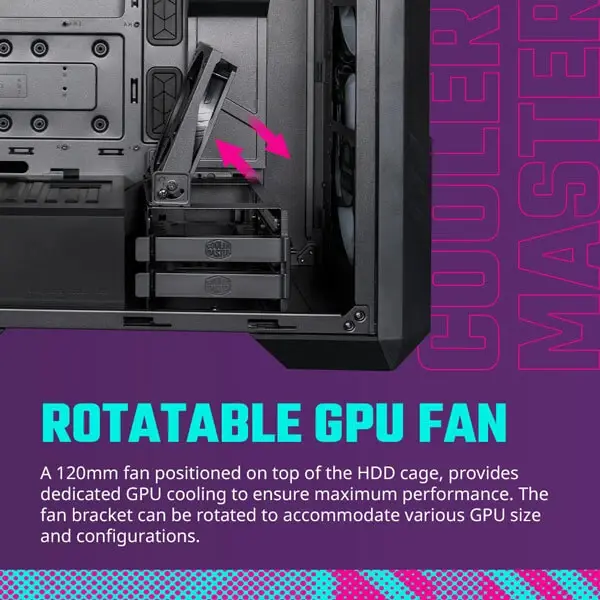

- Rotatable GPU Fan – A 120mm fan positioned on top of the HDD cage, provides dedicated GPU cooling to ensure maximum performance. The fan bracket can be rotated to accommodate various GPU size and configurations.

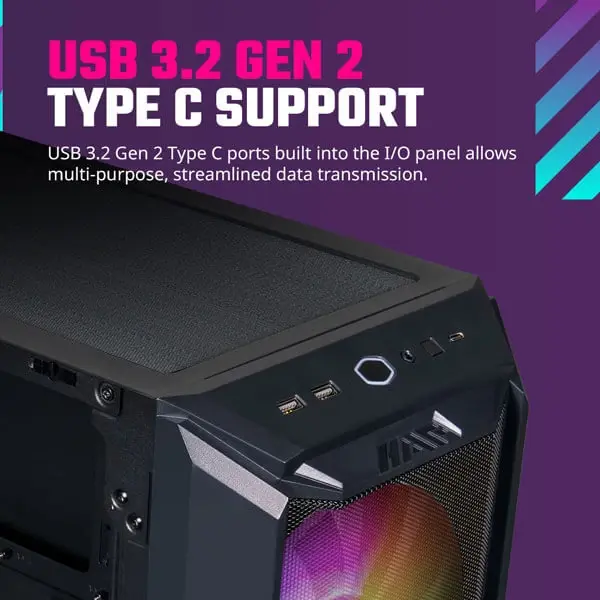

- USB 3.2 Gen 2 Type C Support – USB 3.2 Gen 2 Type C ports built into the I/O panel allows multi-purpose, streamlined data transmission.

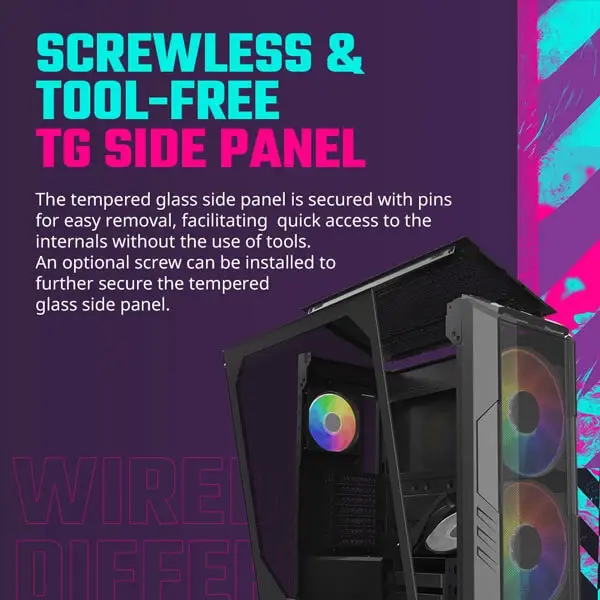

- Screwless & Tool-Free TG Side Panel Design– The tempered glass side panel is secured with pins for easy removal, facilitating quick access to the internals without the use of tools. An optional screw can be installed to further secure the tempered glass side panel.

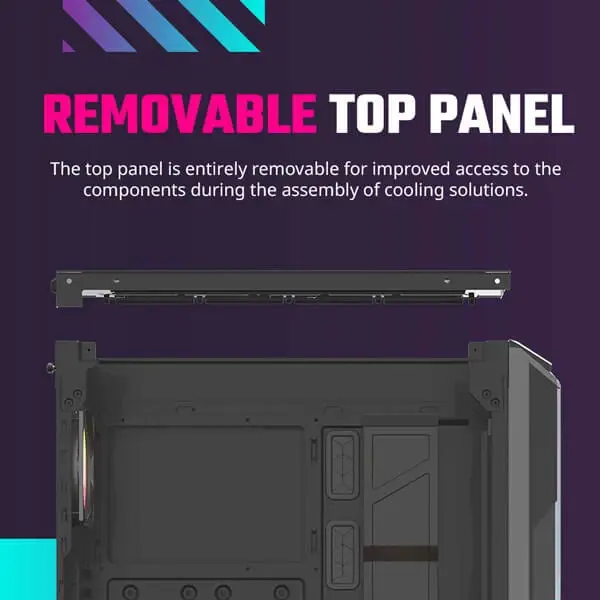

- Removable Top Panel – The top panel is entirely removable for improved access to the components during assembly. Ease of use also facilitates the mounting of cooling solutions such as fans and radiators.
- Versatile Cooling Options – Support for up to eight 120mm fans and dual 360mm radiators on the top and front panel ensure high compatibility for liquid-cooled systems.
|Product Name||HAF 500|
|Materials||Exterior: Steel, Mesh, Plastic
Left Side Panel: Tempered Glass, Steel
|Dimensions(L x W x H)||Incl. Protrusions: 516 x 224 x 510mm|
|Motherboard Support||ITX, M-ATX, ATX, SSI CEB, E-ATX* (*up to 12″x14.1″, may impact cable management and case features)|
|Drive Bays||5.25“ ODD: N/A
3.5” / 2.5” Combo: 2
2.5” SSD: 2
|I/O Panel||USB Ports: 2 x USB 3.2 Gen 1 (USB 3.0), 1 x USB 3.2 Gen2 type C
Audio In / Out: 1 x single Audio jack
Other: ARGB Hub
|Pre-installed Fan(s)||Front: 2 x 200mm ARGB Fans
Rear: 1 x 120mm SickleFlow PWM ARGB
Internal: 1 x 120mm SickleFlow PWM
|Fan Support||Top: 3 x 120mm / 2 x 140mm / 2 x 200mm
Front: 3 x 120mm / 2 x 140mm / 2 x 200mm *200mm Mounting Hole Spacing 154 x 154 w/ up to 30mm thickness

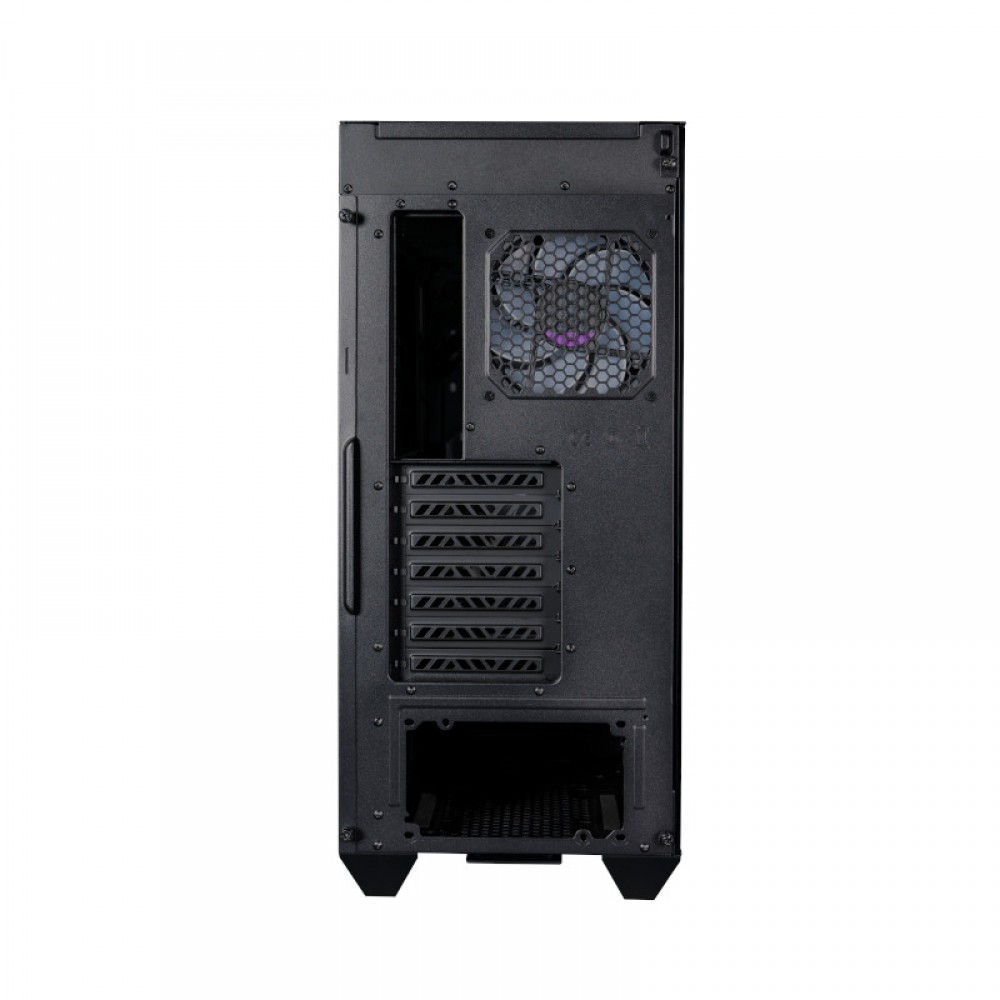

Rear: 1 x 120mm
Top on HDD cage: 1 x 120mm
|Radiator Support||Top: 120 /140/240 /280 /360mm
Front: 120 / 140 / 200 / 240 / 280 / 360mm
|Clearances||CPU Cooler: 167mm / 6.5″
Power Supply: 180mm / 7.1″
Graphics Card: 410mm / 16.1”

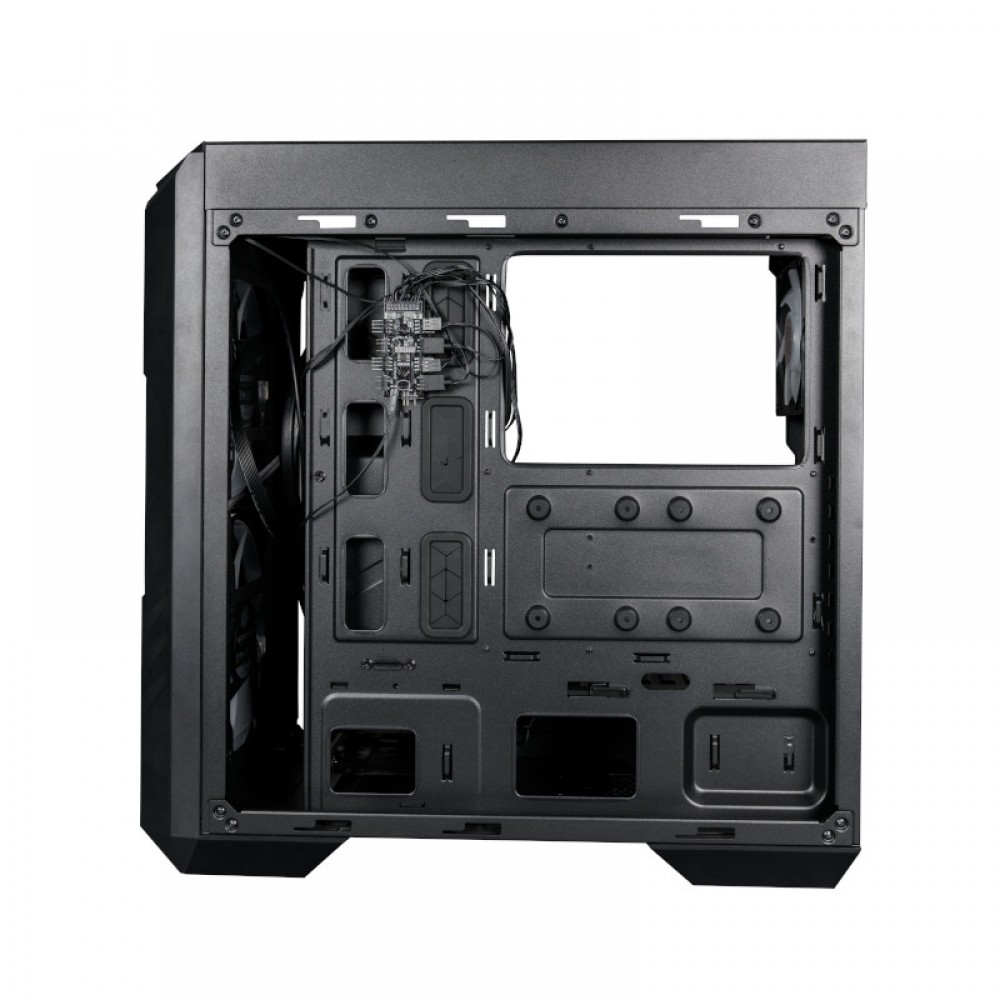

|Cable Routing||Behind MB Tray: 30mm|
|Dust Filters||Top, Bottom|
|Power Supply Support||Bottom mount, ATX|
|Carton dimension (L x W x H)||588 x 315 x 605mm|
|Note*||Price, feature and specifications are subject to change without notice.|
