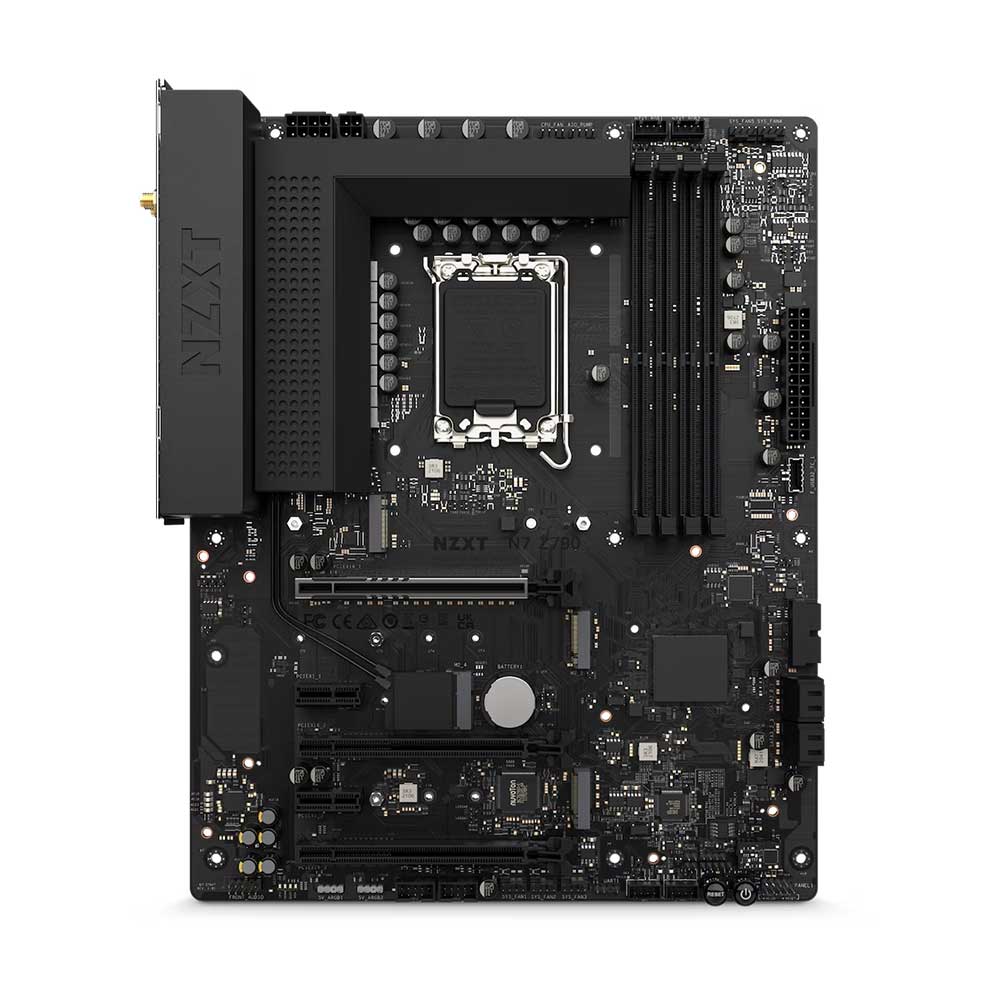

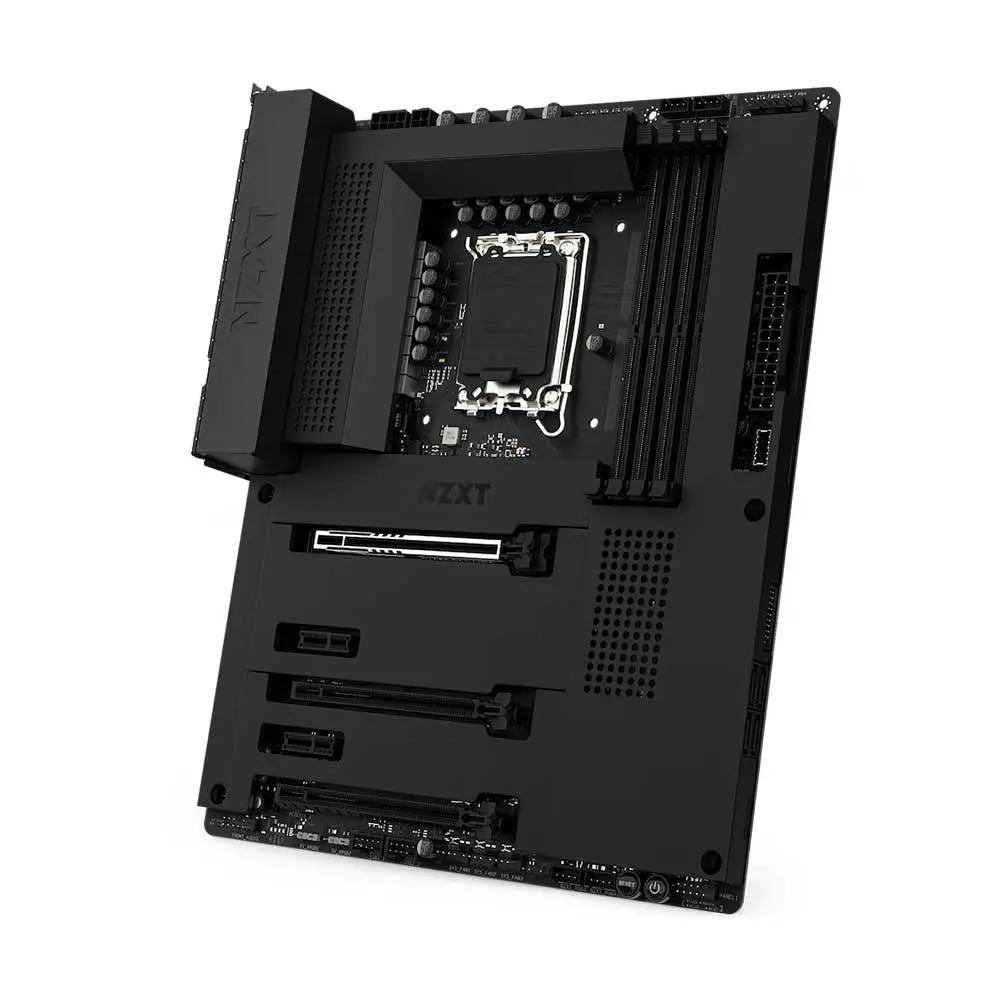

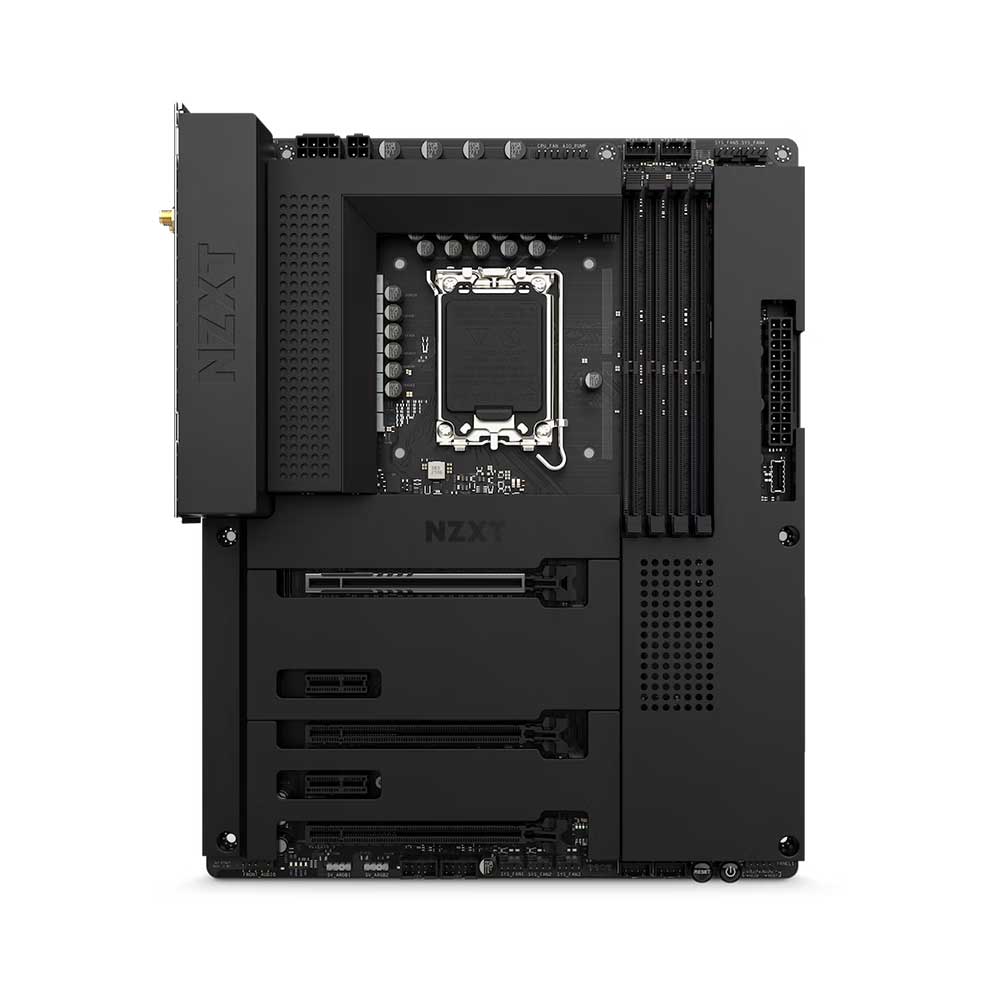

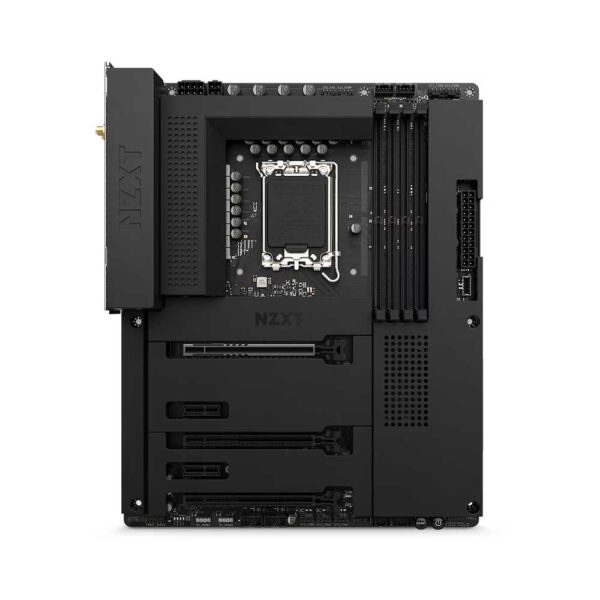

Nzxt N7 Z790 Lga1700 Atx Motherboard (Black) (N7 Z790 BLACK)

Inclusive of all taxes

Model No : N7 Z790 BLACK

All over India Shipping

Competitive Pricing

Experts in pc building

product description

Description

Nzxt N7 Z790 Lga1700 Atx Motherboard (Black) (N7 Z790 BLACK)

This motherboard enables a visually seamless backdrop for any build with all the features of the new Intel Z790 chipset.

  • 16+1+2 DrMOS Power Phase Design with 2oz Copper PCB

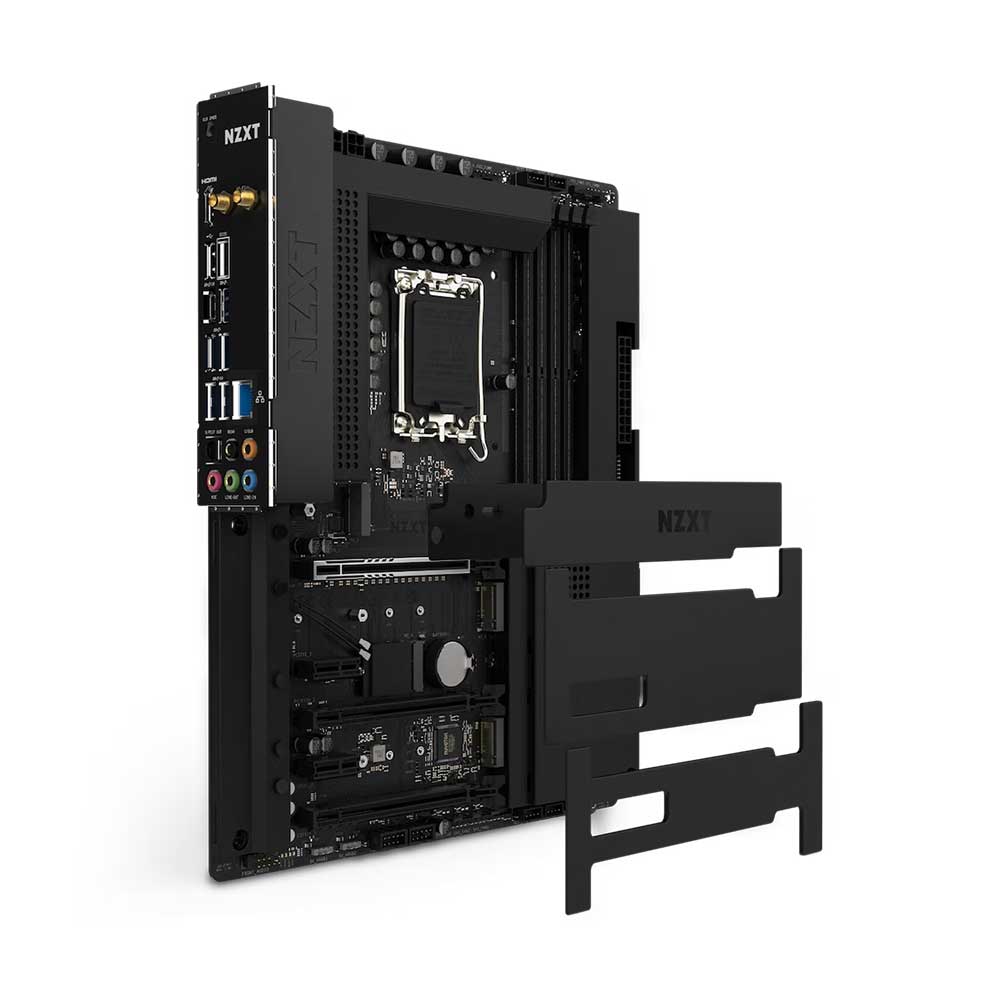

  • Full cover in black or white with integrated heat spreader for the top-most M.2 slot
  • Numerous presets and custom modes via NZXT CAM software
  • Convenient fan profiles within NZXT CAM for seven independent fan channels
  • Integrated rear I/O shield and efficient layout for optimal setup
  • Compatible with Intel® 13th and 12th Generation Core™ i9, Core™ i7, Core™ i5 processors
  • Designed with Intel® Z790 Express Chipset with Wi-Fi 6E wireless connectivity and Bluetooth V5.2
  • Three M.2 connectors for storage devices
  • Supports memory overclocking speeds of up to 6000 MHz and Intel® XMP 3.0
  • 8-channel high-definition audio
CPU Intel® Socket LGA 1700 for Intel® 13th and 12th Generation Processors:Intel® Core™ Processors. Please refer to CPU support list.

Intel® Hybrid Technology:Supported

Turbo Boost Max 3.0 Technology:Supported

Intel® Thermal Velocity Boost (TVB):Supported

Intel® Adaptive Boost Technology (ABT):Supported

Chipset Intel®:Z790
Memory DIMM Slots:4

Max Memory Support:128GB, DDR5

Memory Architecture:Dual-Channel

OC Frequency:5000+(O.C.). Please refer to memory QVL.

Intel® Extreme Memory Profile (XMP) 3.0:Supported

Expansion Slots PCIe 5.0 ×16 slot (PCIEX16_1), supports ×16 mode:1 (Supports NVMe SSD as boot disks)

PCIe 4.0 ×16 slots (PCIEX16_2 and PCIEX16_3), support ×4 mode:2 (Supports NVMe SSD as boot disks)

PCIe 3.0 ×1 slots (PCIEX1_1 and PCIEX1_2)*:2 (Supports NVMe SSD as boot disks)

M.2 Socket (Key E), supports Type 2230 Wi-Fi/BT PCIe Wi-Fi module and Intel® CNVio/CNVio2:1

Storage M.2_1, Type 2242/2260/2280 (PCIe 4.0 ×4 mode):1

M.2_2, Type 2242/2260/2280/22110 (PCIe 4.0 ×4 mode):1

M.2_3, Type 2242/2260/2280 (PCIe 4.0 ×4 and SATA 6Gb/s mode):1

SATA 6Gb/s ports:4

Intel® Volume Management Device (VMD):Supported

NVMe SSD as boot disks:Supported

LAN Realtek®:RTL8125BG 2.5G LAN
Wireless Dual Band Wi-Fi 6E:Supported

Bluetooth:V5.2

Audio Realtek®:ALC1220 Codec

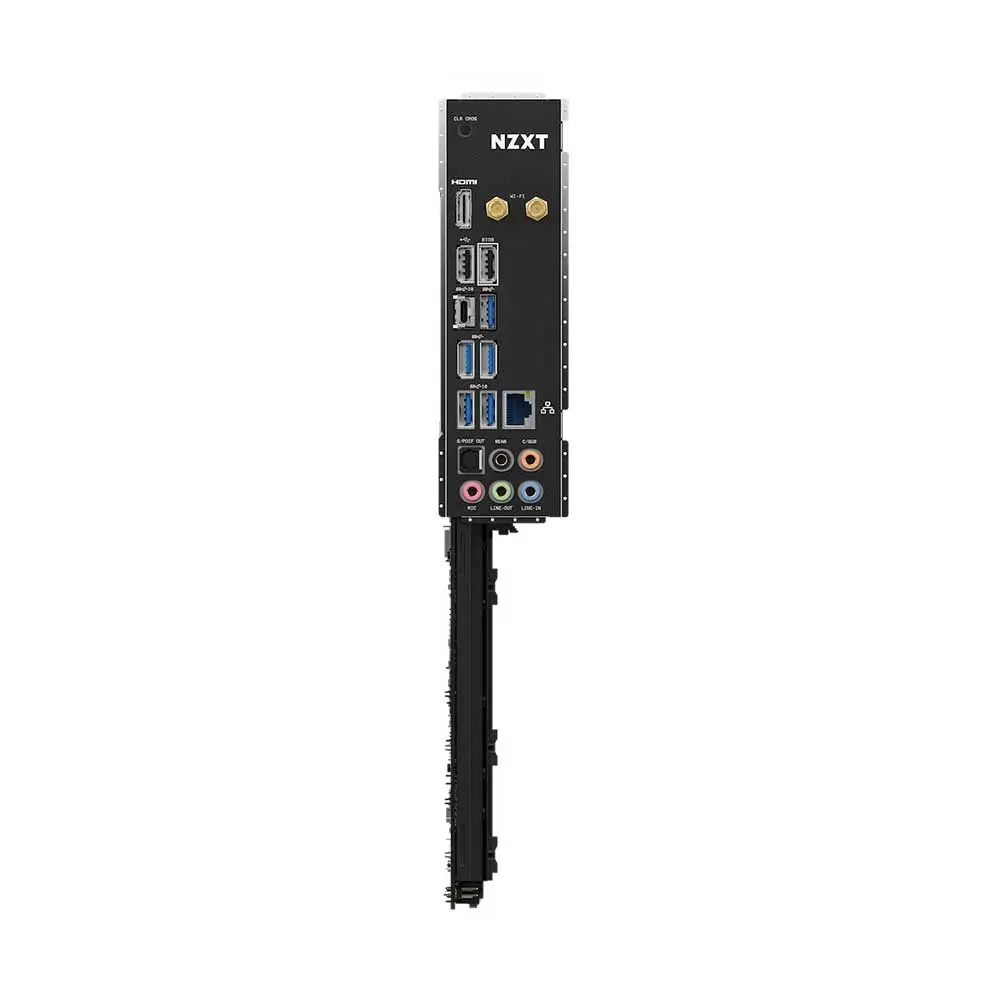

Rear I/O Wireless antenna SMA connectors:2

HDMI™ port:1

USB 2.0:2

USB 3.2 Gen 2×2 Type-C port:1

USB 3.2 Gen 2 ports:2

USB 3.2 Gen 1 ports:3

Clear CMOS button:1

LAN (RJ45) port:1

Audio jacks:5

Optical S/PDIF Out port:1

Internal I/O 24-pin ATX power connector:1

8+4-pin ATX 12V power connector:1

4-pin CPU_FAN connector:1

4-pin AIO_PUMP connector:1

4-pin SYS_FAN connectors:5

NZXT RGB LED connectors:4

5V ARGB LED connector:2

USB 2.0 header (Up to 4 USB 2.0 ports):2

USB 3.2 Gen1 header (Up to 2 USB 3.2 Gen 1 ports):1

USB 3.2 Gen2x2 front panel header (For USB Type-C):1

Front panel audio connector:1

Power button:1

Reset button:1

POST LEDs:4

Operating System Windows® 11/10 64-bit
Form Factor ATX
Warranty 3 Years
Note** **Prices, Specifications & Features are subject to change without notice
