No Payment Gateway Charges

EMI Options Available on Cart Value above ₹4000.

10,900.00

2 in stock

SKU: CA-H510I-W1 Categories: ,

Description

  • SERIES H SERIES
  • TYPE MID TOWER
  • 5.25″ BAYS NA
  • 3.5″ BAYS 3
  • 2.5″ BAYS 3
  • EXPANSION SLOTS 7
  • MAX RADIATOR SUPPORT 280
  • MAX FAN SUPPORT 4
  • COLOR BLACK-WHITE
  • SIDE PANEL TRANSPARENT

Features

H510i

Compact Mid-Tower with Lighting and Fan Control

We?ve made our iconic H Series PC cases even better. Our new lineup still features the elements builders loved in the original H Series, including our patented cable management system, removable fan/radiator mounting brackets, and easy-to-use drive trays, alongside new updates like a front-panel USB-C connector supporting high-speed USB 3.1 Gen 2 devices, a tempered glass side panel that installs with a single thumbscrew, and an upgraded Smart Device V2 on the H510i.

  • The new Smart Device V2 includes a faster microprocessor for NZXT CAM-powered control of two HUE 2 RGB lighting channels and three fan channels that support either voltage regulated or PWM fans.
  • With a USB 3.1 Gen2-compatible USB-C connector on the front panel, it?s easier than ever to connect smartphones, high-speed external storage, or the latest peripherals to your PC
  • The clean, modern design, iconic cable management bar, and uninterrupted tempered-glass side panel showcase your stunning build
  • Use the intuitive NZXT CAM application to monitor and control your build, choosing from presets or custom controls for your RGB lighting and fans to create your dream PC.
  • Cable management can often take more time than assembly. We designed a cable routing kit with pre-installed channels and straps, for intuitive and easy wiring.

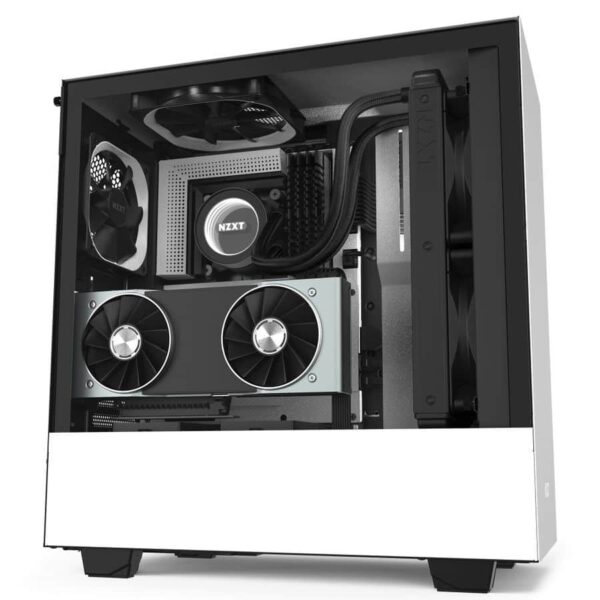

  • Two Aer F120mm fans* are included for optimal internal airflow and the front panel and PSU intakes include removable filters. Includes a removeable bracket designed for radiators up to 280mm simplifies the installation of either closed-loop or custom-loop water cooling.
  • Show off your graphic card with a built-in mounting bracket for installing your GPU vertically.

Specifications

Model CA-H510i-W1
Dimensions
  • W: 210mm H: 435mm D: 428mm (without feet)
  • W: 210mm H: 460mm D: 428mm (with feet)
Material(s) SGCC Steel, Tempered Glass
Weight 6.8 kg
Motherboard Support Mini-ITX, MicroATX, and ATX

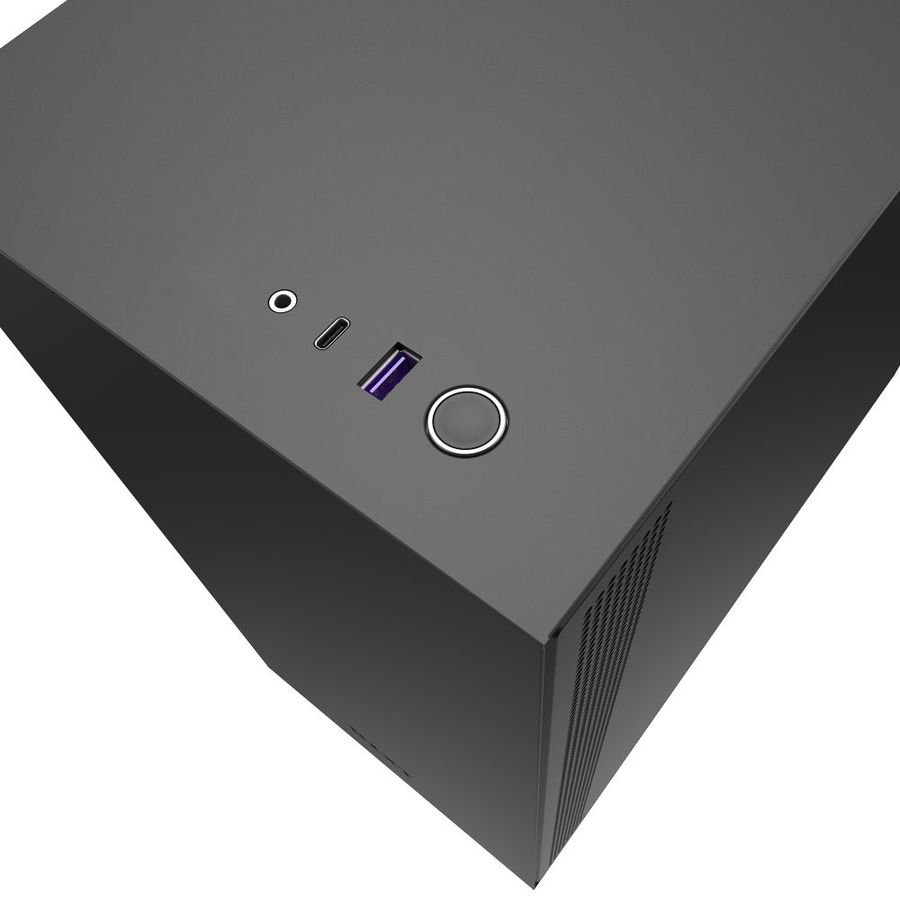

I/O Ports – 1x USB 3.1 Gen 2 Type-C
– 1x USB 3.1 Gen 1 Type-A
– 1x Headset audio Jack
Front I/O internal header
– 1x USB 3.1 Gen 2 Internal Header
– 1x USB 3.1 Gen 1 Internal Header
– 1x USB 2.0 Internal Header
– 1x HD Audio Header
Filters All Air Intakes
Smart Device V2
  • 3x Fan channels with Max 10W per channel output*
  • 2x RGB LED port support up to 4x HUE 2 addressable LED strips or 5x Aer RGB or Aer RGB 2 fans
  • Built-in noise detection module
    *Note: If a splitter is used, fan control is regulated depending on the fan connected to the 4-pin port. Do not use low-noise adapters.
LED Strip(s) 2 integrated addressable LED strip
Vertical GPU Mount 2 Slots
Included Accessories
  • Installation screws
  • 10x Cable ties
  • 1x Headset Audio Jack splitter (4 pole to 3 pole)
Drive Bays
  • 2.5?: 2+1
  • 3.5?: 2+1
Expansion Slots 7
Radiator Support
  • Front: 2x 140 or 2x 120mm with Pull
  • Rear: 1x 120mm
Fan Support
  • Front: 2 x 120/ 2 x 140mm
  • Top: 1x 120mm/ 1x 140mm (1 Aer F120 Case Version included)
  • Rear: 1x 120mm (1 Aer F120 Case Version included)
Fan Specs Aer F120 (Case Version)

  • Speed: 1200 ? 200 RPM
  • Airflow: 50.42 CFM
  • Noise: 28 dBA
  • Bearing: Rifle Bearing
Clearance
  • Cable Management: 19-23mm
  • GPU Clearance: Up to 381mm
  • Vertical GPU Mount Clearance: 40.64mm
  • CPU Cooler: Up to 165mm
  • Front Radiator: 60mm
  • Rear Radiator: 60mm
  • Reservoir & Pump: Up to 180mm (Along cable bar), Up to 86mm (Along bottom panel)
Warranty 2 Years
Note ***Features, Price and specifications are subject to change without notice.
