Description

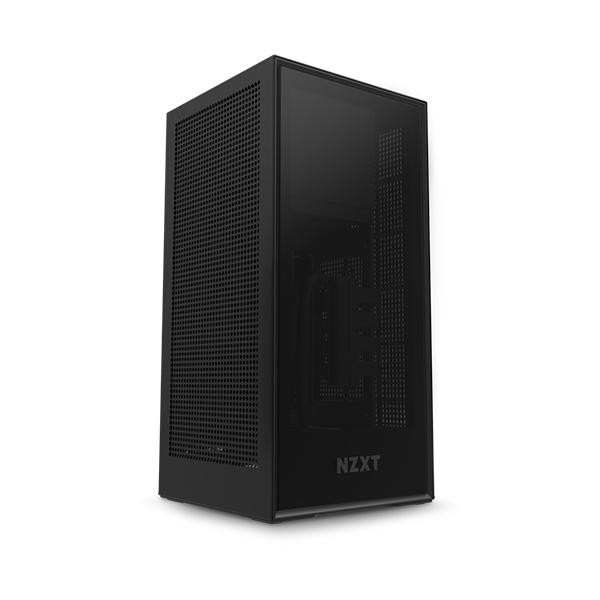

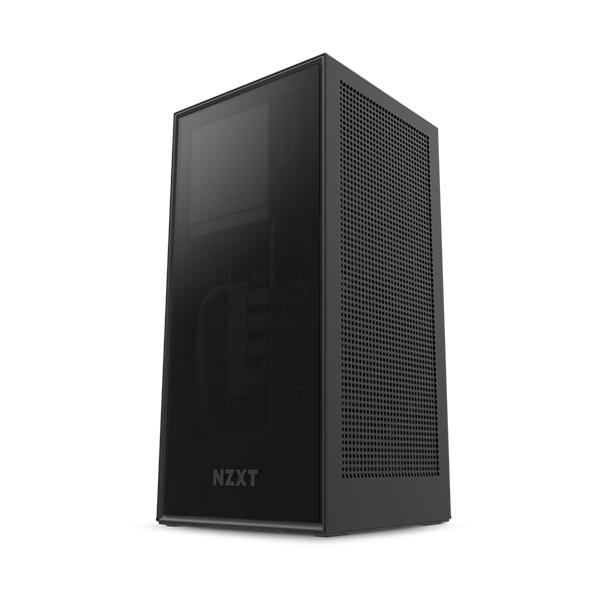

NZXT H1 Cabinet With PSU, AIO, And Riser Card (Matte Black) (CA-H16WR-B1-UK)

Series H Series
Type Mini Tower
5.25″ Bays NA
3.5″ Bays NA
2.5″ Bays 2
Expansion Slots 2
Max Radiator Support 140
Max Fan Support 1
Color Black
Side Panel Transparent

Features

The all-new NZXT H1 provides a beautifully small vertical chassis, maintaining full-sized GPU compatibility. The building experience is streamlined, with pre-routed cable channels and an integrated PSU and AIO liquid cooler. The dual-chamber exhaust layout maintains superior cooling for the CPU and GPU, providing each with a dedicated air source.

The H1 is a powerfully compact ITX chassis. With its vertical design, integrated components, and full-sized GPU support, the H1 is a beautiful PC gaming solution in a unique package.

  • The all-new NZXT H1 provides a beautifully small vertical chassis, maintaining full-sized GPU compatibility. The building experience is streamlined, with pre-routed cable channels and an integrated PSU and AIO liquid cooler. The dual-chamber exhaust layout maintains superior cooling for the CPU and GPU, providing each with a dedicated air source.
  • The compact vertical design provides a small spatial footprint while maintaining support for most full-sized GPU’s on the market so you can maintain your desk real estate without sacrificing graphics power.
  • The toolless SSD tray and riser card are incredibly simple to install. In addition to pre-routed cables, the motherboard I/O faces down, routing all cables through the bottom of the case for a clean, simplified appearance.
  • Integrated power supply and AIO liquid cooler provide a better build experience, along with pre-routed cables that make it easy to manage the clutter and cut down on build time. An integrated PCIe Riser card is also included for vertical GPU mounting.
  • The dual-chamber airflow is thermally designed to allow the CPU, GPU, and PSU to pull in fresh air, and exhaust hot air without affecting temperatures of neighboring components

SMALL BUT POWERFUL

The compact vertical design provides a small spatial footprint while maintaining support for most full-sized GPU’s on the market so you can maintain your desk real estate without sacrificing graphics power.

A SIMPLE BUILD

The toolless SSD tray and riser card are incredibly simple to install. In addition to pre-routed cables, the motherboard I/O faces down, routing all cables through the bottom of the case for a clean, simplified appearance.

COMPONENT INTEGRATION

Integrated power supply and AIO liquid cooler provide a better build experience, along with pre-routed cables that make it easy to manage the clutter and cut down on build time. An integrated PCIe Riser card is also included for vertical GPU mounting.

ELEGANT AIRFLOW

The dual-chamber airflow is thermally designed to allow the CPU, GPU, and PSU to pull in fresh air, and exhaust hot air without affecting temperatures of neighboring components.

NZXT H1 MINI PC PRE-BUILD

Built by NZXT BLD, the H1 Mini PC is pre-built and packed with impressively powerful components for unlimited gaming potential.

Specifications

Dimensions W: 187mm H: 387.7mm D: 187.6mm
Material(s) SGCC Steel and Tempered Glass
Weight 6.53kg
Motherboard Support Mini-ITX (Increased Wi-Fi compatibility with a wired antenna)
CPU & Socket Intel: 115X

AMD: AMD4, FM2+, FM2, FM1, AM3+, AM3, AM2

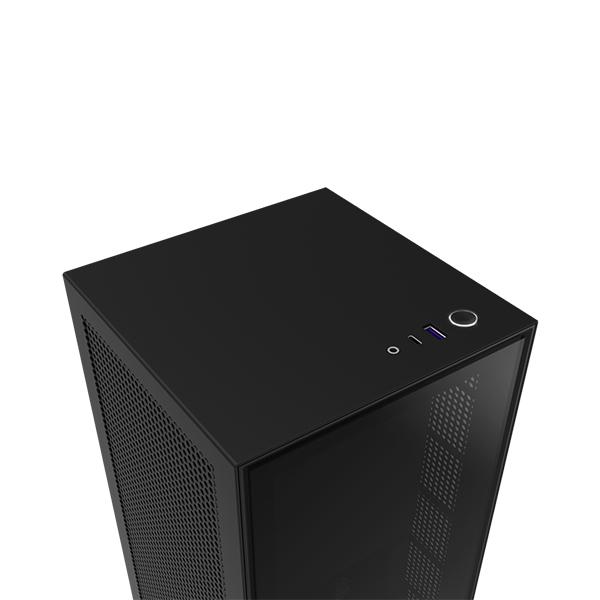

Front I/O Ports 1x USB 3.1 Gen 2 Type-C

1x USB 3.1 Gen 1 Type-A

1x 4 Pole Headset Audio Jack

Filters All Air Intakes
Included Accessories 650W SFX-L 80Plus Gold Fully Modular Power Supply (NP-S650M)

  • Intel SFX 12 V / ATX 12 V
  • Fully Modular
  • Fan: 120mm FDB Fan
  • 80 PLUS Gold Certified
  • 10 Years Warranty
  • AC Input Full Range
  • Operating Temperature: 0-40 °C
  • MTBF @ 25 °C, excl. fan 100,00 hours
  • Protection: OPP, OVP, UVP, OCP, OTP, SCP

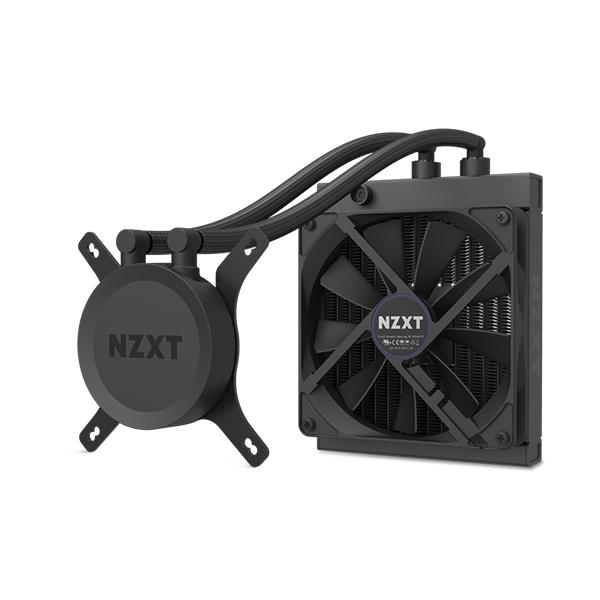

140mm AIO Liquid Cooler

  • Radiator: W173.5 X H138.5 X 22MM
  • Pump:
    • W65 x H65 x D27mm
    • 4200 ± 420 RPM
  • CPU Socket:
    • Intel: 115X
    • AMD: AMD4, FM2+, FM2, FM1, AM3+, AM3, AM2
  • Aer P140mm PWM fan: 500~1,800 ± 300 RPM
  • Noise: 21~38dBA

PCIe 16x Gen3 High-Speed Riser Card

  • PCI Express x16
  • Version: 3.0
  • High-speed passed
  • Cable length: 315mm
Expansion Slots 2
Drive Bays
2.5″ 2
Radiator Support 1x 140mm (Integrated AIO 140mm Liquid Cooler for CPU)
Clearance
GPU Clearance
  • Dimension – 305mm x 128mm; 265mm x 145mm
  • Thickness – Up to 2.5 Slots

Memory Height: 45mm

Warranty 3-year warranty on case, riser card, and AIO
10-year warranty on PSU
Note ***Features, Price and Specifications are subject to change without notice.
