No Payment Gateway Charges

EMI Options Available on Cart Value above ₹4000.

10,000.00

SKU: CA-H510I-B1 Categories: ,

Description

  • SERIES H SERIES
  • TYPE MID TOWER
  • 5.25″ BAYS NA
  • 3.5″ BAYS 3
  • 2.5″ BAYS 3
  • EXPANSION SLOTS 7
  • MAX RADIATOR SUPPORT 280
  • MAX FAN SUPPORT 4
  • COLOR MATTE BLACK
  • SIDE PANEL TRANSPARENT

Features

THE H-SERIES PC CASE

We?ve made our iconic H Series PC cases even better. Our new lineup still features the elements builders loved in the original H Series, including our patented cable management system, removable fan/radiator mounting brackets, and easy-to-use drive trays, alongside new updates like a front-panel USB-C connector supporting high-speed USB 3.1 Gen 2 devices, a tempered glass side panel that installs with a single thumbscrew, and an upgraded Smart Device V2 on the H510i.

BEAUTIFUL CRAFTMANSHIP

  • The new Smart Device V2 includes a faster microprocessor for NZXT CAM-powered control of two HUE 2 RGB lighting channels and three fan channels that support either voltage regulated or PWM fans.
  • With a USB 3.1 Gen2-compatible USB-C connector on the front panel, it?s easier than ever to connect smartphones, high-speed external storage, or the latest peripherals to your PC
  • The clean, modern design, iconic cable management bar, and uninterrupted tempered-glass side panel showcase your stunning build.
  • Use the intuitive NZXT CAM application to monitor and control your build, choosing from presets or custom controls for your RGB lighting and fans to create your dream PC.
  • Cable management can often take more time than assembly. We designed a cable routing kit with pre-installed channels and straps, for intuitive and easy wiring.
  • Two Aer F120mm fans* are included for optimal internal airflow and the front panel and PSU intakes include removable filters. Includes a removeable bracket designed for radiators up to 280mm simplifies the installation of either closed-loop or custom-loop water cooling.
    *Case version fans and specs vary from retail version
  • Show off your graphic card with a built-in mounting bracket for installing your GPU vertically.*PCIe riser card not included.

Specifications

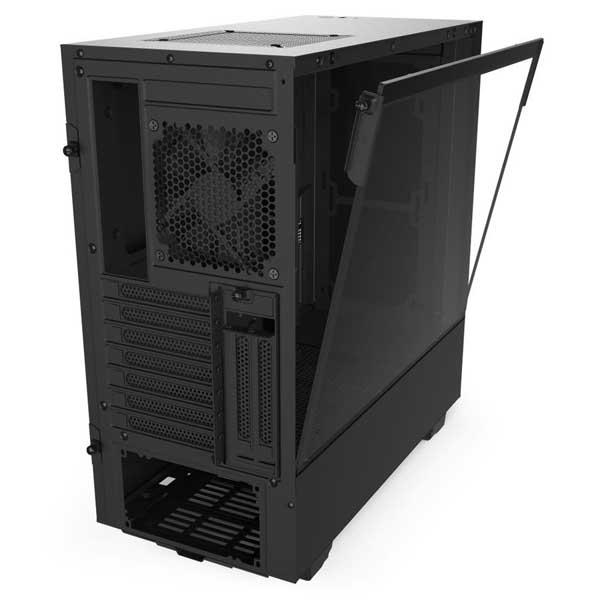

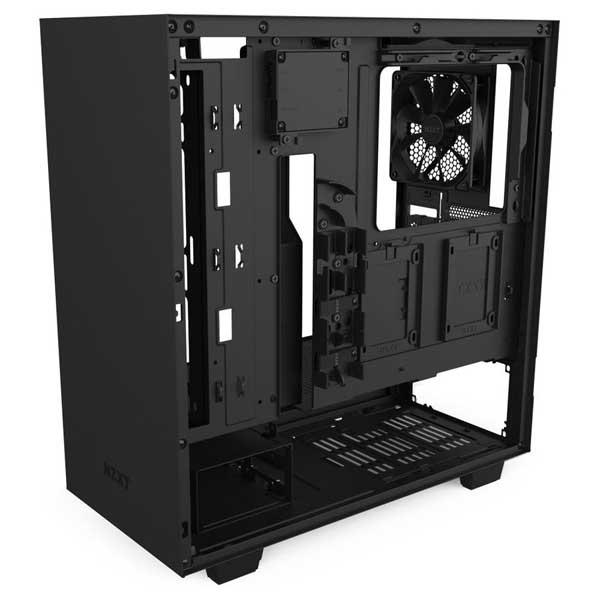

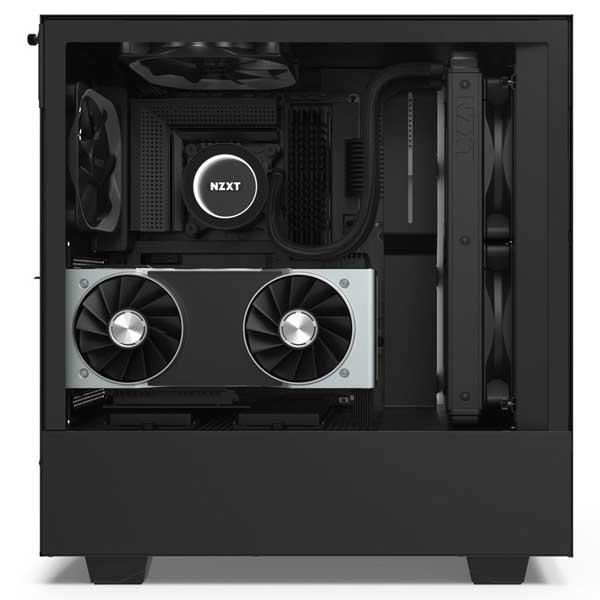

Model Number CA-H510I-B1
Dimensions
  • W: 210mm H: 435mm D: 428mm (without feet)
  • W: 210mm H: 460mm D: 428mm (with feet)
Material(s) SGCC Steel and Tempered Glass
Motherboard Support ATX
I/O Ports
  • 1x USB 3.1 Gen 2 Type-C
  • 1x USB 3.1 Gen 1 Type-A
  • 1x Headset Audio Jack
    Front I/O internal header
  • 1x USB 3.1 Gen 2 Internal Header
  • 1x USB 3.1 Gen 1 Internal Header
  • 1x USB 2.0 Internal Header
  • 1x HD Audio Header
Filters All Air Intakes
Expansion Slots 7
Smart Device V2
  • 3x Fan channels with Max 10W per channel output*
  • 2x RGB LED channels, each support up to 4x HUE 2 addressable LED strips or 5x Aer RGB 2 fans
  • Built-in noise detection module

* Note: If a splitter is used, fan control is regulated depending on the fan connected to the 4-pin port. Do not use low-noise adapters.

System Requirements
  • PC with open internal USB 2.0 port and Windows? 10 operating system recommended.
  • Internet connection is needed to download CAM. Some CAM features require Internet access, a valid email address and acceptance of our current Terms of Service.
LED Strips
  • 2 integrated ARGB LED strip
Drive Bays
  • 2.5?: 2+1
  • 3.5?: 2+1
Radiator Support
  • Front: 2x 140 or 2x 120mm with Pull
  • Rear: 1x 120mm
Fan Support
  • Front: 2x 120/ 2x 140mm
  • Top: 1x 120mm/ 1x 140mm (1 Aer F120 Case Version included)
  • Rear: 1x 120mm (1 Aer F120 Case Version included)
Fan Specs Aer F120 (Case Version)

  • Speed: 1200 ? 200 RPM
  • Airflow: 50.42 CFM
  • Noise: 28 dBA
  • Bearing: Rifle Bearing
Clearance
  • Cable Management: 19-23mm
  • GPU Clearance: Up to 381mm
  • Vertical GPU Mount Clearance: 40.64mm
  • CPU Cooler: Up to 165mm
  • Front Radiator: 60mm
  • Rear Radiator: 60mm
  • Reservoir & Pump: Up to 180mm (Along cable bar), Up to 86mm (Along bottom panel)
Warranty 2 Years
Note ***Features, Price and Specifications are subject to change without notice.
