Description
NOCTUA NF-F12-PWM-CH-BK-S CABINET FAN

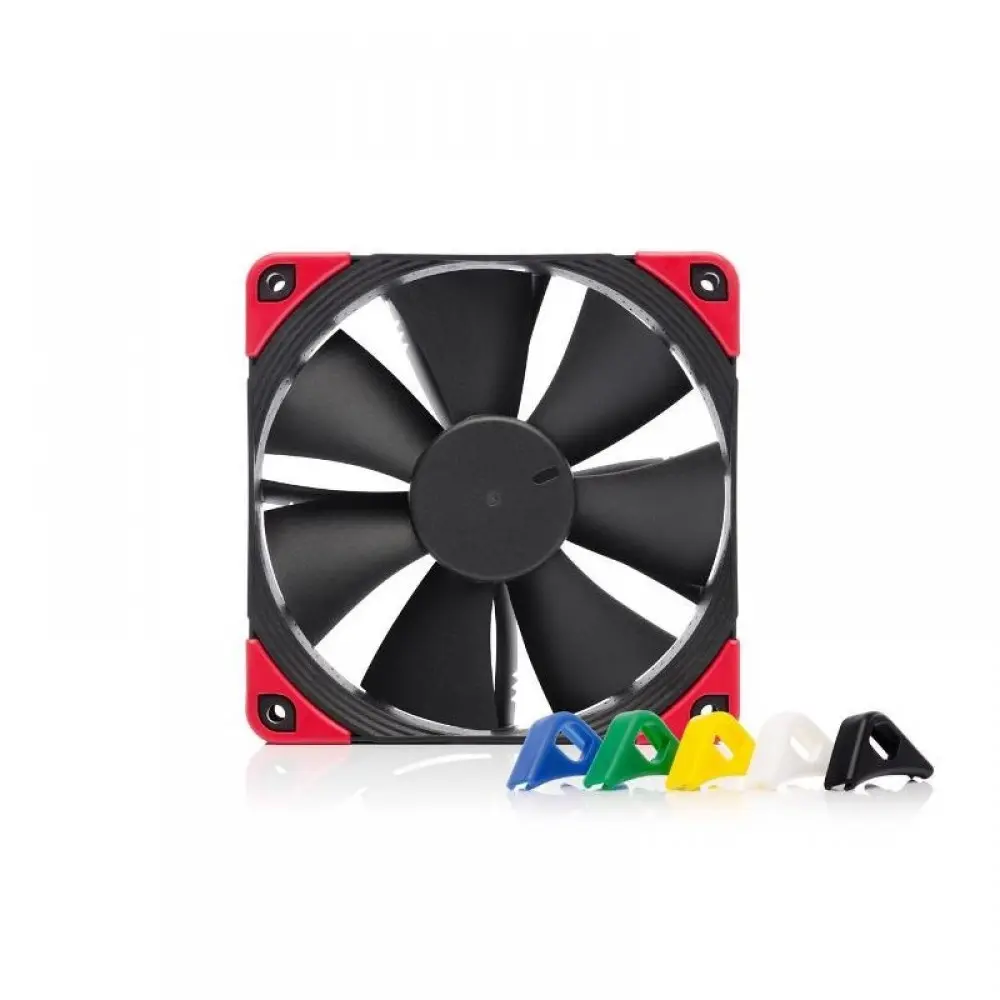

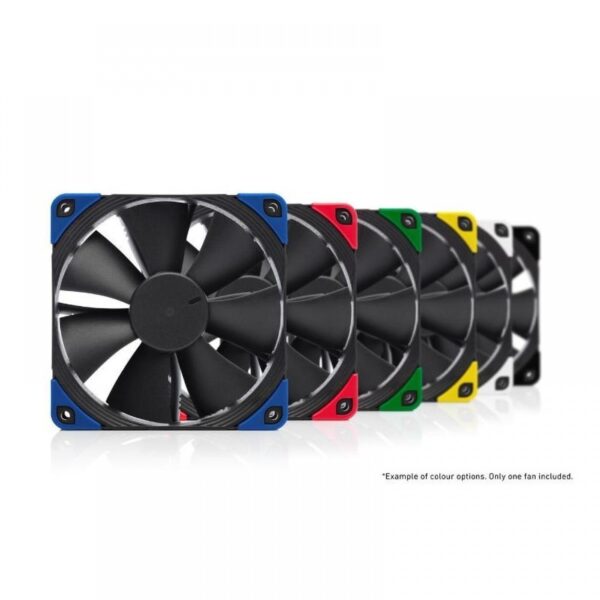

Having received more than 100 awards and recommendations from international hardware websites and magazines, the NF-A14 is one of Noctua’s most renowned and popular 140mm fans. Its square frame makes it ideal for use on water cooling radiators or as a case fan. The chromax.black.swap edition combines the NF-A14’s signature quiet cooling performance with an attractive all-black design and a bundle of swappable red, white, blue, green, yellow and black anti-vibration pads that allow the colour-customisation of the fan to match individual build colour schemes. For further customisation, a wide range of accessories such as coloured cables, additional anti-vibration pads and anti-vibration mounts are available separately. Topped off with Noctua’s trusted premium-grade SSO2 bearing, more than 150,000 hours MTTF and 6-year manufacturer’s warranty, the NF-A14 PWM chromax.black.swap is the perfect choice for all users who value individual, focused build aesthetics just as much as class-leading quality and performance.
Specification | |
Size | 120x120x25 mm |
Mounting hole spacing | 105×105 mm |

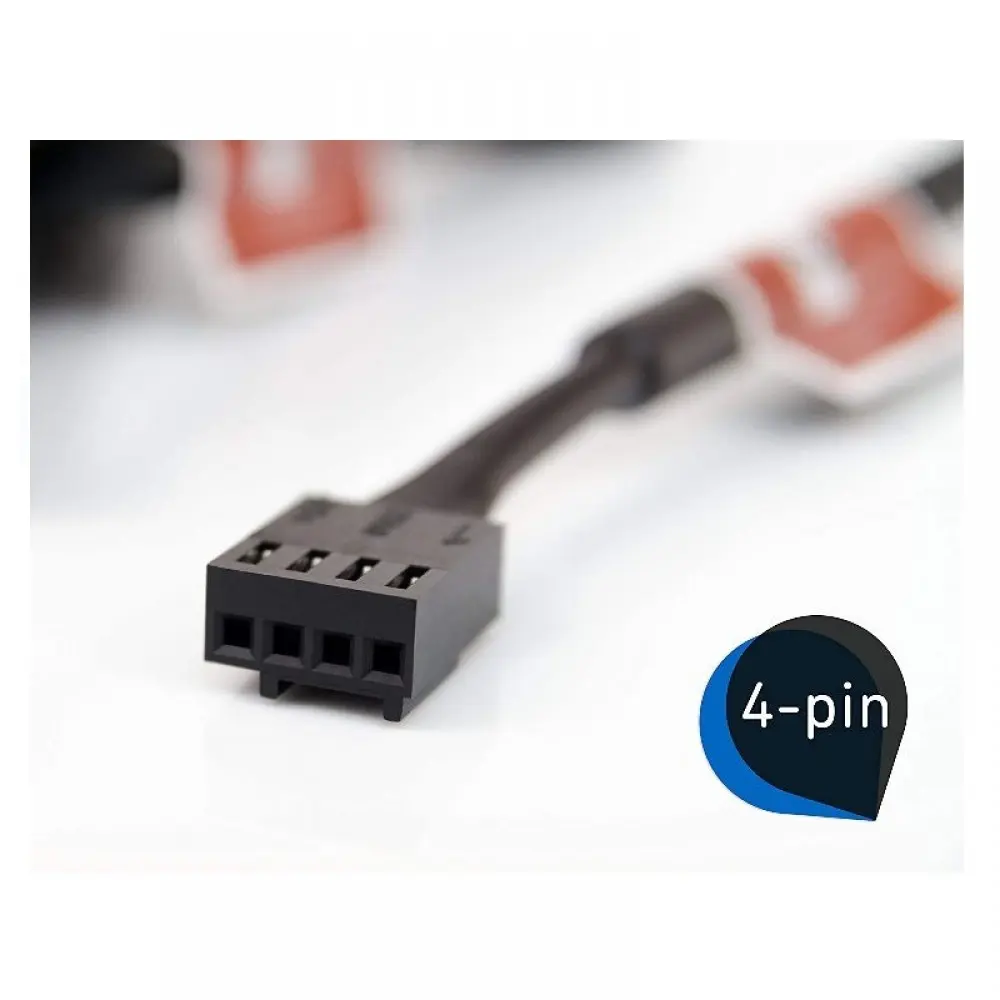

Connector & pin-configuration | 4-pin PWM |
Cable length | 1cm + 30cm NA-EC1 extension cable |
Bearing | SSO2 |
Blade geometry | Heptaperf™ |
Frame technology | Focused Flow™ |
Rotational speed (+/- 10%) | 1500 RPM |
Min. rotational speed (PWM, +/-20%) | 300 RPM |
Airflow | 93,4 m³/h |
Acoustical noise | 22,4 dB(A) |
Static pressure | 2,61 mm H₂O |
Max. input power | 0,6 W |
Max. input current | 0,05 A |
Operating voltage | 12 V |
MTTF | > 150.000 h |

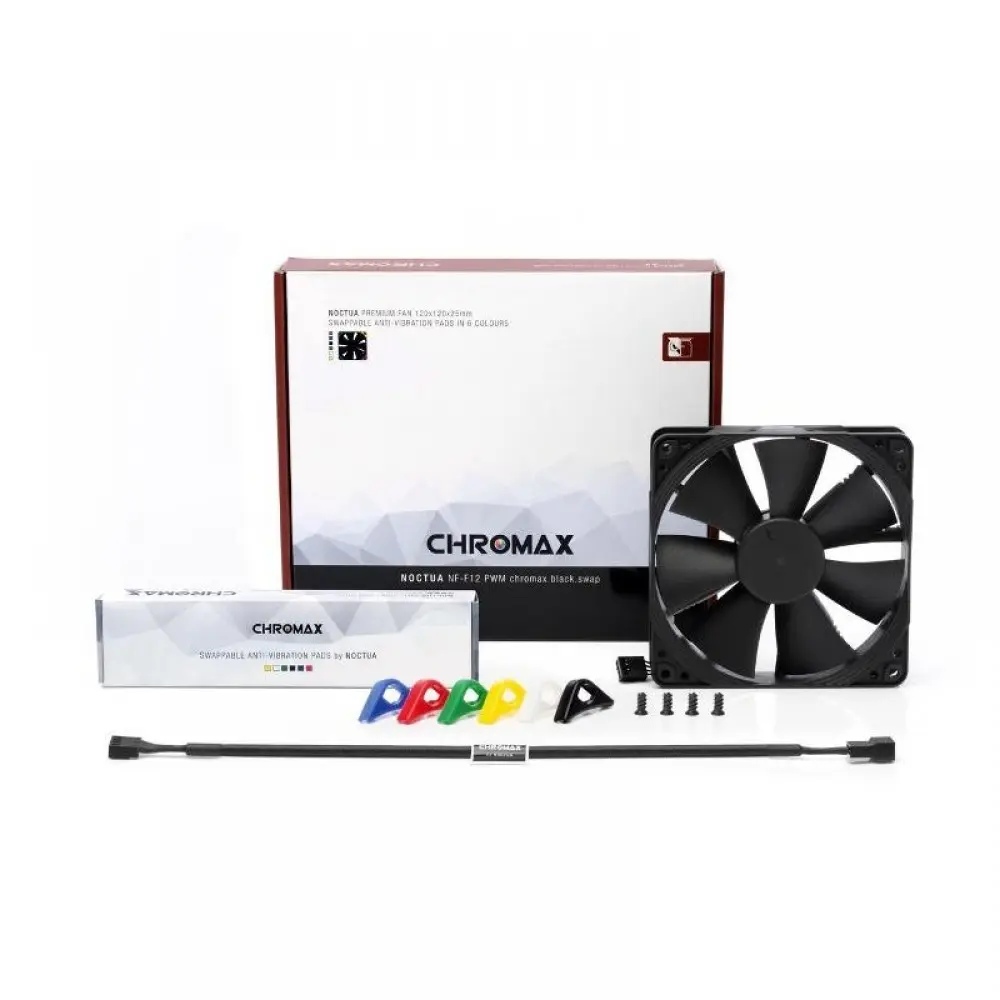

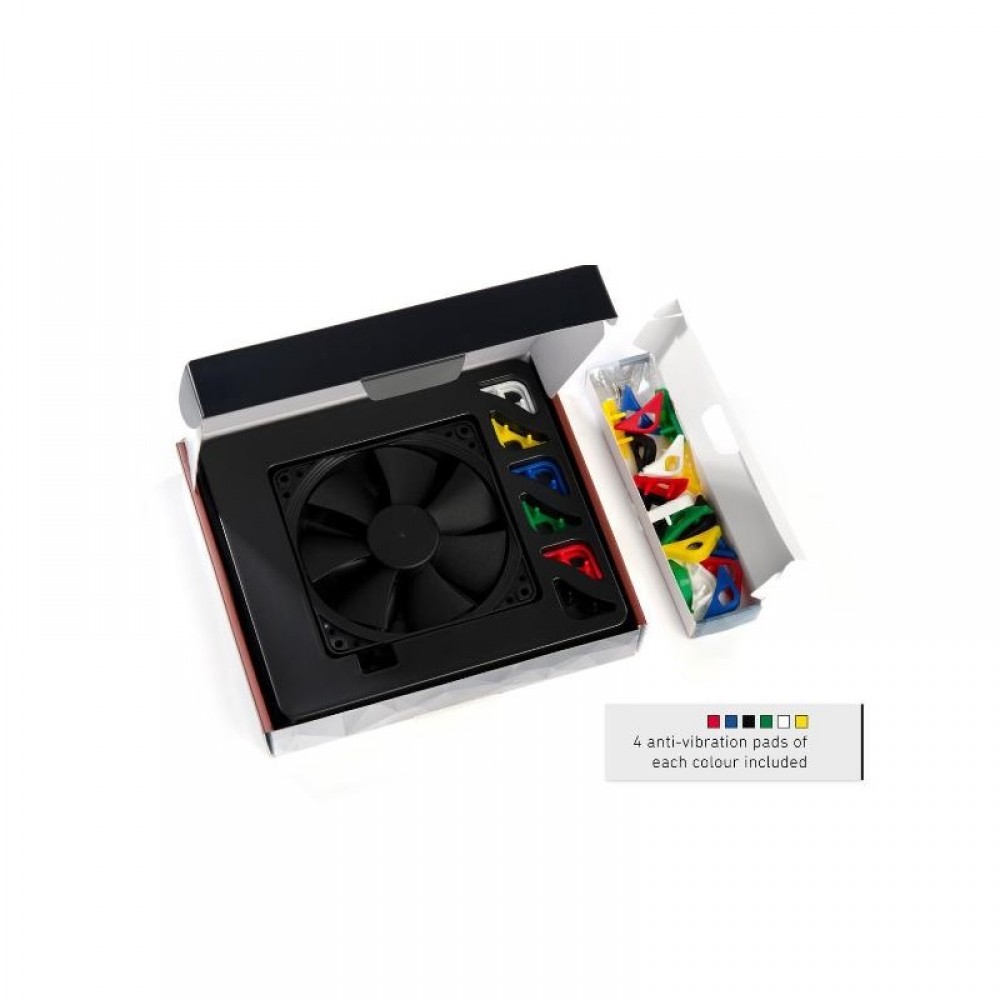

Scope of delivery | 4x NA-AVP1 chromax.black anti-vibration pads
4x NA-AVP1 chromax.blue anti-vibration pads 4x NA-AVP1 chromax.green anti-vibration pads 4x NA-AVP1 chromax.red anti-vibration pads 4x NA-AVP1 chromax.white anti-vibration pads 4x NA-AVP1 chromax.yellow anti-vibration pads 4x fan screws |
Warranty | 6 Years |
Note* | Price, feature and specifications are subject to change without notice. |
