MSI RTX 5070 Gaming Trio OC 12GB GDDR7 Graphics Card
Fearless and bold, MSI RTX 5070 Gaming Trio OC delivers strong performance to both gaming and content creation. It blends a fierce look with advanced cooling technologies, making it an unwavering ally on the gaming battlefield. GAMING TRIO is the ideal choice for gamers who strive to give their all.
- Powered by the NVIDIA Blackwell architecture and DLSS 4
- Core Clocks:
Extreme Performance: 2625 MHz (MSI Center)
Boost: 2610 MHz - TRI FROZR 4 Thermal Design: Upgraded fans, airflow control, and thermal design deliver superior cooling and quieter operation.
- STORMFORCE Fan: Seven fan blades, claw texturing, and a circular arc are designed for optimal airflow with minimal noise.
- Nickel-plated Copper Baseplate: Heat from the GPU and memory is swiftly captured by a nickel-plated copper baseplate and transferred.
- Core Pipes feature a square design to maximize contact with the GPU baseplate for optimal thermal management.

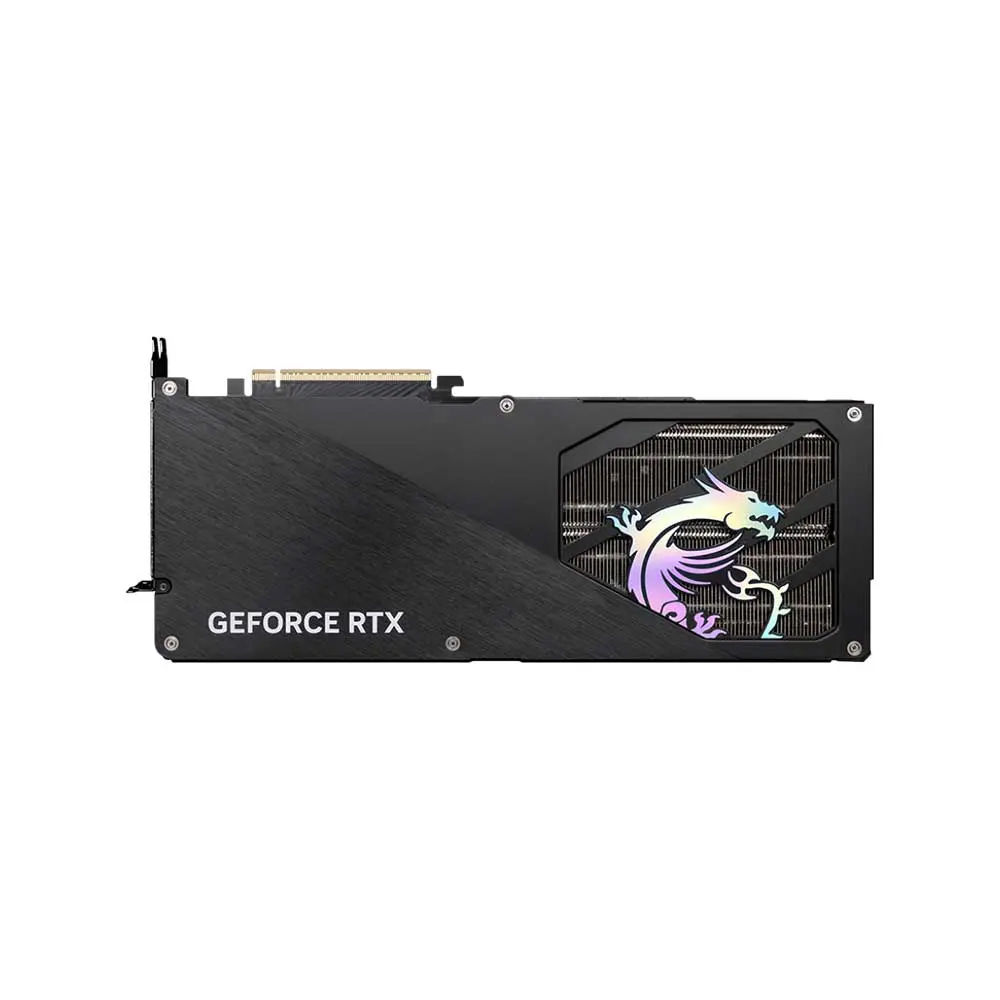

- Metal Backplate: A reinforcing metal backplate with airflow vents and thermal pads enhances cooling.
- Wave Curved 4.0: Precision-engineered wave edges with a high-low fin design enhance airflow and reduce turbulence.
- Air Antegrade Fin 2.0: The fins feature a V-shaped cutout and a high-low design at the airflow passthrough to optimize flow efficiency.
- MSI Center: The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.
- Afterburner software takes full control with the most recognized and widely used graphics card overclocking software in the world.
Marketin Name | GeForce RTX™ 5070 12G GAMING TRIO OC |
Model Name | G5070-12GTC |
Graphics Processing Unit | NVIDIA® GeForce RTX™ 5070 |
Interface | PCI Express® Gen 5 |
sCore Clock | Extreme Performance: 2625 MHz (MSI Center) Boost: 2610 MHz |
Cuda Cores | 6144 Units |
Memory Speed | 28 Gbps |
Memory | 12GB GDDR7 |
Memory Bus | 192 Bit |

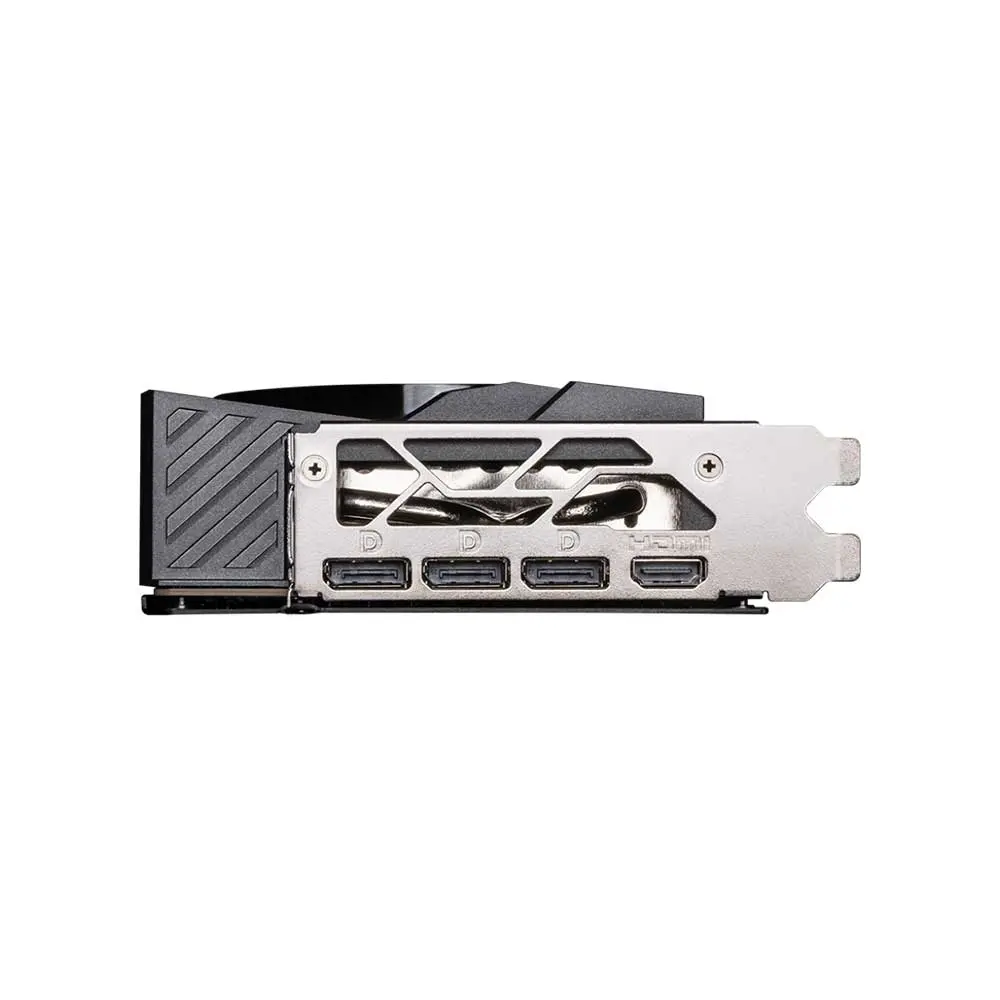

Output | DisplayPort x 3 (v2.1b) HDMI™ x 1 (As specified in HDMI™ 2.1b: up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR) |
HDCP Support | Y |
Power Consumption | 250W |
Power Connectors | 16-pin x 1 |
Recommended PSU | 650 W |
Card Dimension (mm) | 338 x 140 x 50 mm |
Weight (Card / Package) | 1187 g / 1705 g |
Direct X Version Support | 12 Ultimate |
OpenGL Version Support | 4.6 |
Maximum Displays | 4 |
G-SYNC® technology | Y |
Digital Maximum Resolution | 7680 x 4320 |
Warranty | 3 Years |
