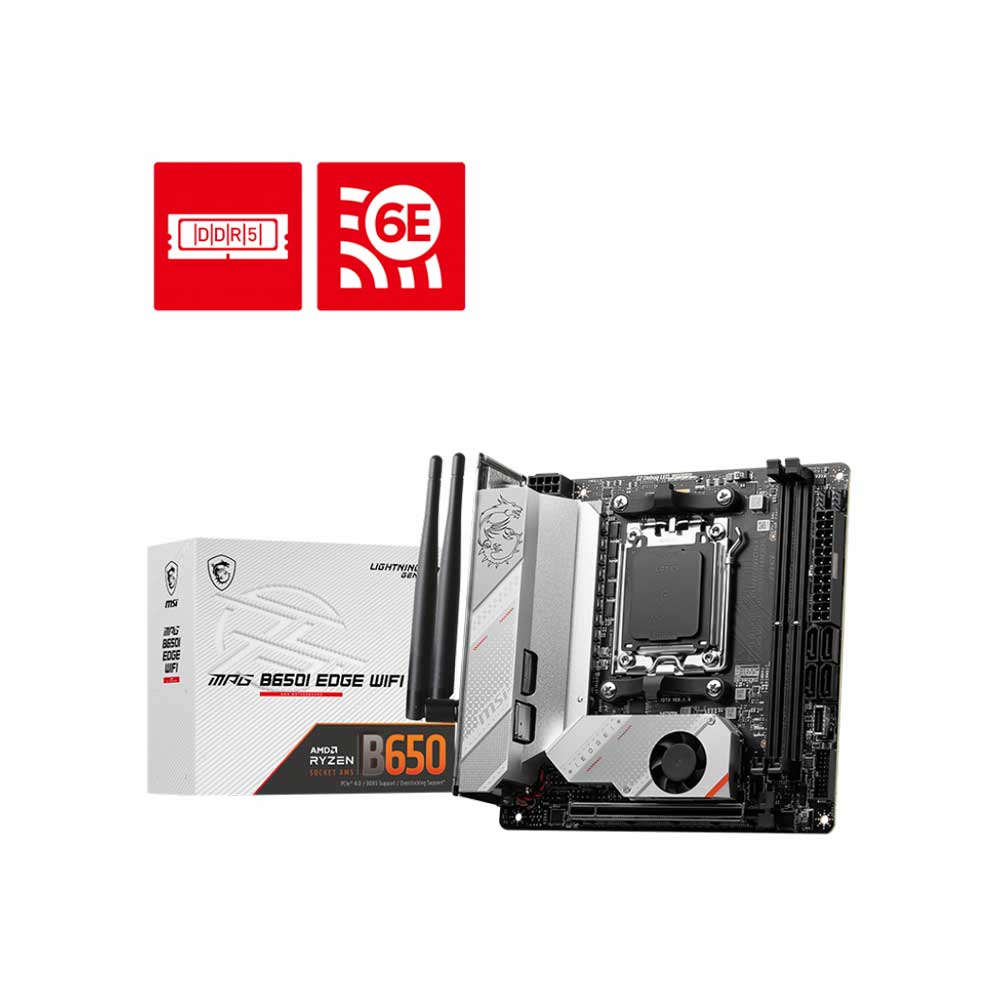

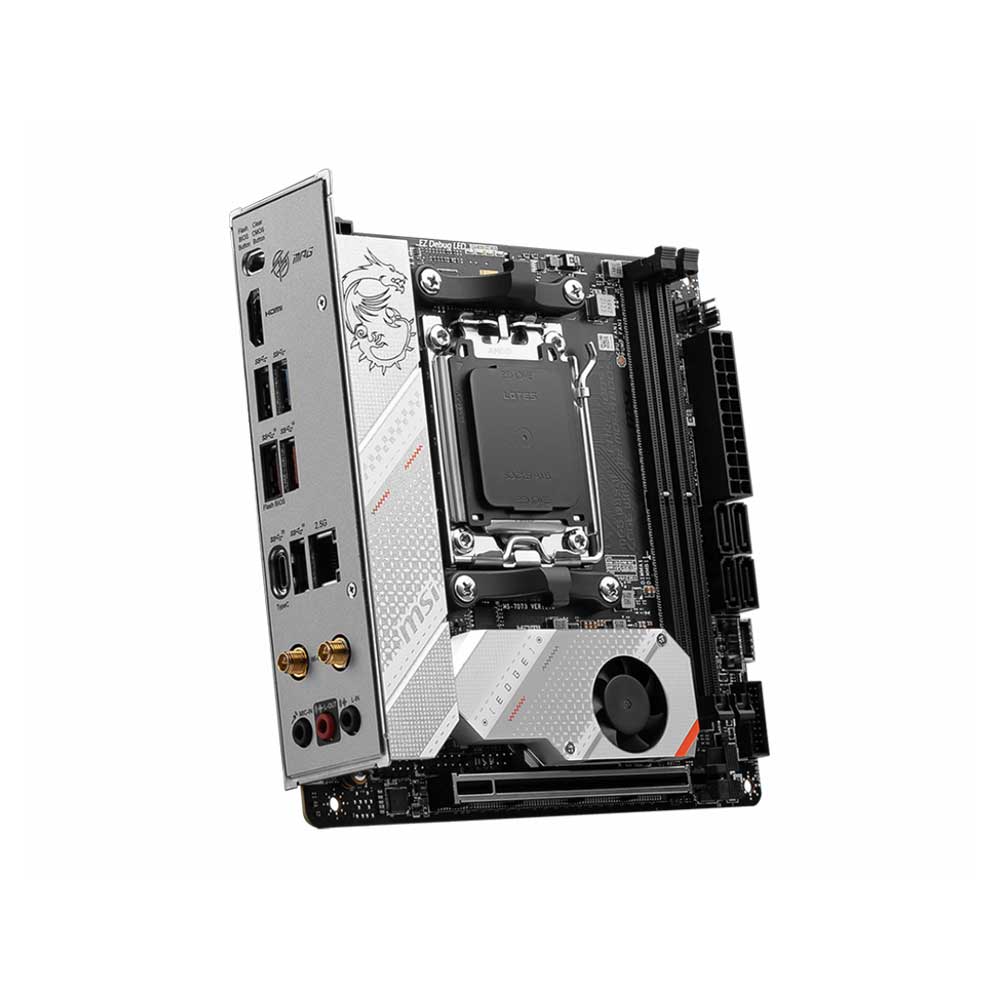

Msi Mpg B650I Edge Wifi Am5 Mini-Itx Motherboard (MPG-B650I-EDGE-WIFI)

Inclusive of all taxes

Model No : MPG-B650I-EDGE-WIFI

All over India Shipping

Competitive Pricing

Experts in pc building

product description

Description

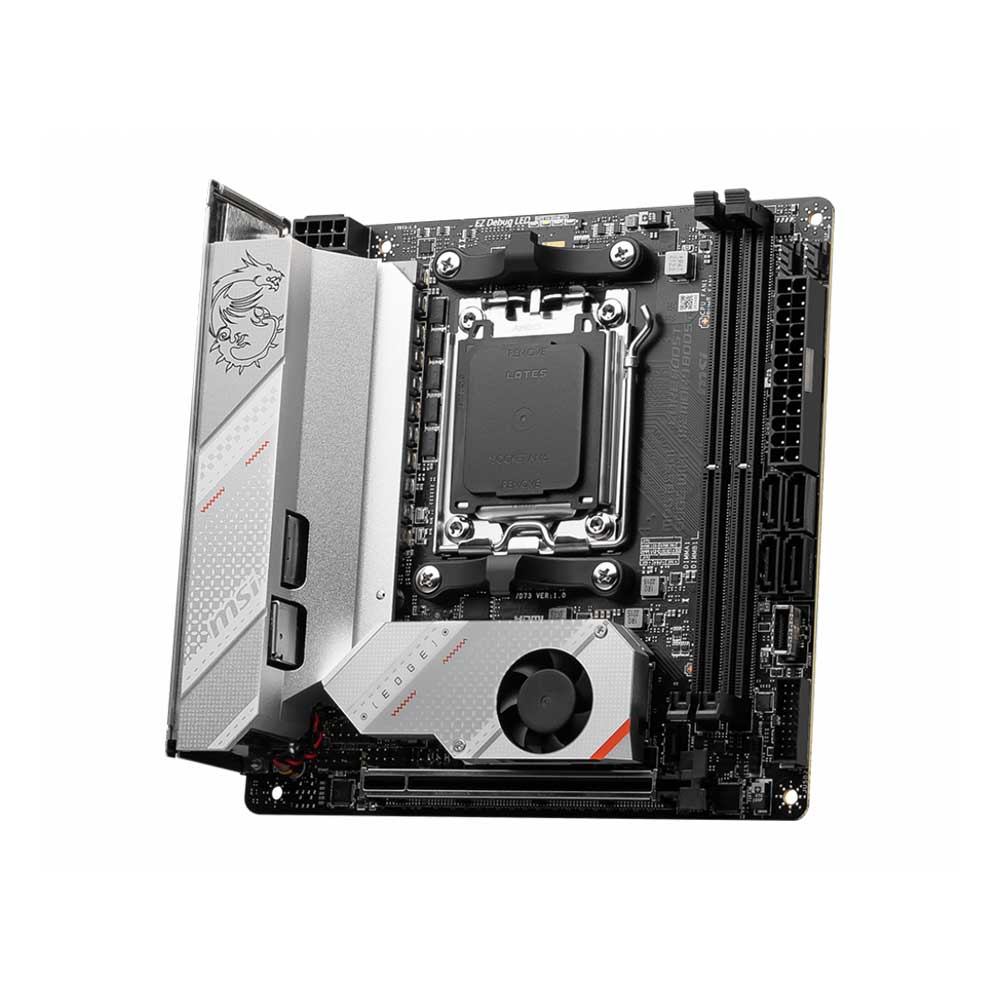

Msi Mpg B650I Edge Wifi Am5 Mini-Itx Motherboard (MPG-B650I-EDGE-WIFI)

  • Supports AMD Ryzen™ 7000 Series Desktop Processors
  • Supports DDR5 Memory, up to 6600+(OC) MHz
  • Enhanced Power Design: Direct 8+2+1 VRM power, Core Boost, Memory Boost
  • Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
  • High Quality PCB: 10-layer PCB made by 2oz thickened copper and server grade level material
  • 2.5G LAN and AMD Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
  • Lightning Fast Game experience: PCIe 4.0 slots, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2×2
  • DIY Friendly Design: Flash BIOS Button, Pre-installed I/O Shield, Steel Armor
  • AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
Chipset AMD B650
CPU Support Supports AMD Ryzen™ 7000 Series Desktop Processors
Socket AM5
Memory 2x DDR5, Maximum Memory Capacity 64GB
Memory Support DDR5 6600+(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200(OC)/5000(OC)/4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max. speed up to 6600+ MHz
• 1DPC 2R Max. speed up to 6000+ MHzSupport Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports AMD EXPO™
Onboard Graphics 1x HDMI™
Support HDMI™ 2.1 FRL, maximum resolution of 4K 120Hz*
Expansion Slot 1x PCI-E x16 slot
PCI_E1 PCIe 4.0 supports up to x16 (From CPU)
Multi-GPU Supports AMD MULTI-GPU
Storage 2x M.2 slot
M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_2 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
4x SATA 6G port
Raid Supports RAID 0 , RAID 1 and RAID 10 for SATA storage devices
Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
USB 2x USB 2.0 (Front)
2x USB 3.2 Gen1 Type A (Rear)
2x USB 3.2 Gen1 Type A (Front)
3x USB 3.2 Gen2 Type A (Rear)
1x USB 3.2 Gen2 Type C (Front)
1x USB 3.2 Gen2x2 Type C (Rear)
LAN Realtek® RTL8125BG 2.5Gbps LAN
Wireless / Bluetooth AMD Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX
Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands
Supports 802.11 a/ b/ g/ n/ ac/ axSupports Bluetooth® 5.2**
Audio Realtek® ALC4080 Codec
7.1-Channel USB High Performance Audio
Supports up to 32-Bit/384 kHz playback on front panel
Internal I/O 1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
1x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Addressable V2 RGB LED connector (JARGB_V2)
2x USB 2.0
2x USB 3.2 Gen1 Type A
1x USB 3.2 Gen2 Type C
LED Feature 4x EZ Debug LED

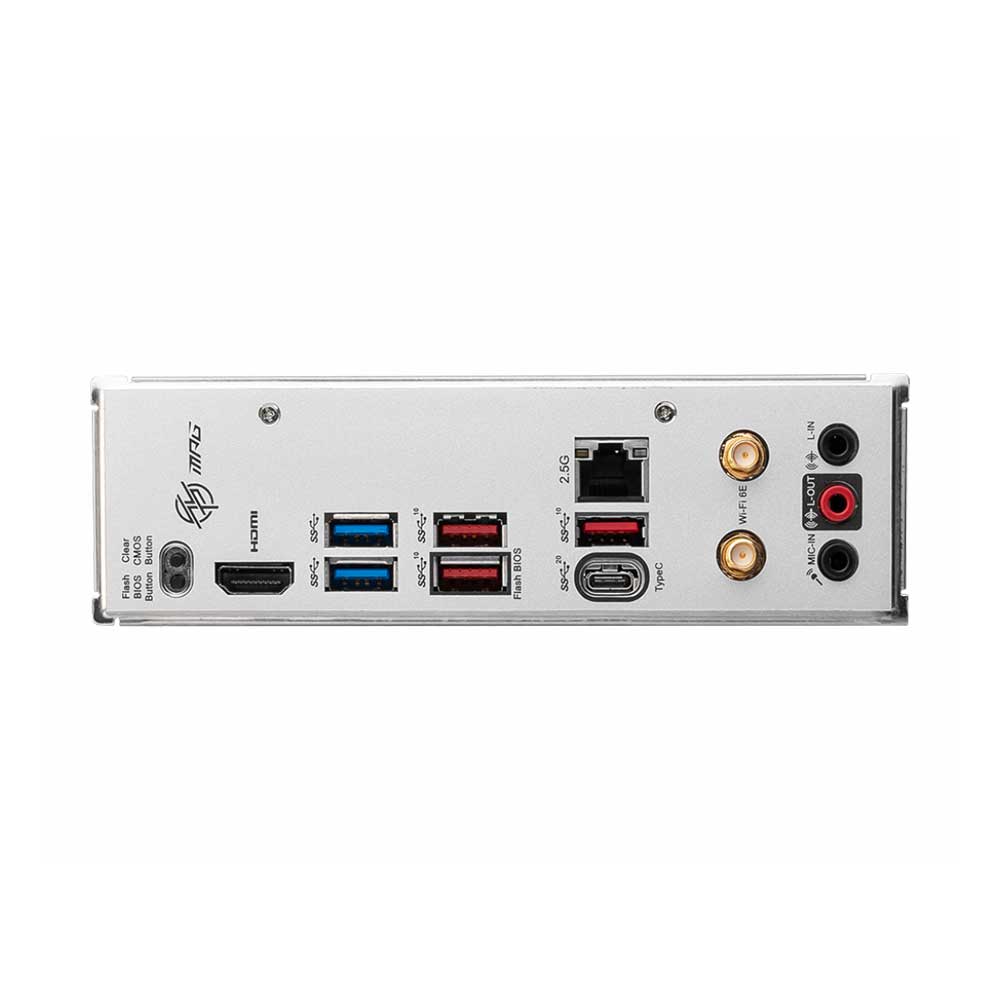

Back Panel Ports
  • Clear CMOS Button
  • USB 3.2 Gen 1 5Gbps (Type-A)
  • 2.5G LAN
  • Wireless / Bluetooth
  • Audio Connectors
  • Flash BIOS Button
  • HDMI™
  • USB 3.2 Gen 2 10Gbps (Type-A)
  • USB 3.2 Gen 2 10Gbps (Type-A)
  • USB 3.2 Gen 2×2 20Gbps (Type-C)
Operating System Support for Windows® 11 64-bit, Windows® 10 64-bit
PCB Dimension Mini-ITX
170mmx170mm
Warranty 3 Years
Note** **Prices, Specifications & Features are subject to change without notice
