Msi Pro H610m-g Ddr4 Lga1700 Matx Motherboard (Pro-H610m-g-ddr4)
Micro-ATX H610 business motherboard with enhanced security, reliability, manageability and serviceability
- Intel® LGA 1700 socket: Ready for 12th Gen Intel Core™ processors
- ASUS CSM program: A stable motherboard supply, end-of-life notifications, and IT software for business motherboards
- ASUS Control Center Express: Integrated IT monitoring and management software that simplifies enterprise-level system administration
- Enhanced system security: A self-recovering BIOS, and TPM to safeguard PCs
- Consistent and reliable performance: High-quality components and rigorous testing to help ensure durability in harsh environments
- Efficient management and customization: An event log and commercial BIOS kit to enable easy maintenance
- Better serviceability: Q-LED diagnostic display and COM debug header to facilitate building and support processes
- Ultrafast connectivity: PCIe 5.0, DDDR 5, USB 3.2 Gen 2
ASUS Corporate Stable Model
ASUS Corporate Stable Model (CSM) is a commercial program designed to provide stable and reliable motherboards. Offering up to 36-month product lifecycle support and 6-month end-of-life notice to allow sufficient lead times for your organization to get ready for product transitions. Each purchase of an ASUS CSM motherboard comes with ASUS Control Center Express – server-grade IT management software.
ASUS Control Center Express
ASUS Control Center Express is a real-time IT monitoring and management tool designed for business that improves productivity and enhances security, helping prevent unauthorized access and data leaks. The intuitive dashboard enables easy, real-time hardware and software management across your organization.
This business motherboard is a DDR5-compatible motherboard that optimizes memory module speeds and stability, while providing an advanced voltage delivery architecture for greater energy efficiency.
PCIe 5.0 slot
The 12th Gen Intel processors bring PCIe 5.0 support to the market. PCIe 5.0 offers twice the data transfer speed of PCIe 4.0, making it robust enough to handle new data-heavy tasks. PCIe 5.0 also brings other benefits, such as electrical changes to improve signal integrity, backward-compatible CEM connectors for add-in cards, and backward compatibility with previous versions of PCI Express.
An innovative moisture-resistant coating protects the motherboard in humid environments, such as factories, libraries, data centers and internet cafes. It also minimizes internal corrosion by preventing adhesion and migration of moisture, prolonging the life of the motherboard.
|Processor||Supports 12th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors
Processor socket LGA1700
Please go to MSI official website to get the newest support status as new processors are released.
|Chipset||Intel® H610 Chipset|
|Memory||2x DDR4 memory slots, support up to 64GB
Supports 1R 2133/ 2666/ 2933/ 3200 MHz (by JEDEC & POR)
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Please refer to MSI official website for more information on compatible memory.
|Expansion Slot||1 x PCIe x16 slot (From CPU)
Supports up to PCIe 4.0 x16
1x PCIe x1 slot
Supports PCIe 3.0 x1
1x M.2 slot with E-key for PCIe WiFi module only (M2_ WIFI1)
|Onboard Graphics||1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz
1x VGA port, supports a maximum resolution of 2048×1536 50Hz, 2048×1280 60Hz, 1920×1200 60Hz
x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz
|SATA Ports||4x SATA 6Gb/s ports1
* SATA7 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.
|M.2 SSD Slot||1x M.2 slot (Key M, from chipset)1
Supports up to PCIe 3.0 x4
Supports up to SATA 6Gb/s
Supports 2242/ 2260/ 2280 storage devices
Supports Intel® Smart Response Technology for Intel Core™ processors
SATA7 will be unavailable when installing M.2 SATA SSD in the M2_1 slot
Chipset 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector)
6x USB 2.0 ports (4 Type-A ports on the back panel(hub-GL850G), 2 ports available through the internal USB 2.0 connector)
|Audio||7.1-Channel High Definition Audio|
|LAN||1x Intel® I219V 1Gbps LAN controller|
|Power Connectors||1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector|
|Fan Connectors||1x 4-pin CPU fan connector 1x 4-pin system fan connector|
|System Connectors||1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector
1x TPM module connector
|Jumpers||1x Clear CMOS jumper|
|LED Features||1x 4-pin RGB LED connector
2x 3-pin RAINBOW LED connectors 4x EZ Debug LED

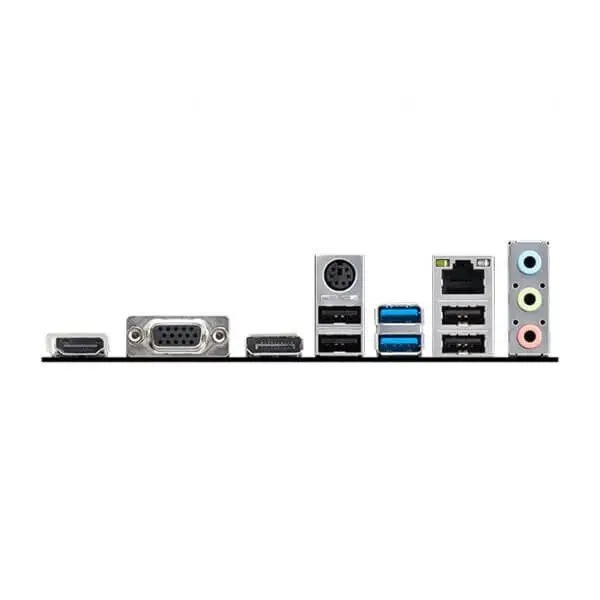

|Back panel ports||HDMI
USB 3.2 Gen 1 5Gbps Type-A
|Dimensions||mATX Form Factor
9.29 x 7.95 in. (23.6 cm x 20.2 cm)
|Operating System||Support for Windows® 11 64-bit|
|Note||*** Features, Price, Specifications are subject to change without notice.|
