Description

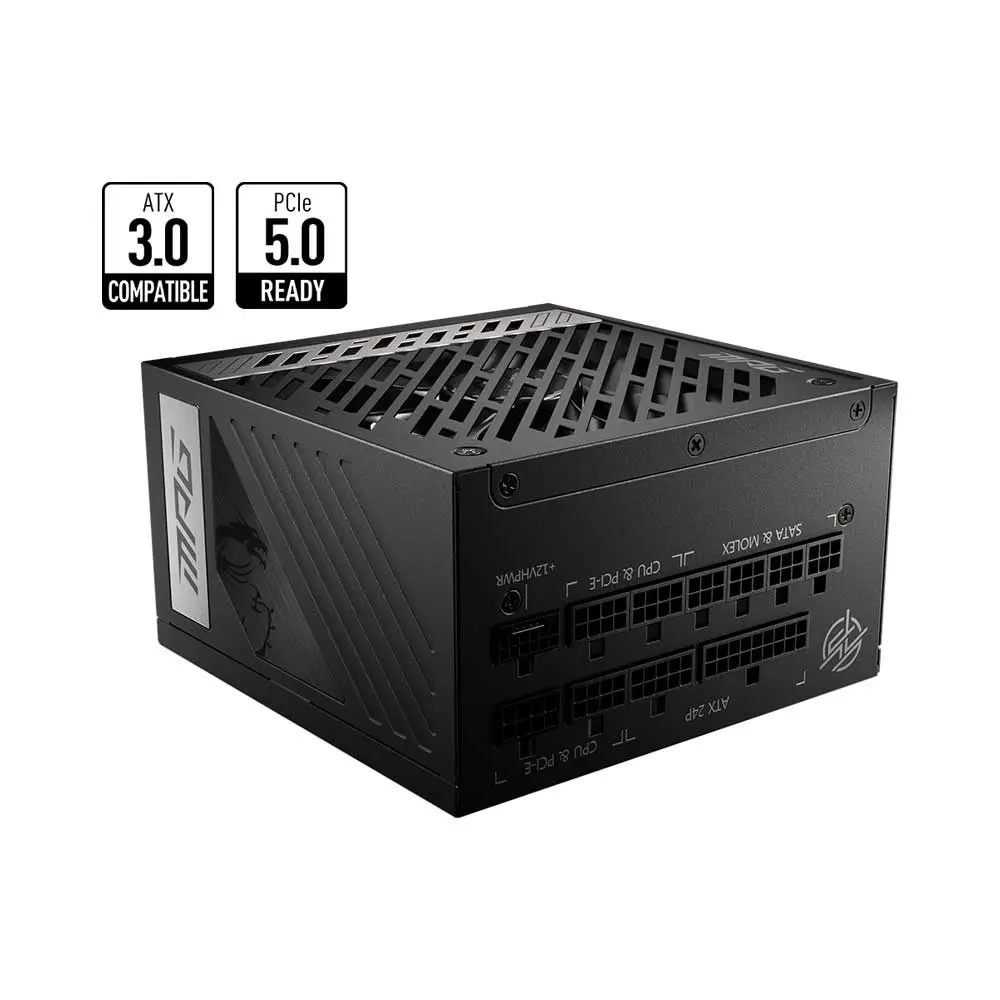

Msi Mpg A1000G Pcie5 1000 Watt Power Supply (MPG-A1000G-PCIE5)
- Supports Nvidia® GeForce RTXTM 40 Series graphics cards

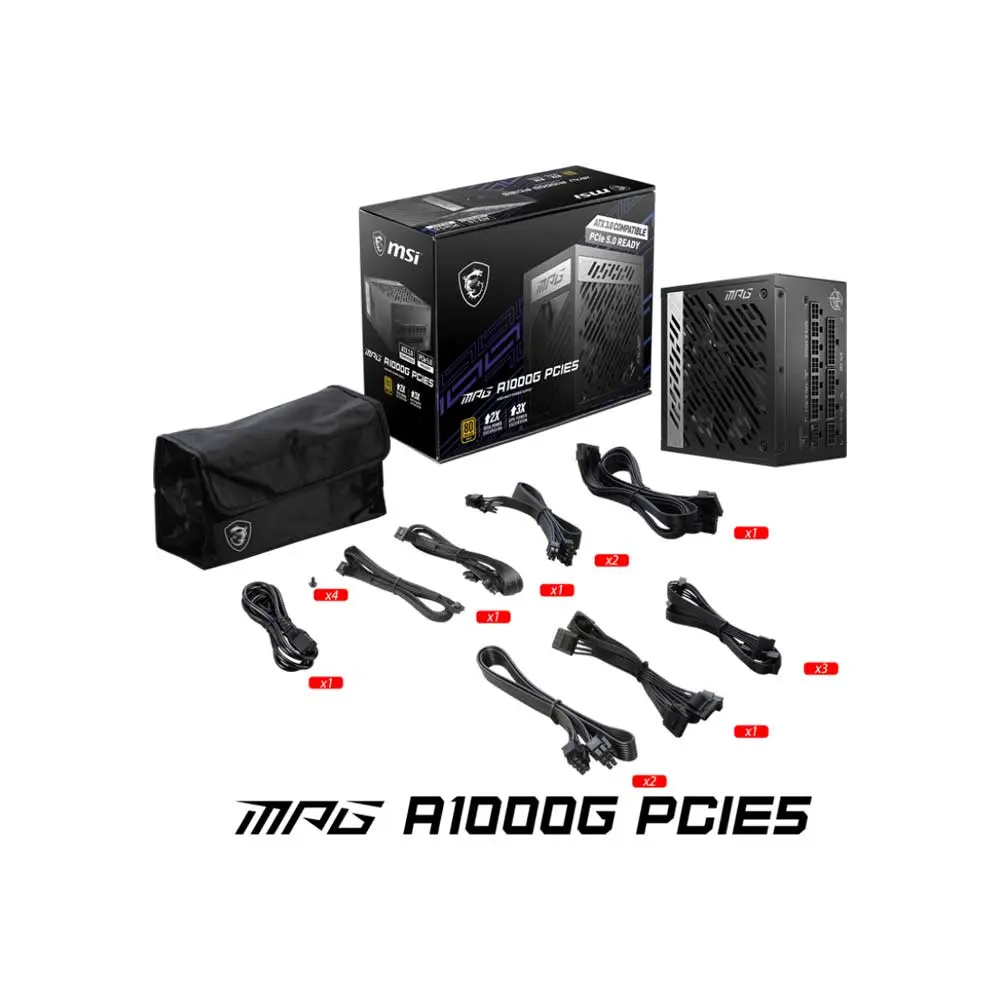

- Full modular design
- Flat cables
- 80 Plus Gold certified for high efficiency
- 100% all Japanese 105oC capacitor
- Active PFC design
- Industrial level protection with OVP,OCP,OPP,OTP, SCP,UVP
- LLC Half Bridge Topology with DC-DC module design
Efficiency Rating | 80 PLUS Gold (up to 90%) |
Modular | Yes (fully modular) |

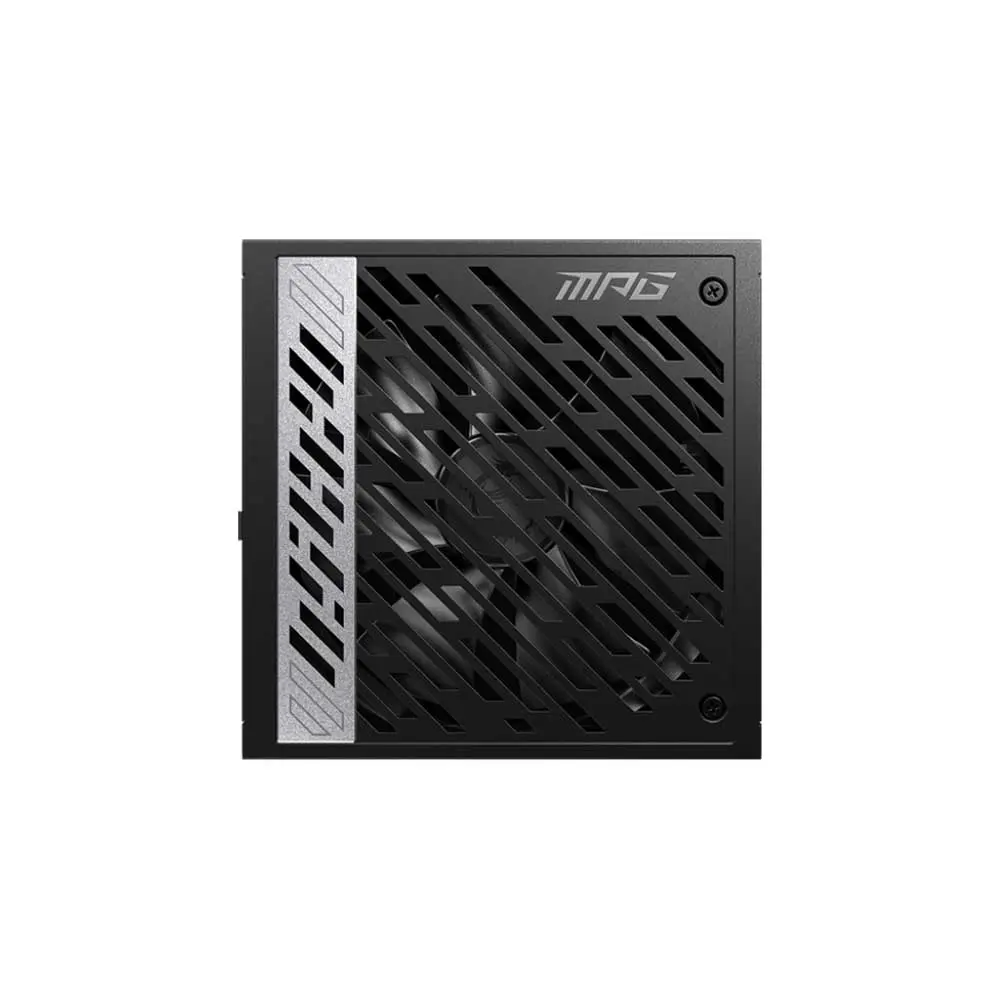

Fan Size | 135 mm |
Fan Bearing | Fluid Dynamic Bearing |
Dimensions (DxWxH) | 150 x 150 x 86 mm |
PFC Type | Active PFC |
Input Voltage Range | 100~240 VAC |
Power Watt | 1000W |
Power Excursion | 2000W (*up to 200% of the PSU’s rated power for 100μs) |
Input Frequency Range | 50~60 Hz |
Protection | OCP / OVP / OPP / OTP / SCP / UVP |

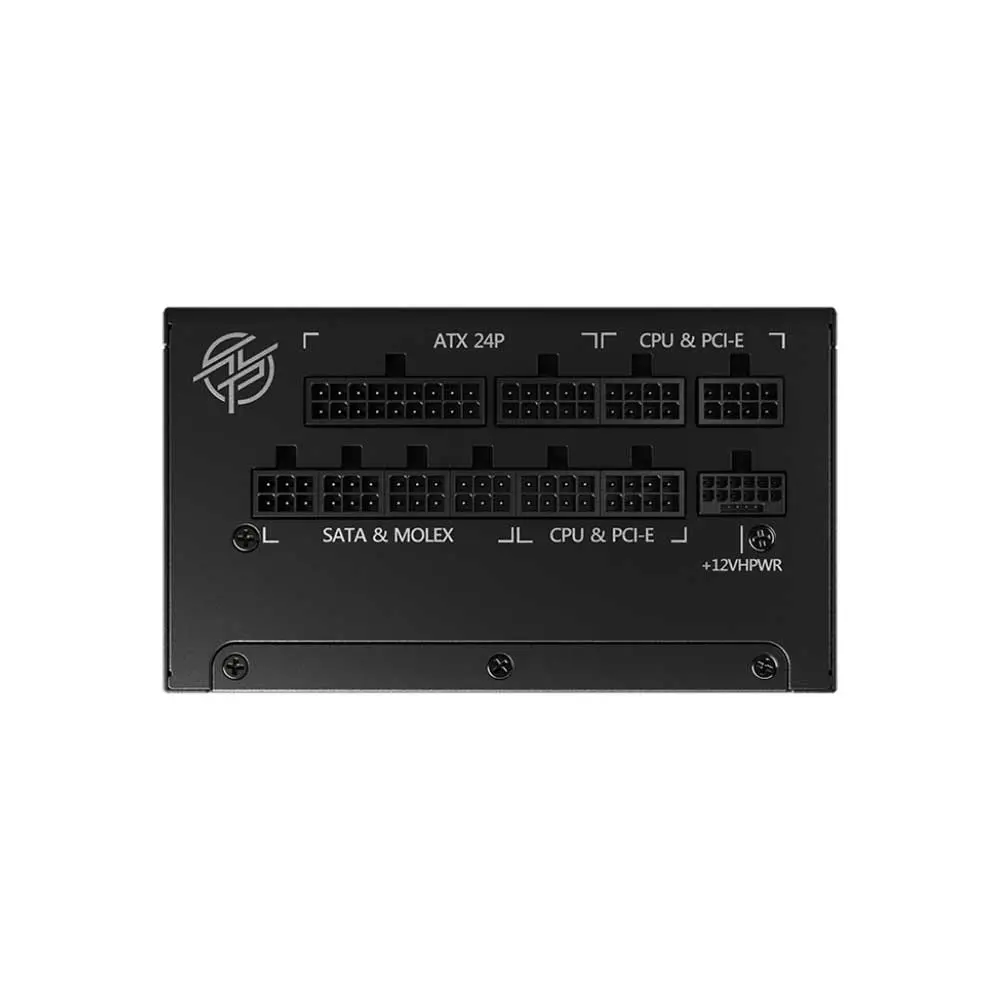

ATX (24 Pin) | 1 |
EPS (4+4 PIN) | 2 |
PCI-E 5.0 (16 PIN) | 1 |
PCI-E (6+2 PIN) | 6 |
SATA (15 PIN) | 12 |
MOLEX (4 PIN) | 4 |
FDD (4 PIN) | 1 |
Warranty | 3 Years |
Note** | **Prices, Specifications & Features are subject to change without notice |
