Msi Meg Z790 Godlike Max Wifi Ddr5 Lga1700 E-Atx Motherboard (MEG-Z790-GODLIKE-MAX)
Home>Brand>MSI>Msi Meg Z790 Godlike Max Wifi Ddr5 Lga1700 E-Atx Motherboard (MEG-Z790-GODLIKE-MAX)

Msi Meg Z790 Godlike Max Wifi Ddr5 Lga1700 E-Atx Motherboard (MEG-Z790-GODLIKE-MAX)

Original price was: ₹209,999.Current price is: ₹128,800.

(39% OFF)

(Inclusive of all taxes)

Model No : MEG-Z790-GODLIKE-MAX
BUY NOW
all india free shipping
3 day replacement
secured shopping
genuine products
no hidden charges
competitive pricing

Description

Msi Meg Z790 Godlike Max Wifi Ddr5 Lga1700 E-Atx Motherboard

Msi MEG Z790 Godlike Max is a Gaming Motherboard is equipped with Wi-Fi 7, high-speed data transmission, and the groundbreaking M-Vision Dashboard, this board is engineered to unleash the gaming potential of Intel 14th Gen and 13th Gen Core processors.

Features:

  • Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket
  • Supports DDR5 Memory, Dual Channel DDR5 7800+MHz (OC)
  • M-Vision Dashboard: The 4.5-inch full-color IPS touchpanel not only indicates the status of your gaming rig which combines hardware monitor and debug function, but also allows system operation and customization with touch control.
  • Dual Thunderbolt 4 ports: Thunderbolt USB-C at true 40 Gb/s speeds, 8K display support, Daisy-Chaining and Multi-Port Accessory Architecture provide reliable connectivity and better user experience.
  • Extreme Power Design: 26+2 phases power design with 105A Smart Power Stage and dual CPU power connectors are ready to unleash the maximum performance.
  • Premium Thermal Module: Wavy fin design, Direct Touch Cross Heat-pipe, Aluminum Cover, 7W/mK thermal pads, Double-Sided M.2 Shield Frozr and Frozr AI software ensure the utmost performance with low temperature.
  • Latest Wi-Fi 7 solution: The latest wireless solution with a new 320MHz channel, achieving a maximum transmission speed of 5.8Gbps, which is 2.4 times faster than Wi-Fi 6/6E.
  • 10G Super LAN: Onboard 10G Super LAN and Intel 2.5G LAN provide incredible data transfer speed, delivering the best online gaming experience.
  • Maximum 7 x M.2 Connectors: Onboard septuple M.2 connectors including one PCIe 5.0 solution for the maximum storage performance. The double-sided Shield Frozr design keeps M.2 SSDs safe while preventing throttling, making them run faster.
  • Lightning Fast Game experience: PCIe 5.0 slots, Lightning Gen 5 x4 M.2, Dual Front USB 3.2 Gen 2×2 20G with one 60W USB Power Delivery.
  • DIY Friendly Design: Patented Magnetic & Screwless M.2 Shield Frozr, EZ M.2 Clips, EZ Antenna, Smart Button, Pre-installed I/O Shield, Steel Armor, Metal Backplate
  • Audio Boost 5 HD: Ultimate audio solution with the latest premium ALC4082 audio processor combining ESS audio DAC and amplifier deliver the breathtaking experience.

Lightning Gen 5

The latest and the fastest PCI-e data transfer solution can reach 128GB/s of unidirectional transfer bandwidth of a x16 interface that has doubled compared to its previous generation. Optimized by Steel Armor design and server grade PCB, you can enjoy next-gen devices without any compromise.

Latest DDR5 Memory

Take a huge step of DDR performance upgrade with the latest DDR5 memory. Combining a dedicated SMT welding process and with MSI memory boost technology, the MEG Z790 GODLIKE MAX is ready to deliver world-class memory performance.

Specifications:

 Model Name  MEG Z790 GODLIKE MAX
 Chipset  INTEL Z790
 CPU  Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors
LGA 1700
 Memory 4x DDR5 UDIMM, Maximum Memory Capacity 192GB
Memory Support 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 7800+ MHz
• 1DPC 2R Max speed up to 6800+ MHz
• 2DPC 1R Max speed up to 6400+ MHz
• 2DPC 2R Max speed up to 6000+ MHzSupports Intel® XMP3.0 OC
Supports Dual-Controller Dual-Channel mode
Supports non-ECC, un-buffered memory
 Onboard Thunderbolt  Thunderbolt chip JHL8540
2x Thunderbolt4 (USB-C) ports Q’ty
Supports up to 40Gbps transfer rate with Thunderbolt devices
Supports up to 20Gbps transfer rate with USB4 devices
Supports up to 10Gbps transfer rate with USB 3.2 devices
Supports up to 5V/3A,15W power charging
Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices
Supports up to 8K display (need to connect the DisplayPort of the discrete graphics card to the Mini DisplayPort Input port on the back panel)
 Slot  2x PCI-E x16 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 5.0 supports up to x8 (From CPU)
 Multi-GPU  AMD MULTI-GPU Support
 Storage  7x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260 devices
M.2_4 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices
M.2_5 Source (From Chipset) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260 devices
M.2_6 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_7 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
6x SATA 6G
 RAID  Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
 USB  4x USB 2.0 (Front)
4x USB 3.2 Gen1 Type A (Front)
7x USB 3.2 Gen2 Type A (Rear)
1x USB 3.2 Gen2 Type C (Rear)
2x USB 3.2 Gen2x2 Type C (Front)
 LAN  Marvell® AQC113CS-B1-C 10Gbps LAN
Intel® 2.5Gbps LAN
 WIRELESS LAN & BLUETOOTH Wi-Fi 7
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax/ beSupports Bluetooth® 5.4, MLO, 4KQAM
 Audio Realtek® ALC4082 Codec + ESS ES9280AQ Combo DAC/HPA
7.1-Channel USB High Performance Audio
Supports S/PDIF output
Supports up to 32-Bit/384 kHz playback on front panel
 Internal IO  1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x Front Type-C Quick Charge Connector(PD_PWR1)
1x CPU Fan
2x Pump Fan
7x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Water Flow connector
1x Slow Mode Booting Jumper(JSLOW)
1x Front Audio (JAUD)
2x Thermal Sensor connectors(T_SEN)
1x Tuning Controller connector(JDASH)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
4x USB 3.2 Gen1 Type A ports
2x USB 3.2 Gen 2×2 Type C ports
V-check point
1x ARGB+FAN Header (JAF_1)
 LED FEATURE  1x EZ LED Control switch
4x EZ Debug LED
1x 2-Digit Debug Code LED

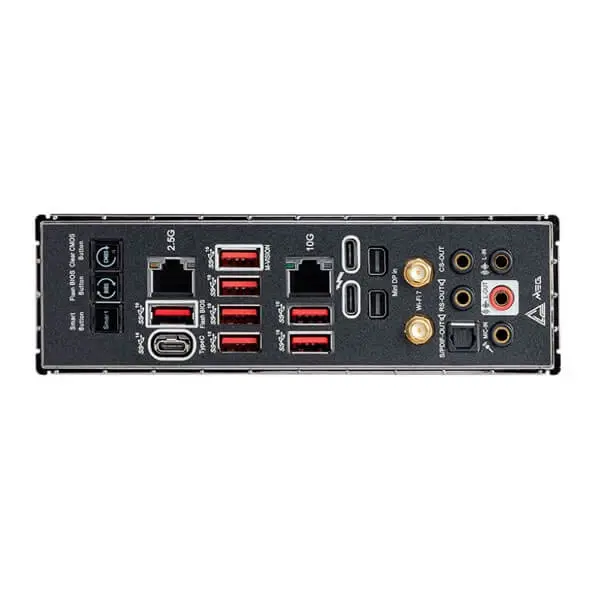

 BACK PANEL PORTS Clear CMOS Button
Flash BIOS Button
2.5G LAN
10G Super LAN
Thunderbolt 4 40Gbps (Type-C)
Wi-Fi / Bluetooth
Audio Connectors
Smart Button
USB 3.2 Gen 2 10Gbps (Type-C)
USB 3.2 Gen 2 10Gbps (Type-A)
Mini DisplayPort Input (for Thunderbolt passthrough)
Optical S/PDIF-Out
 OPERATING SYSTEM  Support for Windows® 11 64-bit
 PCB Info  E-ATX
310mmx304.8mm
 Warranty  3 Years
Note *** Features, Price, Specifications are subject to change without notice.
