Msi B650M Gaming Wifi Am5 Micro Atx Motherboard

11,400.00
(48% OFF)
MRP 21,999.00

(Inclusive of all taxes)

Model No : B650M GAMING WIFI
BUY NOW
all india free shipping
3 day replacement
secured shopping
genuine products
no hidden charges
competitive pricing

Description

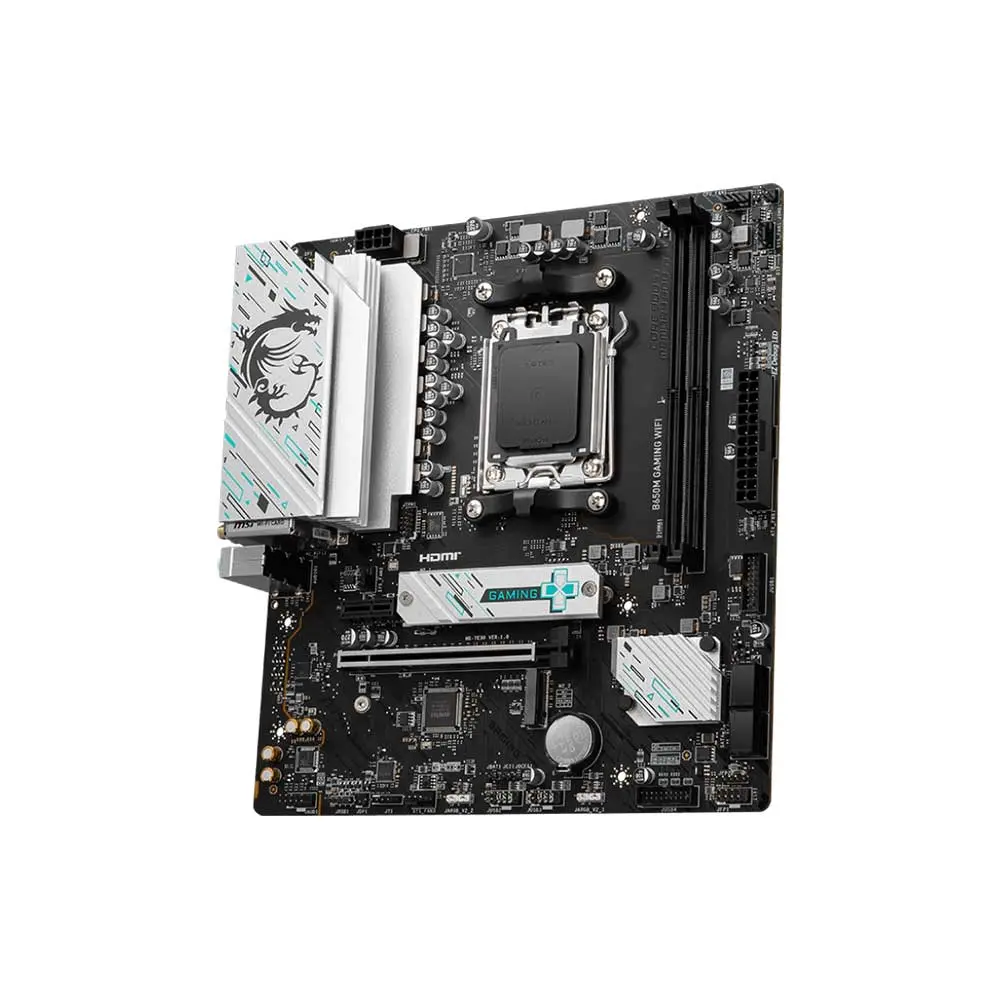

Msi B650M Gaming Wifi Am5 Micro Atx Motherboard

  • Supports AMD Ryzen™ 8000 / 7000 Series Desktop Processors
  • Supports DDR5 Memory, up to 7800+(OC) MHz
  • Core Boost : With premium layout and digital power design to support more cores and provide better performance
  • Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
  • Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen4 M.2
  • Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength
  • AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
  • High Quality PCB: 6-layer PCB made by 2oz thickened copper
Chipset AMD B650
CPU Supports AMD Ryzen™ 8000/ 7000 Series Desktop Processors
Socket AM5
Memory 2x DDR5, Maximum Memory Capacity 96GB
Memory Support DDR5 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 7800+ MHz
• 1DPC 2R Max speed up to 6400+ MHz

Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports AMD EXPO™

Onboard Graphics 1x HDMI™
Support HDMI™ 2.1, maximum resolution of 4K 60Hz*
1x DisplayPort
Support DP 1.4, maximum resolution of 4K 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot 1x PCI-E x16 slot
Supports x16/x1
• Supports x16 (For Ryzen™ 7000 Series processors)
• Supports x8 (For Ryzen™ 7 8700G and Ryzen™ 5 8600G processors)
• Supports x4 (For Ryzen™ 5 8500G processor)
1x PCI-E x1 slot
PCI_E1 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E2 Gen PCIe 4.0 supports up to x16 (From CPU)
Storage 2x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280 devices
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280 devices
4x SATA 6G
• M2_2 supports PCIe 4.0 x2 speed when Ryzen™ 5 8500G is installed
Raid Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1, and RAID 10 for M.2 NVMe storage devices
USB 2x USB 2.0 (Rear)
4x USB 2.0 (Front)
3x USB 3.2 Gen1 Type A (Rear)
1x USB 3.2 Gen1 Type C (Rear)
4x USB 3.2 Gen1 Type A (Front)
LAN Realtek® RTL8125BG 2.5Gbps LAN
Wireless & Bluetooth AMD Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX
Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands
Supports 802.11 a/ b/ g/ n/ ac/ ax

Supports Bluetooth® 5.3**

* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.

Audio Realtek® ALC897 Codec
7.1-Channel High Definition Audio
Internal IO 1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x Front Type-C Quick Charge Connector(PD_PWR1)
1x CPU Fan
3x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
2x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
4x USB 3.2 Gen1 Type A ports
LED Feature 4x EZ Debug LED

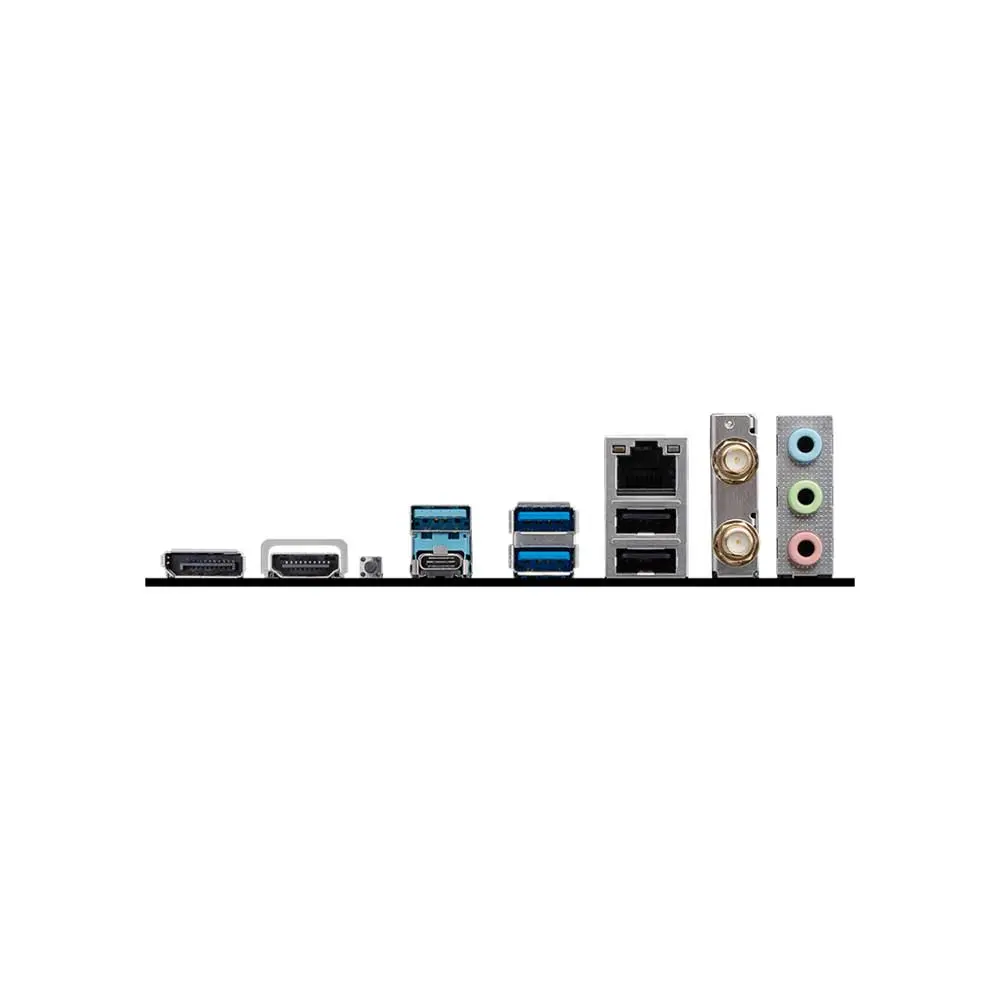

Back Panel Ports
  • DisplayPort
  • HDMI™
  • USB 3.2 Gen 1 5Gbps (Type-A)
  • 2.5G LAN
  • Wi-Fi / Bluetooth
  • Audio connectors
  • Flash BIOS Button
  • USB 3.2 Gen 1 5Gbps (Type-C)
  • USB 3.2 Gen 1 5Gbps (Type-A)
  • USB 2.0
Operating System Support for Windows® 11 64-bit, Windows® 10 64-bit
PCB Info mATX
226mmx243.84mm
Warranty 3 Years
Note** **Prices, Specifications & Features are subject to change without notice
