Description

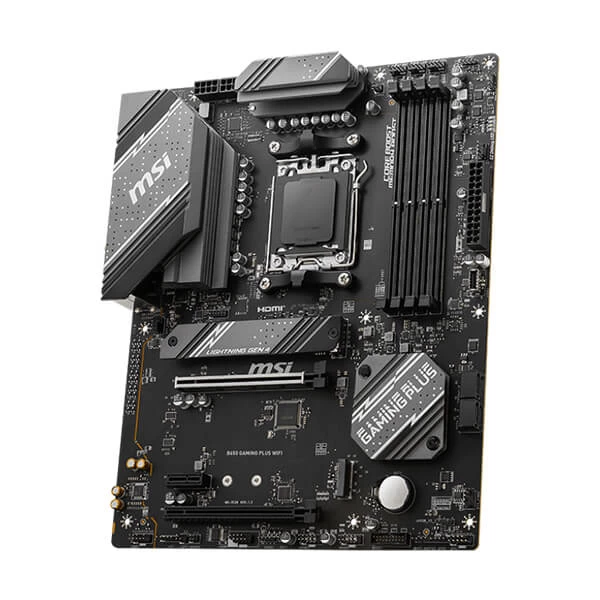

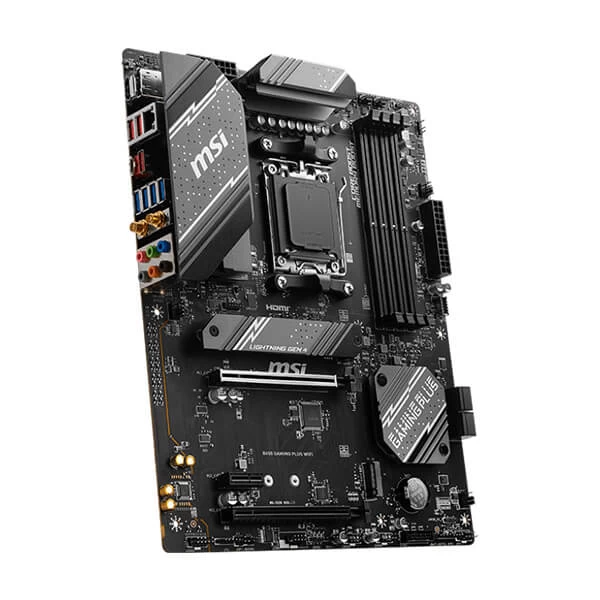

MSI B650 Gaming Plus WIFI Motherboard( B650-GAMING-PLUS-WIFI)
Unlock your gaming potential with the MSI B650 Gaming Plus WIFI Motherboard. Get it now for seamless performance. Buy now and elevate your game!
Features:
- Supports AMD Ryzen™ 7000 Series Desktop Processors
- Supports DDR5 Memory, Dual Channel DDR5 6000+MHz (OC)
- Enhanced Power Design: 12+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost
- Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for a high-performance system and non-stop work
- Lightning Fast Game experience: PCIe 4.0 slots, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, USB 3.2 Gen 2×2 20G
- 2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- High-Quality PCB: 6-layer PCB made of 2oz thickened copper
- Audio Boost: Reward your ears with studio-grade sound quality for the most immersive gaming experience
Specification:
Model | B650 GAMING PLUS WIFI |
Chipset | AMD B650 |
CPU SUPPORT | Supports AMD Ryzen™ 7000 Series Desktop Processors Socket AM5 |
Memory | 4x DDR5, Maximum Memory Capacity 192GB Memory Support DDR5 6000+(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 6000+ MHz • 1DPC 2R Max speed up to 6000+ MHz • 2DPC 1R Max speed up to 6000+ MHz • 2DPC 2R Max speed up to 5400+ MHzSupports Dual-Channel mode Supports non-ECC, un-buffered memory Supports AMD EXPO |
Onboard Graphics | 1x HDMI™ Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz 1x DisplayPort Supports DP1.4, maximum resolution of 4K 60Hz |
EXPANSION SLOT | 2x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) |
Multi-GPU | AMD MULTI-GPU Support |
Storage | 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4, supports 22110/2280 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4, supports 2280/2260 devices 4x SATA 6G |
RAID | Supports RAID 0, RAID 1 and RAID 1 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices |
USB |
|
LAN | Realtek® 8125BG 2.5G LAN |
WIRELESS / BLUETOOTH | AMD Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX Supports 20MHz, 40MHz, 80MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands Supports 802.11 a/ b/ g/ n/ ac/ axSupports Bluetooth® 5.3 |
Audio | Realtek® ALC897 Codec 7.1-Channel High-Definition Audio |
Internal I/O |
|
LED FEATURE | 4x EZ Debug LED |
BACK PANEL PORTS |
|
OPERATING SYSTEM | Support for Windows® 11 64-bit, Windows® 10 64-bit |
PCB Dimension (W × L) | ATX 243.84mmx304.8mm |
Warranty | 3 Years |
Note | *** Features, Prices, and Specifications are subject to change without notice. |
