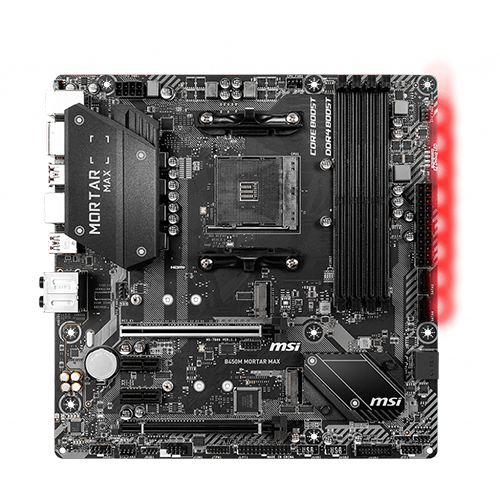

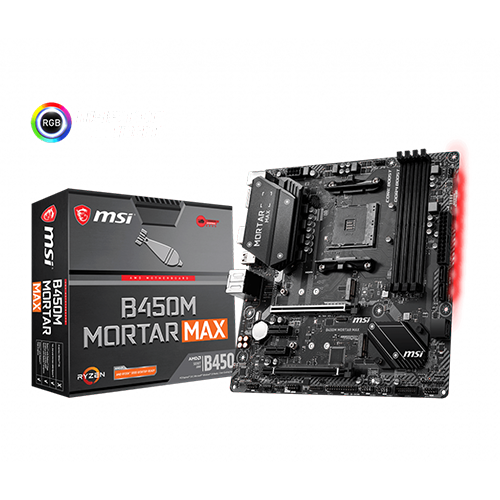

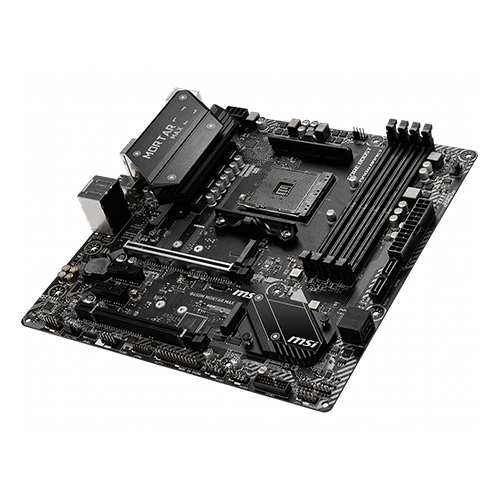

MSI B450M MORTAR MAX AMD AM4 SOCKET MOTHERBOARD

9,590.00

Inclusive of all taxes

3 in stock

Model :

B450M MORTAR MAX

All over India Shipping

Competitive Pricing

Experts in pc building

product description

Loading...

Description

MSI B450M MORTAR MAX AMD AM4 SOCKET MOTHERBOARD

Features

  • Supports 1st, 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics / Athlon™ with Radeon™ Vega Graphics Desktop Processors for Socket AM4
  • Supports DDR4 Memory, up to 4133(OC) MHz
  • Extended Heatsink Design: MSI extended PWM and enhanced circuit design ensures even high-end processors to run in full speed.
  • Lightning Fast Game experience: 1x TURBO M.2, AMD Turbo USB 3.2 GEN2, Store MI technology
  • Core Boost: With premium layout and fully digital power design to support more cores and provide better performance.
  • DDR4 Boost: Advanced technology to deliver pure data signals for the best gaming performance and stability
  • MULTI-GPU: With PCI-E STEEL ARMOR slot. Supports 2-Way AMD Crossfire™
  • Flash BIOS Button: Simply use a USB key to flash any BIOS within seconds, without installing a CPU, memory or graphics card

Specifications

Model B450M-MORTAR-MAX
Processor Supports 1st, 2nd and 3rd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics/ Athlon™ with Radeon™ Vega Graphics Desktop Processors for Socket AM4
Chipset AMD® B450 Chipset
Memory
  • 4 x DDR4 memory slots, support up to 64GB
    • Supports 1866/ 2133/ 2400/ 2667Mhz (by JEDEC)
    • For AMD Ryzen Gen3 (R5/R7/R9)
      • Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3733/ 3866/ 4000/ 4133 MHz (by A-XMP OC MODE)
    • For AMD Other CPU
      • Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 MHz (by A-XMP OC MODE)
  • Dual channel memory architecture
  • Supports non-ECC UDIMM memory
  • Supports ECC UDIMM memory (non-ECC mode)
Slots
  • 1 x PCIe 3.0 x16 slot (PCI_E1)
    • Supports x16 speed with 1st, 2nd and 3rd Gen AMD Ryzen™ processors
    • Supports x8 speed with Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics processors
    • Supports x4 speed with AMD® Athlon™ with Radeon™ Vega Graphics Processors
  • 1 x PCIe 2.0 x16 slot (PCI_E4, supports x4 mode)1
  • 2 x PCIe 2.0 x1 slots2
  1. PCI_E4 slot will be unavailable when an M.2 SSD is installed in the M2_2 slot.
  2. PCI_E2 slot will be unavailable when an expansion card is installed in the PCI_E3 slot.
Onboard Graphics
  • 1 x DisplayPort, support a maximum resolution of 4096×2304 @60Hz, 2560×1600 @60Hz, 3840×2160 @60Hz, 1920×1200 @60Hz 1,2
  • 1 x HDMI™ 1.4 port, supports a maximum resolution of 4096×2160 @30Hz, 2560×1600 @60Hz 1,2
  1. Only support when using AMD® Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics/ Athlon™ with Radeon™ Vega Graphics Processors
  2. Maximum shared memory of 2048 MB
Multi-GPU
  • Supports 2-Way AMD® CrossFire™ Technology
Storage AMD® B450 Chipset

  • 4 x SATA 6Gb/s ports 1
  • 1 x M.2 slots (M2_2, Key M) 1
    • Supports PCIe 2.0 x4 2242/ 2260 /2280 storage devices

AMD® CPU

  • 1x M.2 slot (M2_1, Key M)1
    • Supports PCIe 3.0 x4 (1st, 2nd and 3rd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics) or PCIe 3.0 x2 (AMD® Athlon™ with Radeon™ Vega Graphics)and SATA 6Gb/s 2242/ 2260 /2280 storage devices
  1. PCI_E4 slot will be unavailable when an M.2 SSD is installed in the M2_2 slot.
RAID AMD® B450 Chipset

  • Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
  • Supports RAID 0 and RAID 1 for M.2 NVMe RAID
USB AMD® B450 Chipset

  • 1 x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) Type-C port on the back panel
  • 1 x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) Type-A port on the back panel
  • 2 x USB 3.2 Gen1 (SuperSpeed USB) ports available through the internal USB 3.2 Gen1 connector
  • 6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors) AMD® CPU

AMD® Processor

  • 4 x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel
Audio Realtek® ALC892 Codec

  • 7.1-Channel High Definition Audio
  • Supports S/PDIF output
LAN
  • 1 x Realtek® RTL8111H-CG Gigabit LAN controller
Internal Connectors
  • 1 x 24-pin ATX 12V power connector
  • 1 x 8-pin ATX 12V power connector
  • 4 x SATA 6Gb/s connectors
  • 2 x USB 2.0 connectors (support additional 4 USB 2.0 ports)
  • 1 x USB 3.2 Gen1 connector (support additional 2 USB 3.2 Gen1 ports)
  • 1 x 4-pin CPU fan connector
  • 3 x 4-pin system fan connectors
  • 2 x 5050 RGB LED strip 12V connectors
  • 1 x TPM module connector
  • 1 x Front panel audio connector
  • 2 x System panel connectors
  • 1 x Chassis Intrusion connector
  • 1 x Clear CMOS jumper
  • 1 x Serial Port connector
  • 1 x Parallel Port connector

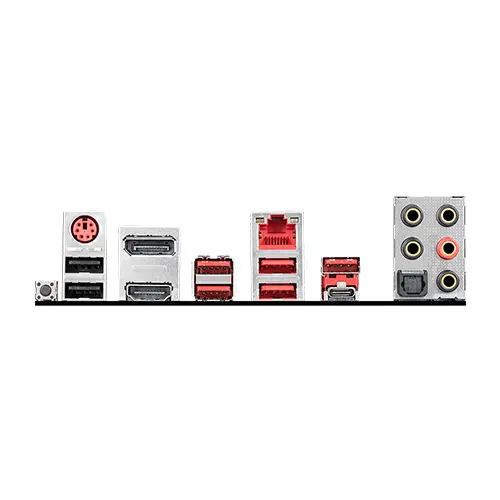

Back Panel Ports
  1. Flash BIOS Button
  2. PS/2 Combo Port
  3. DisplayPort
  4. LAN Port
  5. USB 3.2 Gen2 Type A
  6. HD Audio Connectors
  7. USB 2.0 Ports
  8. HDMI Port
  9. USB 3.2 Gen1
  10. USB 3.2 Gen2 Type C
  11. Optical S/PDIF OUT
Dimensions
  • 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
  • m-ATX Form Factor
Mounting 8 mounting holes
Operating System
  • Support for Windows® 10 64-bit
  • Support for Windows® 7 64-bit

* To support Windows® 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU.

Warranty 3 Years
Note ***Features, Price and Specifications are subject to change without notice.
