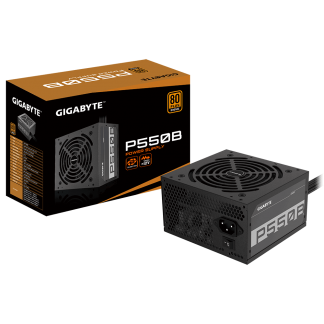

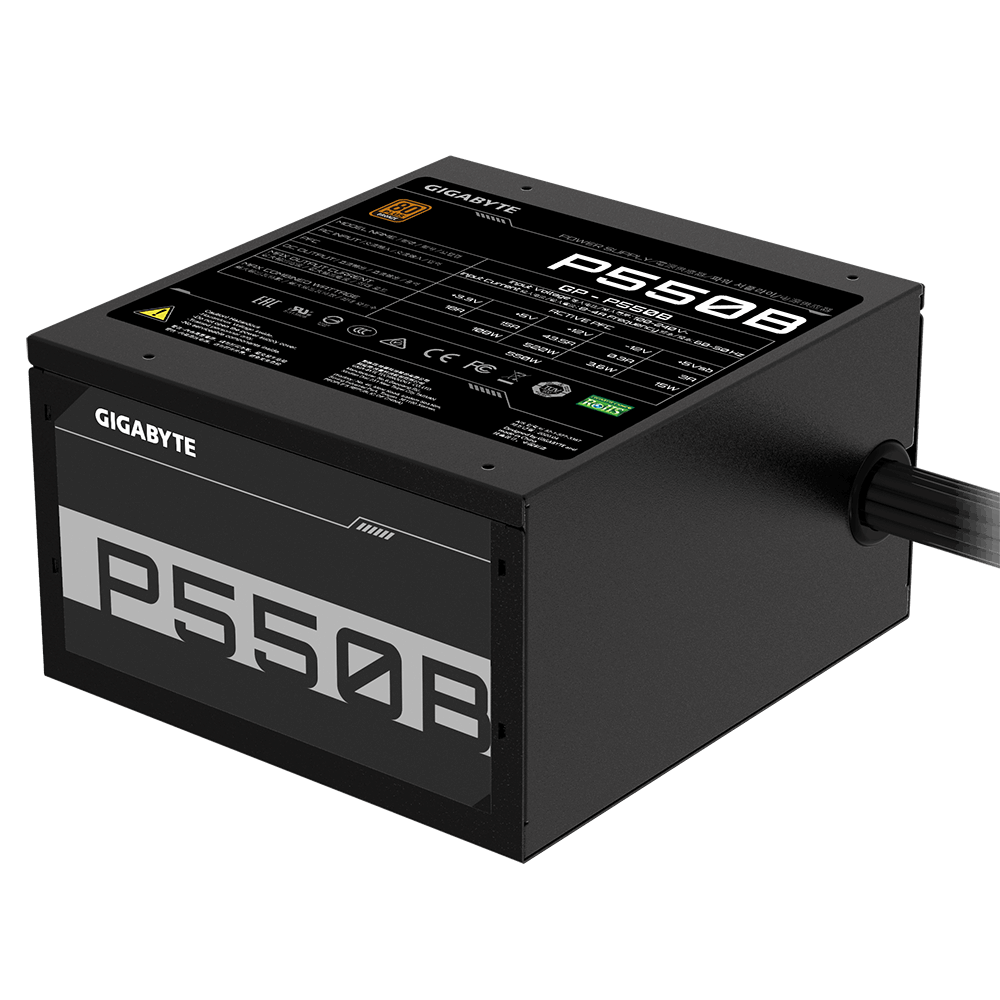

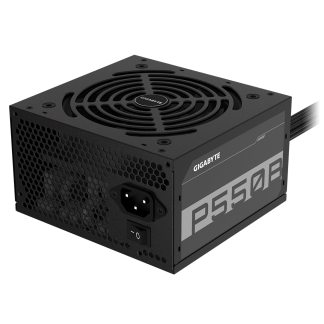

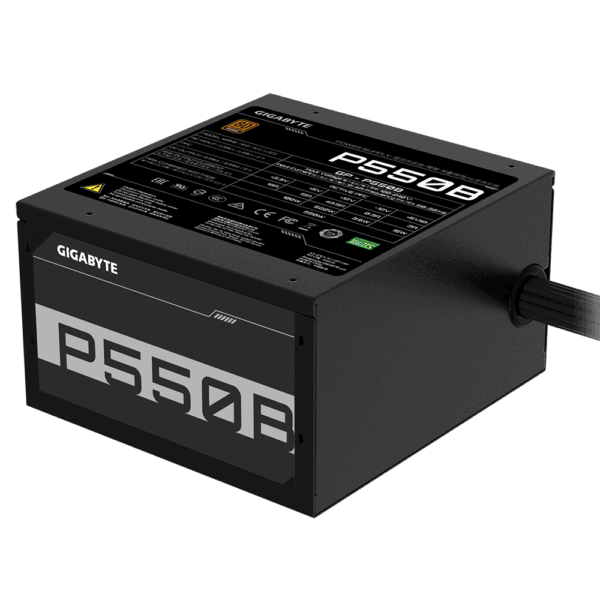

Gigabyte P550B Smps 550 Watt 80 Plus Bronze

Model No : P550B

3,290.00

Inclusive of all taxes

Tags :

all india shipping
3 day replacement
secured shopping
genuine products
no hidden charges
competitive pricing

Out of stock

Description

Wattage 550 WATT
Certification 80+ Bronze
PCIe Connector (6+2) 2
SATA Connector 6
Peripheral (4-pin) 3

Features

  • 80 PLUS bronze certified: up to 89% efficiency
  • 100% Japanese Capacitors
  • 120mm Hydraulic Bearing (HYB) Fan
  • Single +12V rail
  • Meet ErP LOT6 2013 (< 0.5W at standby mode)
  • OPP/UVP/OVP/SCP/OCP protection

80 Plus Bronze Certified

80 Plus certified ensures the better power efficiency. Less power waste reduces the heat and fan noise. P650B can be up to 89% efficiency.

Reliable Mesh Braided Cable

P650B provides the best solution for the system builds. The mesh braided cable reduces the clutter and improves the airflow in the case.

100% Japanese Capacitors

All capacitors are high quality Japanese capacitors, to produce the efficient performance and to ensure the longer reliability.

Single +12V Rail

Single +12V rail provides the best power output, stability and compatibility for the hardware. And it is the best design for installation.

120mm Hydraulic Bearing (HYB) Fan

120mm Hydraulic Bearing fan optimizes the noise reduction and the thermal performance. The fan speed is adjusted according to the automatic power detection. The Hydraulic Bearing fan provides longer and more stable life time.

Specifications

Model P550B
Type Intel Form Factor ATX 12V v2.31
PFC Active PFC (>0.9 typical)
Input Voltage 100-240 Vac (full range)
Input Current
9A-4A
Input Frequency
50-60 Hz
Output Capacity 550W
Dimension D150 x W140 x H86 mm
Fan Type 120mm Hydraulic Bearing Fan
Efficiency Up to 85% at typical load
MTBF >100,000 hours
Protection OPP/UVP/OVP/SCP/OCP
Regulatory CE/CCC/BSMI/KCC/EAC/UL/TUV/RCM/FCC/PSE
Connectors ATX/MB 20+4 Pin x 1
CPU/EPS 4+4 Pin x 1
PCI-e 6+2 Pin x 4, SATA x 6
4 Pin Peripheral x 3
4 Pin Floppy x 1
Warranty 3 Years
Note ***Features, Price and Specifications are subject to change without notice.
