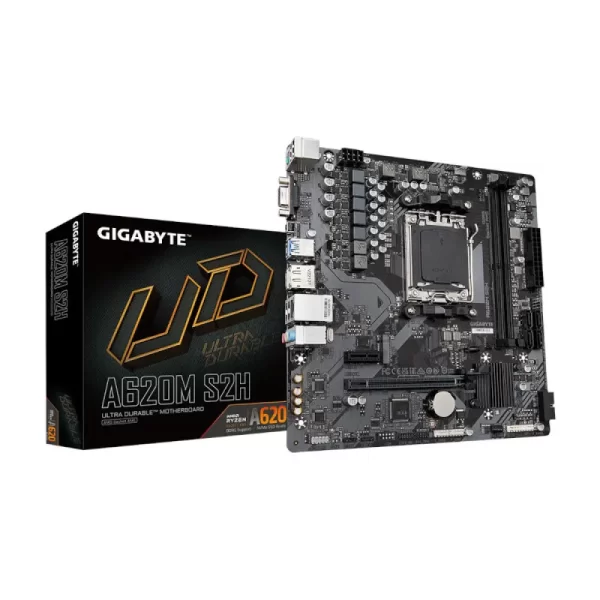

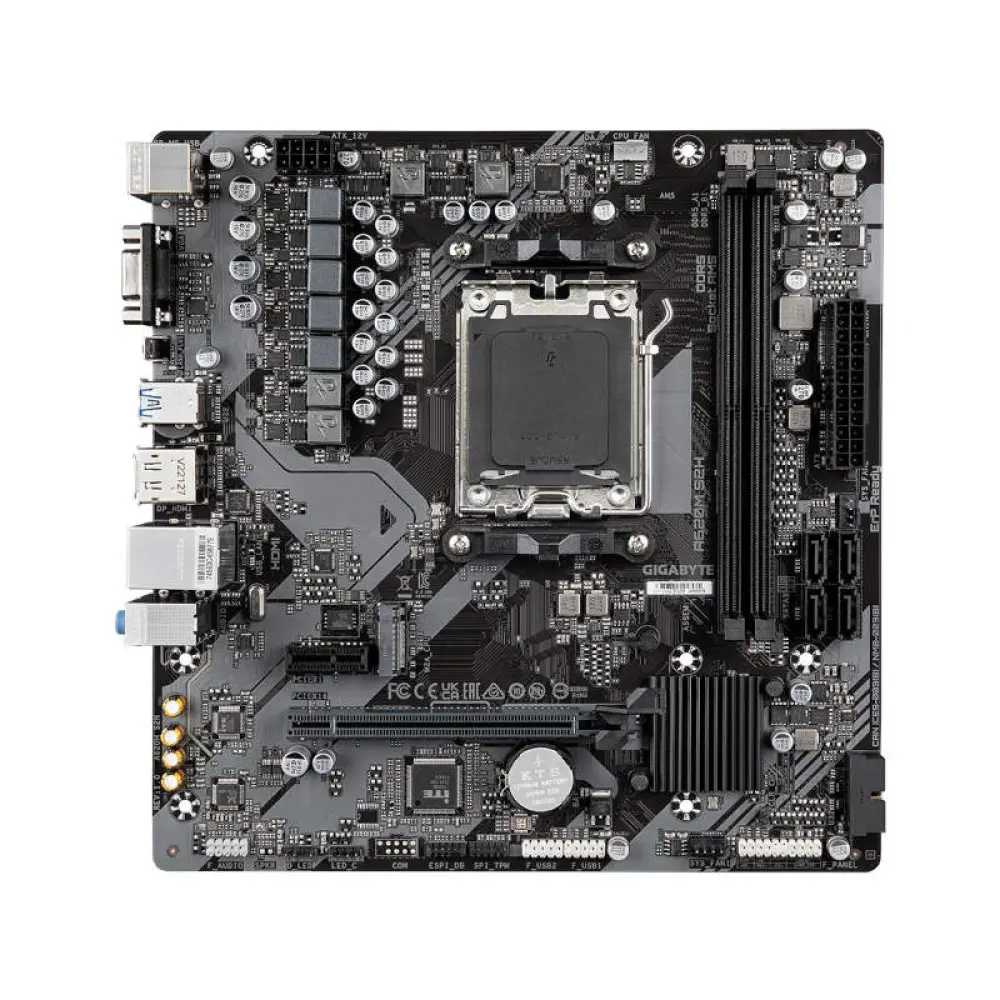

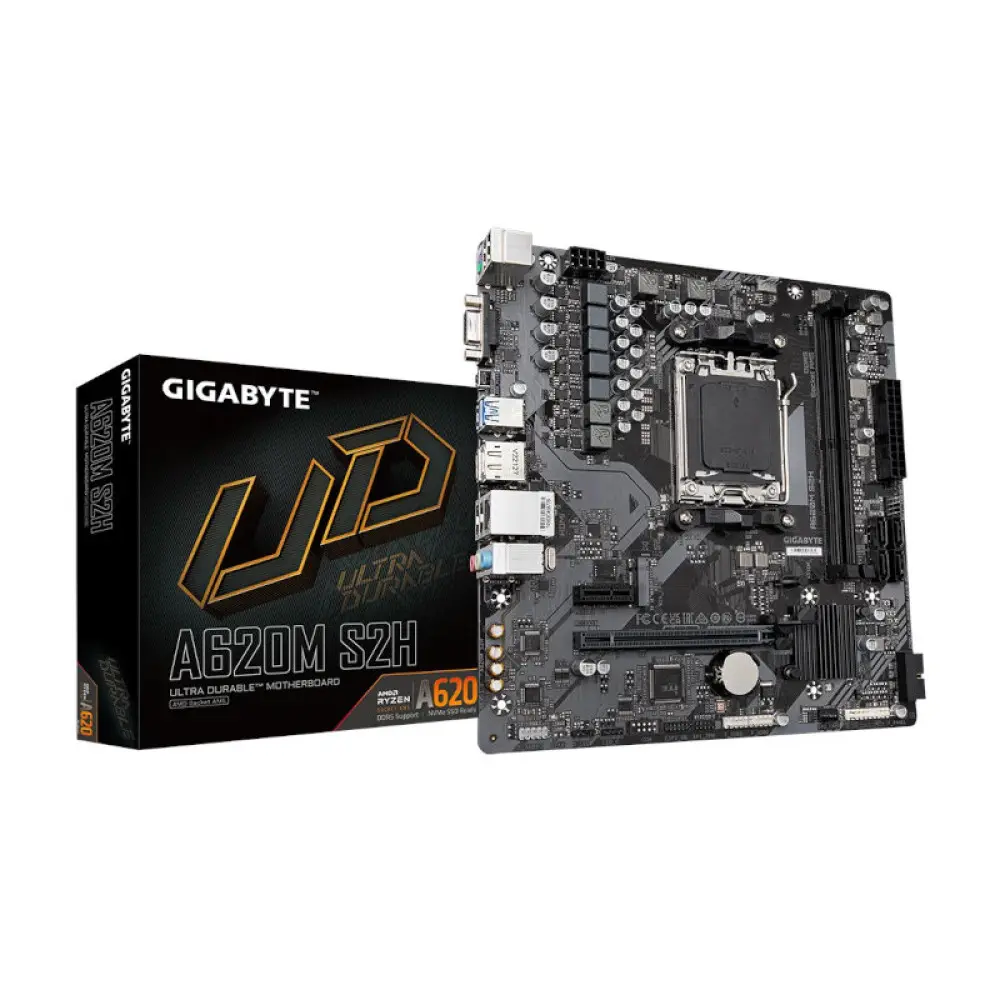

Gigabyte A620M S2H Am5 Micro Atx Motherboard (A620M-S2H)

Model No : A620M-S2H

8,200.00

Inclusive of all taxes

all india shipping
3 day replacement
secured shopping
genuine products
no hidden charges
competitive pricing

Out of stock

Description

Gigabyte A620M S2H Am5 Micro Atx Motherboard (A620M-S2H)

  • AMD Socket AM5:Supports AMD Ryzen™ 7000 Series Processors
  • Unparalleled Performance:5+2+2 Phases Digital VRM Solution
  • Dual Channel DDR5:2*SMD DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support
  • SuperSpeed Storage:PCIe 4.0 x4 M.2 Connector
  • PCIe x16 EZ-Latch with Quick Release & Screwless Design
  • Fast Networks:GbE LAN
  • Extended Connectivity:DP, HDMI, D-Sub
  • Smart Fan 6:Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus:Update BIOS Without Installing the CPU, Memory and Graphics Card



Specification
CPU AMD Socket AM5, support for:

AMD Ryzen™ 7000 Series Processors

(Please refer “CPU Support List” for more information.)

Chipset AMD A620
Memory Support for DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules

2 x DDR5 DIMM sockets supporting up to 96 GB (48 GB single DIMM capacity) of system memory

Dual channel memory architecture

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules

(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to “Memory Support List” for more information.)

Onboard Graphics Integrated Graphics Processor:

– 1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz

– 1 x DisplayPort, supporting a maximum resolution of 3840×2160@144 Hz

* Support for DisplayPort 1.4 version.

– 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz

* Support for HDMI 2.1 version and HDCP 2.3.

** Support for native HDMI 2.1 TMDS compatible ports.

(Graphics specifications may vary depending on CPU support.)

Support for up to 3 displays at the same time

Expansion Slots CPU:

– 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16

Chipset:

– 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1

LAN Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Storage Interface CPU:

– 1 x M.2 connector (Socket 3, M key, type 2580 PCIe 4.0 x4/x2 SSD support)

Chipset:

– 4 x SATA 6Gb/s connectors

RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices

RAID 0, RAID 1, and RAID 10 support for SATA storage devices

Audio Realtek® Audio CODEC

High Definition Audio

2/4/5.1/7.1-channel

* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

USB CPU:

– 2 x USB 3.2 Gen 1 ports on the back panel

– 1 x USB 2.0/1.1 port on the back panel

Chipset:

– 2 x USB 3.2 Gen 1 ports available through the internal USB header

– 7 x USB 2.0/1.1 ports (3 ports on the back panel, 4 ports available through the internal USB headers)

Internal I/O Connectors 1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x CPU fan header

2 x system fan headers

1 x addressable LED strip header

1 x RGB LED strip header

1 x M.2 Socket 3 connector

4 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1 x USB 3.2 Gen 1 header

2 x USB 2.0/1.1 headers

1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

1 x Clear CMOS jumper

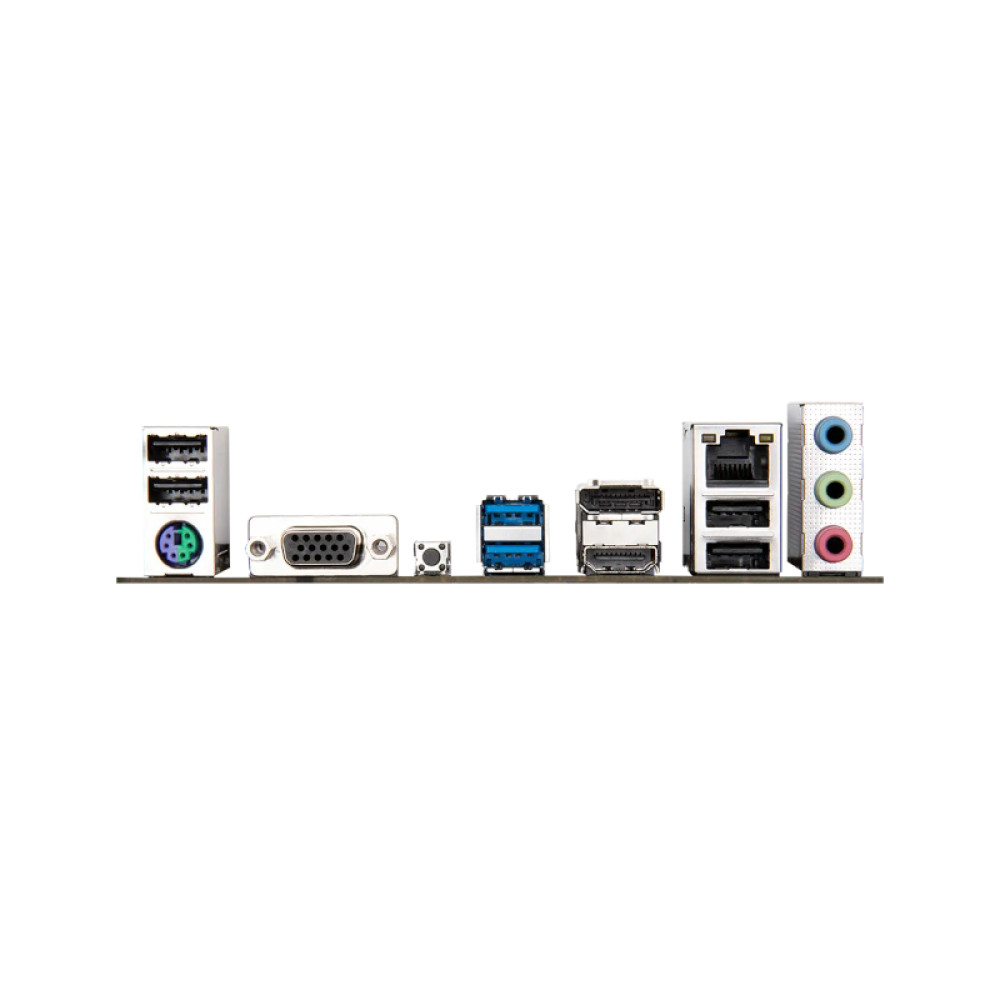

Back Panel Connectors 4 x USB 2.0/1.1 ports

1 x PS/2 keyboard/mouse port

1 x D-Sub port

1 x Q-Flash Plus button

2 x USB 3.2 Gen 1 ports

1 x DisplayPort

1 x HDMI port

1 x RJ-45 port

3 x audio jacks

Unique Features Support for GIGABYTE Control Center (GCC)

* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

Support for Q-Flash

Support for Q-Flash Plus

I/O Controller iTE® I/O Controller Chip
H/W Monitoring Voltage detection

Temperature detection

Fan speed detection

Water cooling flow rate detection

Fan fail warning

Fan speed control

* Whether the fan speed control function is supported will depend on the fan you install.

BIOS 1 x 256 Mbit flash

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Form Factor Micro ATX Form Factor; 23.0cm x 22.5cm
Operating System Support for Windows 11 64-bit

Support for Windows 10 64-bit

Bundle Software Norton® Internet Security (OEM version)

LAN bandwidth management software

Warranty 3 Years
Note* Price, feature and specifications are subject to change without notice.
