Description
Asus Tuf Gaming X670E-Plus Am5 Atx Motherboard (TUF GAMING X670E-PLUS)
ASUS TUF GAMING X670E-PLUS takes all the essential elements of the latest AMD processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. Aesthetically, this model incorporates rugged off-black and geometric design elements to reflect the dependability and stability that defines the TUF GAMING series.
Specification :
CPU | AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors* |
* Refer to www.asus.com for CPU support list. | |
Chipset | AMD X670 |
Memory | 4 x DIMM, Max. 128GB, DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC & Non-ECC, Un-buffered Memory* |
Dual Channel Memory Architecture | |
Supports AMD EXTended Profiles for Overclocking (EXPO™) | |
OptiMem II | |
* Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list. | |
** Non-ECC, Un-buffered DDR5 Memroy supports On-Die ECC function. | |
Graphics | 1 x DisplayPort** |
1 x HDMI® port*** | |
* Graphics specifications may vary between CPU types. | |
** Supports max. 8K@60Hz as specified in DisplayPort 1.4. | |
*** Supports 4K@60Hz as specified in HDMI 2.1. | |
Expansion Slots | AMD Ryzen™ 7000 Series Desktop Processors* |
1 x PCIe 5.0 x16 slot | |
AMD X670 Chipset | |
1 x PCIe 4.0 x16 slot (supports x4 mode) | |
1 x PCIe 4.0 x4 slots | |
* Please check PCIe bifurcation table at https://www.asus.com/support/FAQ/1037507/. | |

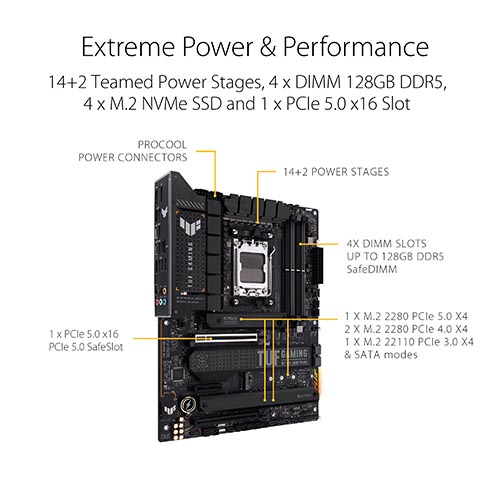

Storage | Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports* |
AMD Ryzen™ 7000 Series Desktop Processors | |
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) | |
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) | |
AMD X670 Chipset | |
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)** | |
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) | |
4 x SATA 6Gb/s ports | |
*AMD RAID Xpert Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10. | |
** M.2_2 slot shares bandwidth with SATA6G_1&2. When M.2_2 runs at PCIe x4 mode, SATA6G_1&2 will be disabled. | |
Ethernet | 1 x Realtek 2.5Gb Ethernet |
TUF LANGuard | |
USB | Rear USB (Total 10 ports) |
1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®) | |
4 x USB 3.2 Gen 2 ports (3 x Type-A + 1 x USB Type-C®) | |
5 x USB 3.2 Gen 1 ports (5 x Type-A) | |
Front USB (Total 9 ports) | |
1 x USB 3.2 Gen 2 connector (supports USB Type-C®) | |
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports | |
3 x USB 2.0 headers support additional 6 USB 2.0 ports | |
Audio | Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC* |
– Impedance sense for front and rear headphone outputs | |
– Internal audio Amplifier to enhance the highest quality sound for headphone and speakers | |
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking | |
– High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) | |
– Supports up to 32-Bit/192 kHz playback* | |
Audio Features | |
– Audio shielding | |
– Premium audio capacitors | |
– Dedicated audio PCB layers | |
– Audio cover | |
– Unique de-pop circuit | |
* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio. | |
Back Panel I/O Ports | 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®) |
4 x USB 3.2 Gen 2 ports (3 x Type-A, 1 x USB Type-C®) | |
5 x USB 3.2 Gen 1 ports (5 x Type-A) | |
1 x DisplayPort | |
1 x HDMI® port | |
1 x Realtek 2.5Gb Ethernet port | |
5 x Audio jacks | |
1 x BIOS FlashBack™ button | |
Internal I/O Connectors | Fan and Cooling related |
1 x 4-pin CPU Fan header | |
1 x 4-pin CPU OPT Fan header | |
1 x 4-pin AIO Pump header | |
4 x 4-pin Chassis Fan headers | |
1 x W_PUMP+ header(s) | |
Power related | |
1 x 24-pin Main Power connector | |
2 x 8-pin +12V Power connectors | |
Storage related | |
4 x M.2 slots (Key M) | |
4 x SATA 6Gb/s ports | |
USB | |
1 x USB 3.2 Gen 2 connector (supports USB Type-C® ) | |
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports | |
3 x USB 2.0 headers support additional 6 USB 2.0 ports | |
Miscellaneous | |
3 x Addressable Gen 2 headers | |
1 x AURA RGB header | |
1 x Clear CMOS header | |
1 x COM Port header | |
1 x Front Panel Audio header (AAFP) | |
1 x 20-3 pin System Panel header with Chassis intrude function | |
1 x Thermal Sensor header | |
1 x Thunderbolt™ header | |
Special Features | TUF PROTECTION |
– DIGI+ VRM (- Digital power design with DrMOS) | |
– ESD Guards | |
– LANGuard | |
– Overvoltage Protection | |
– Safeslot | |
– Stainless-Steel Back I/O | |
ASUS Q-Design | |
– M.2 Q-Latch | |
– Q-DIMM | |
– Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) | |
– Q-Slot | |

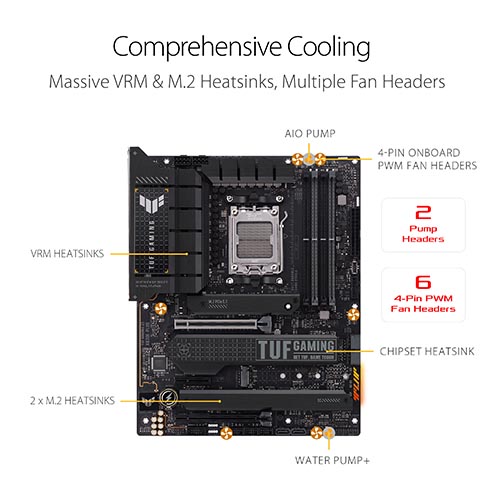

ASUS Thermal Solution | |
– M.2 heatsink | |
– VRM heatsink design | |
ASUS EZ DIY | |
– BIOS FlashBack™ button | |
– BIOS FlashBack™ LED | |
– Clear CMOS header | |
– ProCool | |
– Pre-mounted I/O shield | |
– SafeSlot | |
– SafeDIMM | |

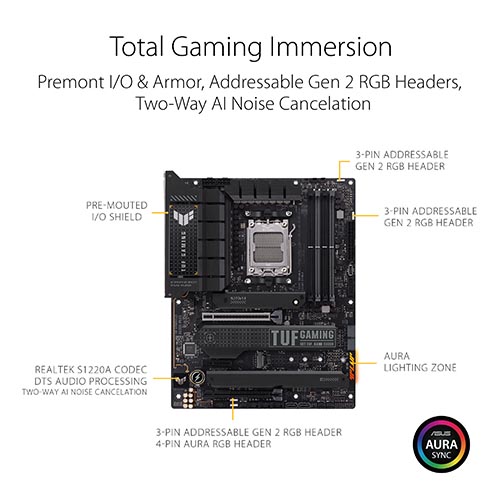

AURA Sync | |
– AURA RGB header | |
– Addressable Gen 2 headers | |
Software Features | ASUS Exclusive Software |
Armoury Crate | |
– AURA Sync | |
– Fan Xpert 4 (with AI Cooling II) | |
– Power Saving | |
– Two-Way AI Noise Cancellation | |
AI Suite 3 | |
– Easy Optimization | |
– DIGI+ VRM | |
– Turbo app | |
– PC Cleaner | |
TUF GAMING CPU-Z | |
DTS Audio Processing | |
Norton Anti-virus software (Free Trial version) | |
WinRAR | |
UEFI BIOS | |
ASUS EZ DIY | |
– ASUS CrashFree BIOS 3 | |
– ASUS EZ Flash 3 | |
– ASUS UEFI BIOS EZ Mode | |
FlexKey | |
BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
Manageability | WOL by PME, PXE |

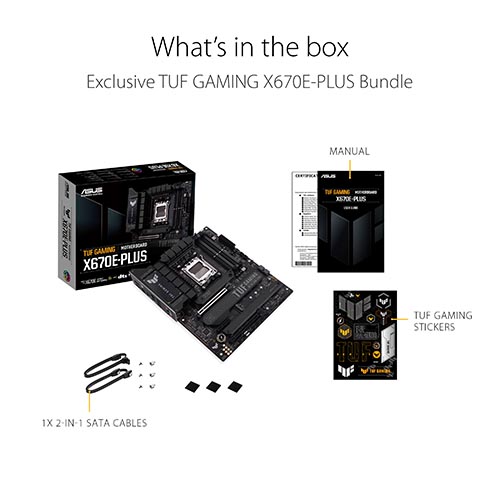

Accessories | Cables |
2 x SATA 6Gb/s cables | |
Miscellaneous | |
2 x Rubber packages for M.2 | |
2 x Screw packages for M.2 SSD | |
Documentation | |
1 x TUF certification card | |
1 x User guide | |
Operating System | Windows® 11 64-bit, Windows® 10 64-bit |
Form Factor | ATX Form Factor |
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) | |
Dimension | |
Product (mm)_ L*W*H | 305mm*244mm*50mm |
Color Box (mm)_ L*W*H | 338mm*273mm*68mm |
Weight | |
Motherboard only | 1.7 Kg |
Full package | 2.55 Kg |
Warranty | 3 Years |
Note** | **Prices, Specifications & Features are subject to change without notice. |
