Asus Rog Sfx Loki 1000P 1000 Watt Platinum ATX 3.0 Power Supply (ROG-LOKI-1000P-SFX-L-GAMING)
The Quietest SFX-L PSU
Taking after the ROG Thor, the ROG Loki SFX-L 1000W Platinum brandishes the same enthusiast-grade components and features, all packed into an SFX-L form factor. Boasting quiet operation and high performance, the Loki is primed to power your next SFF build.
Cool under pressure
ROG heatsinks facilitate lower temperatures, longer component lifespan, and extended 0dB operation.
Axial-tech Fan Design
Better, faster, stronger
Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure. For ROG Loki PSUs, we’ve scaled that design to 120mm so it keeps things cool at low RPMs while producing less noise.
Dual Ball Fan Bearings
2x longer lifespan
The fan impeller spins on a dual ball bearing setup that will last up to twice as long as a sleeve bearing design.
To reduce noise output, the PWM-controlled fan shuts off entirely when the PSU load is 40% or below.
80 PLUS Platinum Certified
Low-ESR Japanese capacitors further improve efficiency and reduce heat, readying ROG Loki to reliably fuel your build for years to come.
ATX 3.0 Compatible
Step into the future
The latest power specification updates have landed. ATX 3.0 ushers in tighter voltage and current regulation guidelines for next-gen hardware – and ROG Loki steps ahead of the curve by being fully compliant. A 16-pin PCIe cable ripe for piping up to 600W of power to PCIe Gen 5.0 graphics cards is bundled with the PSU, bringing large-scale capabilities to SFF rigs.
ARGB-illuminated Fan & Aura Sync

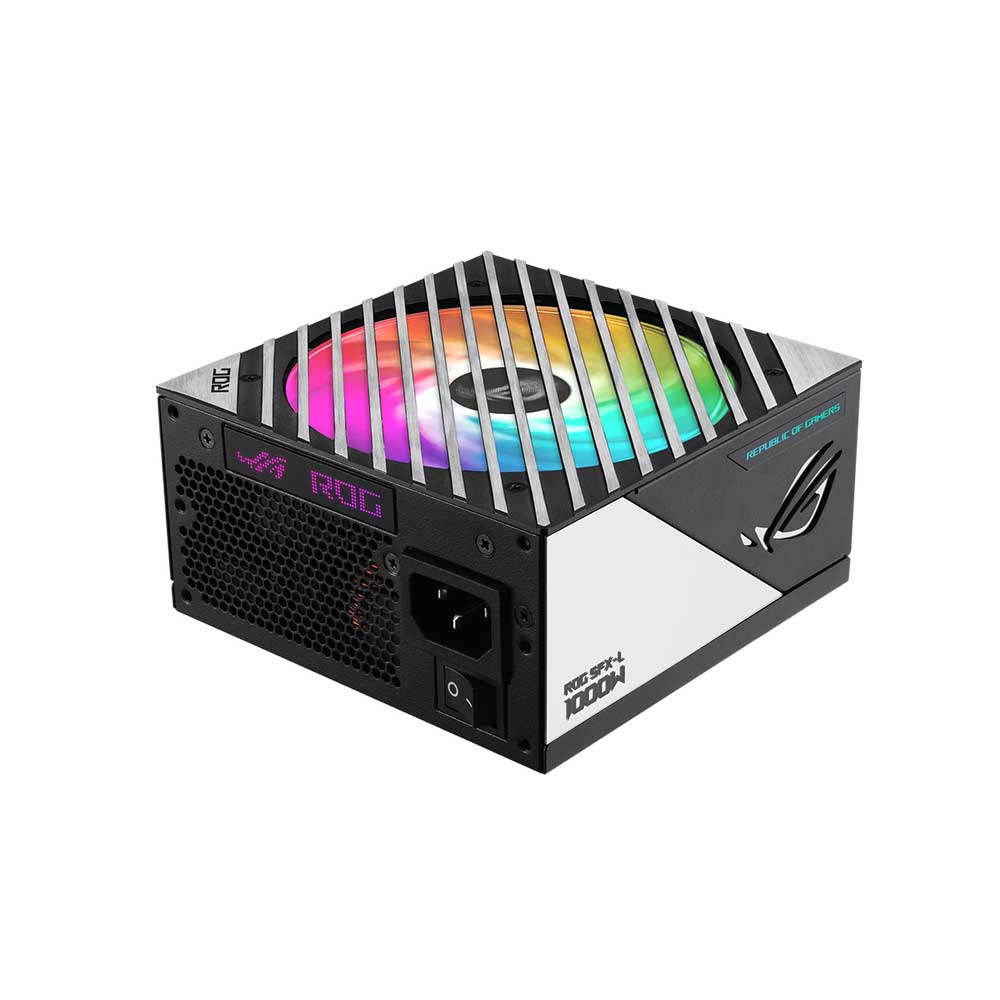

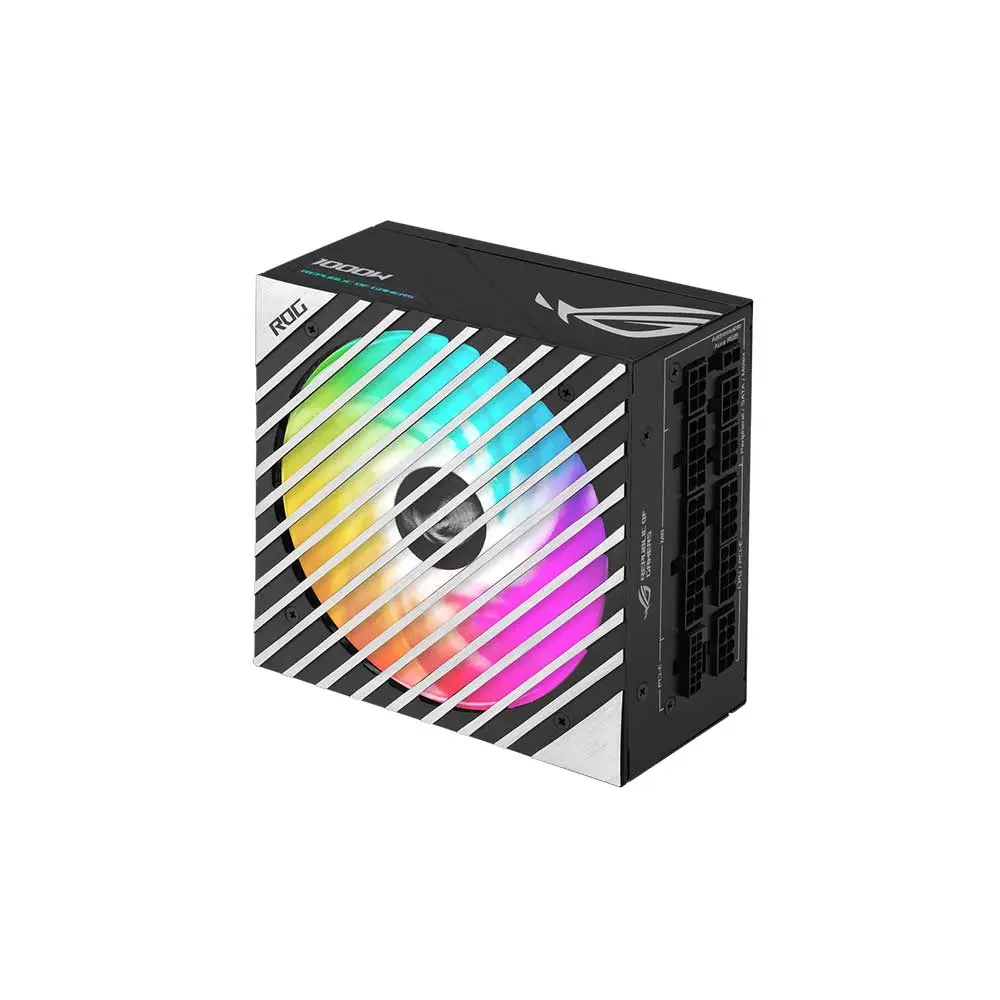

The Loki’s 120 mm fan features eight addressable LEDs ready to be customized with Aura Sync to create coordinated lighting patterns across your build.
A decade of power
We’re so confident about the reliability of the ROG Loki SFX-L 1000W Platinum that we back it with a 10-year worldwide warranty.
|Model||ROG LOKI SFX-L 1000W Platinum|
|Efficiency||80 Plus Platinum|
|AC Input Range||100-240Vac|
|Thermal Features||ROG Thermal Solution|
|DC Output Voltage||+3.3V | +5V | +12V | -12V | +5Vsb|
|Maximum Load||20A | 20A | 83.3A | 0.8A | 2.5A|
|Combined Load||110W | 1000W | 9.6W | 12.5W|
|Connectors||MB 24/20-pin x 1
CPU 4+4-pin x 2
PCI-E 16-pin x 1
PCI-E 8-pin x 3
SATA x 6
PERIPHERAL x 4
|Package Contents||Power Cord x 1
Motherboard Power Cable x 1 (450mm)
CPU Cable x 2 (550mm)
PCI-E Gen 5 16-pin Cable x 1 (450mm)
PCI-E 1-to-1 Cable x 1 (450mm)
PCI-E 1-to-2 Cable x 1 (450mm)
SATA 1-to-3 Cable x 2 (600mm)
Peripheral 1-to-4 Cable x 1 (600mm)
Addressable RGB Cable x 1 (800mm)
User Manual x 1
ATX to SFX adapter bracket x 1
|Dimension||125 x 125 x 63.5 mm|
|Color Box (mm)||285 x 190 x 100 mm|
(with packing) (KG)
|Note**||**Prices, Specifications & Features are subject to change without notice|
