14,250.00

SKU: PRIME Z390M PLUS Categories: ,

Description

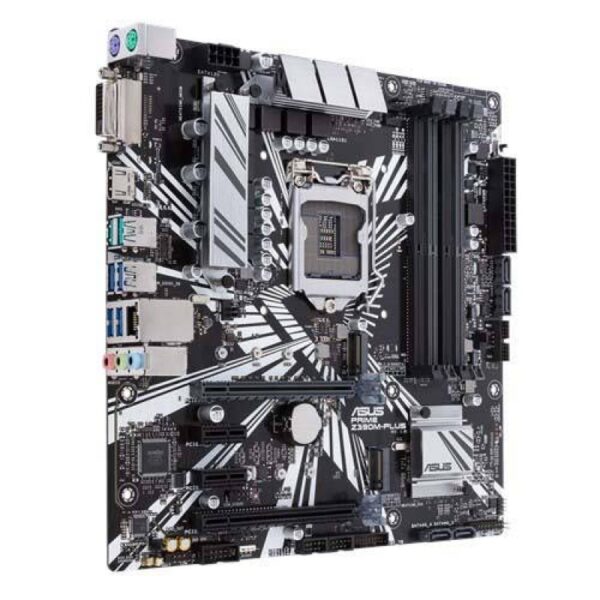

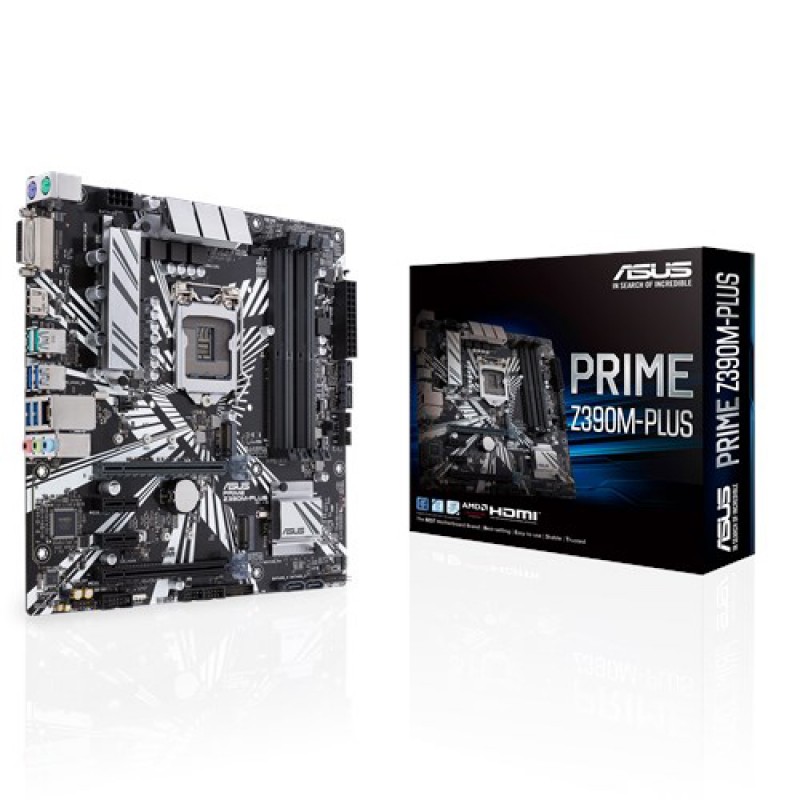

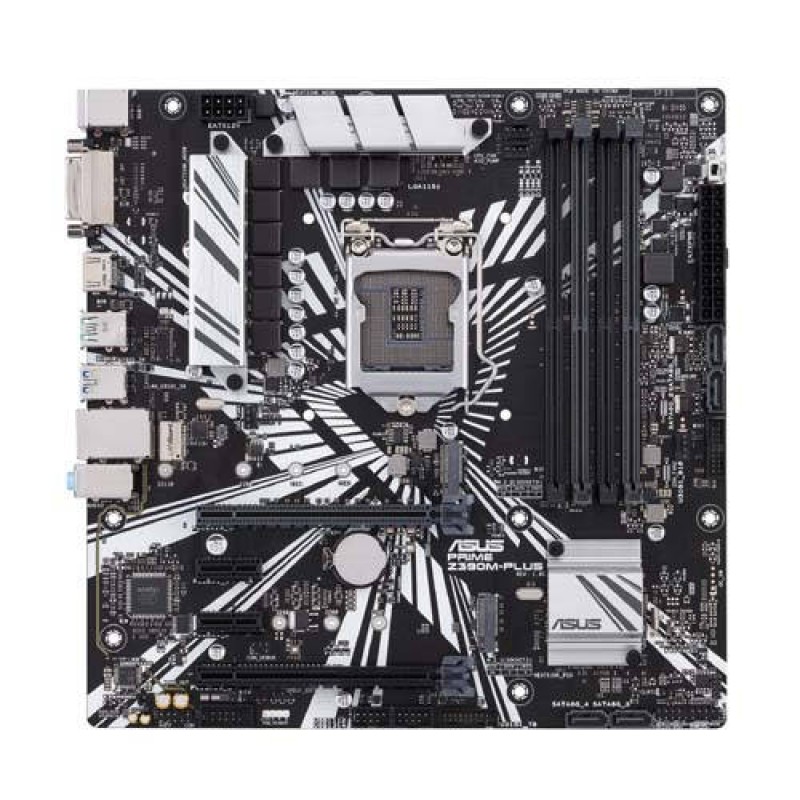

PRIME Z390M-PLUS

  • Intel LGA 1151 mATX motherboard with OptiMem II, DDR4 4266 MHz, Dual M.2, HDMI, Intel Optane memory ready, SATA 6Gb/s, USB 3.1 Gen 2
  • OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking
  • Enhanced power solution: Premium components provide better power efficiency
  • UEFI BIOS: New UEFI options include a search function that allows you to find settings easily
  • Industry-leading cooling options: Comprehensive controls for fans and AIO pump, via Fan Xpert 4 or the acclaimed UEFI
  • Ultrafast connectivity: Dual native M.2 and NVMe PCIe RAID support for lightning-fast storage speeds
  • 5X Protection III: Multiple hardware safeguards for all-round protection
Motherboard
CPU Intel? Socket 1151 for 9th / 8th Generation Pentium?/Celeron? Processors Supports Intel? 14 nm CPU Supports Intel? Turbo Boost Technology 2.0 * The Intel? Turbo Boost Technology 2.0 support depends on the CPU types. * Refer to www.asus.com for CPU support list
Chipset Intel? Z390
Memory 4 x DIMM, Max. 64GB, DDR4 4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory * Dual Channel Memory Architecture Supports Intel? Extreme Memory Profile (XMP) * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). * The maximum memory frequency supported varies by processor.
Graphic* Integrated Graphics Processor- Intel? HD Graphics support Multi-VGA output support : HDMI/DVI-D ports – Supports HDMI with max. resolution 4096 x 2160 @ 30 Hz – Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz Supports Intel? InTru? 3D, Quick Sync Video, Clear Video HD Technology, Insider?
Expansion Slots 1 x PCIe 3.0/2.0 x16 (x16 or x8+x4+x4) * 1 x PCIe 3.0/2.0 x16 (max at x4 mode) 2 x PCIe 3.0/2.0 x1
Multi-GPU Support Supports AMD CrossFireX? Technology
Storage Intel? Z390 Chipset : 1 x M.2 Socket 3, , with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode) 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 4 x SATA 6Gb/s port(s), gray Support Raid 0, 1, 5, 10 Intel? Optane? Memory Ready Intel? CPU with Intel? Rapid Storage Technology support (RAID 0 & RAID 1) PCIEX16_1 slot supports up to 3 Intel? PCIe NVME SSDs via a Hyper M.2 X16 series Card
LAN Intel? I219V, 1 x Gigabit LAN Controller(s) Anti-surge LANGuard
Audio Realtek? ALC887 8-Channel High Definition Audio CODEC – Supports : Jack-detection, Front Panel Jack-retasking Audio Feature : – LED-illuminated design – Brighten up your build with the gorgeous illuminated audio trace path. – Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference – Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals – Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
Operating System Windows? 10 64-bit
USB Ports Intel? Z390 Chipset : 2 x USB 3.1 Gen 2 port(s) Intel? Z390 Chipset : 8 x USB 3.1 Gen 1 port(s) (4 at mid-board) Intel? Z390 Chipset : 4 x USB 2.0 port(s) (4 at mid-board)
Special Features ASUS 5X Protection III : – ASUS SafeSlot Core: Fortified PCIe Slot prevents damage – ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges! – ASUS Overvoltage Protection: World-class circuit-protecting power design – ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability! ASUS Optimem II? – Improved DDR4 Stability ASUS EPU : – EPU ASUS Exclusive Features : – MemOK! II – AI Suite 3 – Ai Charger ASUS Quiet Thermal Solution : – Stylish Fanless Design Heat-sink solution & MOS Heatsink – ASUS Fan Xpert 4 ASUS EZ DIY : – ASUS O.C. Tuner – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ Mode ASUS Q-Design : – ASUS Q-Slot – ASUS Q-DIMM M.2 Onboard(The latest transfer technologies with up to 32Gb/s data transfer speeds)

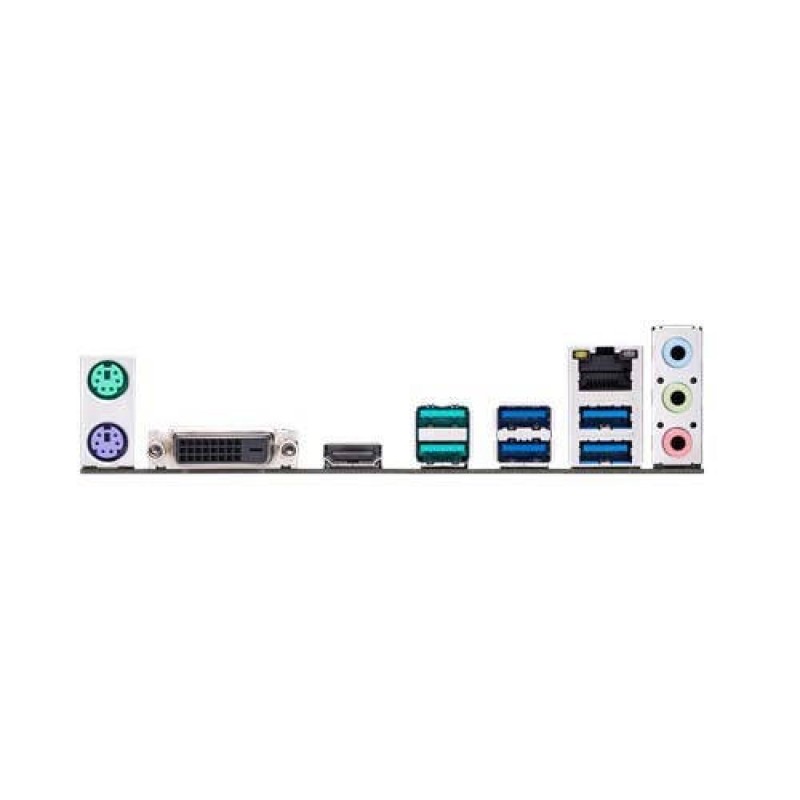

Back I/O Ports 1 x PS/2 keyboard (purple) 1 x PS/2 mouse (green) 1 x DVI-D 1 x HDMI 1 x LAN (RJ45) port(s) 2 x USB 3.1 Gen 2 Type-A, 4 x USB 3.1 Gen 1 Type-A 3 x Audio jack(s)
Internal I/O Ports 2 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s) (19-pin) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x COM port(s) connector(s) 4 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 2 x Chassis Fan connector(s) (2 x 4 -pin) 1 x AIO_PUMP connector (1 x 4 -pin) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors 1 x Front panel audio connector(s) (AAFP) 1 x MemOK! II switch(es) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x Mono Out header 1 x RGB Header
Accessories User’s manual I/O Shield 2 x SATA 6Gb/s cable(s) 1 x M.2 Screw Package 1 x SCD (by region)
BIOS 128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F9 Search, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information
Support Disc Drivers ASUS Utilities ASUS EZ Update Anti-virus software (OEM version)
Form Factor mATX Form Factor 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
Manageability WfM 2.0, DMI 3.0, WOL by PME, PXE
Warranty** 3 YEARS
**Note Price, feature and specifications are subject to change without notice.
