Description

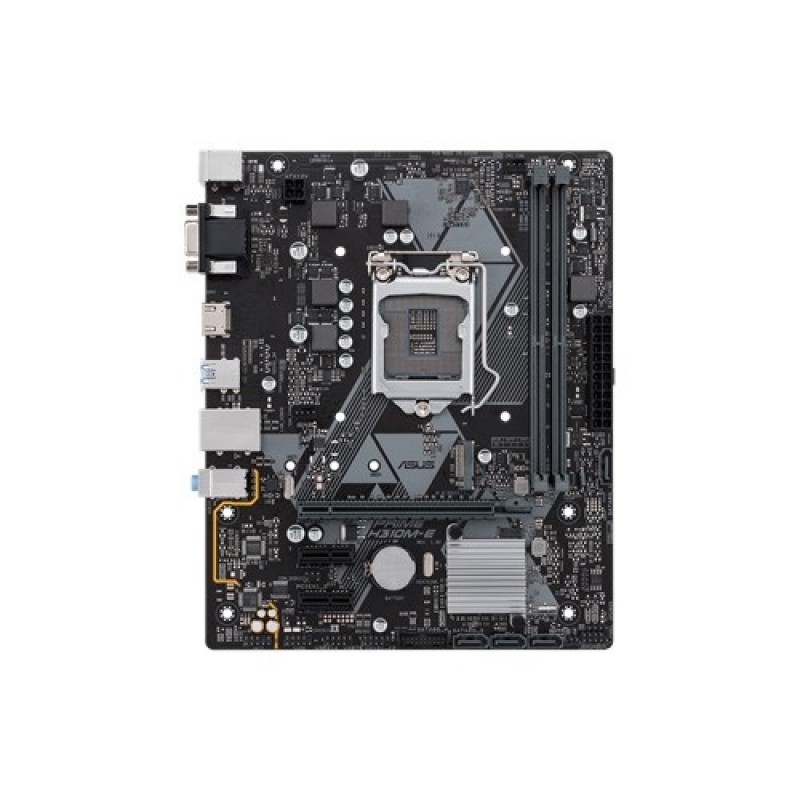

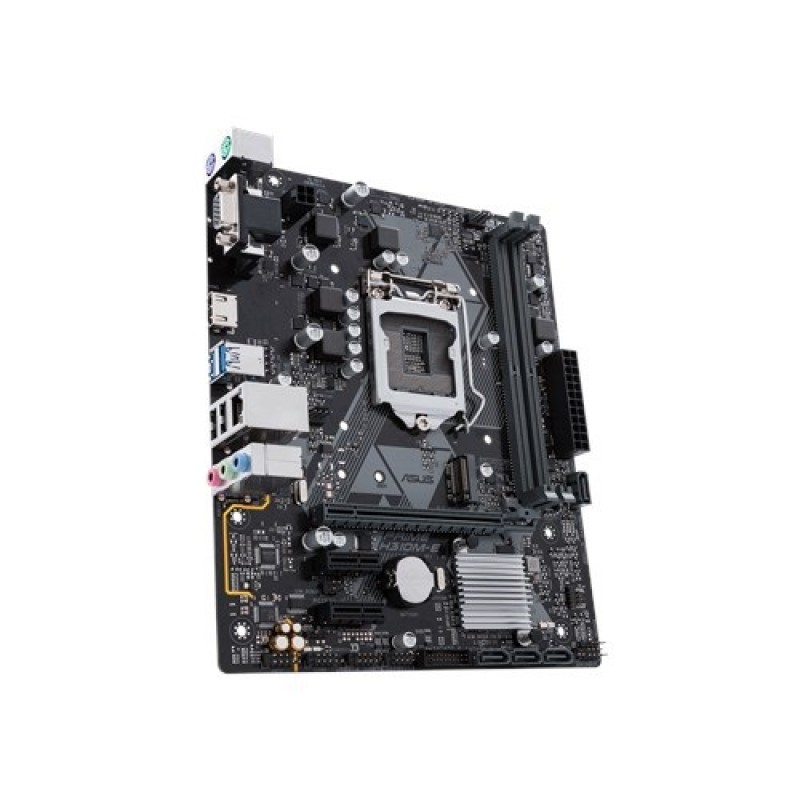

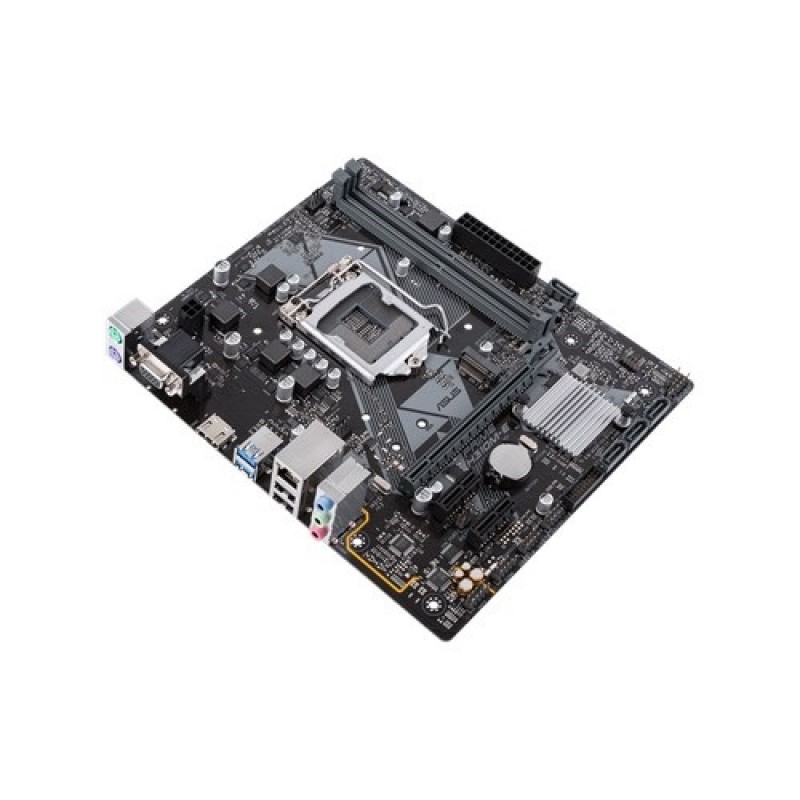

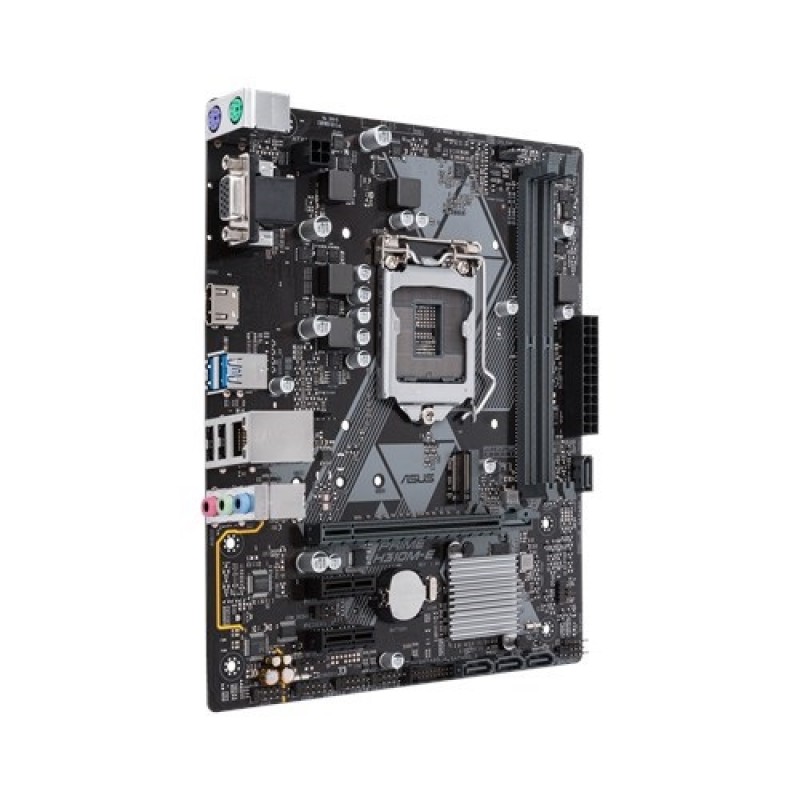

Intel LGA-1151 mATX motherboard with LED lighting, DDR4 2666MHz, M.2 support, HDMI, SATA 6Gbps and USB 3.1 Gen 1

  • ASUS OptiMem: Careful routing of traces and vias to preserve signal integrity for improved memory stability.
  • Fan Xpert: Flexible controls for ultimate cooling and quietness, plus G.P.U-temperature sensing for cooler gaming.
  • 5X Protection III: Multiple hardware safeguards for all-round protection.
  • Ultrafast connectivity: Native M.2 support for Lightning-fast storage speeds
Motherboard
CPUIntel® Socket 1151 for 8th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0 * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
ChipsetIntel® H310
Memory2 x DIMM, Max. 32GB, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). * The maximum memory frequency supported varies by processor ** DDR4 2666MHz and higher memory modules will run at max. 2666MHz on Intel® 8th Gen. 6-core or higher processors.
Graphic*Integrated Graphics Processor- Intel® HD Graphics support Multi-VGA output support : HDMI/D-Sub ports – Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz / 25600 x 1600 @ 60 Hz – Supports D-sub with max. resolution 1920 x 1200 @ 60 Hz Maximum shared memory of 1024 MB (for iGPU exclusively) Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
Expansion Slots1 x PCIe 3.0/2.0 x16 (x16 mode, gray) 2 x PCIe 2.0 x1
LANRealtek® RTL8111H, 1 x Gigabit LAN
AudioRealtek® ALC887 8-Channel High Definition Audio CODEC – Supports : Jack-detection, Front Panel Jack-retasking Audio Feature : – LED-illuminated design – Brighten up your build with the gorgeous illuminated audio trace path. – Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference – Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals – Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity * Choose the chassis with HD audio module in front panel to support 8-channel audio output.
Operating SystemWindows® 10 64-bit
USB PortsIntel® H310 Chipset : 4 x USB 3.1 Gen 1 up to 5Gbps port(s) (2 at back panel, blue, Type-A, 2 at mid-board) Intel® H310 Chipset : 6 x USB 2.0/1.1 port(s) (2 at back panel, , 4 at mid-board)
Special FeaturesASUS 5X Protection III : – ASUS SafeSlot Core: Fortified PCIe Slot prevents damage – ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges! – ASUS Overvoltage Protection: World-class circuit-protecting power design – ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability! – ASUS DIGI+ VRM: 4 Phase digital power design ASUS OptiMem: – Optimem (Improved DDR4 stability) ASUS EPU : – EPU ASUS Exclusive Features : – AI Suite 3 – Ai Charger – PC Cleaner – File Transfer ASUS Quiet Thermal Solution : – Stylish Fanless Design Heat-sink solution – ASUS Fan Xpert ASUS EZ DIY : – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ Mode ASUS Q-Design : – ASUS Q-DIMM M.2 Onboard(The latest transfer technologies with up to 10Gb/s data transfer speeds)
Back I/O Ports1 x PS/2 keyboard (purple) 1 x PS/2 mouse (green) 1 x D-Sub 1 x HDMI 1 x LAN (RJ45) port(s) 2 x USB 3.1 Gen 1 (blue) Type-A, up to 5Gbps 2 x USB 2.0 3 x Audio jack(s)
Internal I/O Ports1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (both SATA & x2 PCIE mode) 1 x COM port(s) connector(s) 4 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 1 x Chassis Fan connector(s) (1 x 4 -pin) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x Speaker connector

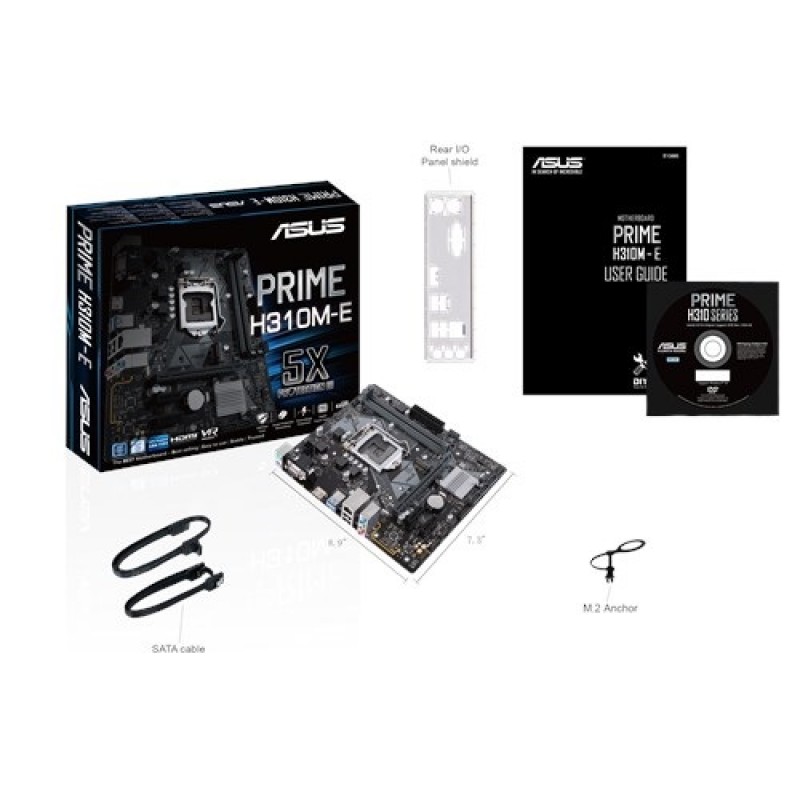

AccessoriesUser’s manual I/O Shield 2 x SATA 6Gb/s cable(s) 1 x M.2 Anchor 1 x Supporting DVD
BIOS128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, MultilanguageBIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F6 Qfan Control, F3 MyFavorites, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (SerialPresence Detect) memory information
Form FactormATX Form Factor 8.9 inch x 7.3 inch ( 22.6 cm x 18.5 cm )
ManageabilityWOL by PME, PXE
Warranty**3 years
**NotePrice, feature and specifications are subject to change without notice.
