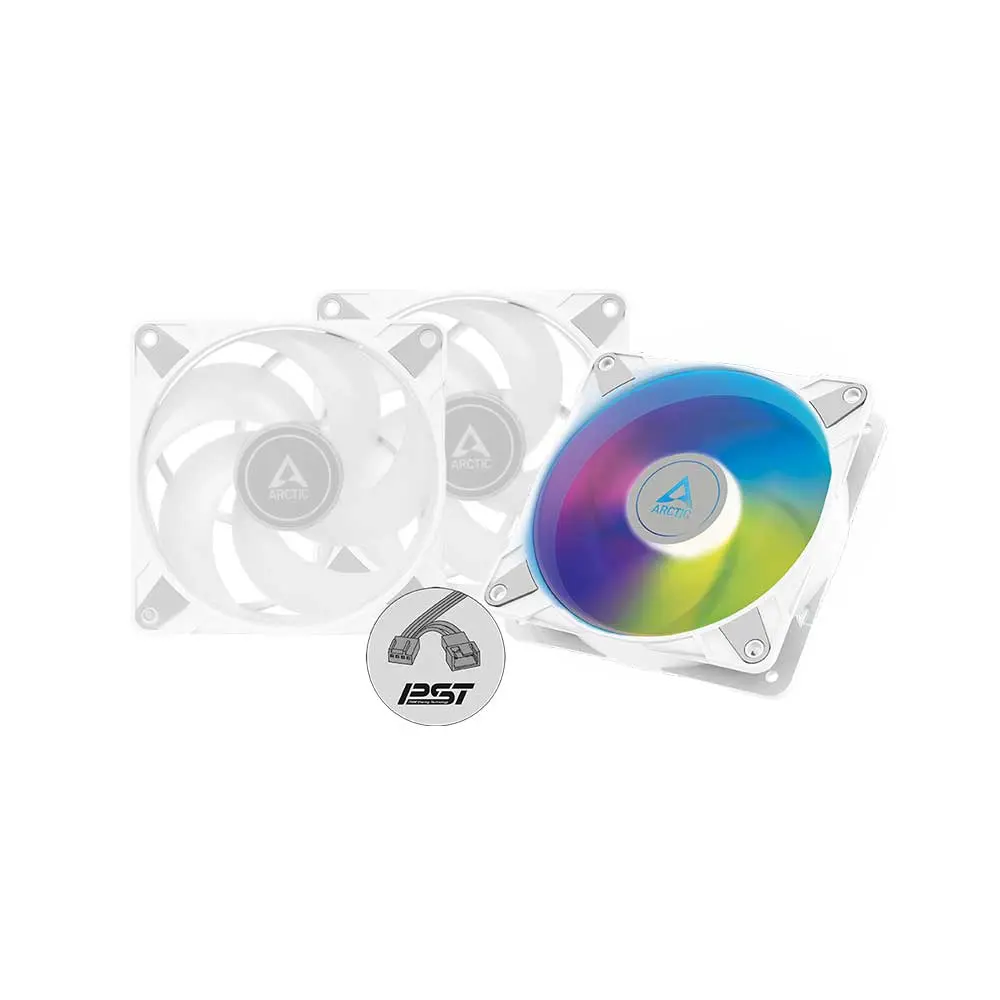

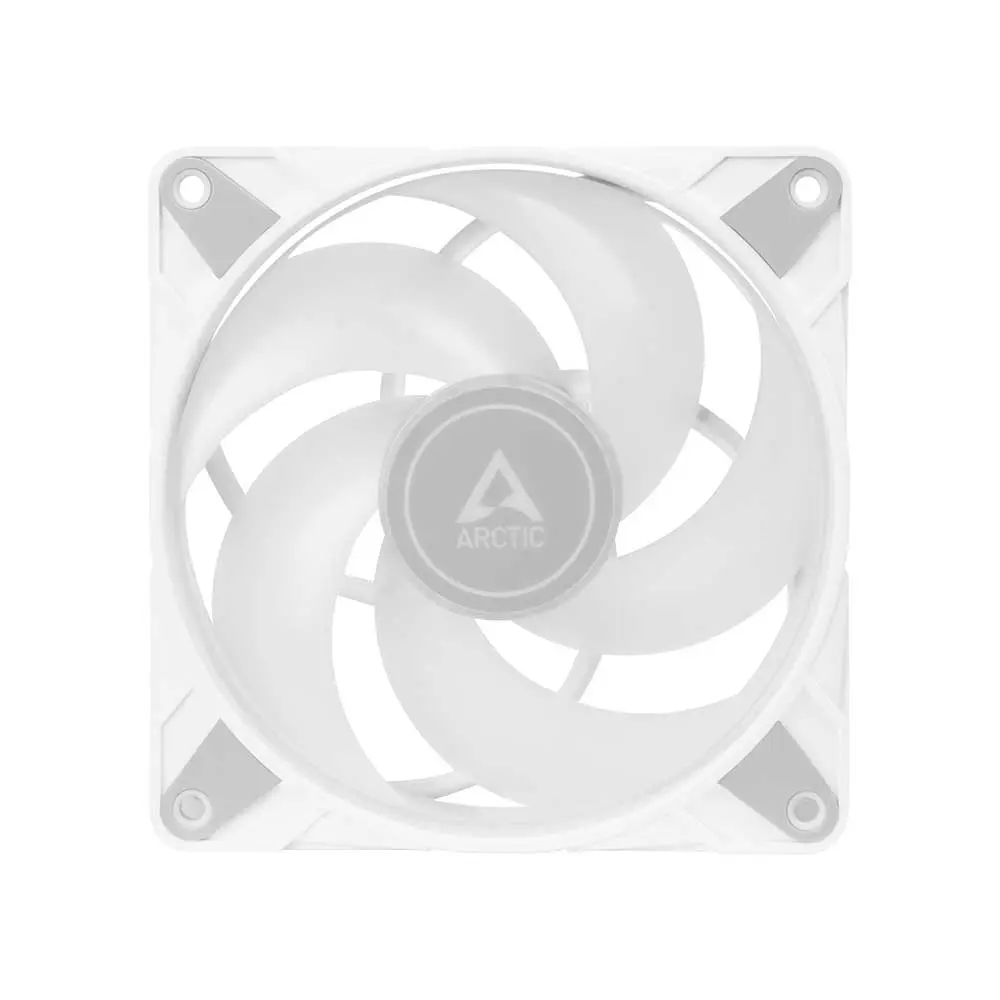

Arctic P12 Pwm Pst Argb Cabinet Fan 3 Pack White
The Arctic P12 PWM PST ARGB has 12 digital A-RGB LEDs in the center fan wheel. These can be controlled independently of each other and are compatible with the common A-RGB standards of leading motherboard manufacturers. The fan can thus be fully illuminated directly the A-RGB mainboard connector or via an external controller and synchronised with the illumination of other hardware.
General Specifications | |
Performance | |
Fan Speed | 200—2000 rpm PWM Controlled (0 rpm below 5% PWM) |
Airflow | 48.80 cfm | 82.91 m³/h |
Static Pressure | 1.85 mmH2O |
Noise Level | 0.3 Sone |
Fan | |
Fan Frame | Standard |
Control Type | PWM PST |
Connector | 4-Pin Connector + 4-Pin Socket |
Fan Bearing | Fluid Dynamic Bearing |
Operating Ambient Temperature | 0—40 °C |
Electric Characteristics | |
Typical Voltage | 12V DC |
Starting Voltage | 5V |
Current | Voltage | 0.11 A | 12 V DC |
Cable Length | 400mm |
RGB Specifications | |
LEDs | 12 A-RGB LEDs |
Connector | 3-Pin 5 V-DI-GND Connector |
Current / Voltage | 0.4 A | 5 V |
Cable | 400 mm Cable with 80 mm Sharing Cable, Black |
Size & Weight | |
Length | 120mm |
Width | 120mm |
Height | 25mm |
Weight | 131g |
Warranty | 6 Years |
