6,550.00

Categories: ,

Description

The latest generation of High Current Gamer Bronze power supplies delivers unparalleled stability and 80 PLUS® Bronze-certified efficiency, with 100% Japanese capacitors and fully-modular cable management and a quiet 135 mm Double Ball Bearing fan completes the package.
The CircuitShield™ suite of industrial -grade protections ensures that the power delivered to your system is safe and reliable in any environment.

FEATURES

  • Dimension: 165(L)*150(W)*86(H)
  • Guaranteed 750W Continuous Power from Antec

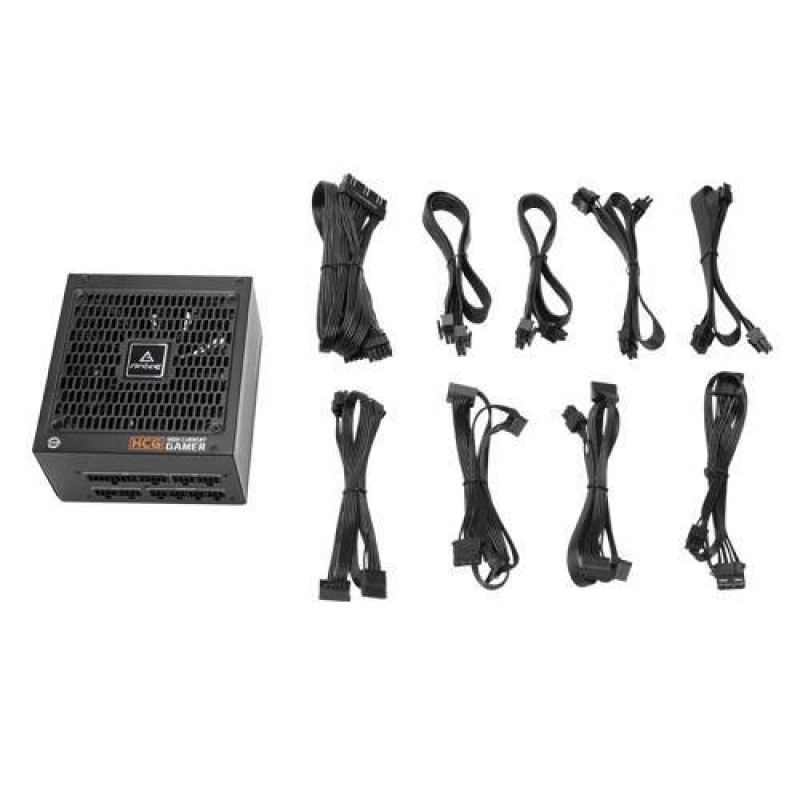

  • 100% Modular-Improves airflow and reduces clutter
  • DC-DC-Based on a DC-DC topology
  • 80 PLUS® Bronze certified-Up to 89% efficient, to reduce your electricity bill
  • Antec Quality 5-year warranty and lifetime global 24/7 support
  • 135mm DBB Fan-Whisper-quiet high-quality double ball bearing fan with long lifetime
  • 99%+12V – Output for maximum CPU &s; GPU support
  • CircuitShield™-Full suite of industrial grade protections: OCP, OVP, SCP, OPP, OTP, SIP, NLO
  • 100% Japanese capacitors achieve unprecedented tight voltage regulation &s; low ripple &s; noise to maximize your system’s performance
  • 28(18+10) pin MBU socket – For possible future MBU connectors
  • ATX12V 2.4-Engineered according to the newest PSU guideline and compatible with the latest CPU generation
Power Supply
Dimension (W x L x H)165(L)*150(W)*86(H)
Input Voltage100-240 VAC ±10%
TypeATX 12V 2.4
Input Current12A-6A
Input Frequency Range50Hz-60Hz
PFCActive PFC (>0.9 typical)
Power Good Signal100-500ms
Efficiency89% Typically
ModularFully Modular
ProtectionOCP/OVP/SCP/OPP/OTP/SIP/NLO
Output Capacity750W
Operation Temperature0~40°C
RegulatorycTUVus/TUV/CB/RCM/CE/EAC/FCC Fan = 135mm DBB Fan
Certifications80 Plus Bronze
Connector1 x MB 24(20+4) Pin 2 x 8(4+4) Pin EPS 12V 4 x 8(6+2) Pin PCI-E 9 x SATA 4 x Molex 1 x FDD
Model*HCG750 Bronze
Warranty**5 years (TABLE TAP REPLACEMENT)
Note**Price, feature and specifications are subject to change without notice.
