Name |

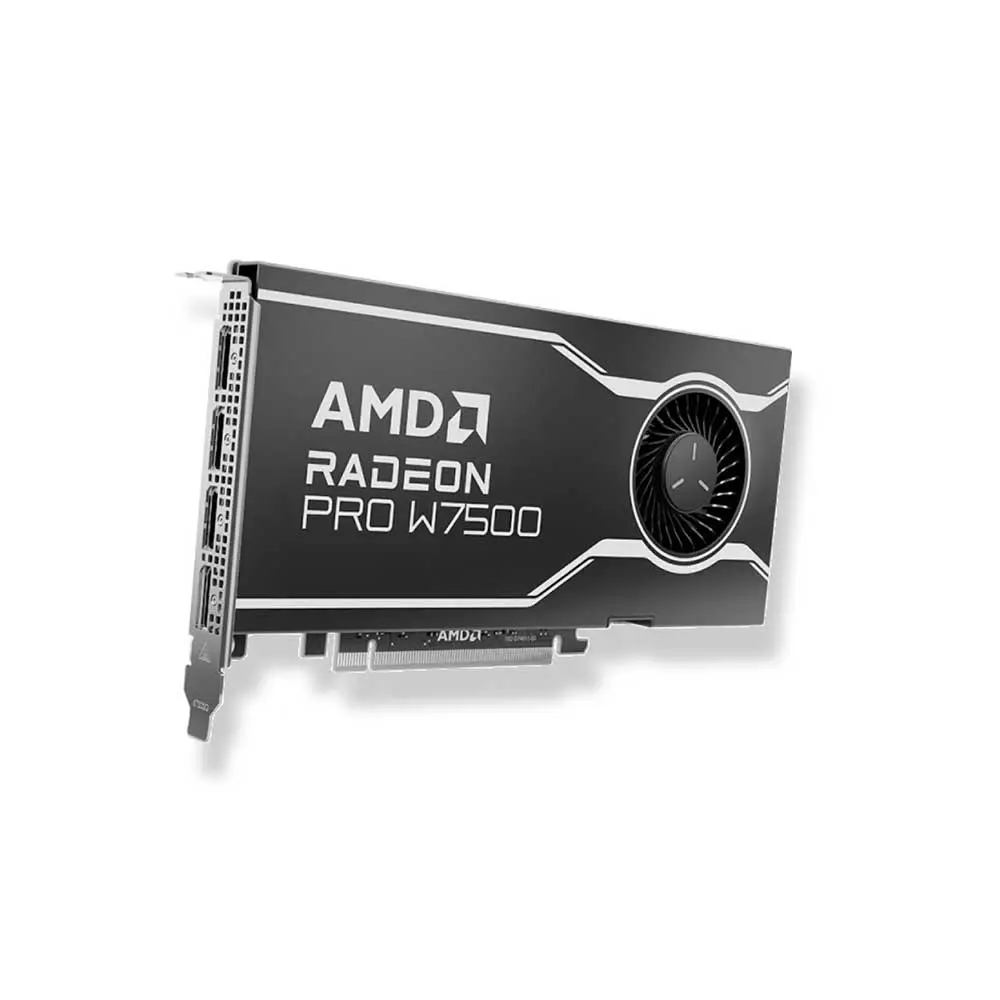

AMD Radeon™ PRO W7500 |
Family |
Radeon Pro |
Series |
Radeon PRO W7000 Series |
Form Factor |
Workstations |
GPU Architecture |
AMD RDNA™ 3 |
Hardware Raytracing |
Yes |
Lithography |
TSMC 6nm |
Ray Accelerators |
28 |
AI Accelerators |
56 |
Stream Processors |
1700 |
Compute Units |
28 |
Peak Half Precision (FP16) Performance |
24.4 TFLOPs |
Peak Single Precision Matrix (FP32) Performance |
12.2 TFLOPs |
Transistor Count |
13.3 Billion |
OS Support |
Windows 11 – 64-Bit Edition , Windows 10 – 64-Bit Edition , Linux x86 64-Bit |
External Power Connectors |
PCIe Powered |
Total Board Power (TBP) |
70W Peak |
Minimum PSU Recommendation |
450W |
Dedicated Memory Size |
8GB |
Dedicated Memory Type |
GDDR6 |
AMD Infinity Cache Technology |
32MB |
Memory Interface |
128 Bit |
Peak Memory Bandwidth |
172 GB/s |
Memory ECC Support |
No |
GPU Form Factor |
PCIe® Add-in Card |
Bus Type |
PCIe® 4.0 x8 |
Cooling |
Active |
Display Port |
DisplayPort™: 4x DP 2.1 |
HDR Support |
Yes |
8K Support |
Yes |
Board Height |
Full Height |
Board Length |
8.5″ (216 mm) |
Board Width |
Single Slot |
Supported Rendering Formats |
1x Decode (+AV1 Encode and Decode) , 1x Encode |
Supported Technologies |
AMD Viewport Boost , AMD Remote Workstation , AMD Radeon™ Media Engine , AMD Software PRO Edition , AMD Radeon™ VR Ready Creator , AMD Radeon™ ProRender |
10-bit Display Color Output |
Yes |
12-bit Display Color Output |
Yes |
3D Stereo Support |
Yes |
DirectX® |
12.0 Ultimate |
OpenGL® |
4.6 |
OpenCL™ |
2.1 |
Vulkan® |
1.3 |
Warranty |
2 Years |
Note** |
**Prices, Specifications & Features are subject to change without notice |
