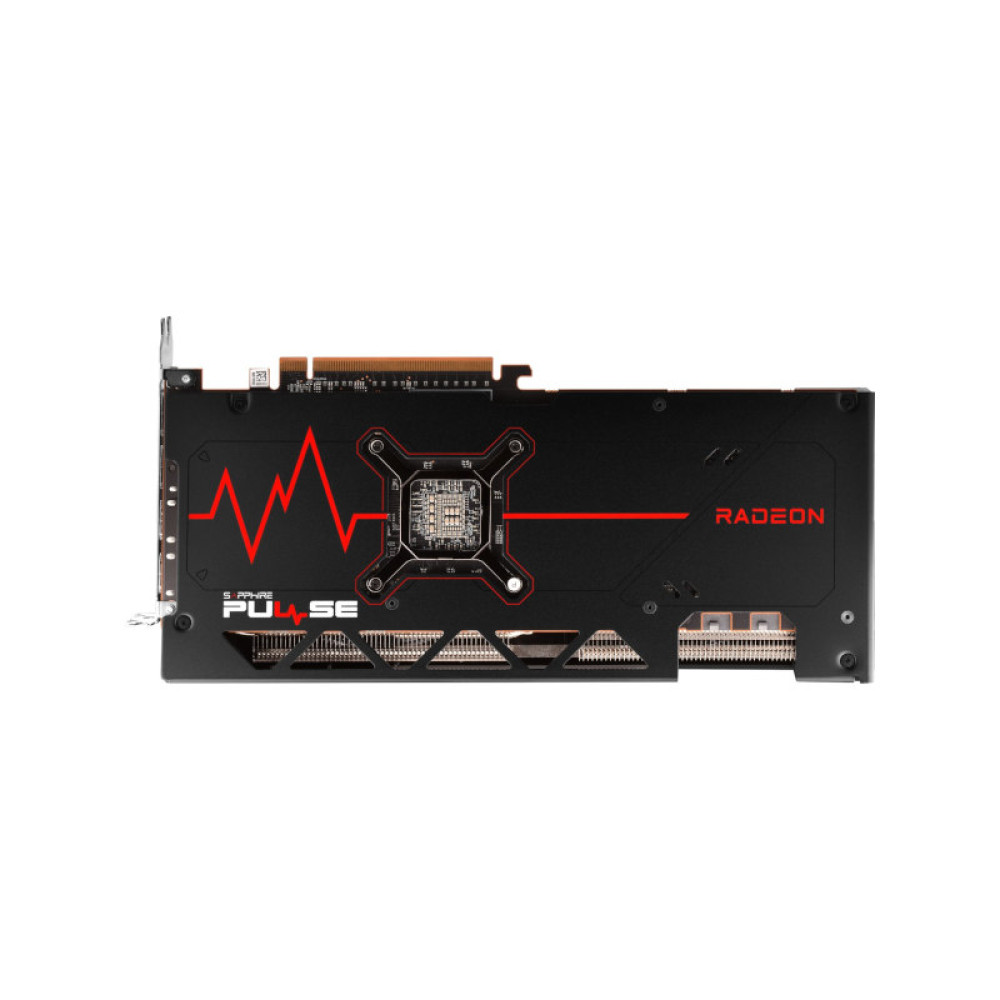

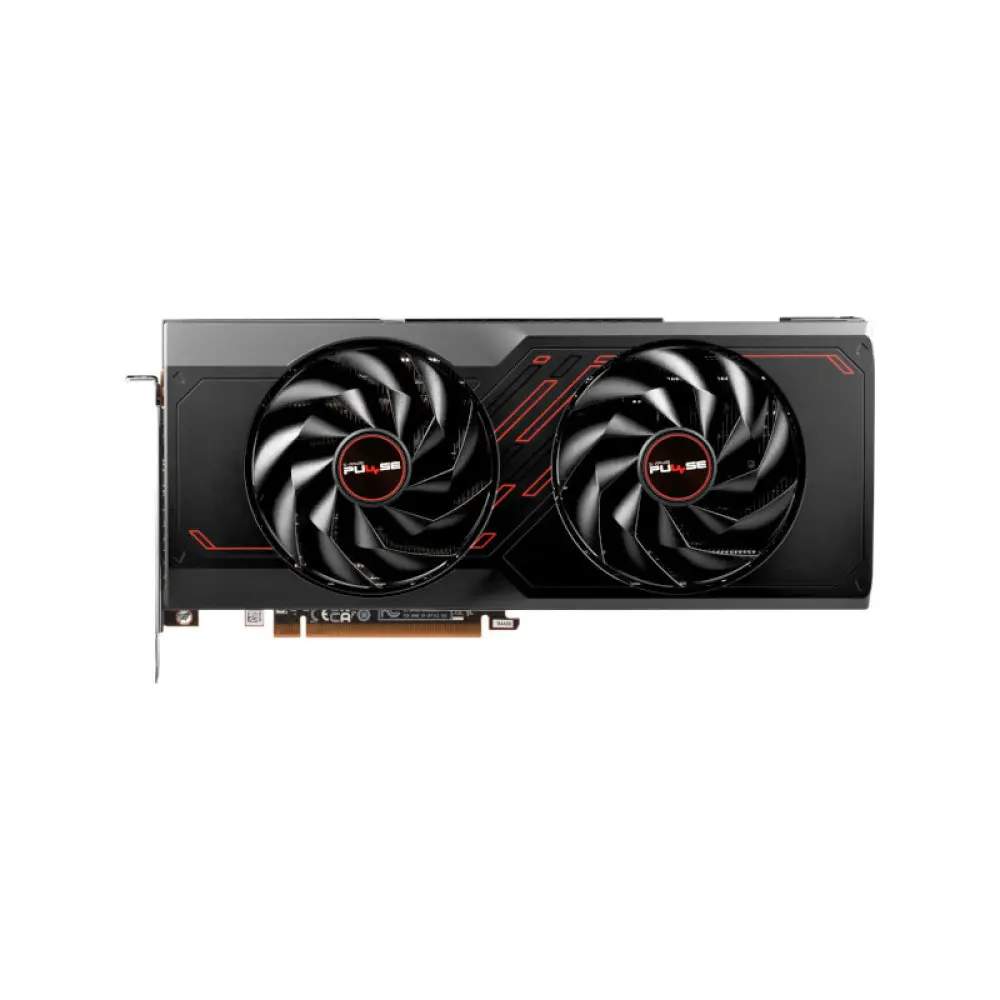

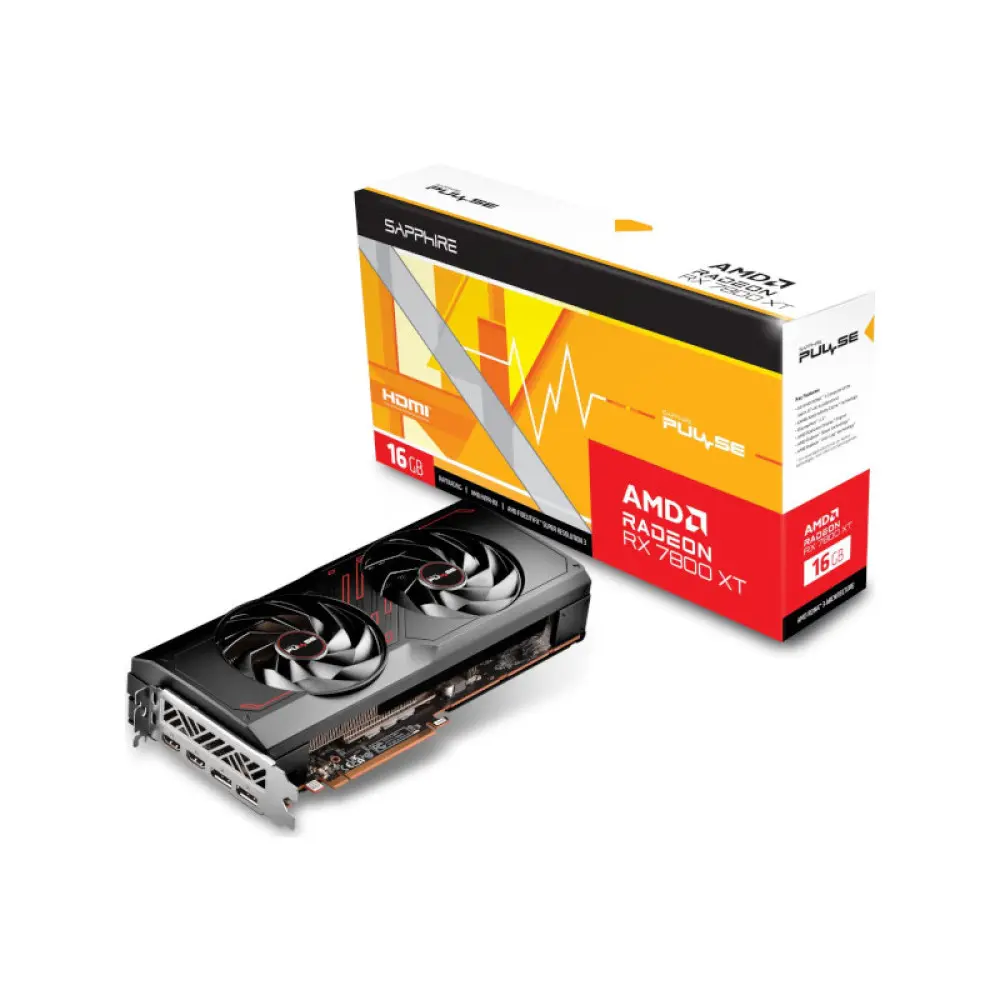

Sapphire Pulse Amd Radeon Rx 7800 Xt 16Gb Gddr6 Graphics Card (11330-02-20G)

Model No : 11330-02-20G


Inclusive of all taxes

Tags :

all india shipping
3 day replacement
secured shopping
genuine products
no hidden charges
competitive pricing


Sapphire Pulse Amd Radeon Rx 7800 Xt 16Gb Gddr6 Graphics Card (11330-02-20G)

  • GPU: Boost Clock: Up to 2430 MHz
  • GPU: Game Clock: Up to 2124 MHz
  • Memory:   16GB/256 bit DDR6. 19.5Gbps Effective
  • Stream Processors: 3840
  • RDNA™ 3 Architecture
  • Ray Accelerator: 60


GPU AMD Radeon™ RX 7800 XT Graphics Card

5nm GPU

AMD RDNA™ 3 Architecture

Engine Clock Boost Clock: Up to 2430 MHz

Game Clock: Up to 2124 MHz

Boost Clock is the maximum frequency achievable on the GPU running bursty workload. Boost clock achievability, frequency, and sustainabilty will vary based on several factors, including but not limited to: thermal conditions and variation in application and workloads.

Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP(Total Graphics Power). Actual individual game clock results may vary.

Stream Processors 3840
Compute Units 60 CU (with RT+AI Accelerators)
Infinity Cache 64MB
Ray Accelerators 60
Memory Size 16GB/256 bit GDDR6
Memory Clock 19.5 Gbps Effective
Displays Maximum 4 Displays
Resolution HDMI™: 7680×4320

DisplayPort 2.1: 7680×4320

Interface PCI-Express 4.0 x16
Output 2x HDMI

2x DisplayPort

Game Index 4K
Sapphire Features Digital Power Design

Ultra High Performance Conductive Polymer Aluminum Capacitors

Fuse Protection

High TG Copper PCB

Optimized Composite Heatpipe

Dual-X Cooling Technology

Intelligent Fan Control

Precision Fan Control

Metal Backplate

Angular Velocity Fan Blade

Dual-Ball Bearing Fans

TriXX Supported

TriXX Boost

AMD Features AMD RDNA™ 3 Architecture

60 AMD RDNA™ 3 Compute Units (with RT+AI Accelerators)

64MB AMD Infinity Cache™ Technology

DisplayPort™ 2.1Support

AMD Radiance Display™ Engine

16GB GDDR6 on 256-Bit Memory Bus

PCI® Express 4.0 ready

AMD FidelityFX™ Super Resolution technology

Microsoft® DirectX® 12 Ultimate Support

Microsoft® DirectStorage Support

Vulkan® Optimized

AMD Smart Technologies

AMD Software: Adrenalin Edition™

AMD Noise Suppression

AMD Privacy View

AMD Radeon™ Super Resolution technology

AMD Link

AMD FreeSync™ technology

Cooling 2 Fans
Form Factor 2.5 slot, ATX

Dimension: 280(L)X 128.75(W)X 52.57 (H)mm

Power Consumption 266W Total Board Power
OS Linux®, Windows® 10, and Windows 11. 64-bit  operating system required
System Requirement Minimum 700 Watt Power Supply

2 x 8-pin Power Connector.

PCI Express® based PC is required with one X16 lane graphics slot available on the motherboard.

Minimum 8GB of system memory. 16GB recommended

Warranty 2 Years
Note* Price, feature and specifications are subject to change without notice.
