Description

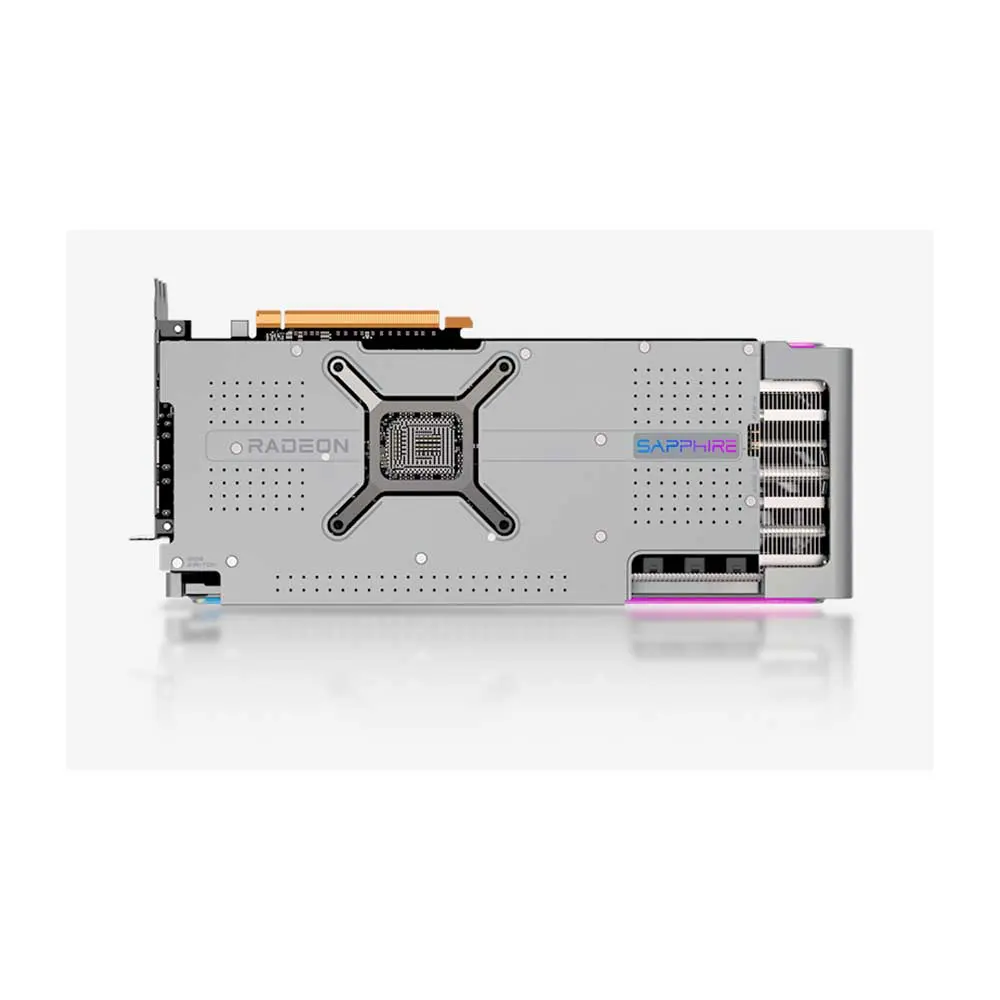

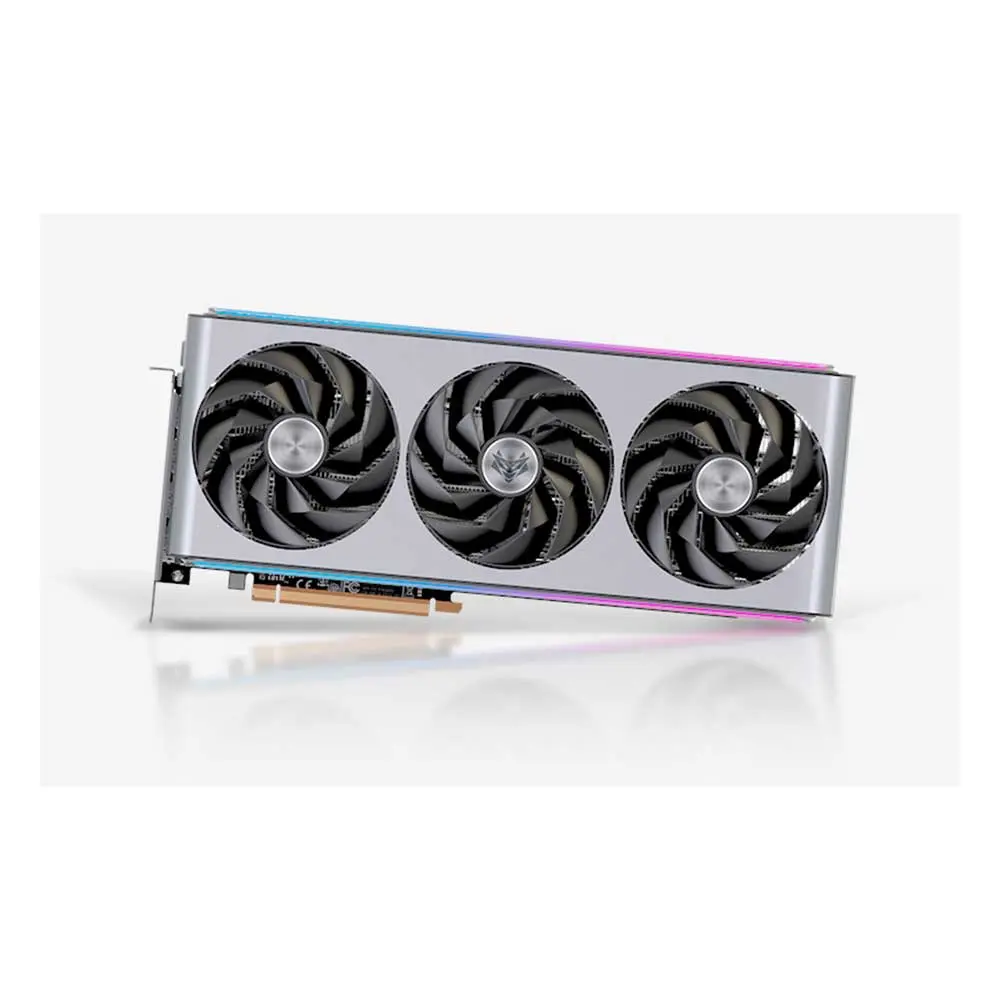

Sapphire Nitro+ Amd Radeon Rx 7900 Xt Vapor-X 20Gb Graphics Card
- GPU: Boost Clock: Up to 2560 MHz
- GPU: Game Clock: Up to 2220 MHz
- Memory: 20GB/320 bit DDR6. 20 Gbps Effective
- Stream Processors: 5376
- RDNA™ 3 Architecture
- Ray Accelerator: 84
GPU | AMD Radeon™ RX 7900 XT Graphics Card 5nm GPU AMD RDNA™ 3 Architecture |
Engine Clock | Boost Clock: Up to 2560 MHz Game Clock: Up to 2220MHzBoost Clock is the maximum frequency achievable on the GPU running bursty workload. Boost clock achievability, frequency, and sustainabilty will vary based on several factors, including but not limited to: thermal conditions and variation in application and workloads. Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP(Total Graphics Power). Actual individual game clock results may vary. |
Stream Processors | 5376 |
Compute Units | 84 CU (with RT+AI Accelerators) |
Infinity Cache | 80MB |
Ray Accelerators | 84 |
Memory Size / Bus | 20GB/320 bit GDDR6 |
Memory Clock | 20 Gbps Effective |
Displays | Maximum 4 Displays |
Resolution | HDMI™: 7680×4320 DisplayPort 2.1: 7680×4320 |
Interface | PCI-Express 4.0 x16 |
Output | 2x HDMI 2x DisplayPort |
BIOS Support | Dual UEFI |
Game Index | 4K |
Sapphire Features | Dual BIOS TriXX Software Switch Premium Digital Power Design Ultra High Performance Conductive Polymer Aluminum Capacitors Fuse Protection Tri-X Cooling Technology Vapor-X Cooling High TG Copper PCB Optimized Composite Heatpipe Intelligent Fan Control Precision Fan Control Metal Backplate with ARGB Dual ARGB Light Bar Two-Ball Bearing Fans Angular Velocity Fan Blade Assistive System Fan Control Die Casted Aluminum-Magnesium Alloy Frame Frontplate Heatsink for VRM Wave Fin Design V Shape Fin Design for GPU Cooling TriXX Supported Fan Check Fan Quick Connect TriXX Boost NITRO Glow External RGB LED MB Synchronization |
Accessories Bundled | Graphics Card Supporter ARGB Extension Cable |
AMD Features | AMD RDNA™ 3 Architecture 84 AMD RDNA™ 3 Compute Units (with RT+AI Accelerators) 80MB AMD Infinity Cache™ Technology DisplayPort™ 2.1 Support AMD Radiance Display™ Engine 20GB GDDR6 on 320-Bit Memory Bus PCI® Express 4.0 ready AMD FidelityFX™ Super Resolution technology Microsoft® DirectX® 12 Ultimate Support Microsoft® DirectStorage Support Vulkan® Optimized AMD Smart Technologies AMD Software: Adrenalin Edition™ AMD Noise Suppression AMD Privacy View AMD Radeon™ Super Resolution technology AMD Link AMD FreeSync™ Technology |
Cooler Type | 3 Fans
Vapor-X Cooling |
Form Factor | 3.5 slot, ATX Dimension: 320(L)X 135.75(W)X 71.6 (H)mm |
Power Consumption | 368W Total Board Power |
OS | Linux®, Windows® 10, and Windows 11. 64-bit operating system required |
System Requirement | Minimum 750 Watt Power Supply 3 x 8-pin Power Connector. PCI Express® based PC is required with one X16 lane graphics slot available on the motherboard. Minimum 8GB of system memory. 16GB recommended. |
Warranty | 3 Years |
Note** | **Prices, Specifications & Features are subject to change without notice |
