Description

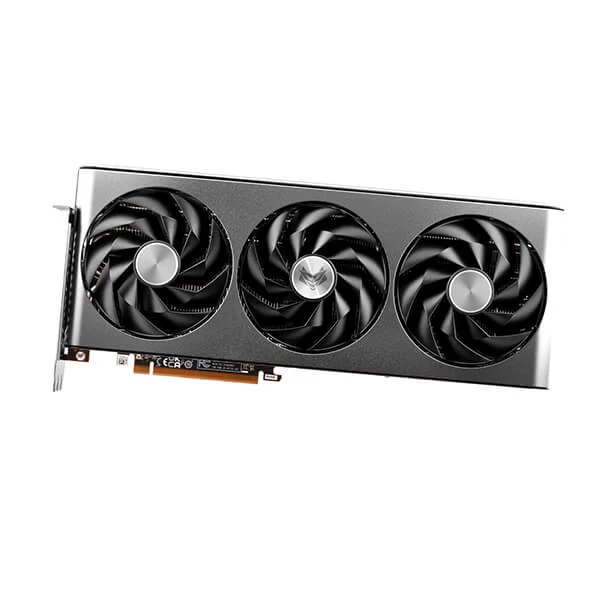

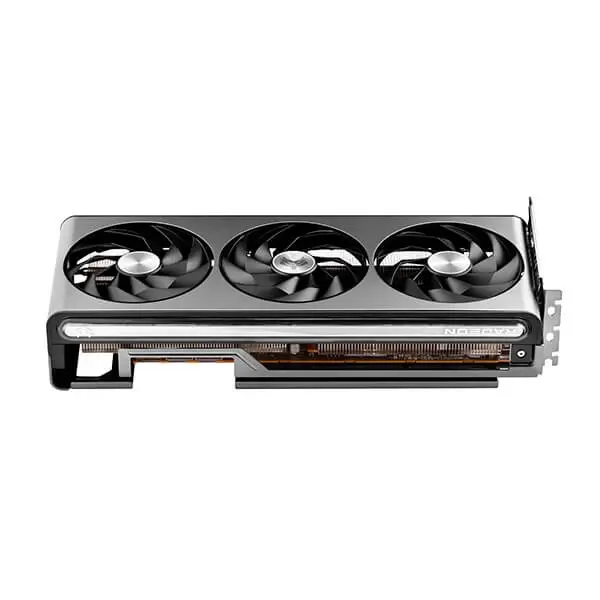

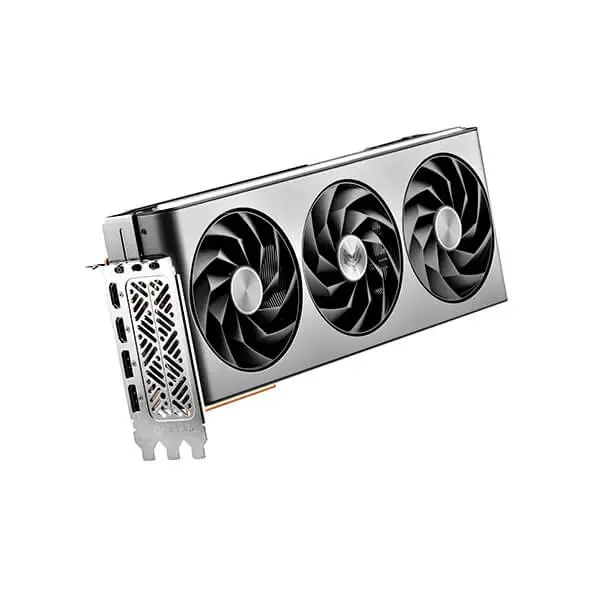

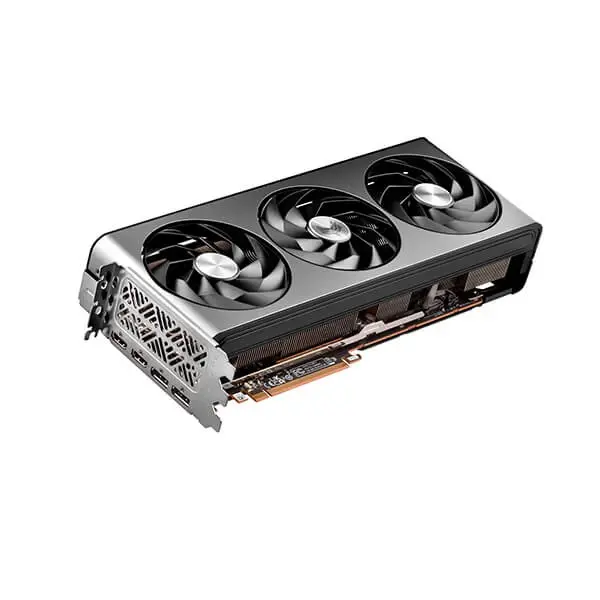

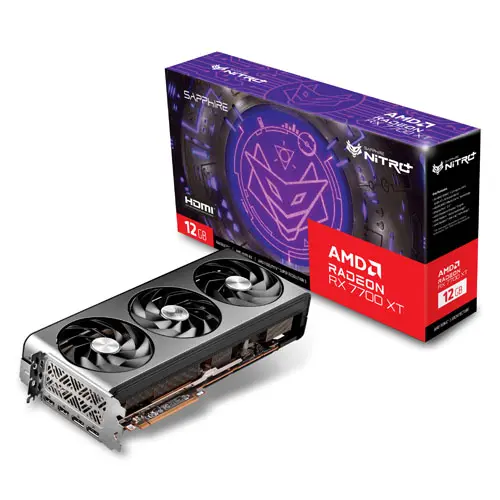

Sapphire Nitro+ Amd Radeon Rx 7700 Xt Oc 12Gb Graphics Card (11335-02-20G)
Experience a superior and beautifully crafted frame on the Sapphire Nitro+ AMD Radeon RX 7700 XT Graphics Card with a Cold Rolled Steel Frame that fortifies the shroud structure and durability while encasing the sides of the PCB for a strong encasement alongside the All Metal Backplate.
- GPU: Boost Clock: Up to 2599 MHz
- GPU: Game Clock: Up to 2276 MHz
- Memory: 12GB/192 bit DDR6. 18 Gbps Effective
- Stream Processors: 3456
- RDNA™ 3 Architecture
- Ray Accelerator: 54
Overview :
Software BIOS Switch
Switch from performance mode to silent mode or back using our TriXX software for a quick and easy switch between your dual BIOS modes.
WAVE Fin Design & V-Shape Fin Design for GPU cooling
The WAVE Fin Design reduces friction when the wind goes into the fin module resulting in a reduction of the wind cut noise.
The V-shape fin design on top of the GPU accelerates and centralizes the air flow around the GPU to dissipate heat efficiently.
Digital Power Design
SAPPHIRE NITRO+ AMD Radeon™ RX 7000 Series are designed with digital power which provides accurate power control and excellent power efficiency
High TG Copper PCB
The GPU is mounted on to the high-density 14 layer 2oz Copper and high TG PCB to match the rapid speed, high current and increased power requirement of the GPU and memory to guarantee high stability of the PCB during operation.

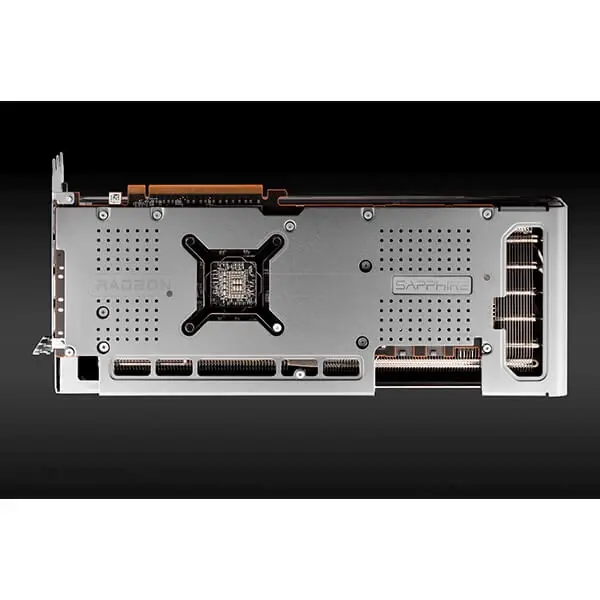

Tough Metal Backplate
The all-aluminum backplate provides additional rigidity that guarantees nothing bends and dust stays out. It also helps cool your card by increasing heat dissipation.
Dedicated VRM Cooling
Dedicated VRM cooling module to create optimal heat dissipation for peak airflow and cooling performance.
Angular Velocity Fan Blade
The Angular Velocity Fan Blade provides a double layer of downward air pressure which alongside the air pressure on the outer ring of the Axial fan, results in up to 44% more downward air pressure and up to 19% more airflow for a quieter and cooler operation when compared to the previous generations.
Model | 11335-02-20G |
Chipset | AMD Radeon |
GPU | RX 7700 XT |
PCI Express | 4.0 |
GPU Boost Clock | 2599 Mhz |
Memory Clock | 18 Gbps |
Memory Size | 12 GB |
Memory Interface | 192 Bit |
Memory Type | GDDR6 |
Direct X Support | 12 Ultimate |
Open GL | 4.6 |
Ports |
|
Resolution | 7680 x 4320 |
Cooler | Triple Fan |
Software | Driver & Software |
Package Contents | Graphics Card, User Manual |
Power Connectors | 2 x 8 Pin |
Warranty | 3 Years |
Note** | ***Features, Price and Specifications are subject to change without notice. |
